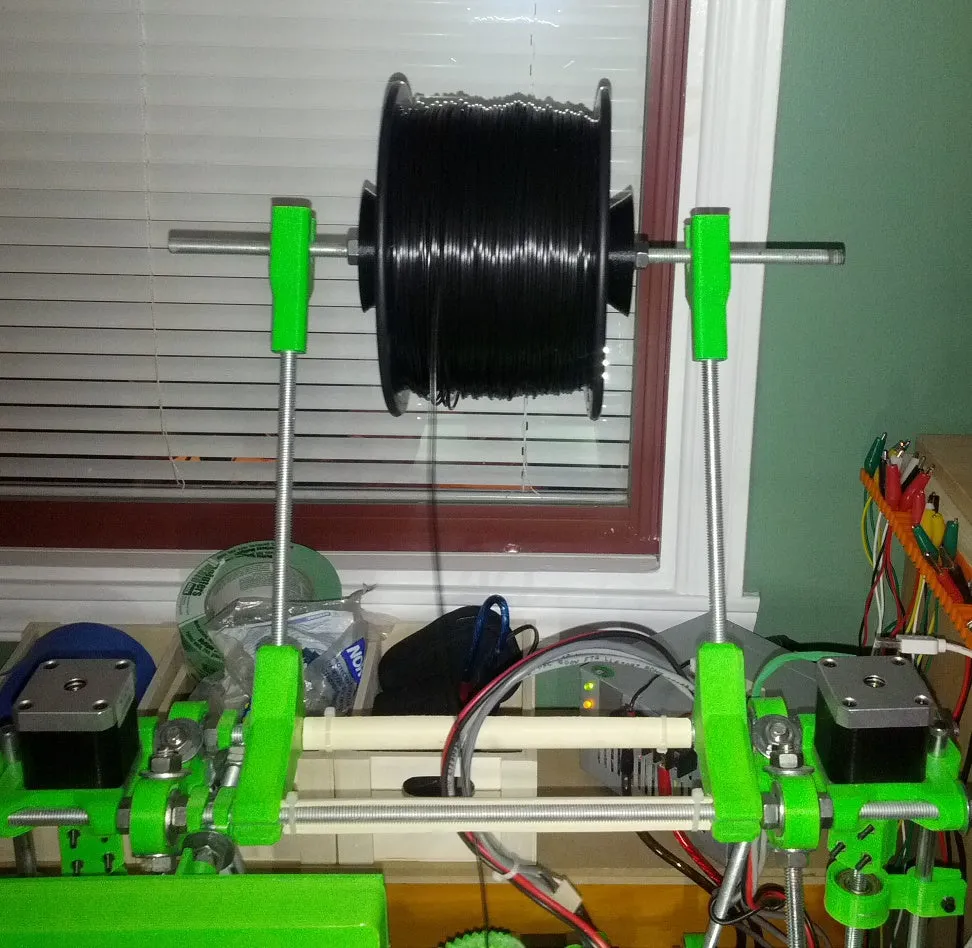

Spool Mount Meddley V2 (Bearing version)

This is the second revision of the spool mount I am using for my Prusa Mendel. In this version, I am no longer using the top parts of http://thingiverse.com/thing:32320. I have designed my own top parts with bearings. This version still uses the bottom part of http://thingiverse.com/thing:30742 .

Instructions

Print two of each:

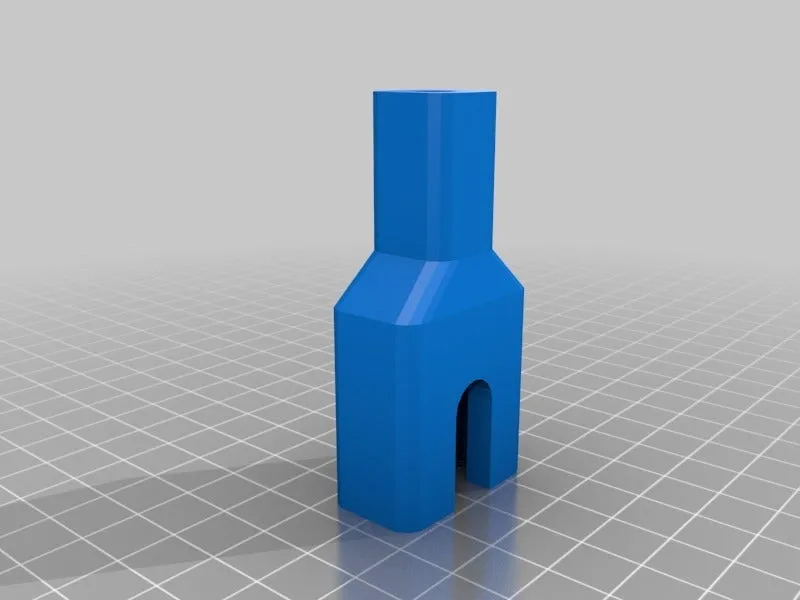

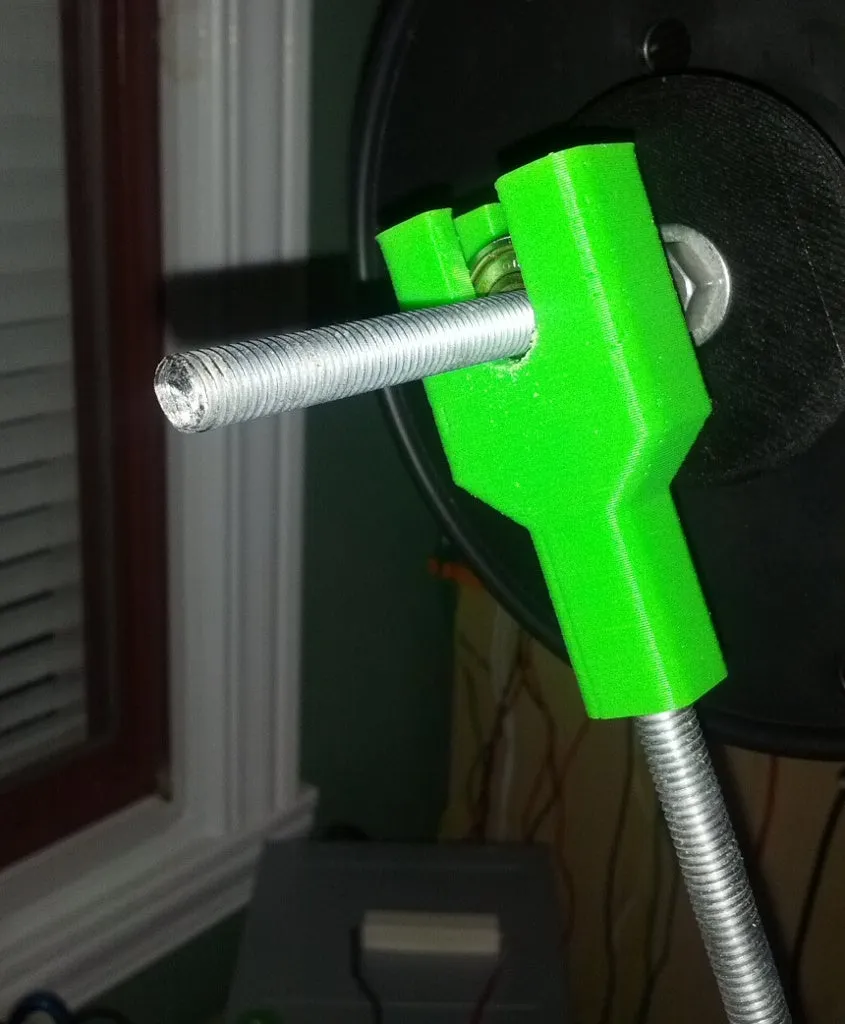

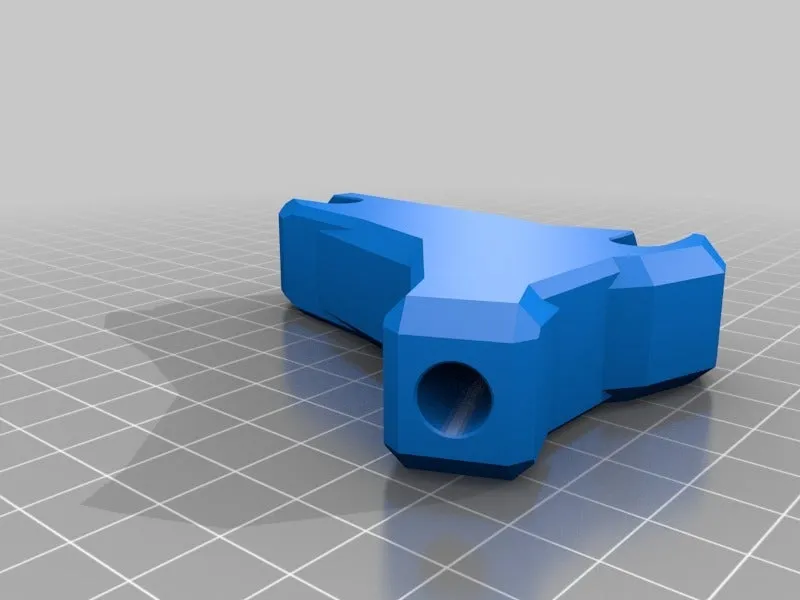

• Bearing Spool Holder Top Brackets

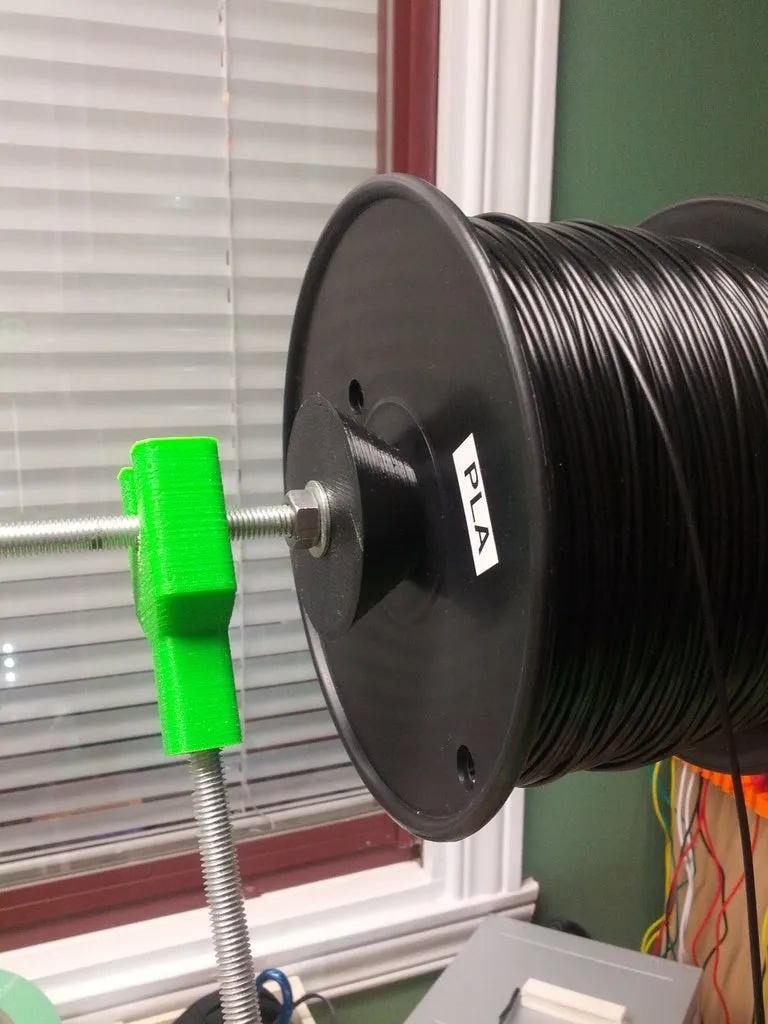

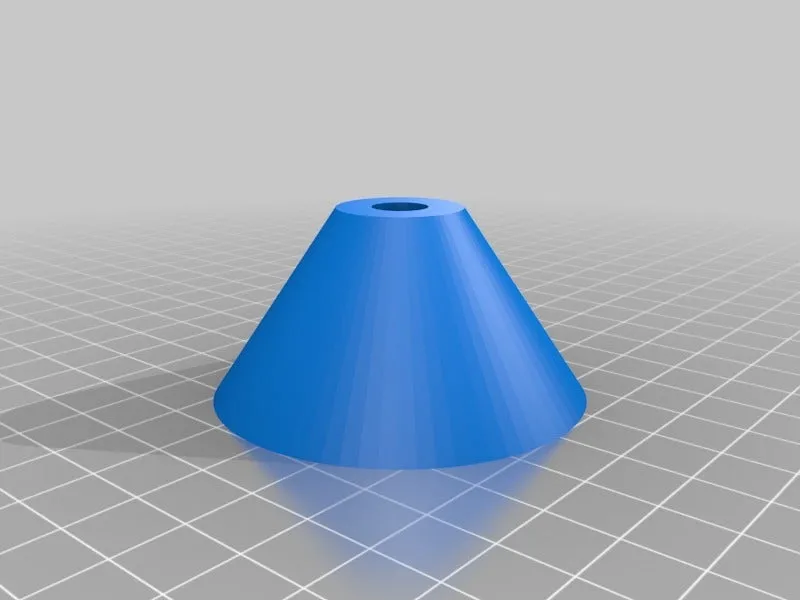

• Universal Spool Bushing

Spool Vertical Mount (http://thingiverse.com/thing:30742)
You also need:

2 x threaded rods of 8 mm x 20 cm and

• 1 x threaded rod of 8 mm x 28 cm
• 2 x bearings 608ZZ (or a plastic model)
• 2 x 8mm washers and nuts (Wing nuts are better)

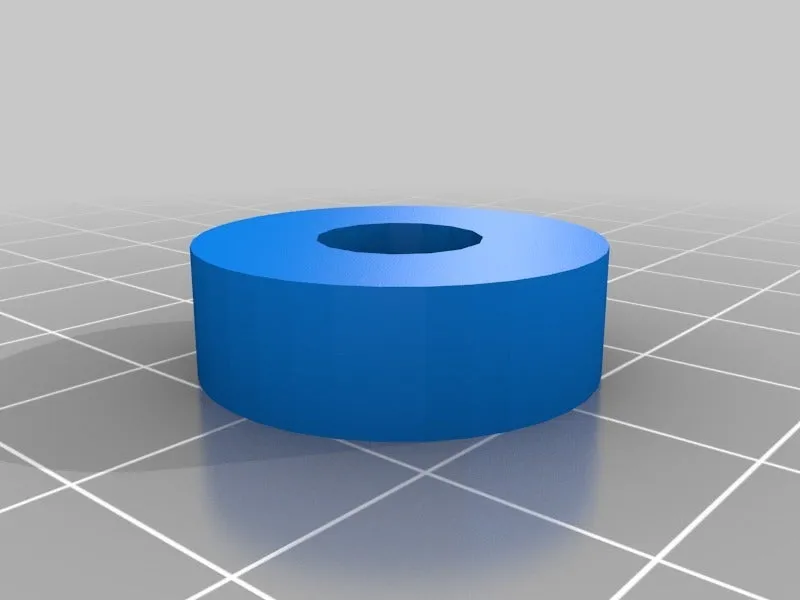

  Sometimes, the spool tend to unwind itself when using "real" 608zz bearings. Instead, you can use plastic replacement (608zz Bearing Model)
