A1 mini Extendable Build Plate Holder
Print Profile(3)
Description
Since acquiring a 3D printer, I haven't printed many models, primarily focusing on various tools for the A1 mini. Recently, after purchasing a printing plate, I sought a suitable storage rack, but finding none, I spent several days learning SketchUp to design my own. During the design process, I considered adding expandability, such as incorporating storage for the print spray I also purchased. After exploring numerous designs and conducting print tests, I finalized the initial design. This design boasts the following advantages:

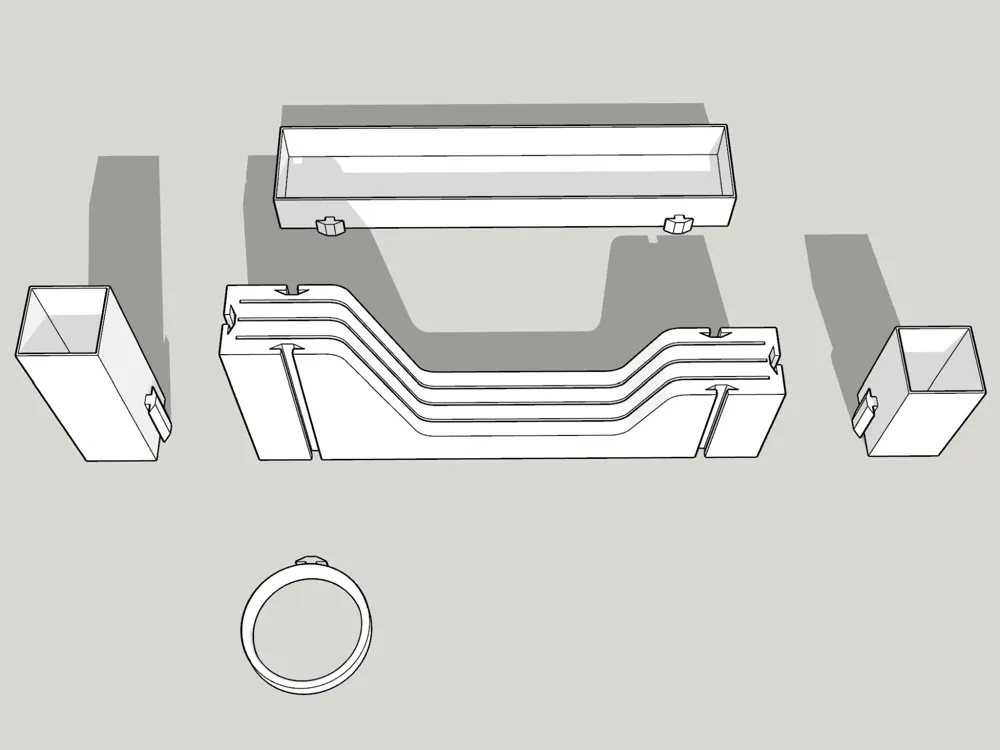

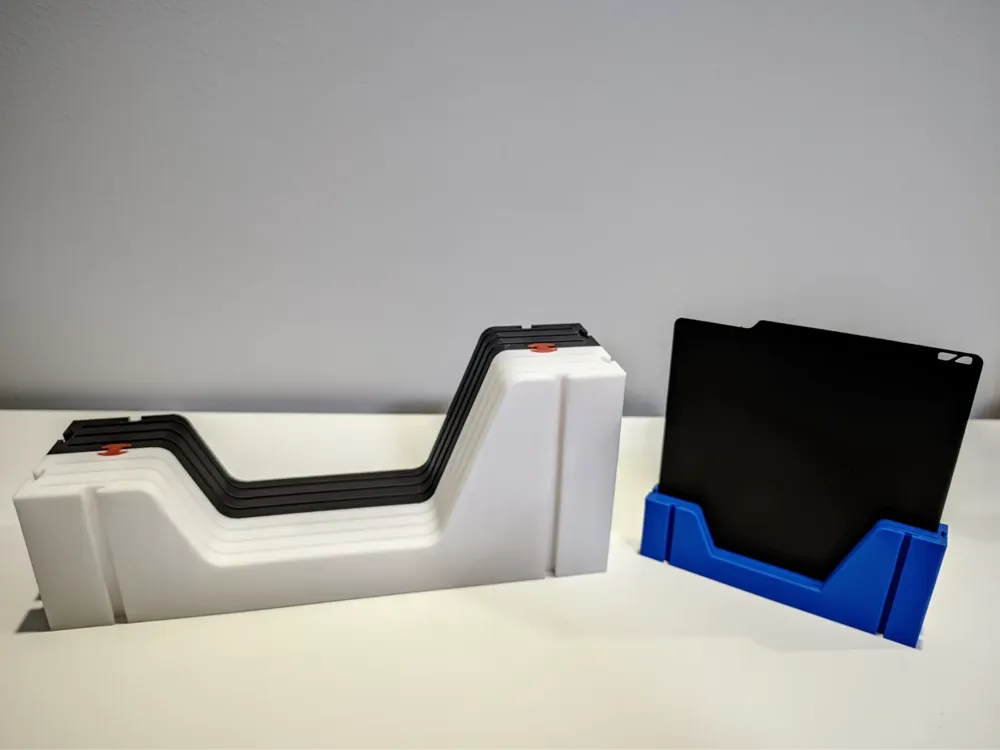

- Infinitely expandable storage capacity for printing plates. By printing several base units and connectors, expansion is possible in four directions.

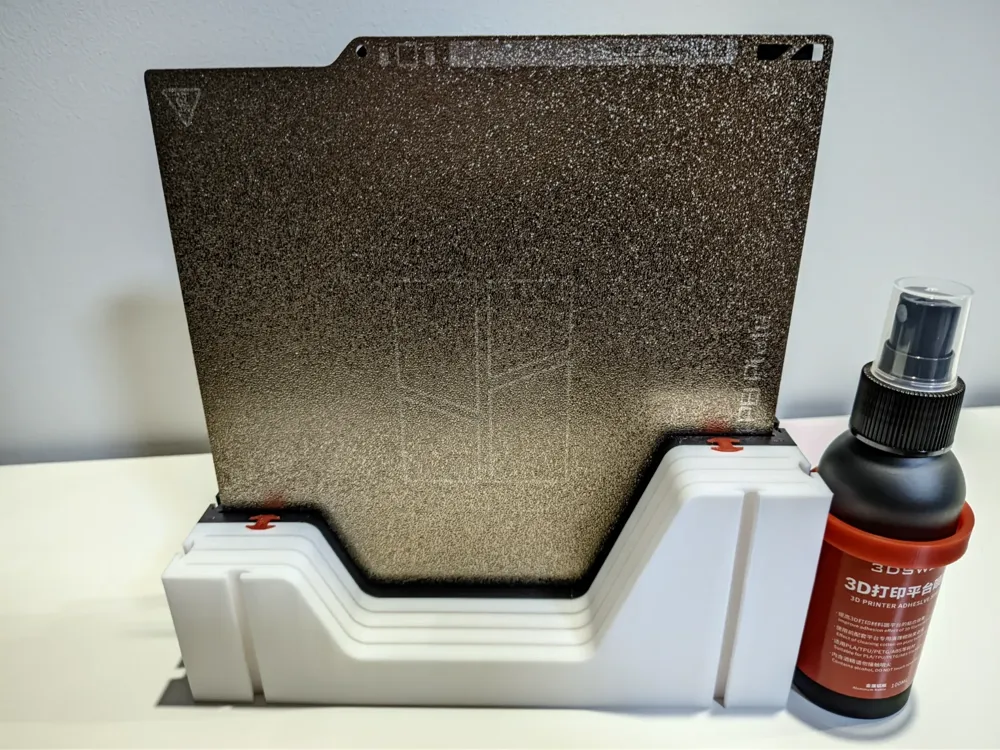

- Expandable storage functionality. Each base unit features six rails, facilitating the design and attachment of various storage components.
Two recesses are incorporated into the base for applying 1mm-thick nano adhesive tape, ensuring secure adhesion to the desktop.

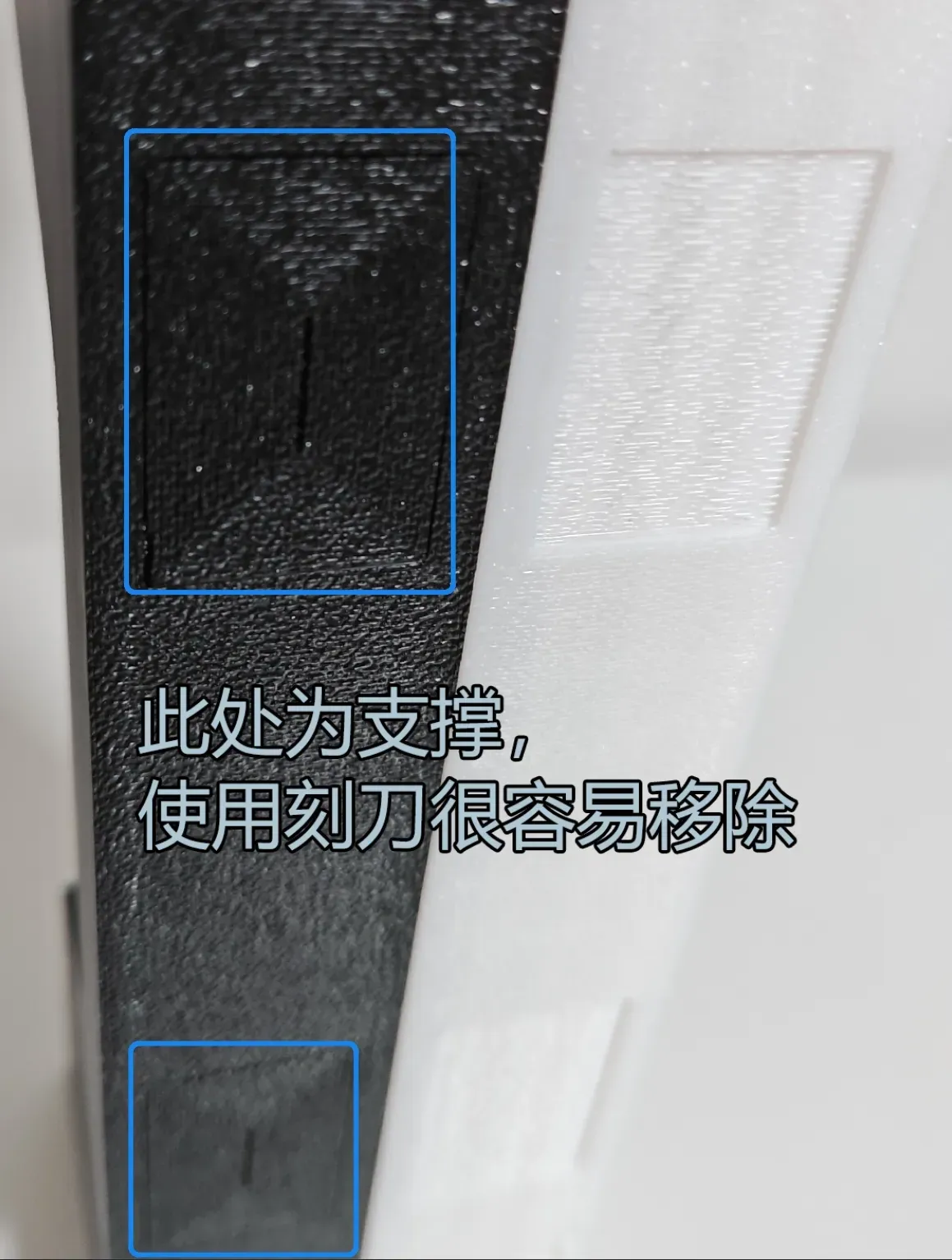

(The area within the box in the image below can be easily removed using a craft knife)
- Material usage: 105g, printing time: 3 hours and 10 minutes (requires custom material configuration; printed using Sanlu PLA 2.0 filament).
Boost Me (for free)
If you find this useful after printing, please consider boosting me^⦁᎑-^ ੭
