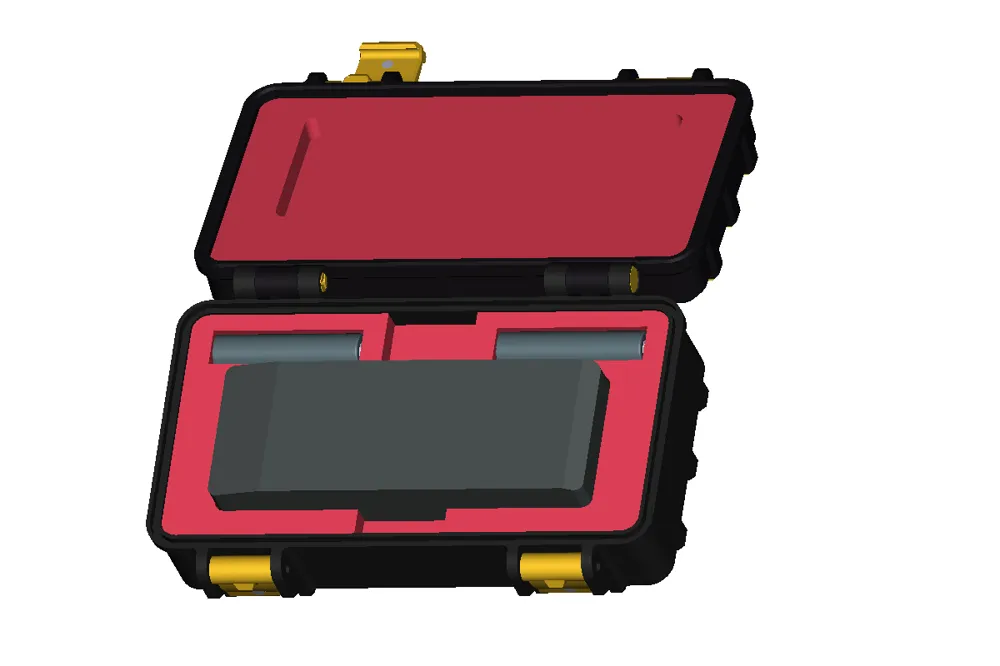

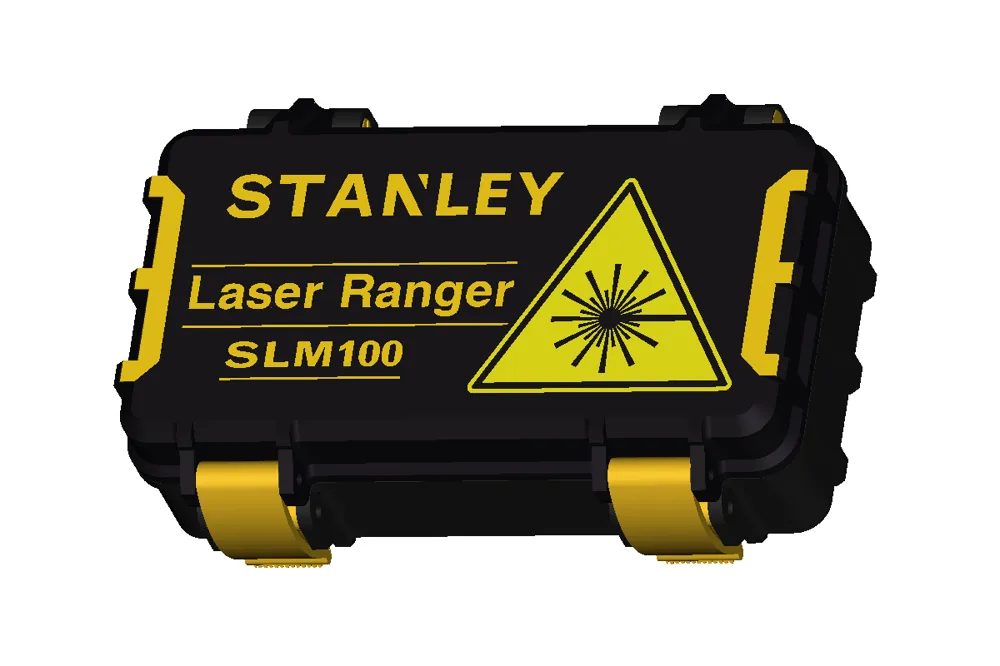

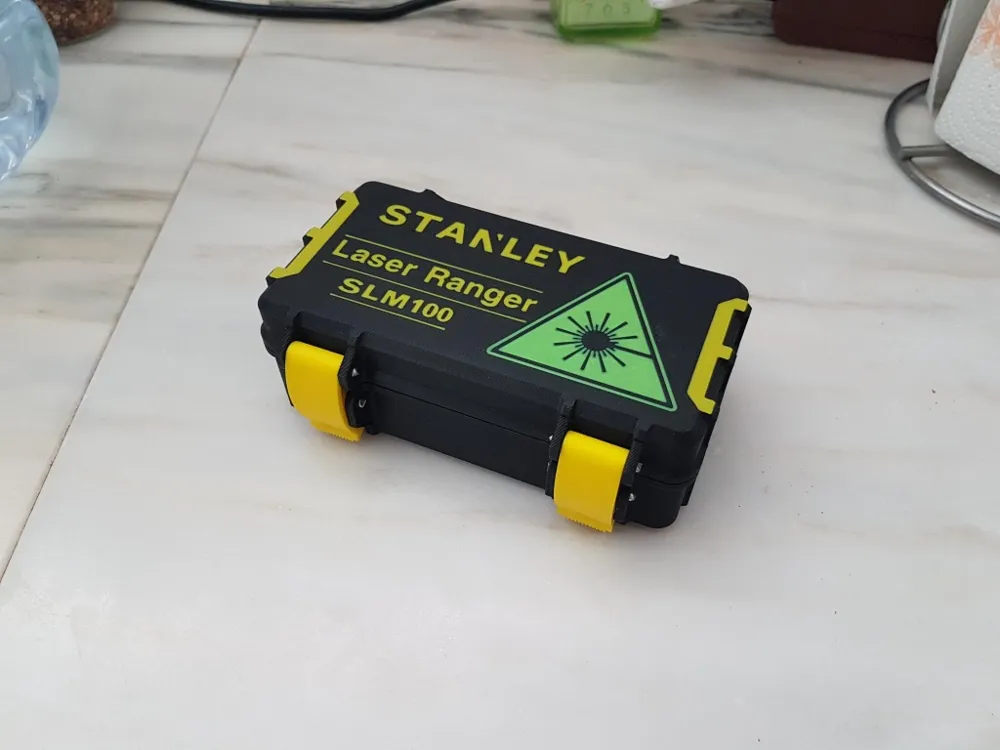

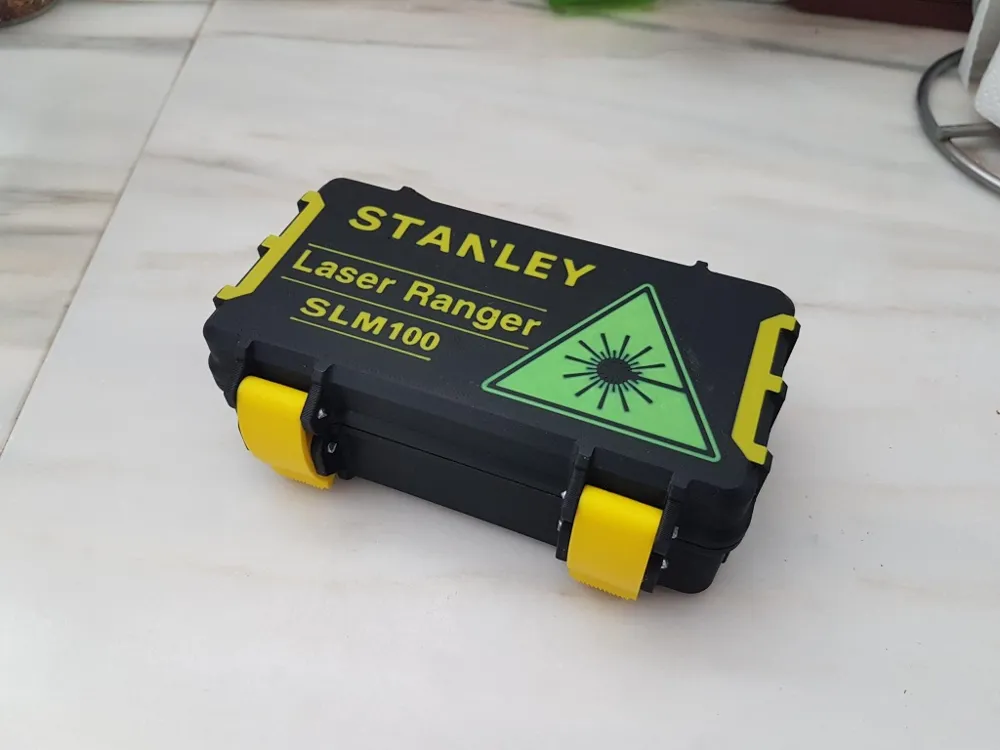

Rugged Box for Stanley Laser Distance Measurer
Print Profile(1)
Description
This rugged box is inspired by earlier versions:
https://www.printables.com/model/258431-rugged-box-parametric
https://www.printables.com/model/39729-tool-box-parametric
Assembly is very simple and self explanatory.

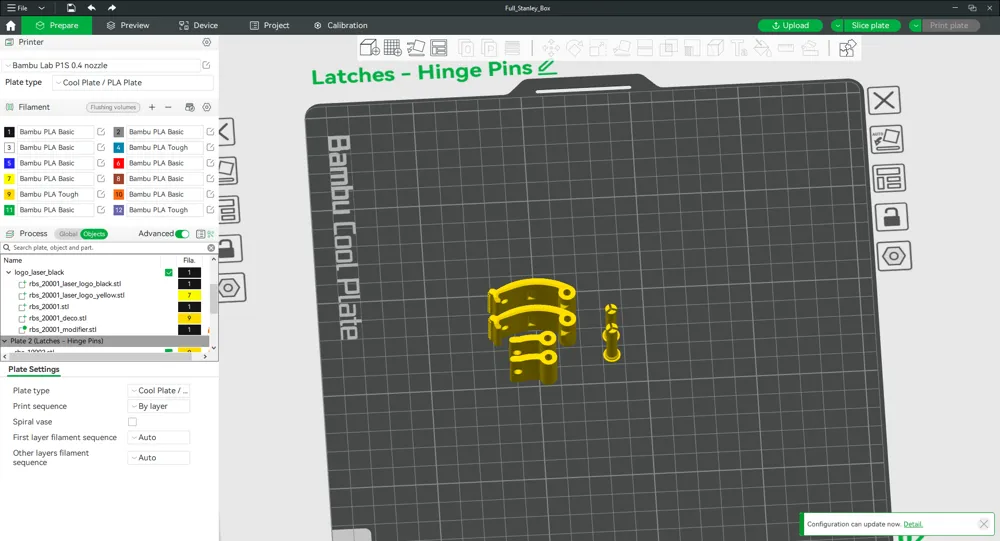

Some changes I made from the original version(-s) are to the closing/latching mechanism, adding 4 small (Ø4x2mm) magnets for easier handling, as well as using 3D printed hinge pins and simple steel pins cut from Ø3mm steel garden fence wire.
The magnets need to be inserted (use a drop of CA-glue if fitment is too loose) such that poles are opposite, i.e. attracting the latch and lip in the assembled state.
Also I'm using Ø2mm rubber string from a roll I bought a while ago as a seal.

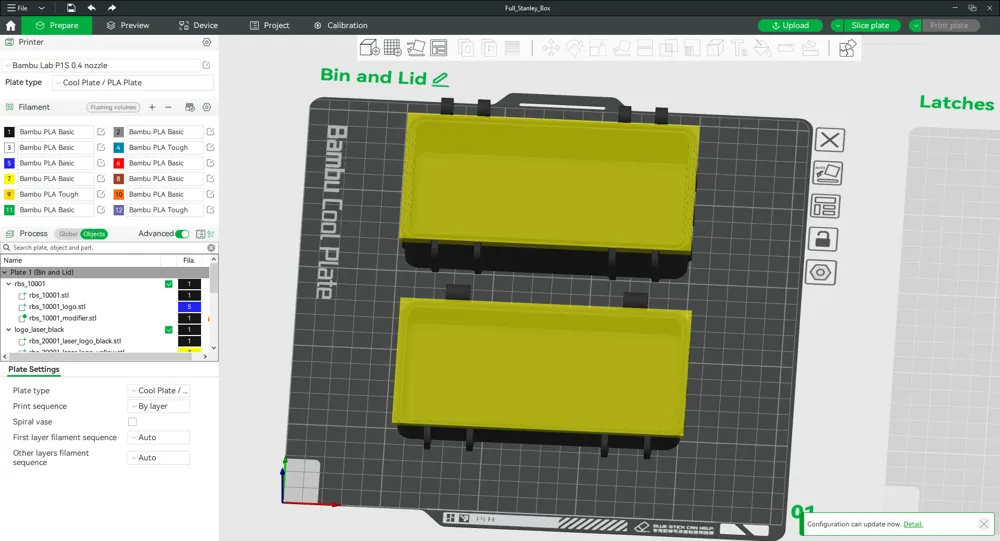

I've added modifiers to the top surfaces of both the bin and lid to ensure a tight seal.
If you prefer a one-color version just 'boolean' the appropriate parts together in the slicer.

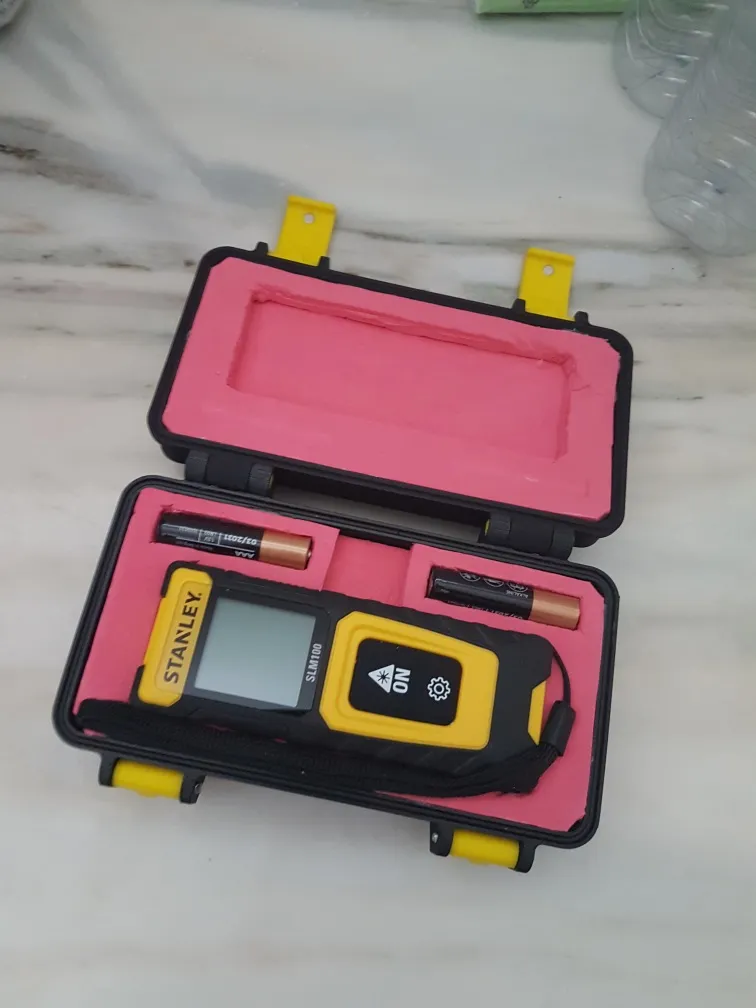

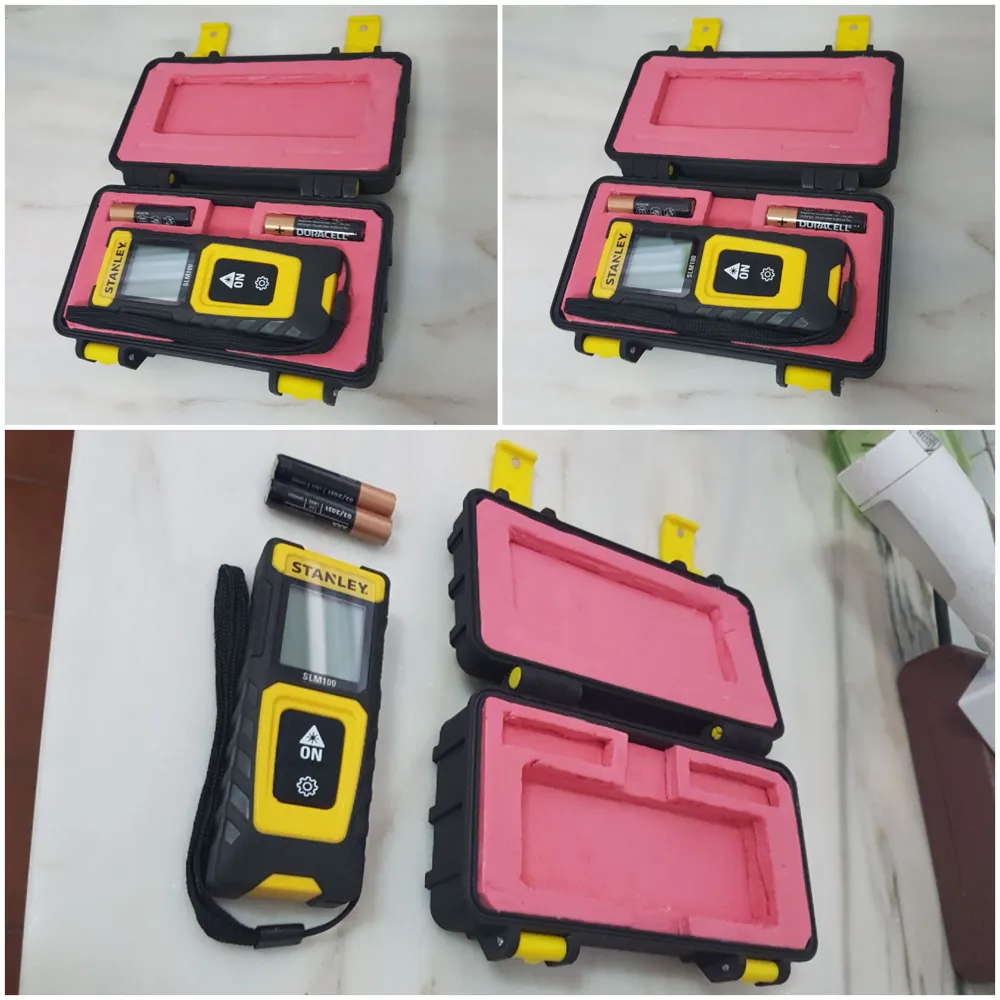

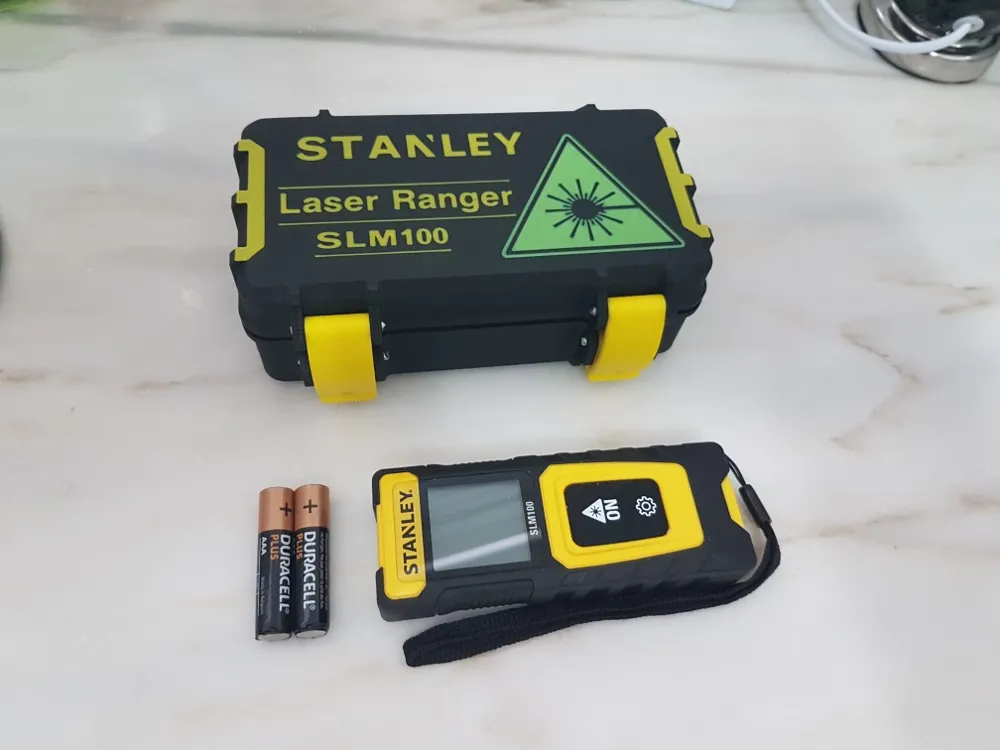

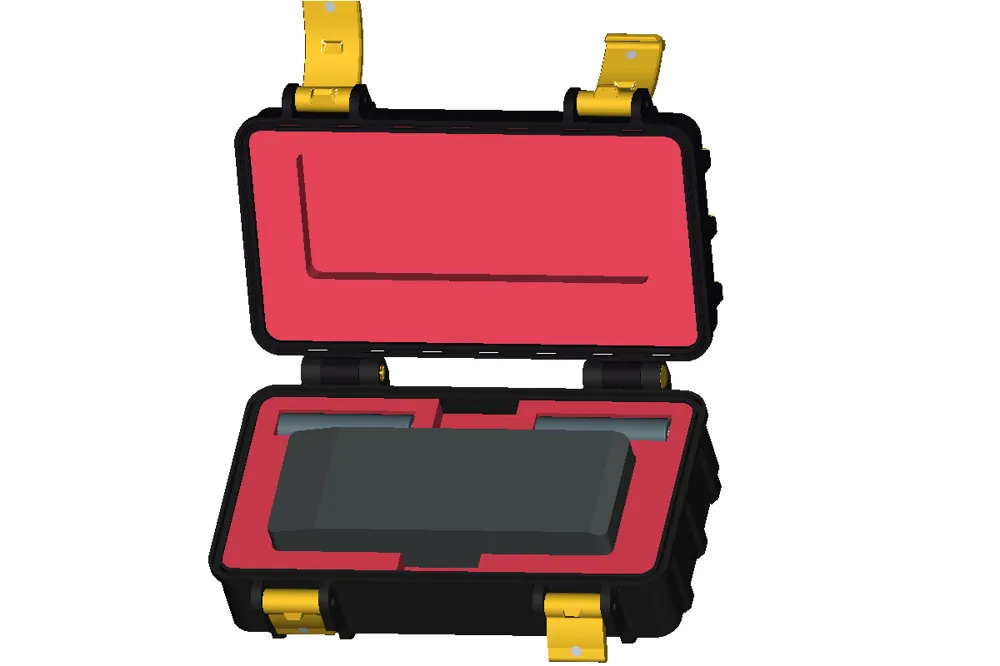

Finally, I've added a couple PDF-files (A4-format) as 1:1 cut-out templates to fit a Stanley Laser Distance Measurer SLM100 plus two extra AAA batteries.

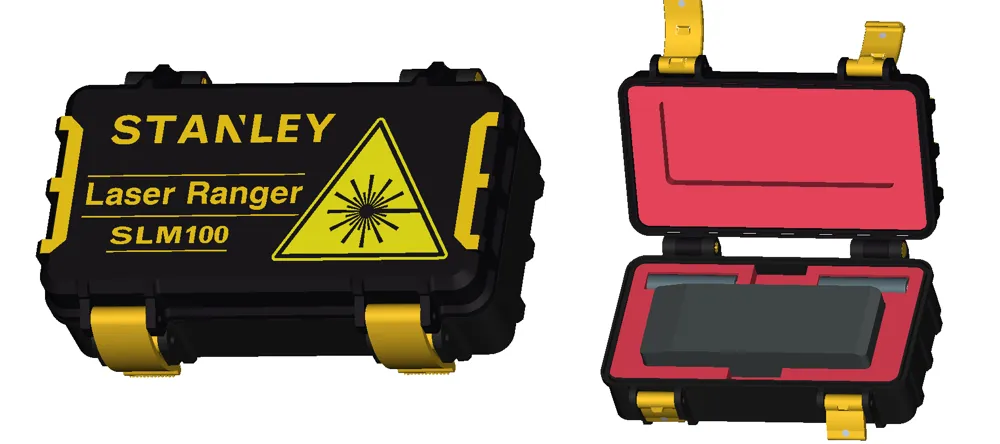

As always, any 3D images are of the cross-eyed type.
Link: https://en.wikipedia.org/wiki/Stereoscopy
As always, any 3D images are of the cross-eyed type.
Link: https://en.wikipedia.org/wiki/Stereoscopy
