Bosch GKS55GCE+ improved depth adjustment lever
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 15% infill
Designer
57 min
1 plate
Open in Bambu Studio
Boost
6
20
0
0
8
8
Released
Bill of Materials
List other parts
- Threaded_insert_M3 x 1: https://amzn.eu/d/32vccFB
- Threaded_insert_M6 x 1: https://amzn.eu/d/4pAL4nH
- Screw_M3x12_or_M3x14 x 1:
Description

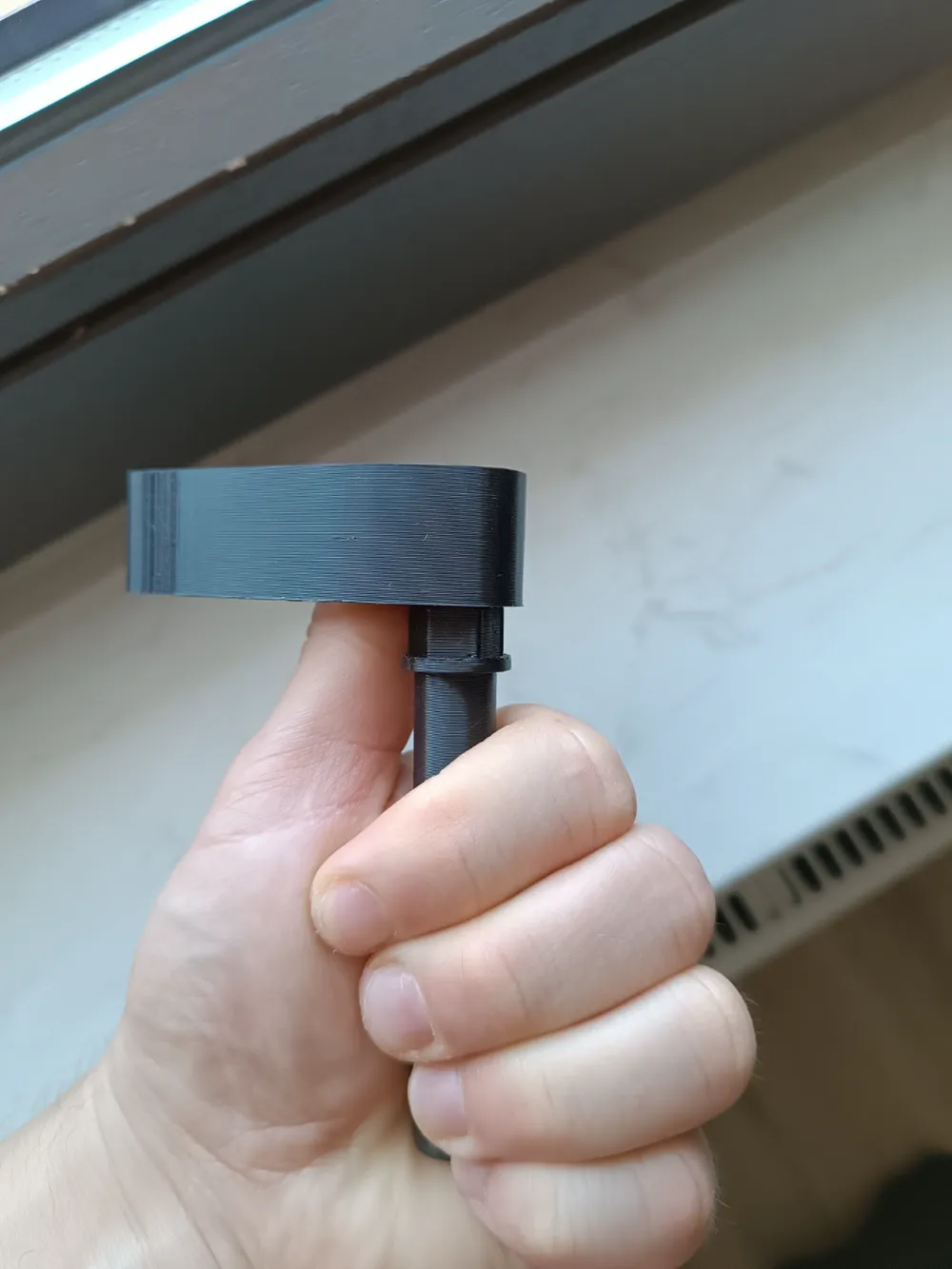

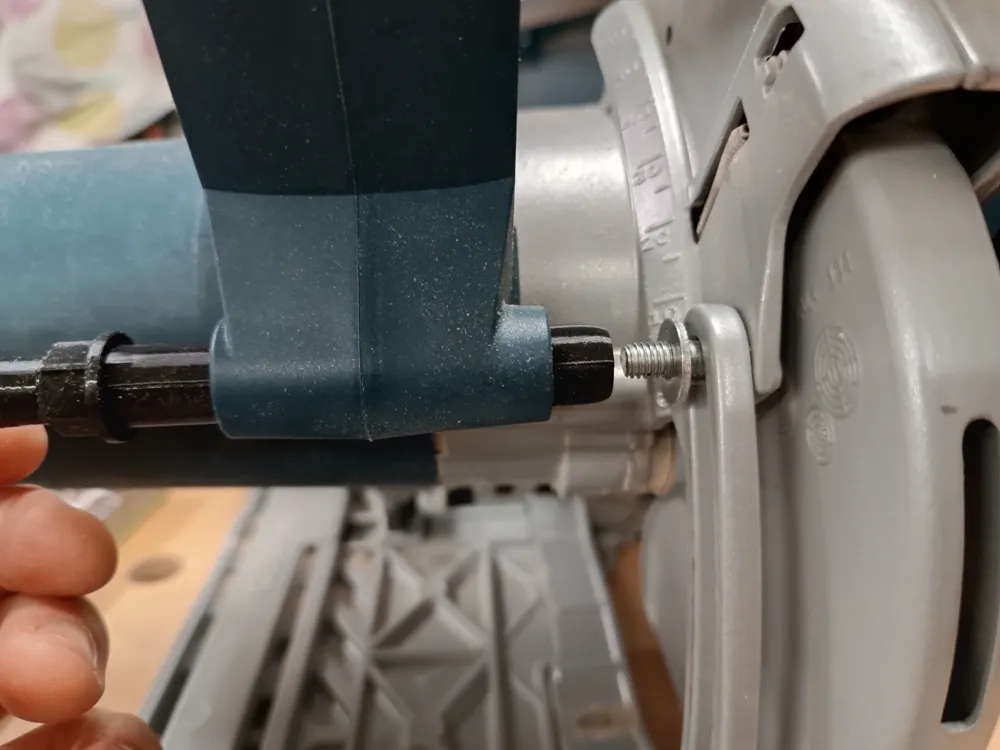

Since the depth adjustment lever of my Bosch GKS55GCE saw was loose and the spring jumped out nearly every time, I decided to rework this.

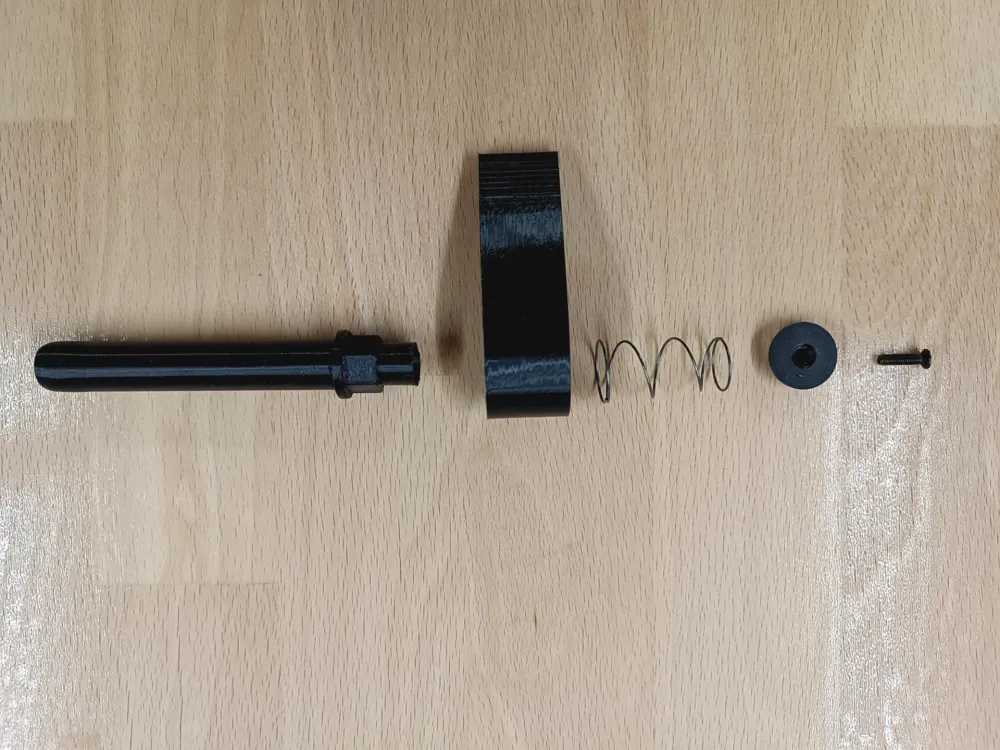

You can keep the orignial washer (77 of explosion drawing, 2 916 021 013) and the spring (83 - 1 619 X01 792).
My parts replace 80 (2 610 924 368), 82 (1 619 P07 620) and 84 (1 619 P17 212) of the drawing.
You will need some non 3d printed parts:

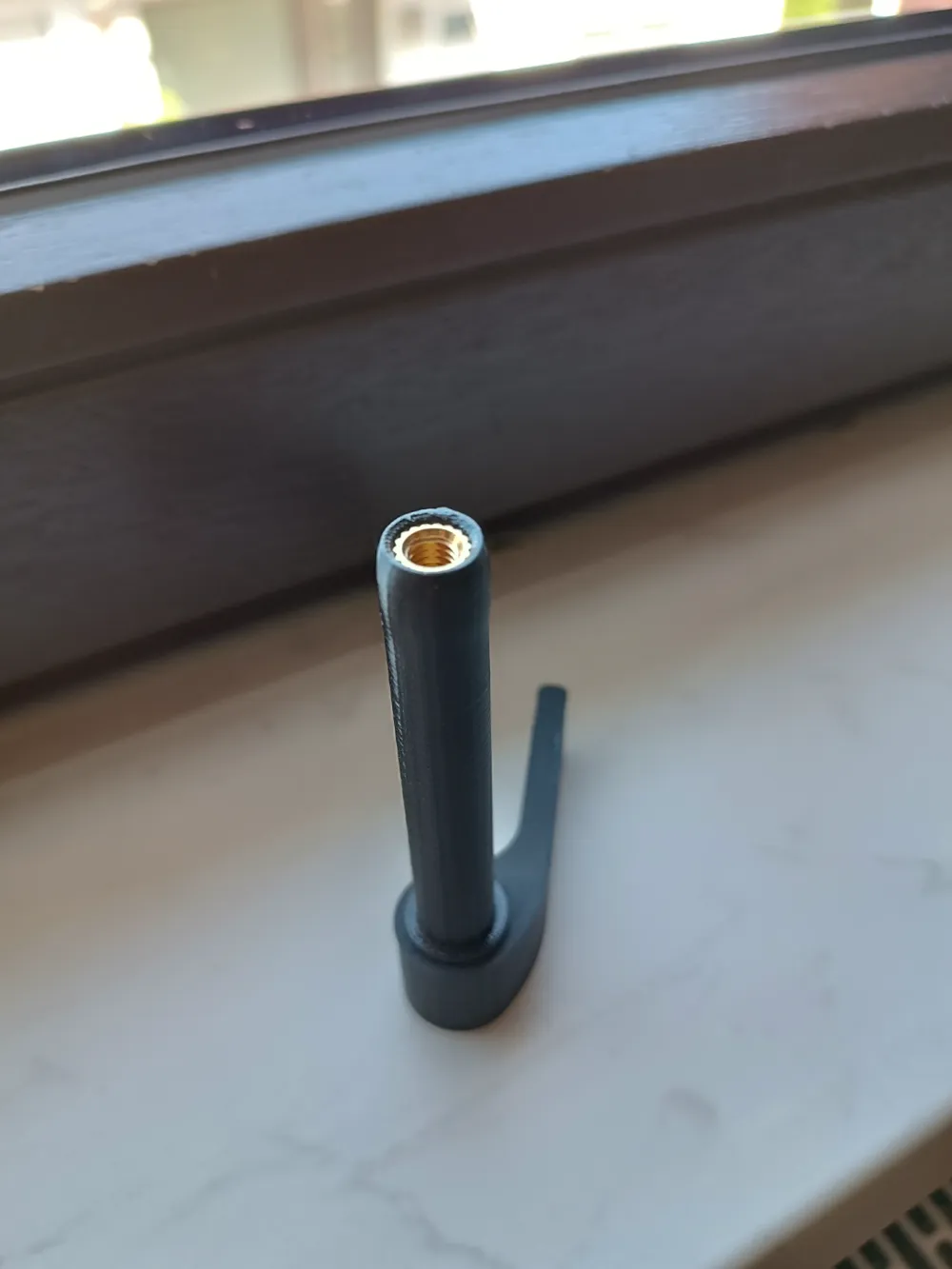

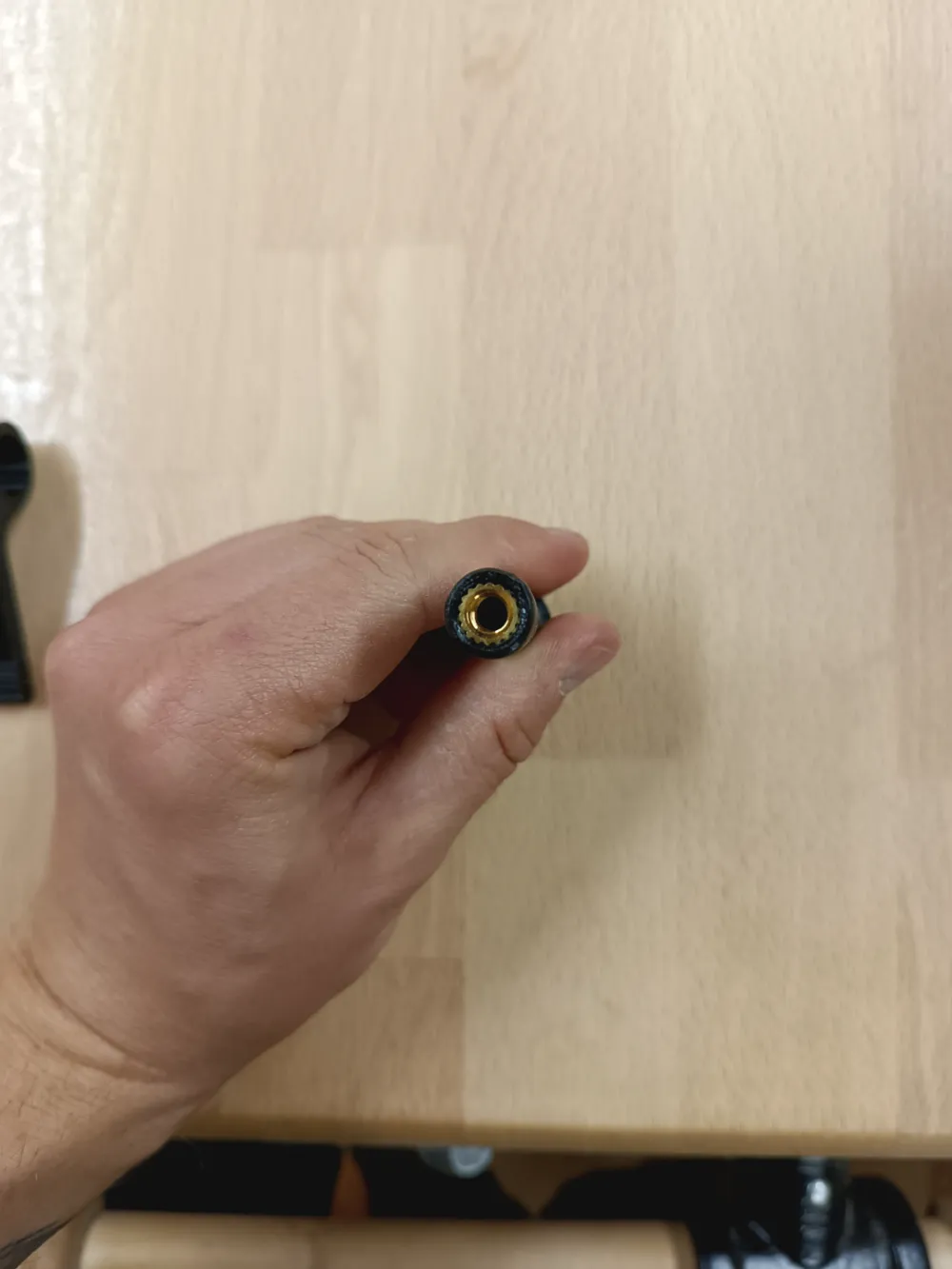

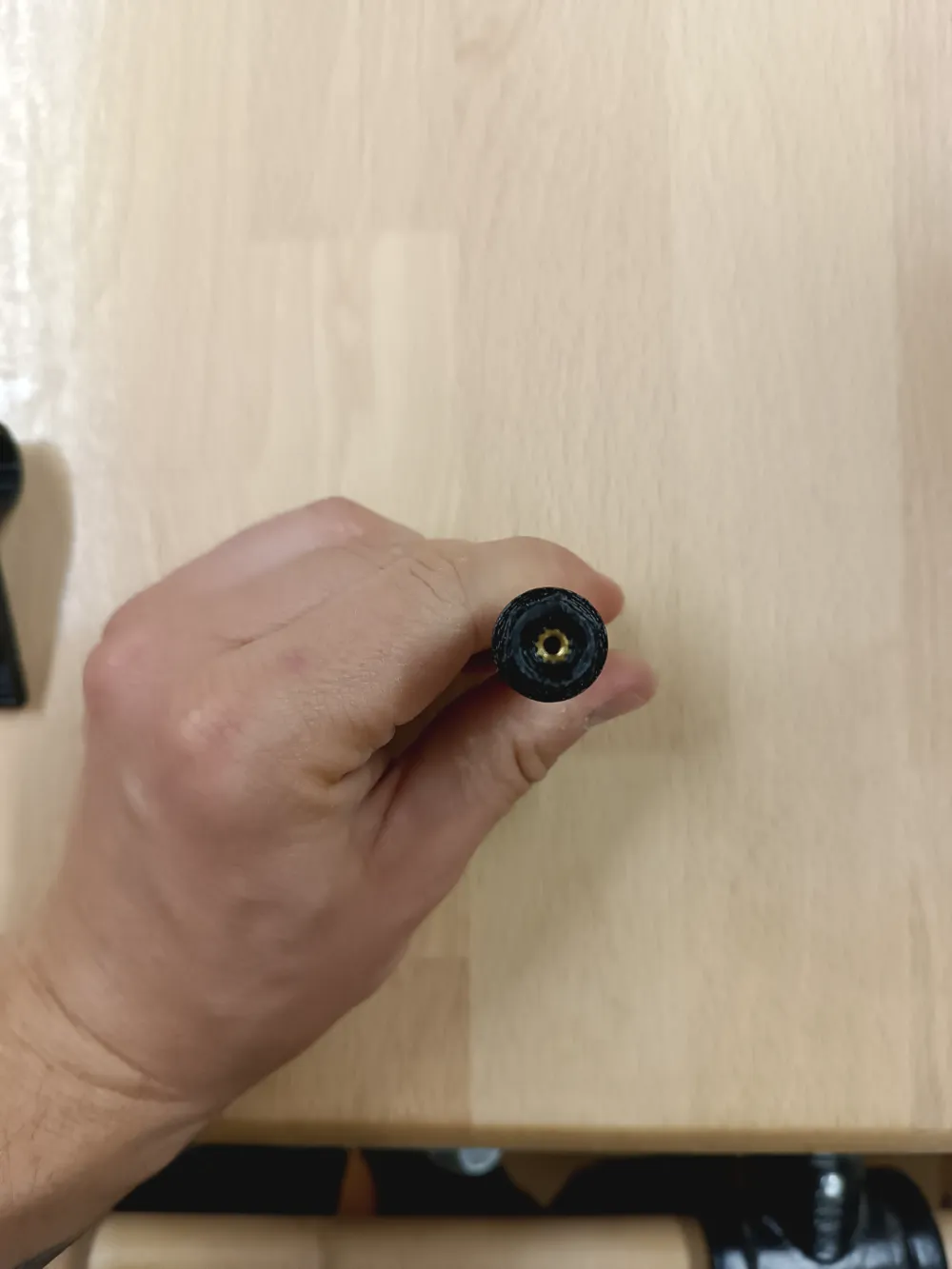

1x Threaded insert M3:
https://amzn.eu/d/32vccFB
1x Threaded insert M6:
https://amzn.eu/d/4pAL4nH
1x Screw M3x12:
I printed it in PETG, since my saw is used outdoor very often.
