Description

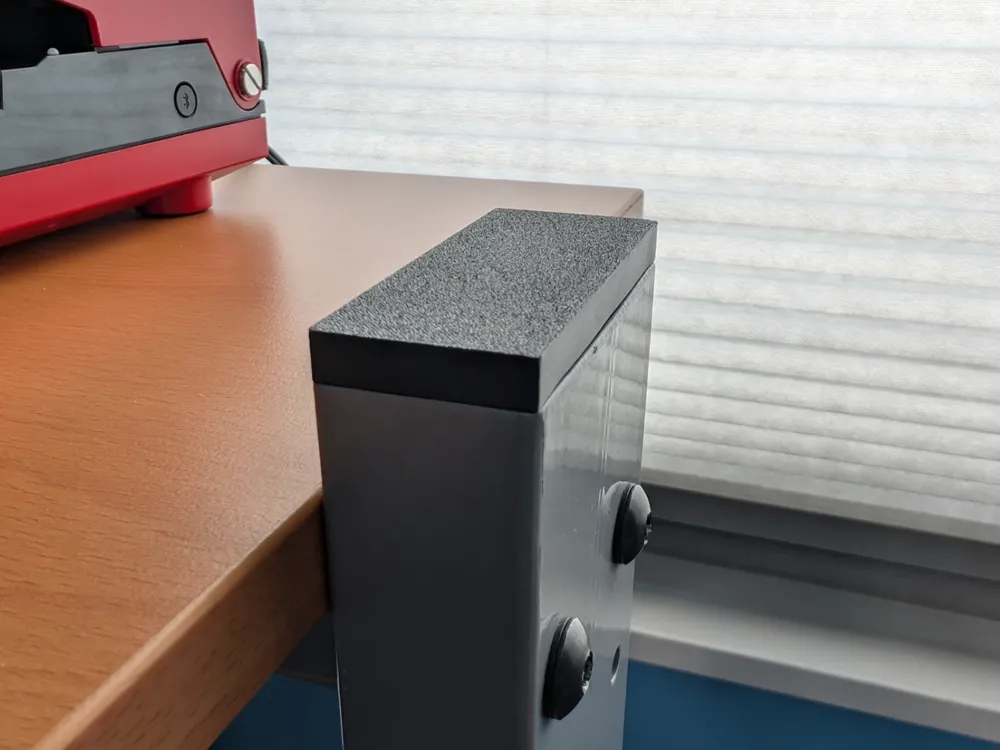

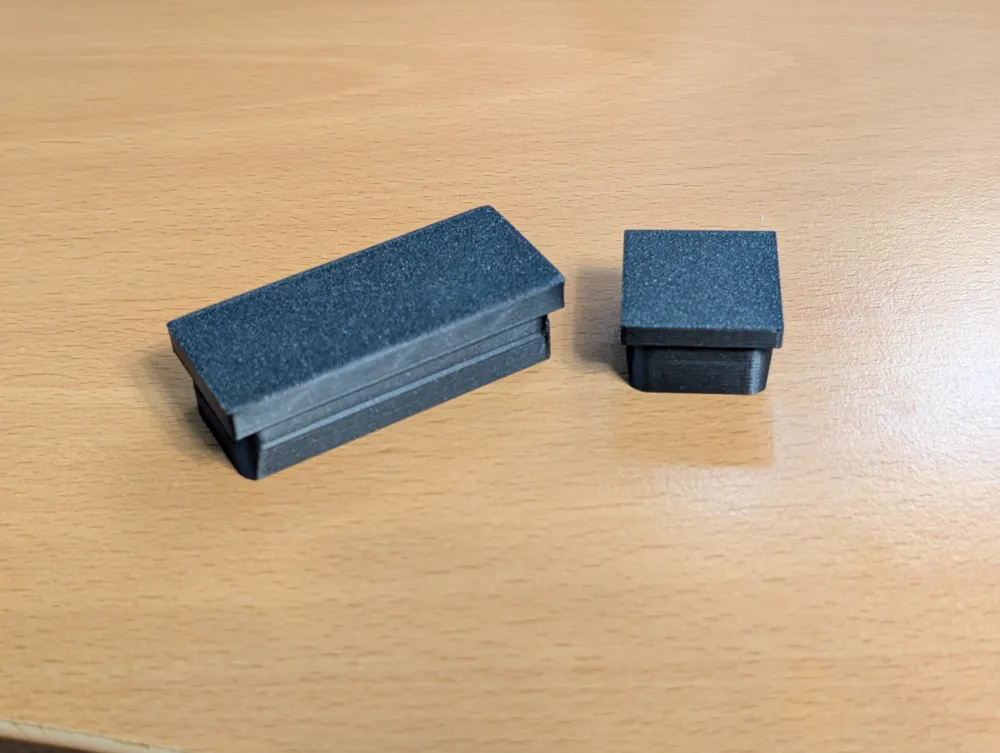

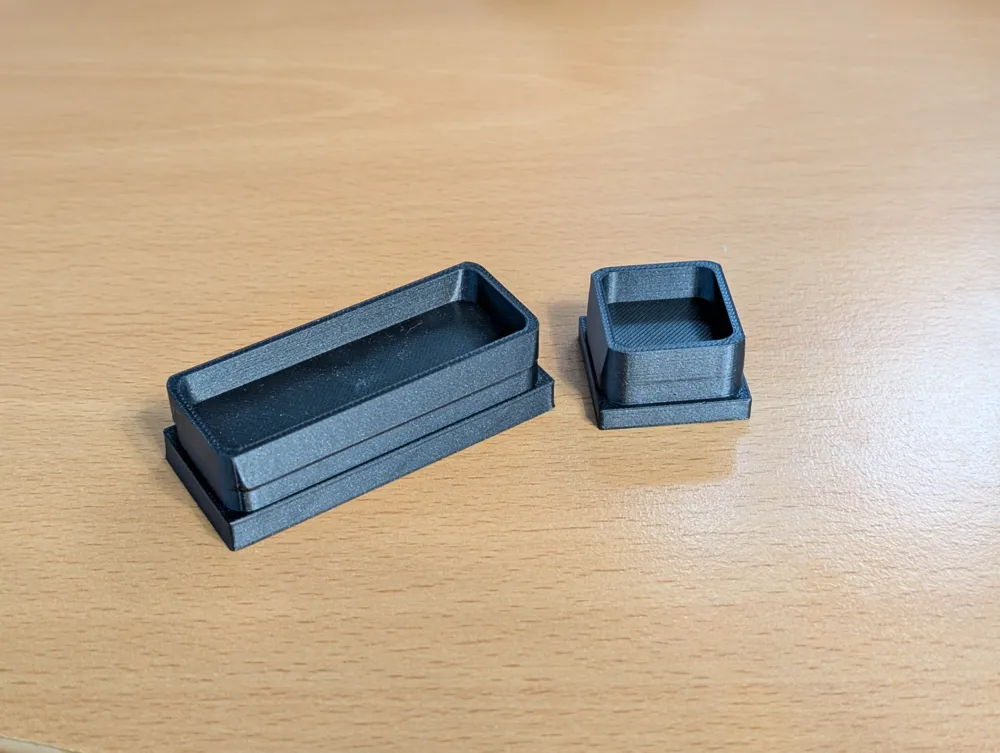

Most of the end caps for my IKEA Jerker desk were in pretty bad shape, so I modeled up some new ones. They're a nice tight fit, so after partially inserting them, you'll want to use either a rubber hammer or a plastic dead-blow hammer to gently tap them in fully.



Notes:

  • Filament Type/Color used to print the pictured model is Bambu PLA Metal (Iron Gray Metallic)
  • Due to the tolerances of the IKEA Jerker desk's frame, these may fit tighter in the ends of some of the tubes. I noticed I had one fit tighter in one of the tubes in my one desk, but it still seated just fine. If you find any to be too tight of a fit for your particular desk, a slight contracting or expanding of the model size should work fine. You'll know it's a proper fit if you can start the cap into the tube by hand before seating fully with a hammer.



If you dig my model, please post a pic of your finished print. It's fun to see other makes!
