RC Airplane ( V tail lightning)

IP Report

Print Profile(1)

All
P1S
A1
P1P
X1
H2C
P2S
X1 Carbon
H2D
H2S
X1E
H2D Pro
X2D
A2L

0.12mm layer, 1 walls, 5% infill
0.12mm layer, 1 walls, 5% infill
23.2 h
4 plates
1.5(2)

Open in Bambu Studio
Boost
186
355
36
14
446
29
Released

Description

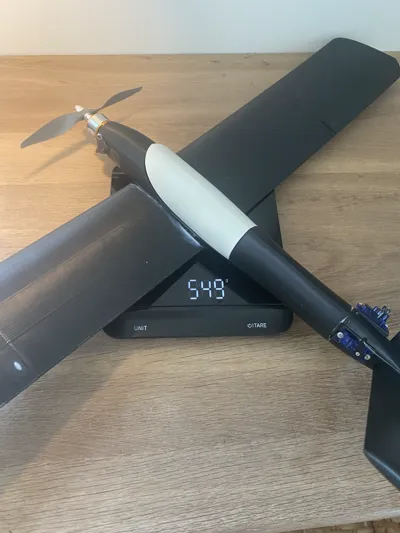

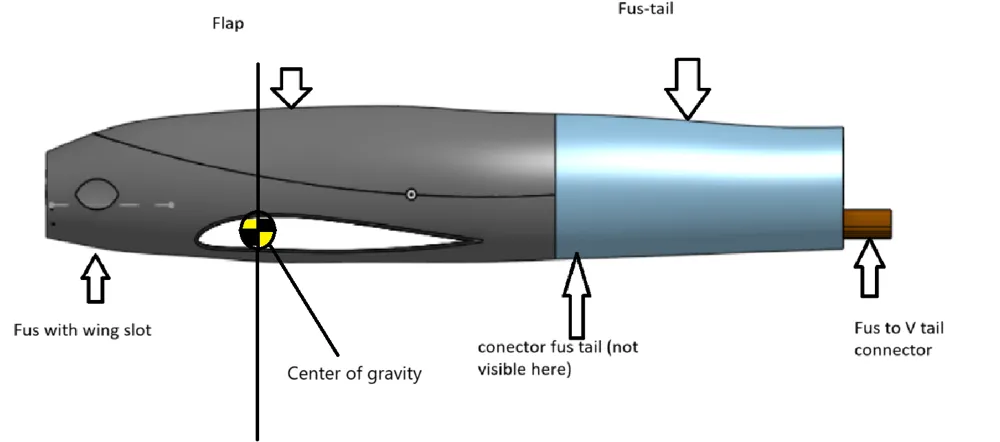

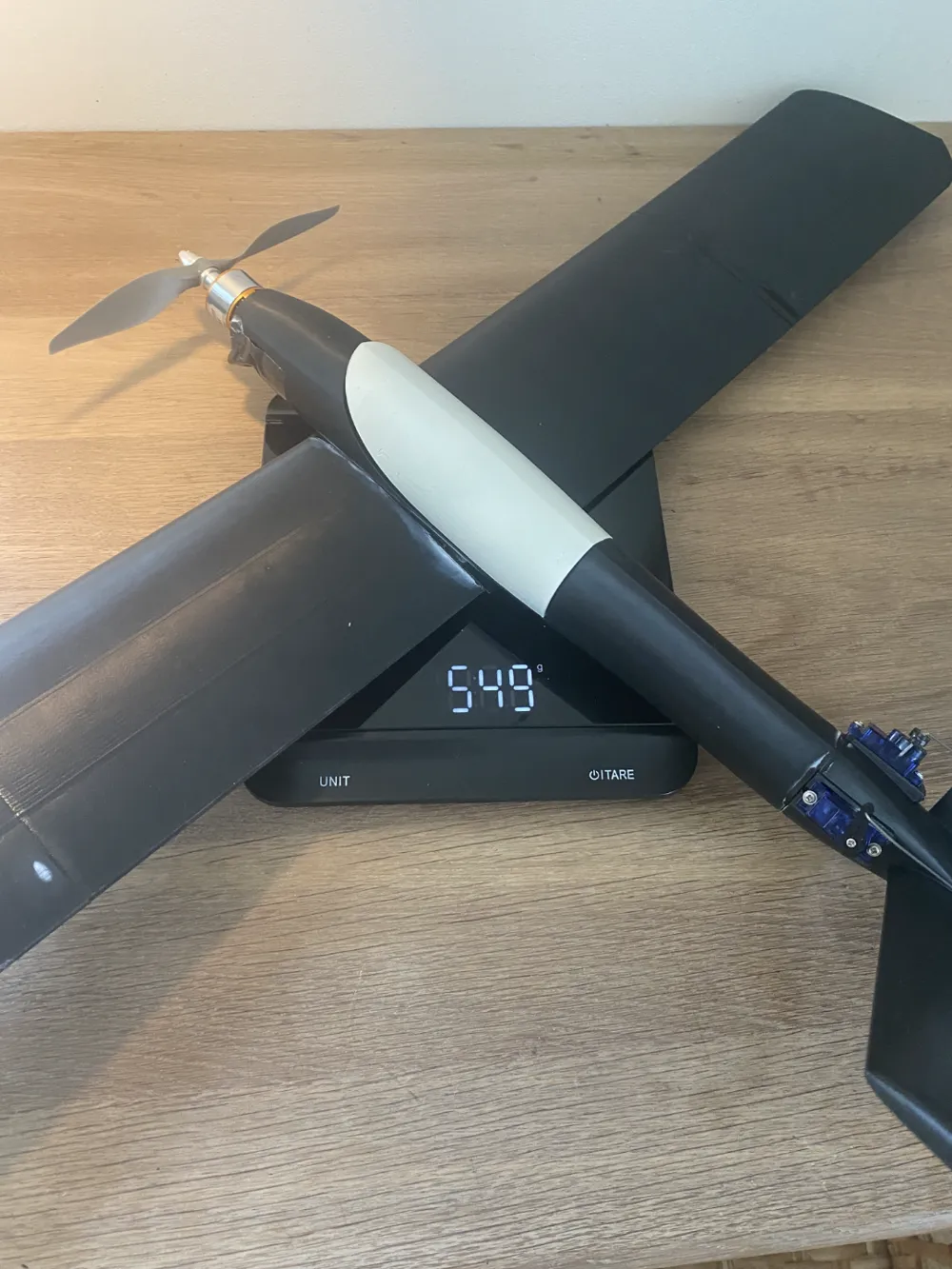

This airplane is an RC flying model, one of a kind! Its maximum takeoff weight is around 600g, and its stall speed is approximately 30-40 km/h. It is a relatively lightweight construction, weighing only 320g, with a wingspan of 80 cm. It is recommended to print the entire plane using standard PLA, with the exception of the wings, which do not require infill. They can be printed using LW-PLA (with very few defects, just lightly sand them down with sandpaper; this operation will reduce the plane's weight by about 50g). As mentioned earlier, the wings are the only part without infill; the rest should have 5% infill. Each model should be made with a Wall Line value of 1 to ensure a lightweight structure. The center of gravity of the plane should be positioned as shown in the image.To attach the cockpit, use tape on both ends or a 12 mm magnet with tape at the front. Happy flying :)

Comment & Rating (36)

(0/1000)

The plane is cool, I tried it out, it flies decently, maybe not as well as the store-bought ones, but it does the job. However, I noticed that it has a slight tendency to turn left. Other than that, everything is great! I had some trouble choosing the servos and the engine, but after looking at the photos, I figured that two 9g servos were needed, and in my case, the engine was an A2212 1000Kv (which I managed to mount) with an 8-inch propeller.
The designer has replied
designer
8
Reply
Thank you for testing the plane, I'm glad it flew well. It's true that I forgot to mention the required additional equipment. However, the ones you mentioned are absolutely correct.
designer
3
Reply
how many channels are needed for the controller?
The designer has replied
3
Reply
You only need 3 channels ! Isn't that amazing !
(Edited)
1
Reply
Replying to @Bogdek :
do i need a speed controller?
1
Reply
Replying to @Bogdek :
im new to rc airplanes so i have a lot of questions
1
Reply
how do you attach the elevons to the tail?
The designer has replied
2
Reply
Use hinges printed with TPU
1
Reply
Replying to @Bogdek :
ok
1
Reply
Replying to @paxtonlizard :
you can print them with pla in this case ( litle late response)
0
Reply
How many hinge parts do I need to print?
The designer has replied
1
Reply
8
1
Reply
Replying to @Bogdek :
Thanks
1
Reply
how do you connect the rudder?
The designer has replied
designer
2
Reply
I'm using 1mm steel rod to connect rudder to servos
designer
2
Reply
it flies very well and it is ezzy and fast to make
designer
3
Reply
what Motor and battery should I use
The designer has replied
1
Reply
I used the following components: Battery - LiPo 1000mAh 11.1V 3S 30C (G-Tech) | Soaring GENS ACE, Motor - A2212 1400KV 2-3S - 180W - thrust 830g. In the photo below, you can see the exact dimensions of the mounting. The maximum dimensions for the battery are 3 cm width, 2 cm height, and 12 cm length.
(Edited)
0
Reply
Hello, how do we make the servo motors turn and go up at the same time
The designer has replied
Show original
1
Reply
If you have purchased a controller, you most likely have a channel mixing function somewhere in the settings, where you can configure how individual servos should behave. In the link, I've included a video that shows how to access the mixing mode on the popular Flysky FSi6x controller. https://www.youtube.com/watch?v=cUVF1z06so4
1
Reply
Can I fit a 1400kv motor in it? Along with a 4s or 3s ??
0
Reply
you'll want a 3s on this
0
Reply
awesome model! could you include a bill of materials to make it easier to make?
1
Reply
