- Unfortunately, I made a small mistake and uploaded the wrong print profile for the bow stand. Please download the correct profile again if you have downloaded it between 19.1.25 and 6.2.25. Thank you
Update 19.1.2025 - A small change to the main body and inserts. (Grove moved 60mm to the other side for much easier sliding inserts onto the body). Now it should work with Bambulab TPU for AMS, please let me know in the comment if you try it :).
- 5.5.2025 - Added extra wide 95mm version for new Mathews Title 38 bow.
But I was quite surprised with my new compound bow Prime CT9 and its wide limbs. So my stands for my other bows did not fit and I could not find any nice stands in archery stores that I could use (local shops).
So I designed a new bow stand with a simple locking mechanism for both sides. And it works great for me :)
Stand for compound bows with wide limbs. (I use it with Prime logic CT9 and Mathews TRX40, PSE Dominator etc.).
But it is possible to use it with almost any 2 limbs compound bow. :)
The dimensions between the gaps are 79x7,5mm.

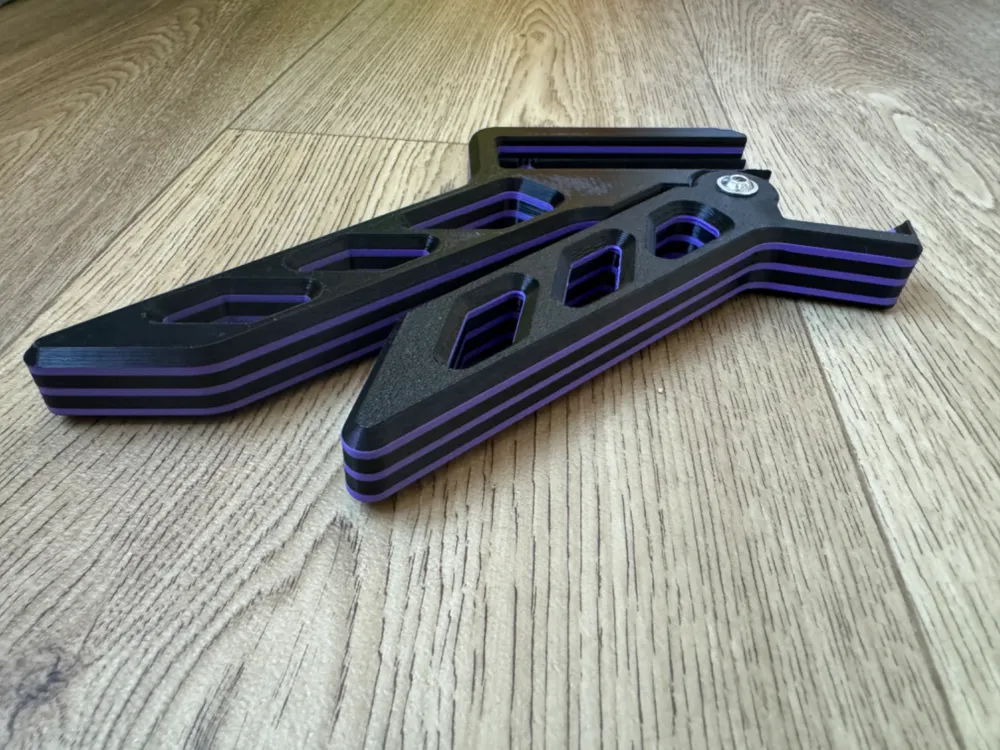

It is foldable with lock on both sides, so you can hang it on the quiver and it will not open itself.
For the bottom parts it is good to use a better and temperature resistant material like ASA (ABS for indoor use) or PETG and a lot of perimeters (I use 6 perimeters and 5 bottom and top layers for strength.)
There is a larger piece included in my print profile with the link to my company website in a different color :) If you do not want that or do not have AMS, just set the same color as the main part :)
No support needed! There are 2 integrated supports that you can simply snap-out after printing.
2 contact parts should be made of TPU or other elastic material so that they do not scratch the bow limbs.
In the files is optional lower TPU part, with small side cover, but its not necessary to use it.¨
Only accessories needed is M5x20 screws and M5 lock nut.
Enjoy it and fell free to give my any feedback for future improvement :)
