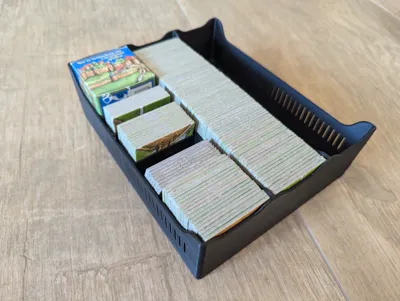

Tile Organizer

This is a custom organizer insert designed for the original Carcassonne box (first edition). It accommodates tiles from the base game along with several expansions. The organizer features rows that can be individually customized using the included dividers, providing a flexible storage solution :)

I designed the insert to be printed on the A1 Mini with its 180 mm bed. In my box, it leaves a 3mm gap, but this doesn't affect functionality. For users with larger printers, I’ve also uploaded a second version that fits more snugly. I recommend measuring your box before printing :)

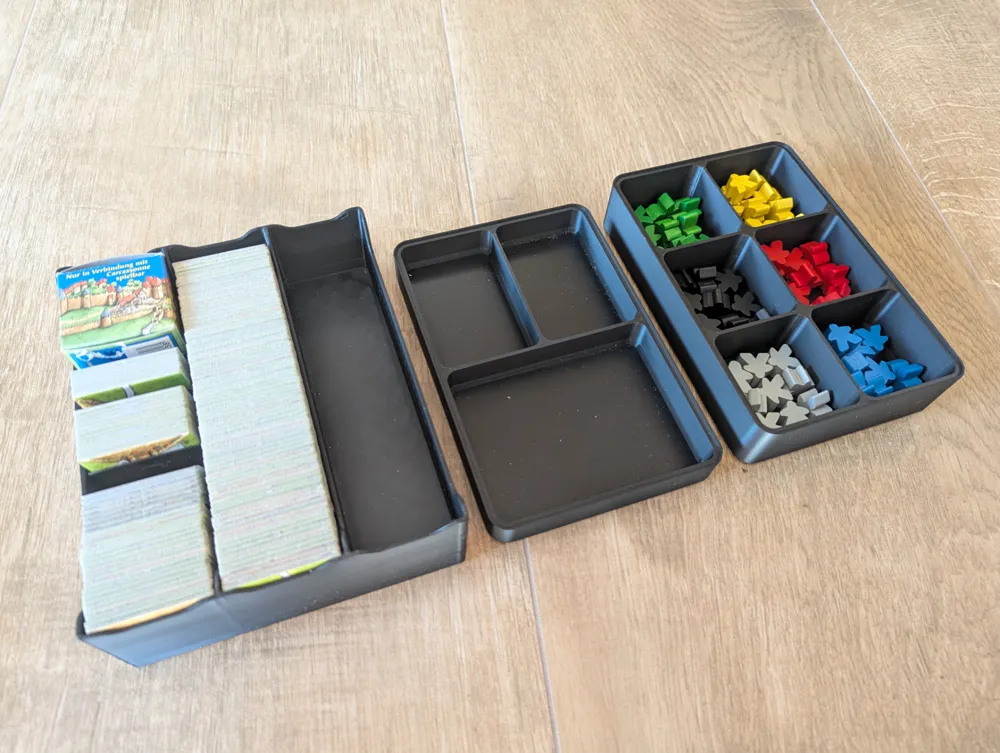

Meeple & Co Trays

The other half of the box contains sorting trays for the meeples and any other game accessories you may have. The model can be found here: Parametric Sorting Tray / Trays.

I used the following custom parameters:

Tray 1	Tray 2
Dimensions Length: 180 mm (use 183 mm for the bigger version) Width: 119.5 mm Height: 35 mm radius: 10 Columns and Rows columns: 2 rows: 3 First Cell colspan: 1 rowspan: 1	Dimensions Length: 180 mm (use 183 mm for the bigger version) Width: 119.5 mm Height: 20 mm radius: 10 Columns and Rows columns: 2 rows: 2 First Cell colspan: 2 rowspan: 1
