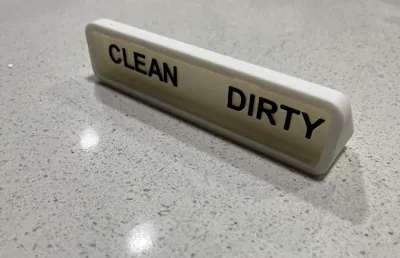

This dishwasher clean/dirty indicator sign improves readability with an angled outward design and is now multi-coloured (thanks to AMS!).
I have made many print profiles for different magnet sizes:
Print Profile 1 - Two 12x3 mm magnets
Print Profile 2 - Three 8x2mm magnets
Print Profile 3 - Four 6x3mm magnets
Print Profile 4 - Three 10x2mm magnets
Print Profile 5 - Four 6x2mm magnets
Print Profile 6 - Blank back (For 3M strip or alternative)
Print Profile 7 - Five 4x2mm magnets
Print Profile 8 - Six 5x2mm magnets
Print Profile 9 - Three 15x2mm magnets
Print Profile 10 - Loose fit slider

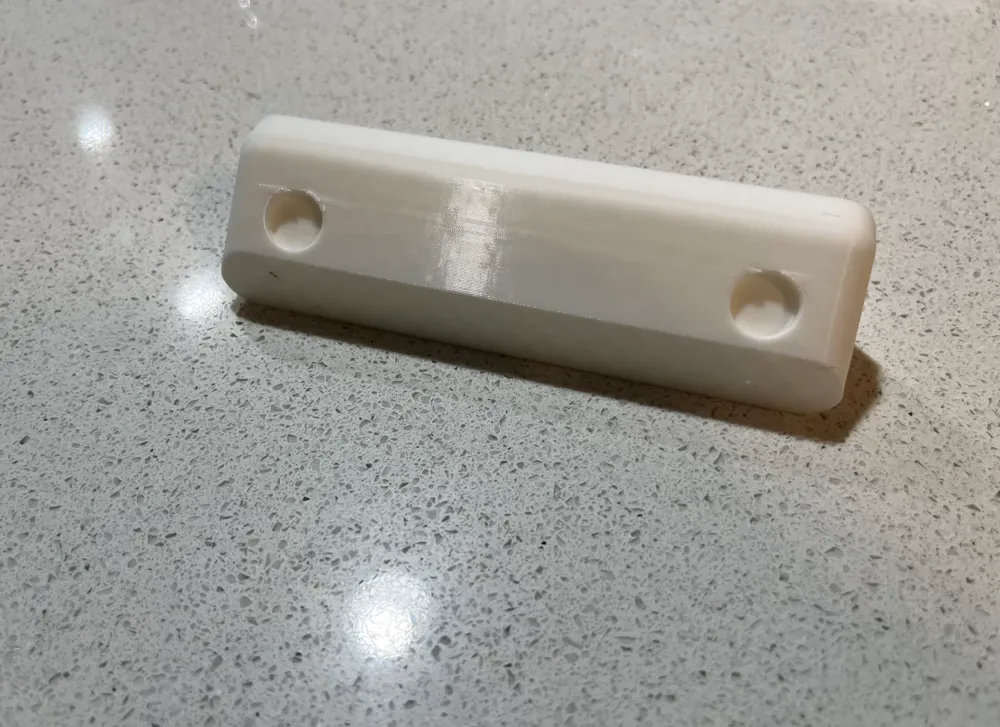

The magnet holes are push-fit, but super glue is recommended for a reliable permanent instant (check polarity when installing!). The slider has a 0.1mm tolerance for a tight, smooth glide, which I found empirically to be the gliding Goldilocks zone.
Need a different magnet size? Send me a message on what you need and I can add it as a new print profile!

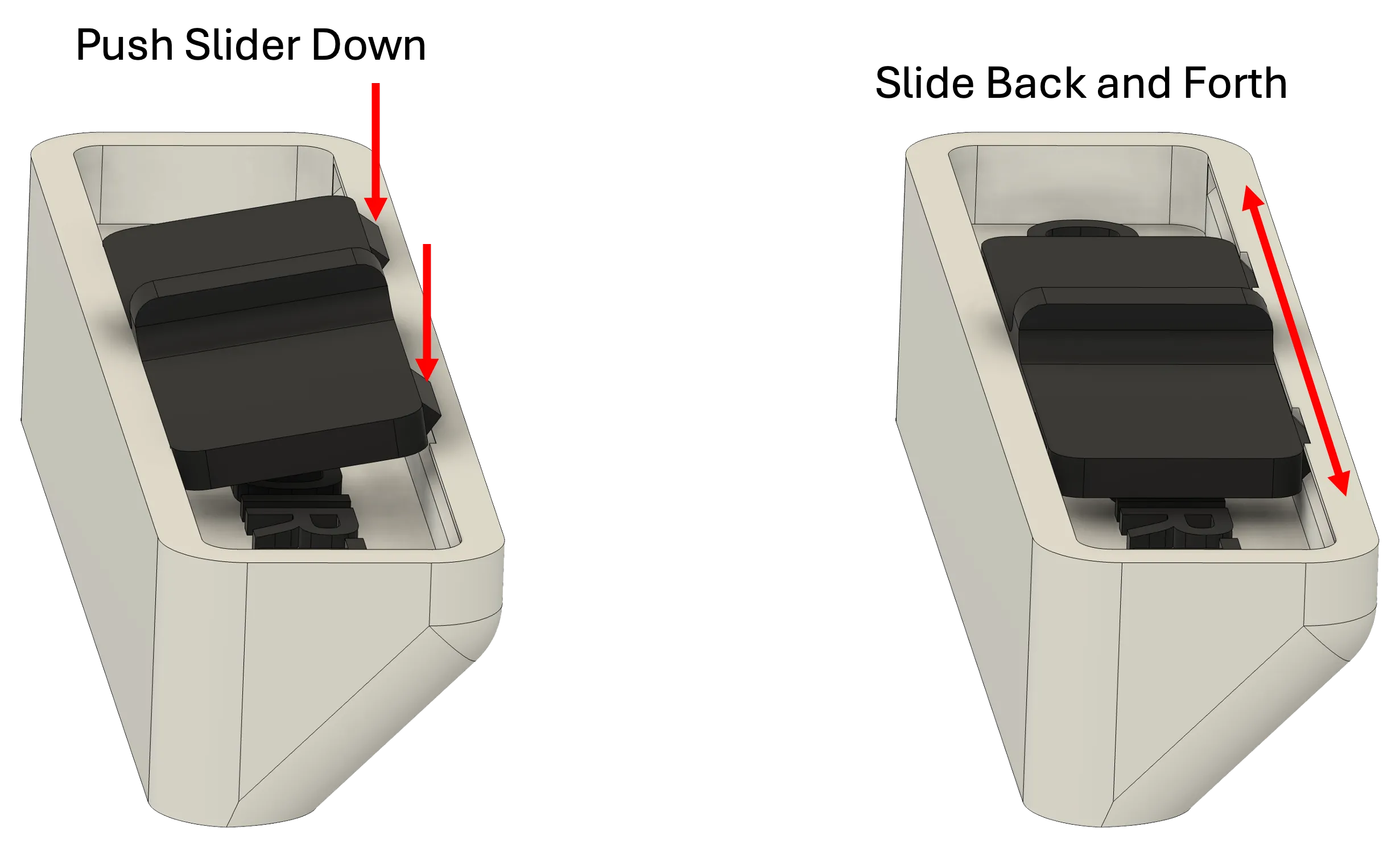

Assembly:

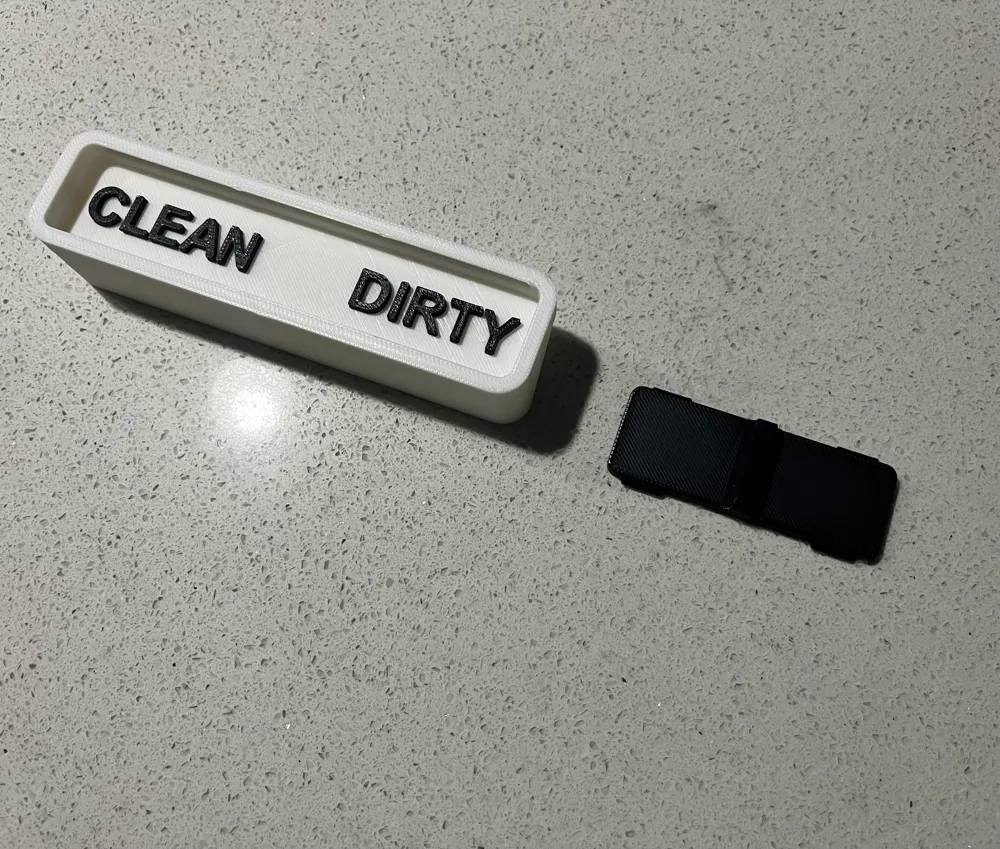

1. Insert the bottom of the slider into the bottom groove of the main body

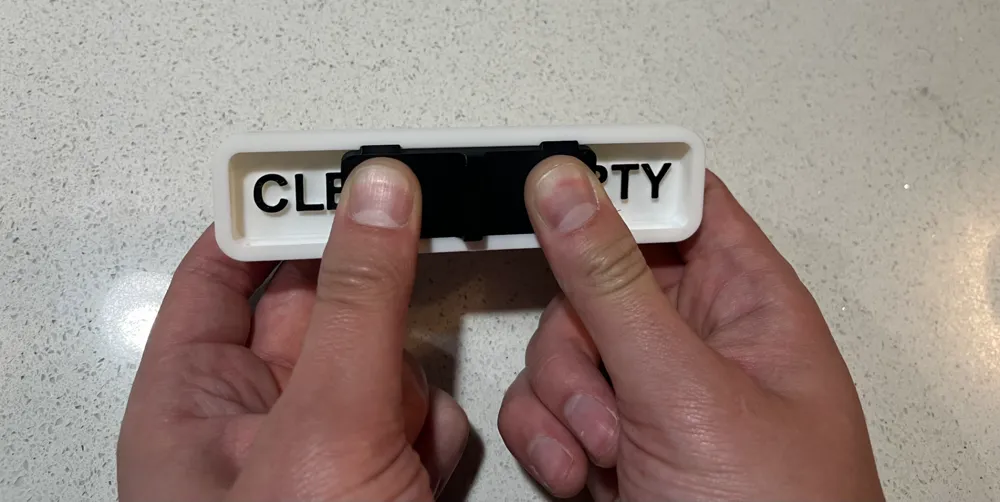

2. Align the slider with the top notches of the main body, and press HARD (Trust me it won't break).
**Some users even used cooking oil to help installing the slider into the body. I think this is a great idea if you're having trouble with this part.
3. Move slider back and forth until the movement is smooth gliding! This will remove debris in the groove. **Slide back and forth quickly ~20 times.**
I look forward to seeing your prints and feedback!
Installation Instructions:
Want some freedom in what the indicator says? A customizable flat version is available here:
