Description

🚨 ALERT: Please give me a follow if you enjoy my models so i can get to the right number of followers for the maker world creator license program thanks!!

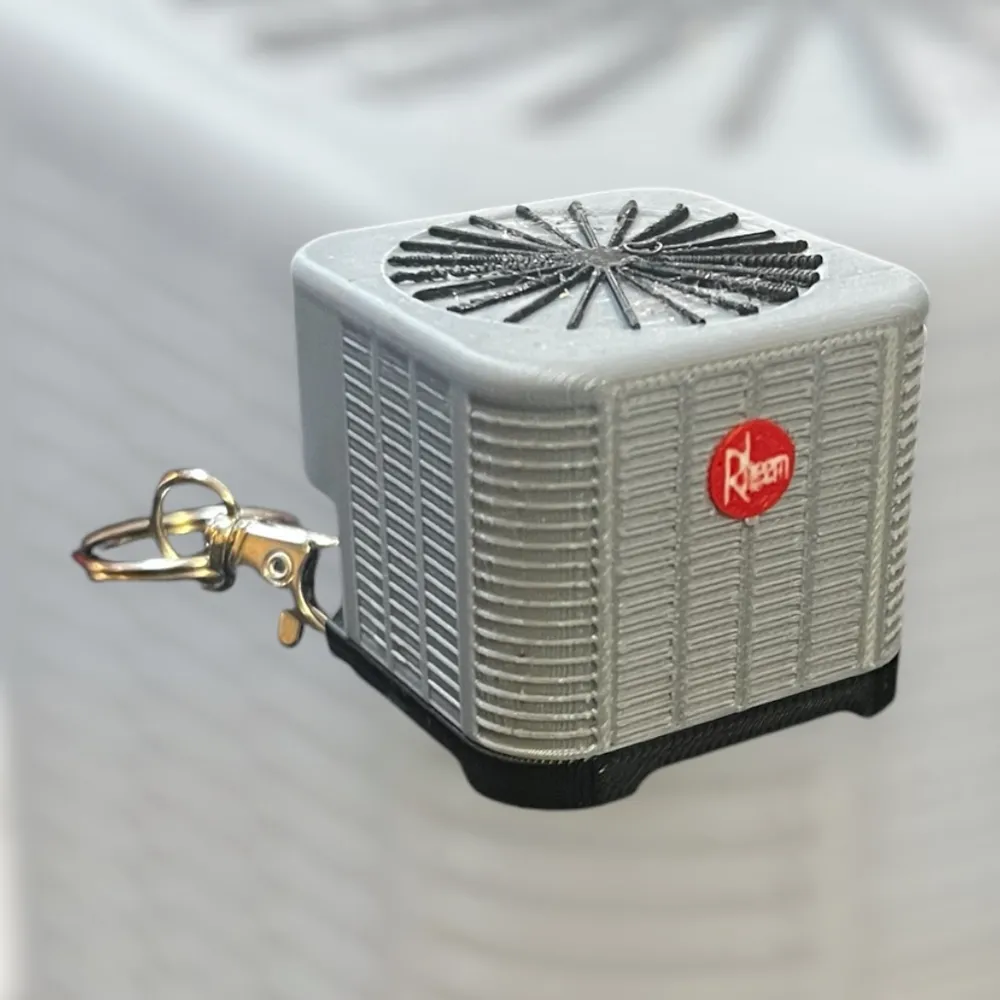

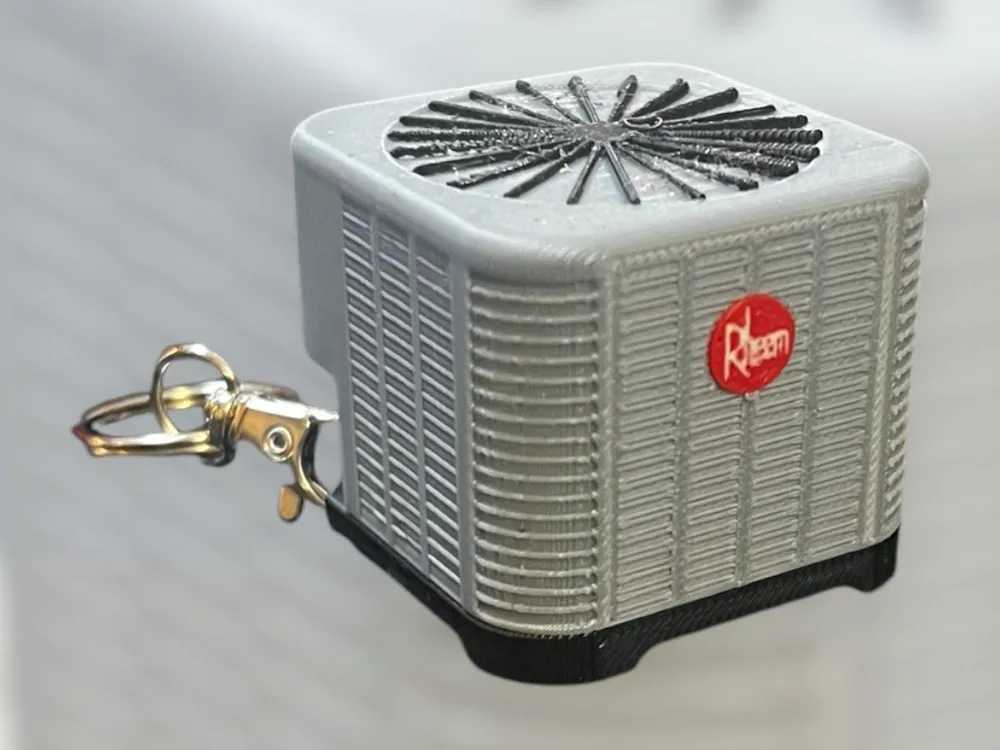

Rheem AC Unit - 10% Scale 3D Model 🏠❄️

This is a highly detailed 10% scale model of a Rheem air conditioning unit, perfect for dioramas or HVAC-themed projects. Designed for easy printing, this model captures the look of a real Rheem outdoor condenser unit while keeping printability in mind.

🔹 Features:
✔️ Accurate exterior design based on Rheem AC units
✔️ Pre-modeled hole on the side for easy mounting or attachment
✔️ Optimized for FDM printing
✔️ Great for display, decoration, or educational use

📌 Printing Tips:

No supports required for most FDM printers
Scale up for more detail or keep at 10% for compact projects
Can be painted to match real HVAC units

🚨 Commercial License Notice: Subscribers of my Patreon (PrintForge Creations) can sell physical prints of this model, but redistribution or resale of the digital file is strictly prohibited.

🔗 Get your commercial license here: patreon.com/printforgecreations

Boost Me (for free)

Like my work? let me know with a boost its free!

air conditioner keyckain

Comment & Rating (38)

@Cedlanteigne

Boosted

Wow ! Are you an HVAC technician ? Is it diffcult to create something like this in fusion 360 ? I would like to create a Lennox Rooftop unit like your model !

(Edited)

The designer has replied

@EagleEyes

I am actually! I just got into 3d printing as well for fun what model are you thinking of I can try to make it sometime for you?

@EagleEyes

this was my first major model I had to go bad and modify it after I learned more and honestly I could probably modify it again now but it takes time lol so I haven’t done it yet

@Cedlanteigne

Boosted

Replying to @EagleEyes :

Nice me too ! HVAC tech since 10 years now, im 30 years old, from Mtl, Canada, the french part, and you ?

@user_3050730342

Print Profile

0.4 mm Profile

looks great

The profile uploader has replied

@EagleEyes

thanks glad you like it!

@Flint14107

Would it be possible to get this in an STL format? I'd love to print one, but my slicer cannot read 3MF.

The designer has replied

@EagleEyes

yea I’ll get one tonight for it and tag you but if you don’t want to wait you can download another slicer like Prusa or Bambu and “save as” or “Export as” STL as well

@EagleEyes

@Flint14107 its up!

@cutterSTL

Boosted

Print Profile

0.4 mm Profile

Absolutely stunning print profile! From the very first layer, I could tell this was something special. I printed this in just grey and black. Designed the Rheem logo 8mm circle as a separate red and white print to super glue on. saved many hours of print time and made the logo look so much cleaner. thank you for providing this file. My HVAC person helped me out with a great deal so I printed this as a gift for him. The precision, detail, and consistency throughout the print were flawless. Overhangs handled beautifully, supports came off cleanly, and bridging was near perfect. Surface finish is smooth and professional—no stringing, no blobs, just a clean and polished final product. The tuning is clearly dialed in with care, and it shows in every corner and curve. I’ve tried a lot of profiles, but this one stands out as a true gem. Whether you're printing functional parts or artistic models, this profile delivers top-tier results every time. Huge thanks to the creator

The profile uploader has replied
