Redesigned parts for the AtomRC penguin for use with a DJI o3 or similar. &nbsp;Improved nose that is stronger, the camera fits better, and it includes a space inside the air scoop for a 30mm 5v fan that can be powered from a servo lead. &nbsp;More space inside with improved ducting to cool the o3 unit in the air, and the fan keeps it from overheating on the ground. It can be printed in PLA or PETG.&nbsp;Improved motor mounts, thicker PRINT THESE IN PETG or similarly tough plastic, PLA will crack&nbsp;Improved 1 peice sliding mount tray for the o3 air unit. &nbsp;zip tie slots to secure it, and float it above the plate for better cooling, and to avoid softening PLA, use only 1 to make access to the SD card and usbc easier. &nbsp;Single vertical antenna mount for dual band o3 antennas, improved access to plug in the wiring harness in the back of the o3, stronger and leaves more airspace inside for improved cooling. &nbsp;Plenty of space for a 2nd fan inside the nose to prevent the air unit from overheating on the ground in high temperatures. &nbsp;The original nose without a fan would cause the power hungry air unit to overheat within a minute and shut off. &nbsp;Print in PLA, or PETG

0.16mm layer, 2 walls, 15% infill

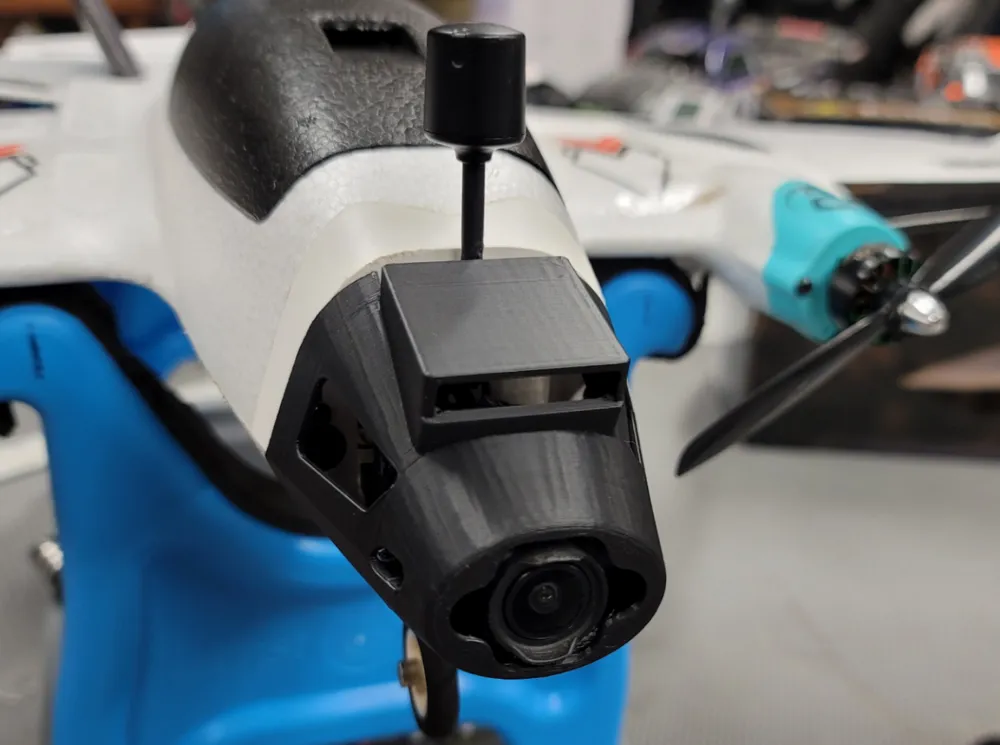

redesigned nose with scoop and integrated 30mm fan mount for improved cooling, improved sliding mount tray for o3 air unit and single antenna, improved motor mounts
