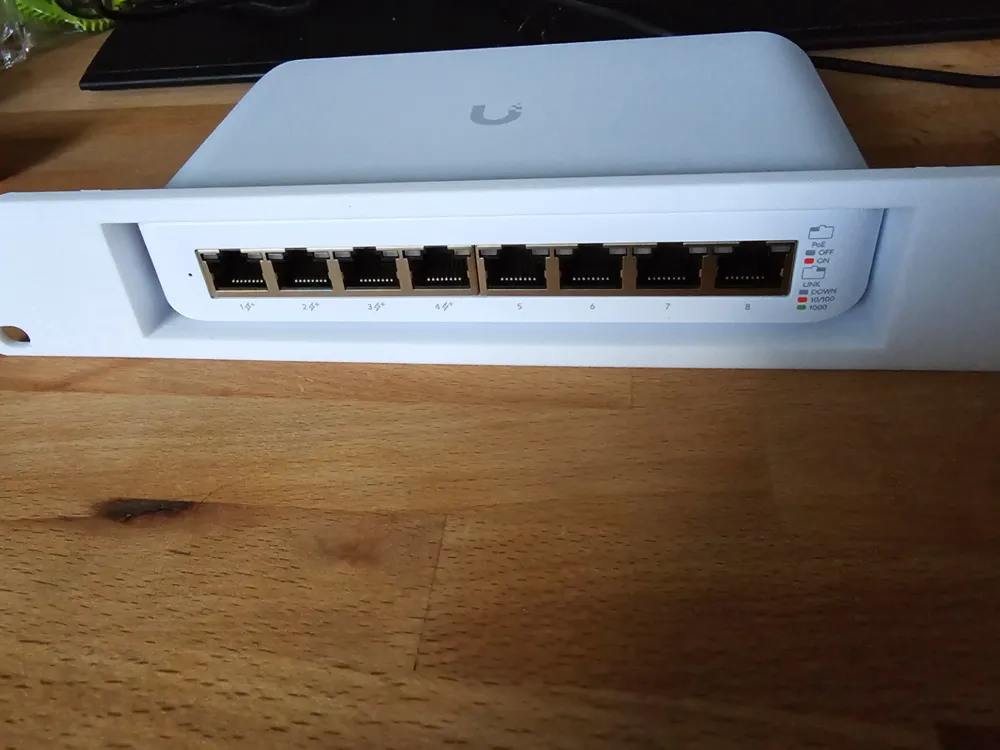

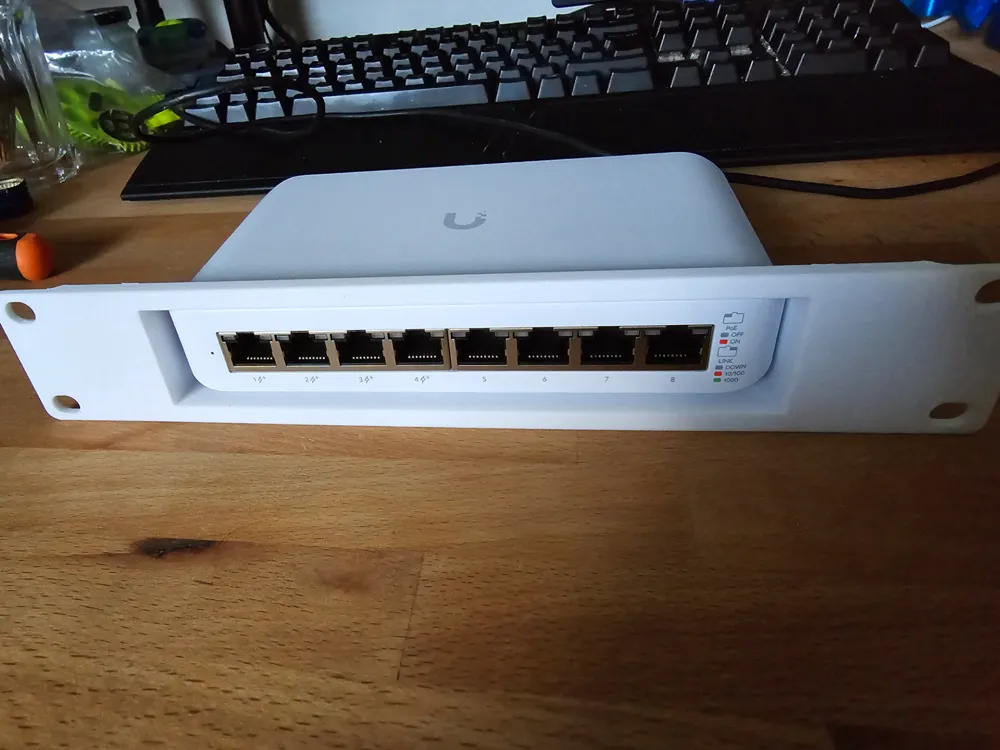

10 Inch rackmount bracket for Unifi 8 Lite Switch
Print Profile(1)
Bill of Materials
- USW-Lite-8-POE x 1: You can purchase it at Ubiquiti or any other retail store, example (Ubiquiti EU-Store:) https://eu.store.ui.com/eu/en/products/usw-lite-8-poe
Description
Boost Me (for free)
If you like my designs, feel free to hit the free Boost button 🚀 Your support helps me create more unique printable models!
This model is based on the one by Pete Edwards and includes heat insert spots, so that it can be used like the original mounting brackets.

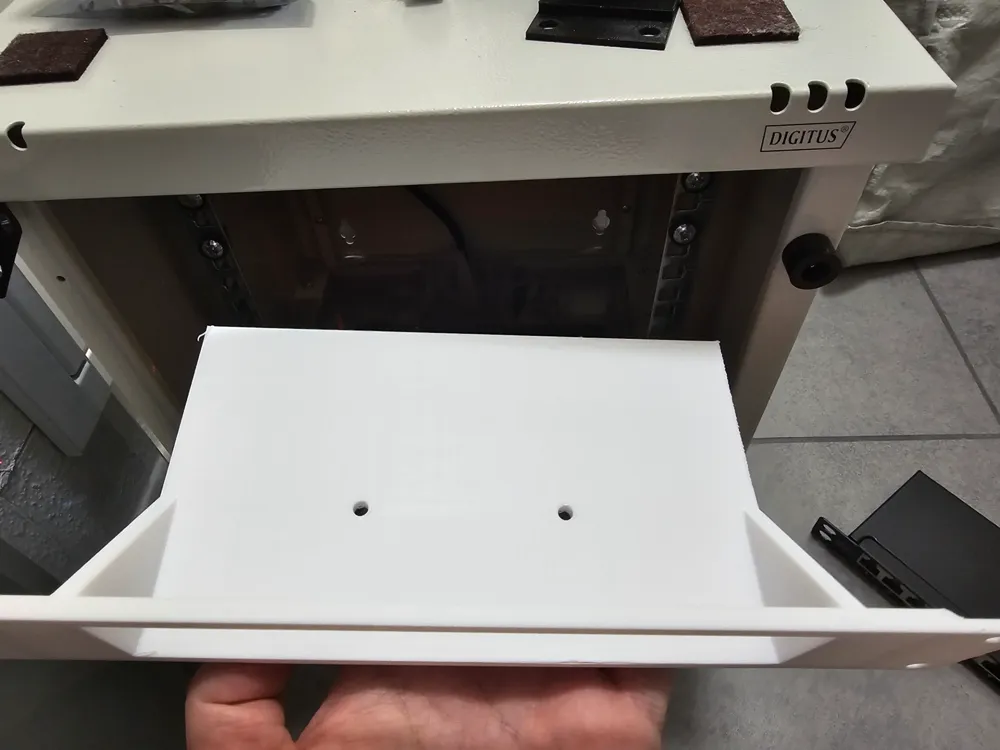

You can use the two heat inserts for mounting the switch to the bracket, like those provided within MakerSupply: AB012

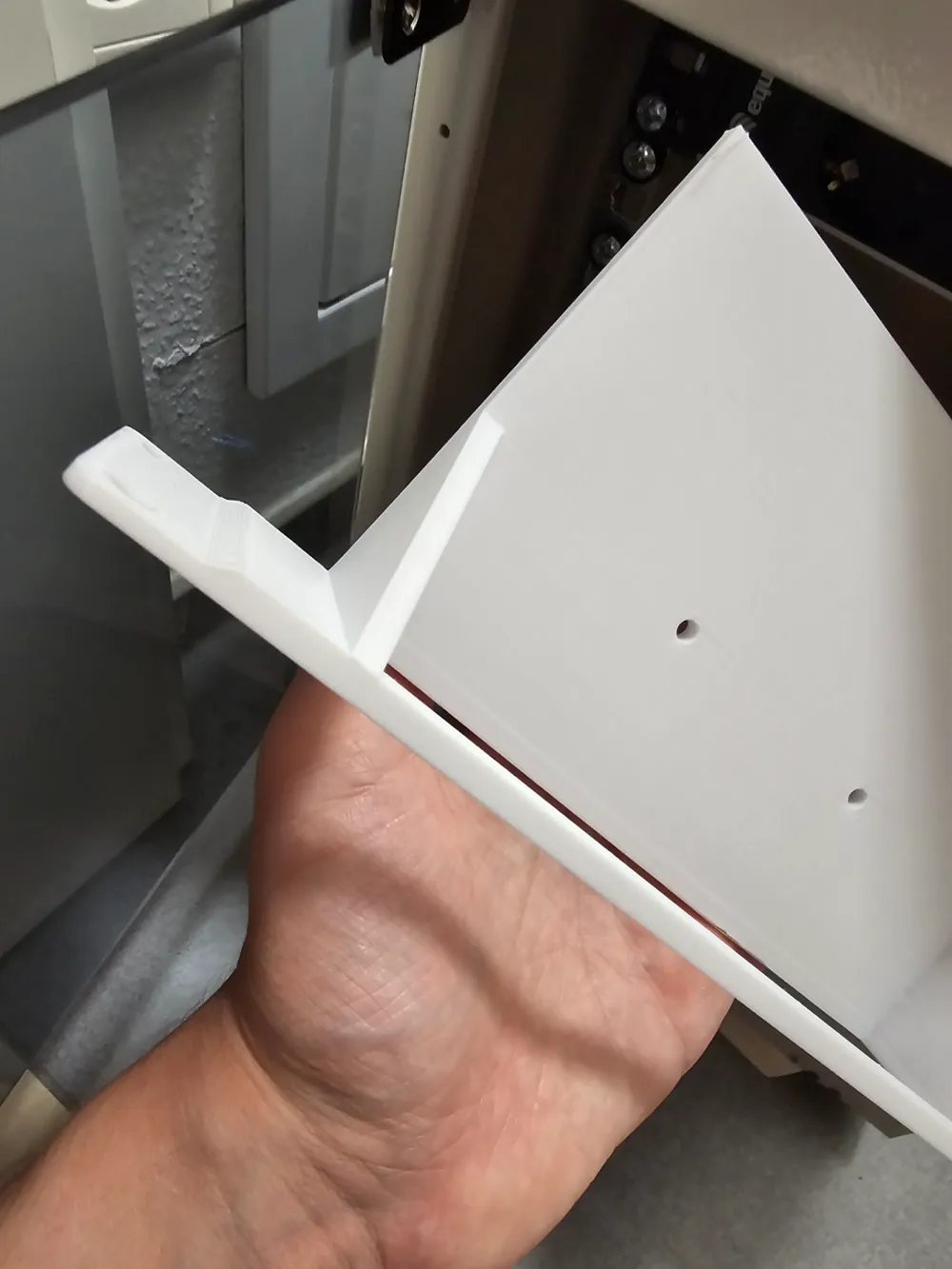

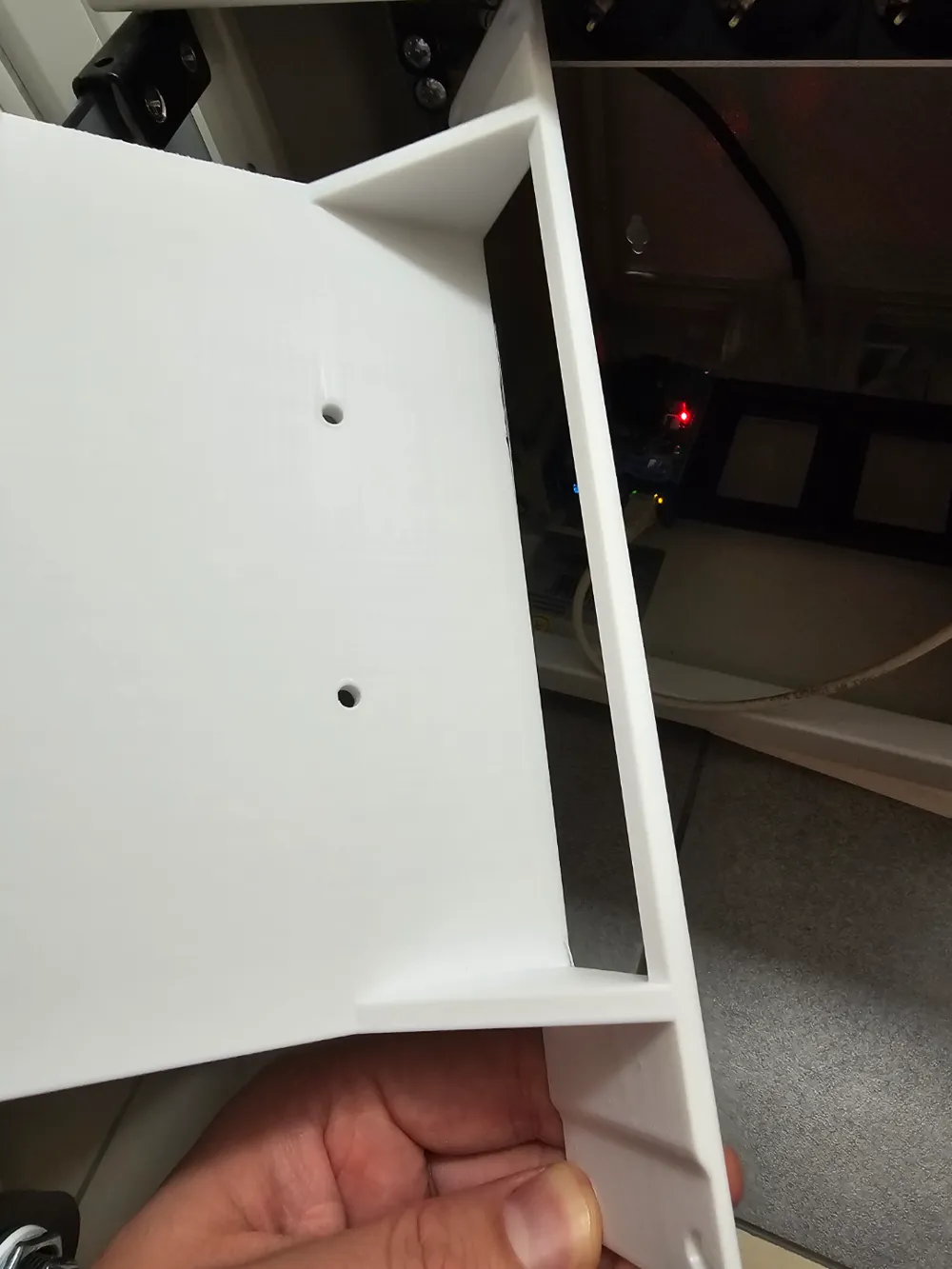

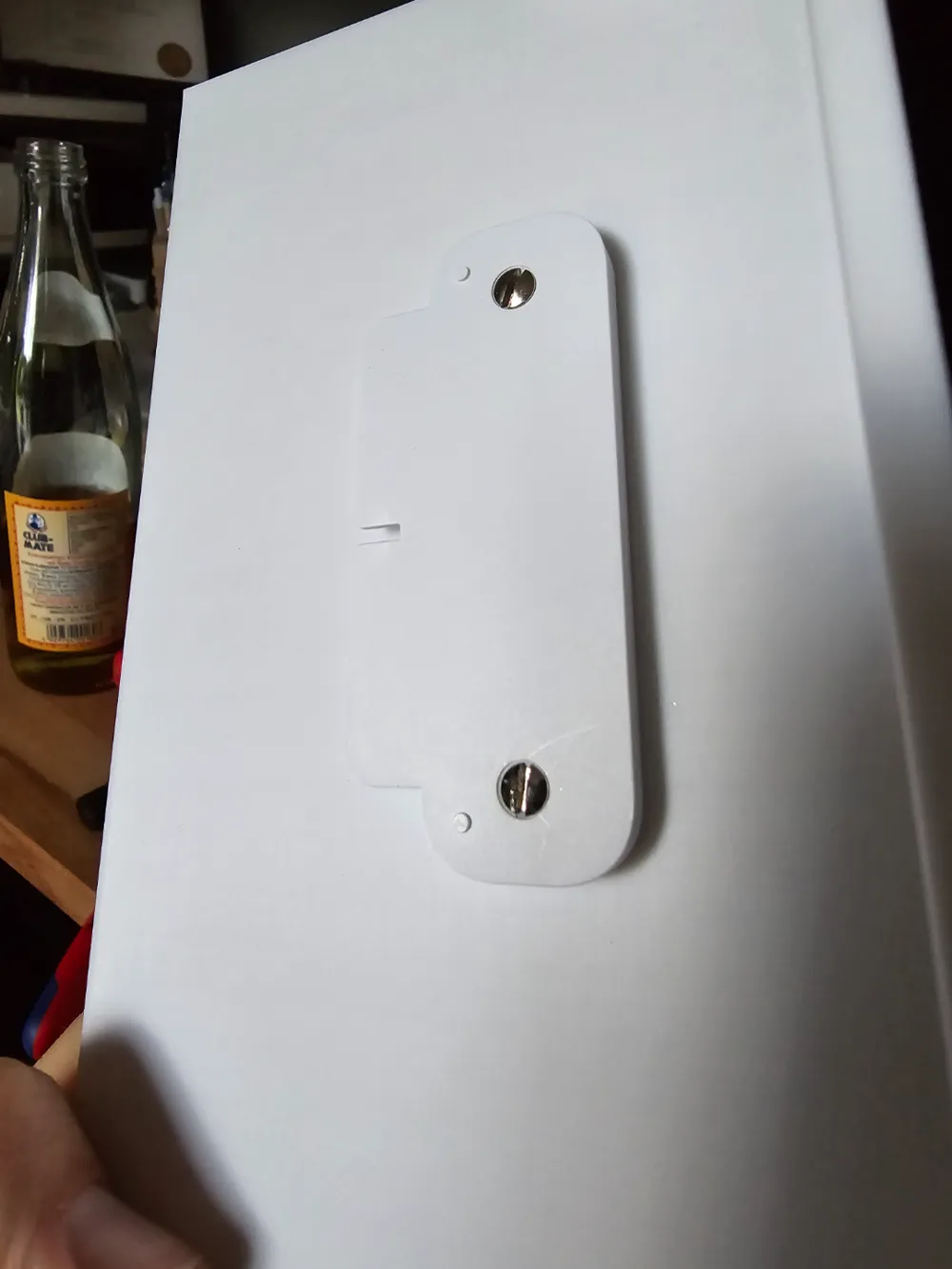

I included some holes to suit M3x5x4 heat inserts, in just the right spot to use the mounting bracket that comes with the switch, I used M3x8mm Countersunk screws for this, and it worked great.

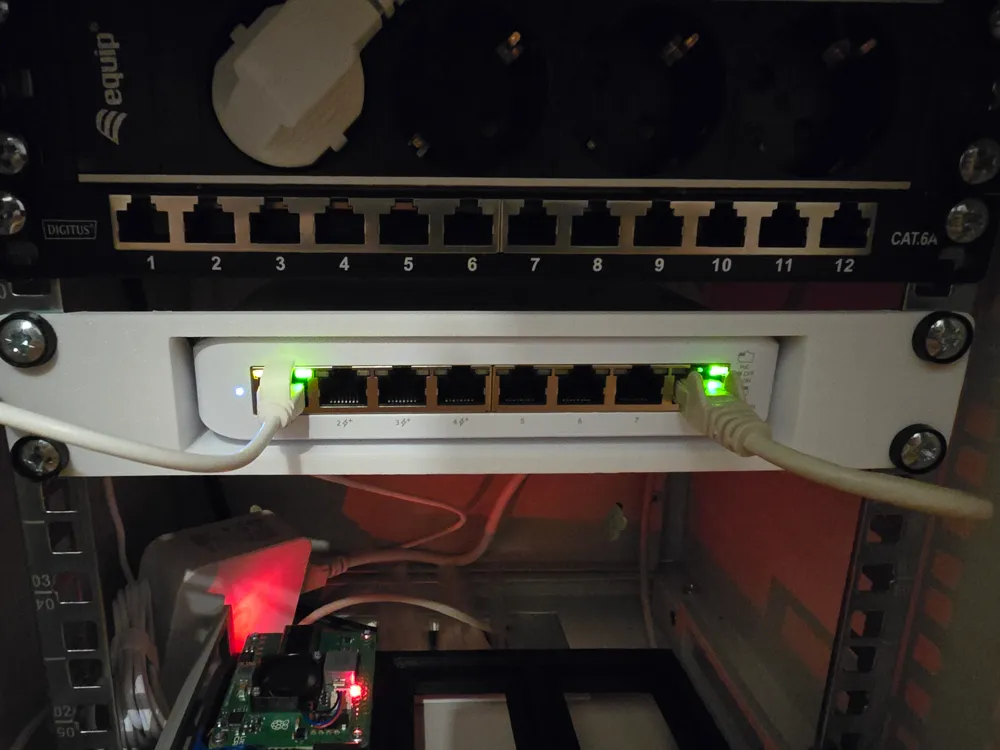

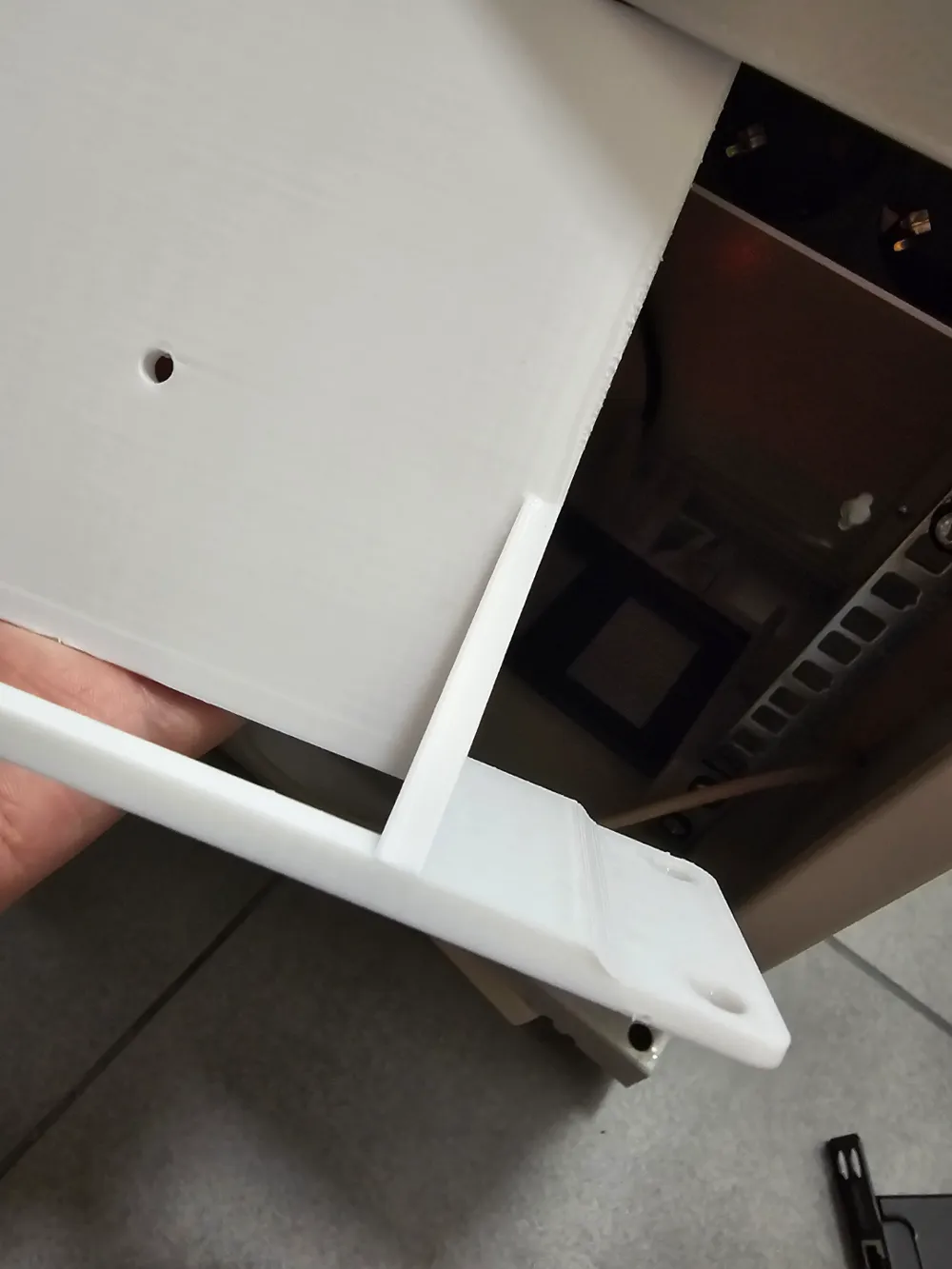

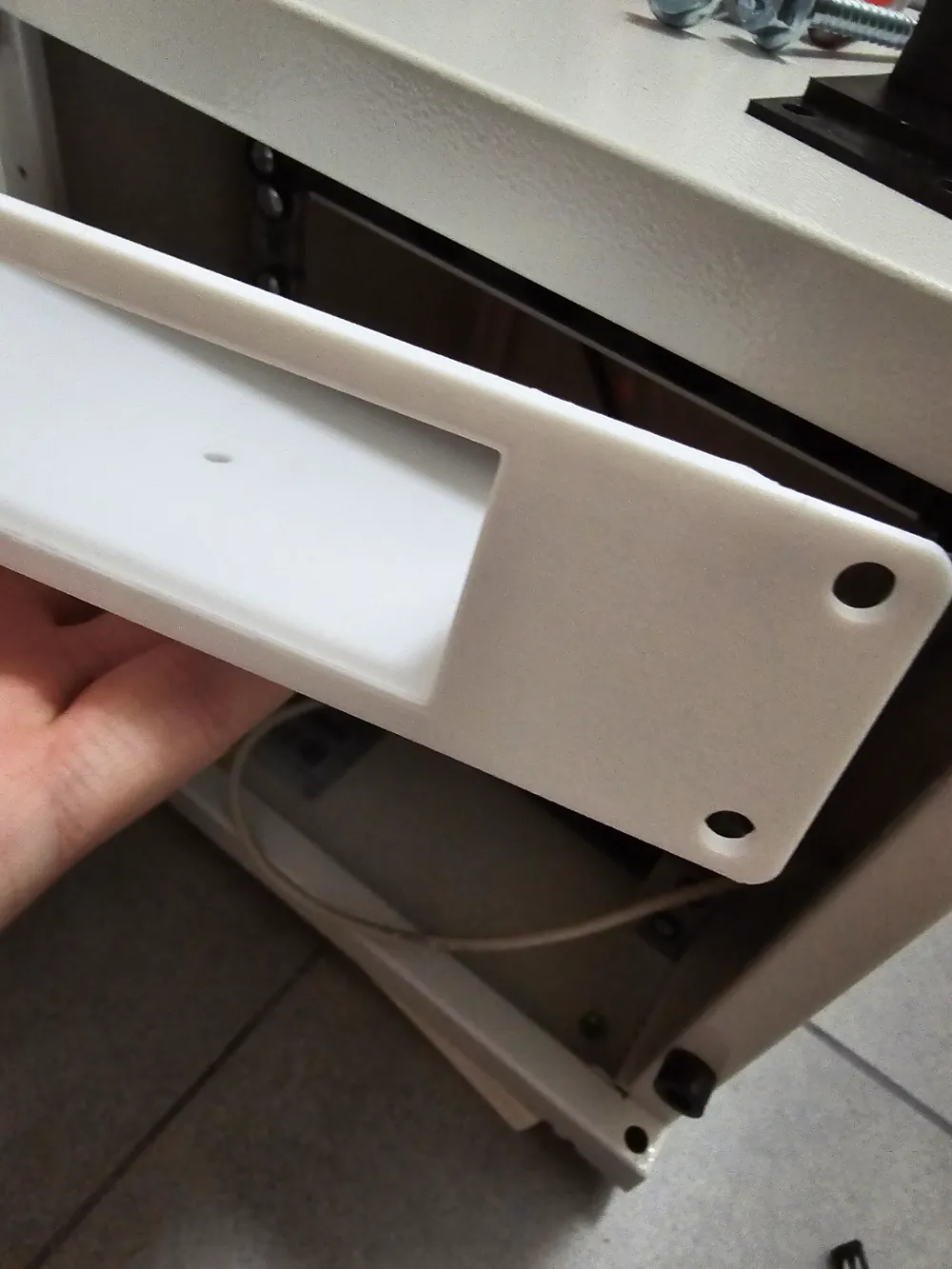

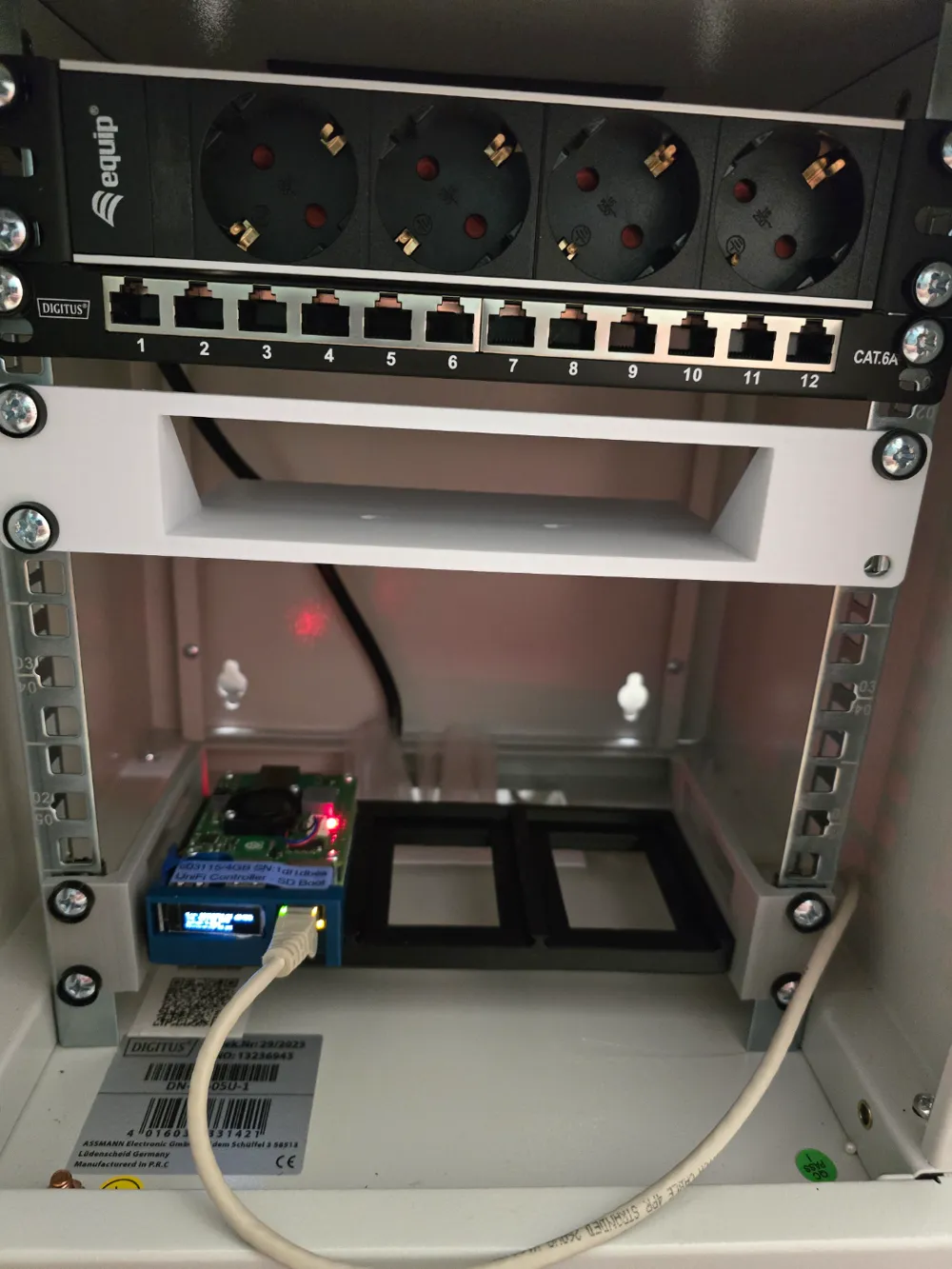

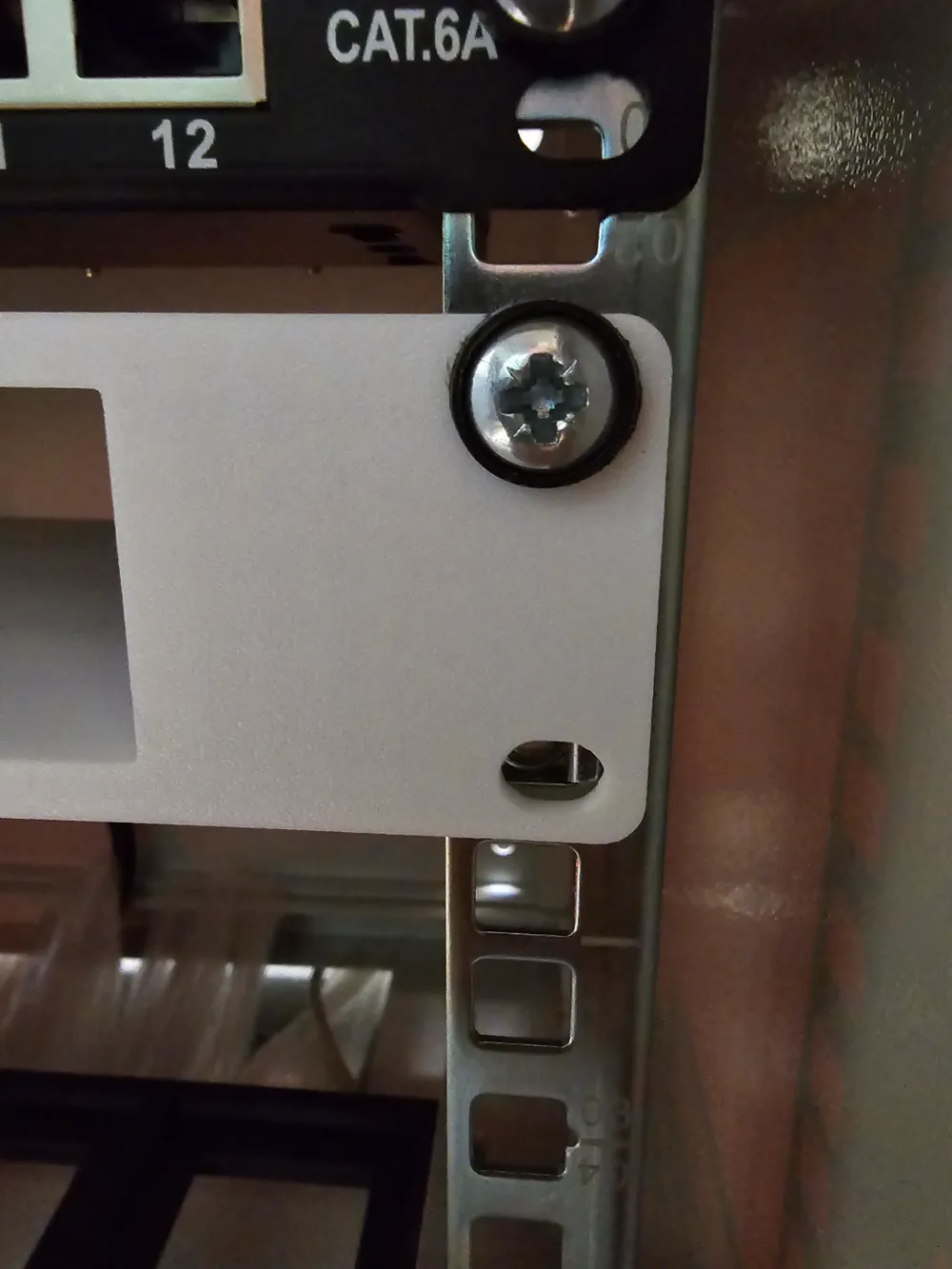

Furthermore it should be way more compatible, as the edges are not getting stuck with the metal frame of well known rack manufacturers, like this one from digitus, i personally use:
This remix is based on
