HDD Case for BitFenix Prodigy m 2022

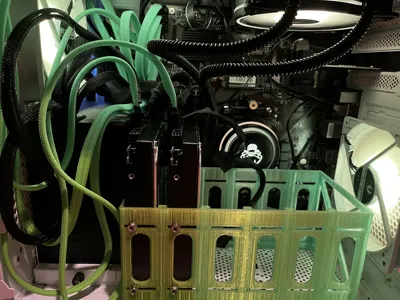

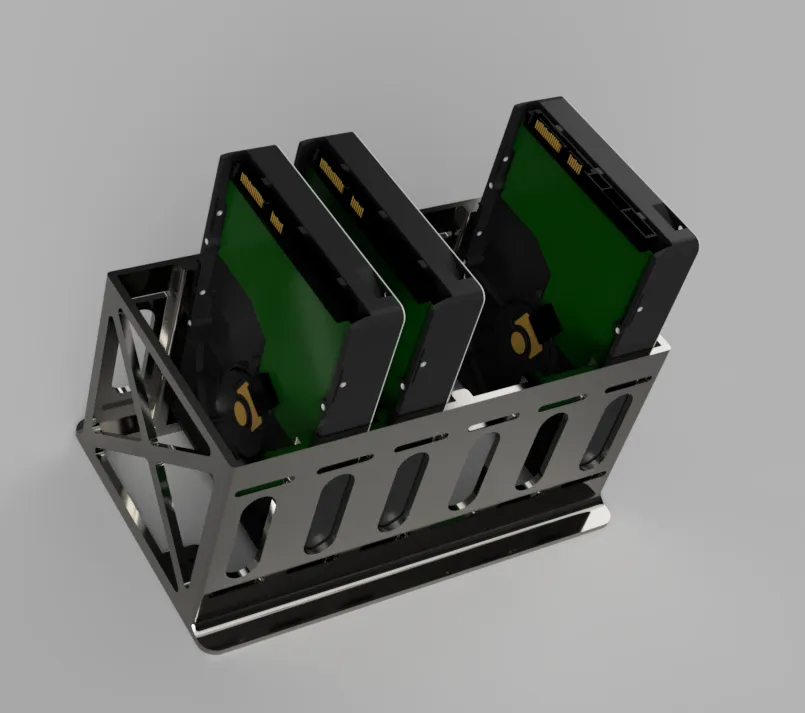

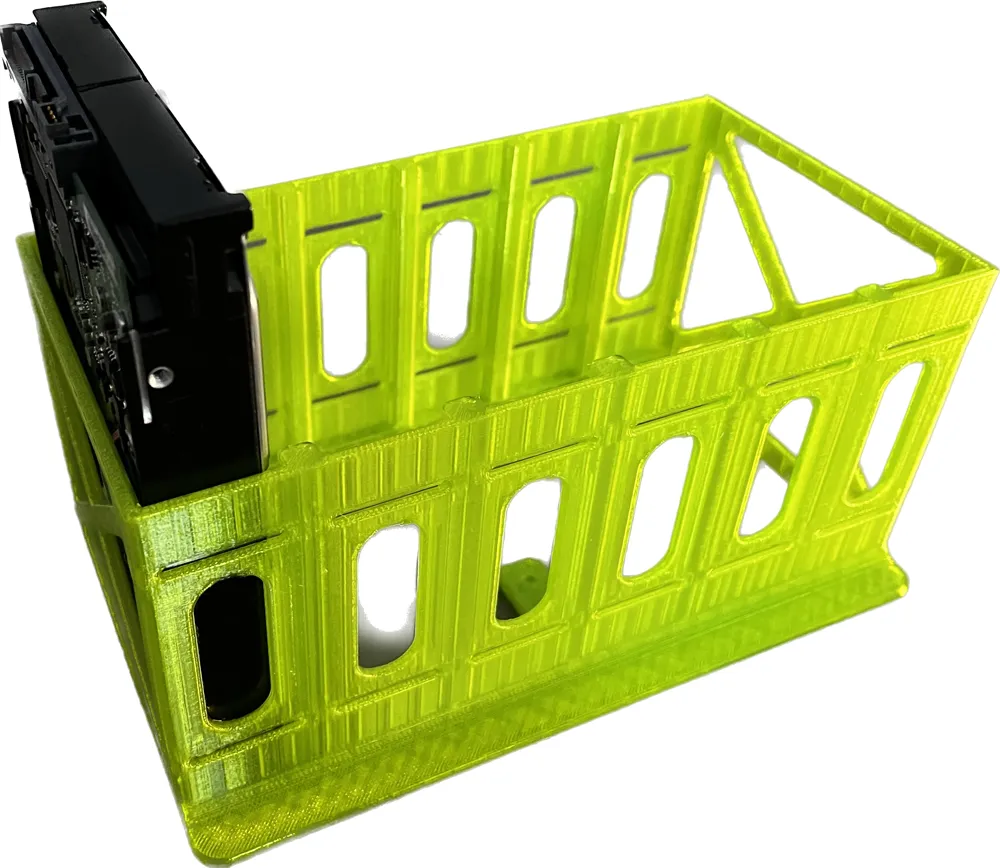

I designed this compartment in order to put 6 hard drives 3.5 in the bottom of the BitFenix prodigy M 2022 case in the place normally intended to contain only two.

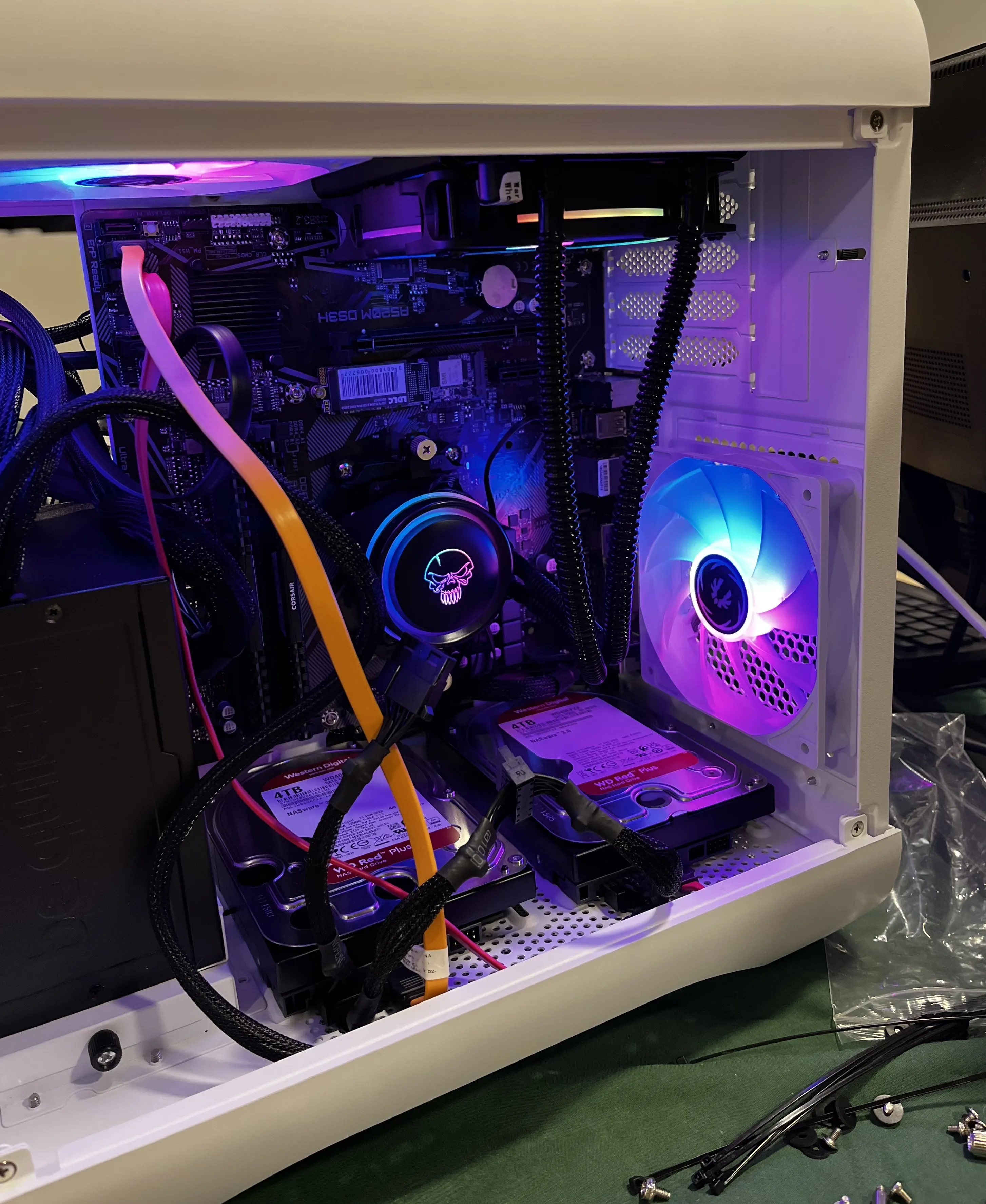

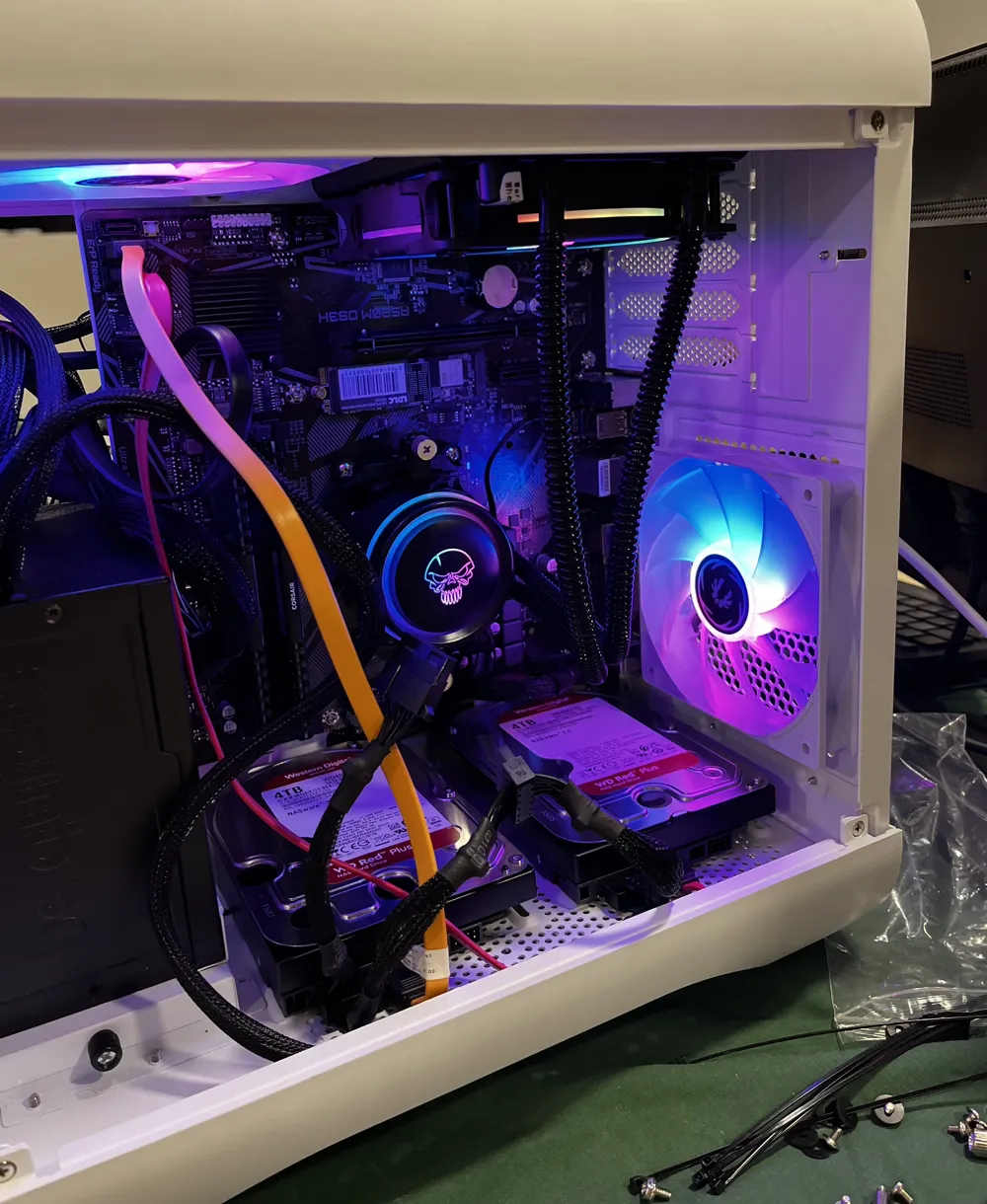

I had originally created a NAS server under the Unraid OS with 4 hard disks 3.5 inches which is the maximum that this box can contain (two at the bottom and two behind the motherboard), however I had to increase the space of the cluster and therefore the number of disks hard.

The use of this compartment is only possible with water cooling on the processor which is relatively thin, indeed the use of a cooler would be much too imposing.

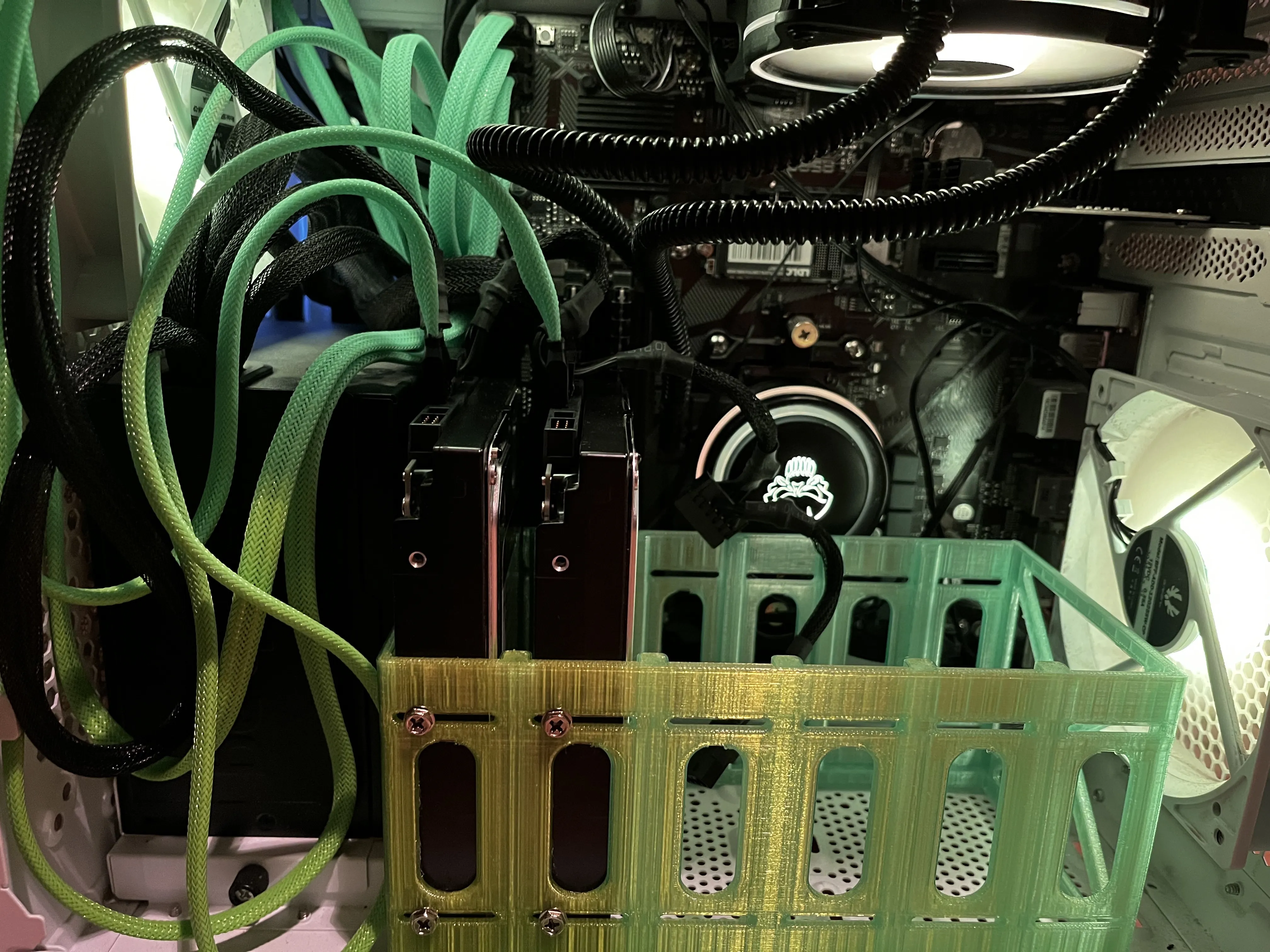

The compartment is designed to easily and efficiently evacuate the heat from the hard drives, the fans above the case take care of evacuating the hot air which brings in the cool air from the bottom of the case and circulates it between the drives hard.

This is a first version, I would probably make a version for 2.5 inch discs which would increase the number of slots.
However if someone feels like doing it, I will provide you with the STEP file.

Note : yes I know the cable management is horrible, it's just temporary LOL
