Talent Cell Case

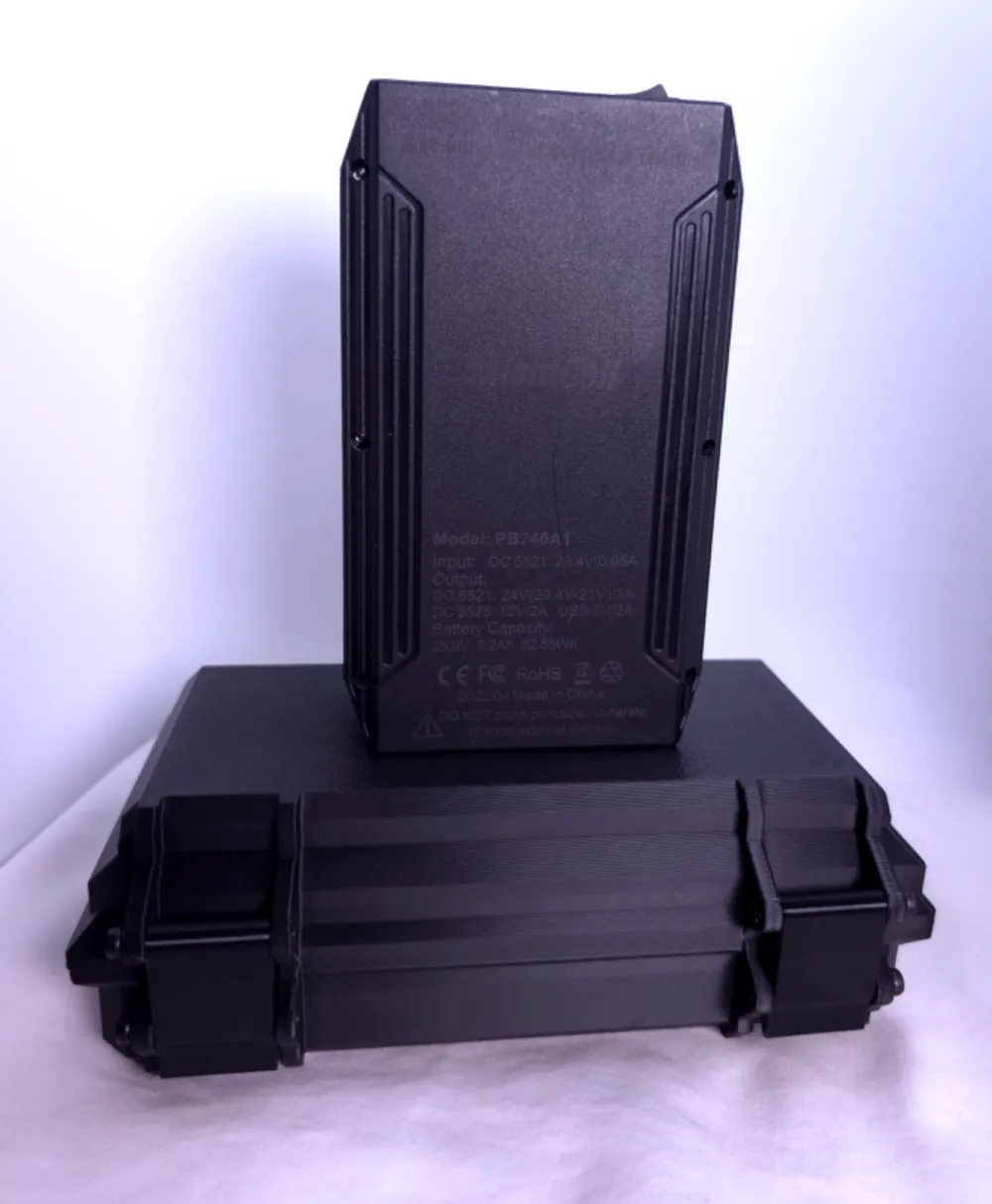

Case for the Talent Cell model PB240A1. Made with testing LED strips in mind (12v-24v)

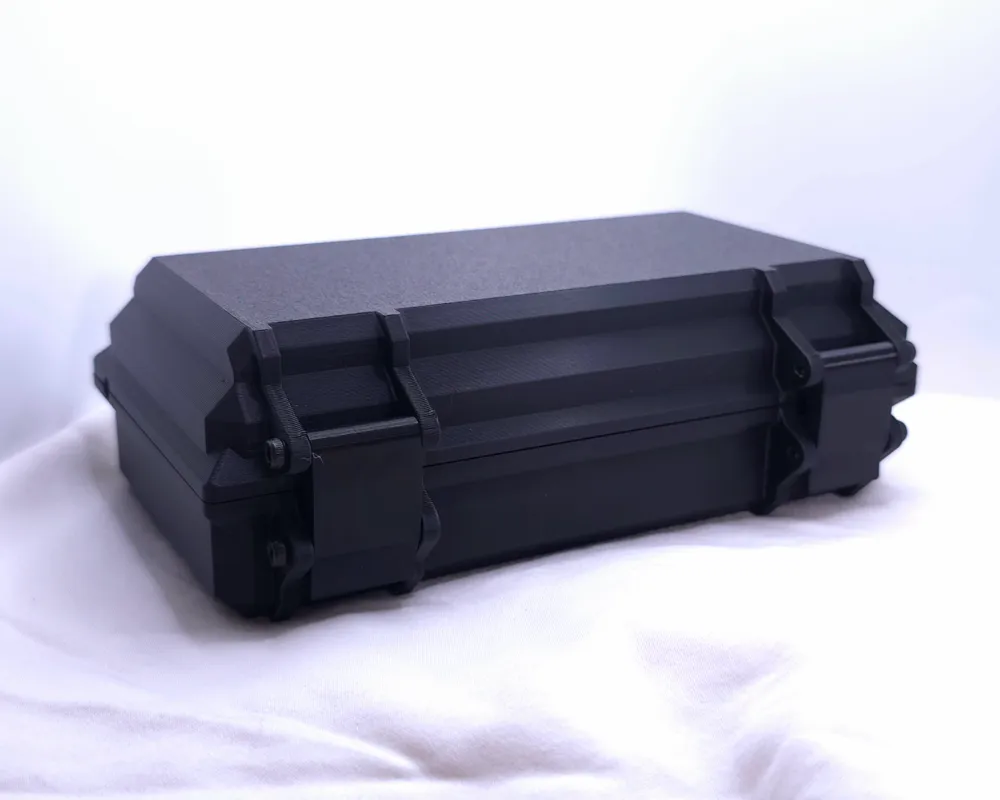

Hinges are print in place. Requires four M3x30mm machine screws to assemble clasps. Clasps are printed in Bambu PETG HF and the case in PLA basic. The case will work printed entirely in PETG HF also but make sure the filament is dried well. The clips, clasps, and shaft of the case are all printed with 100% infill. The interior clips are also separate objects so you can print a combination of PLA or PETG HF parts or remove them entirely if not needed.

Printing the blue seal is optional but if you do, use a hard TPU and don't run it through the AMS.

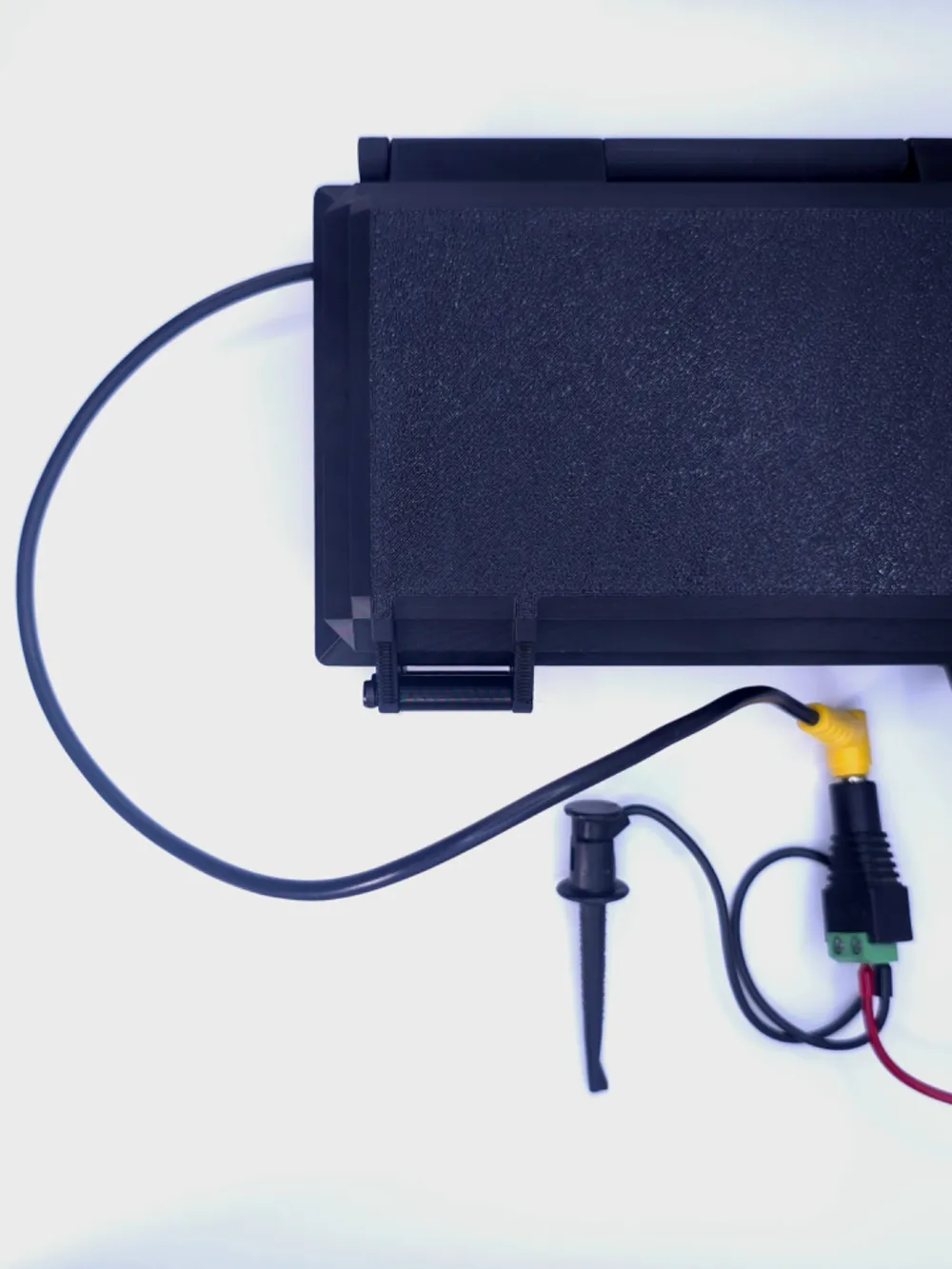

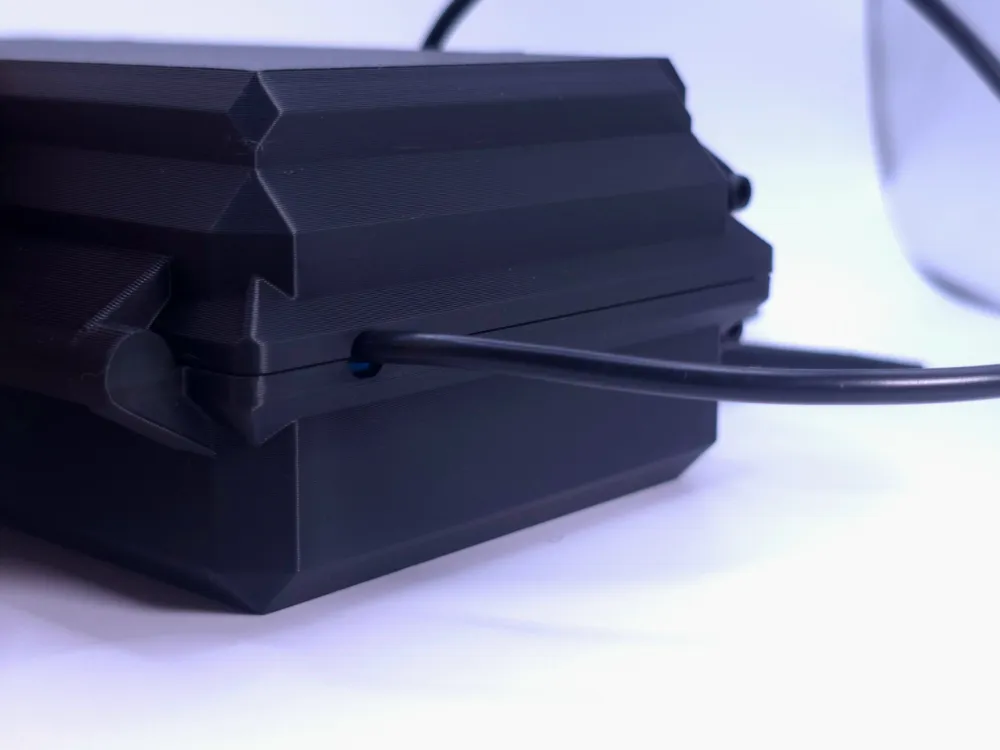

There is a hole in the side of the case that allows the probes to be used while the case is closed. The hole is partially blocked and the seal runs over it to act as a strain relief while the case is closed.

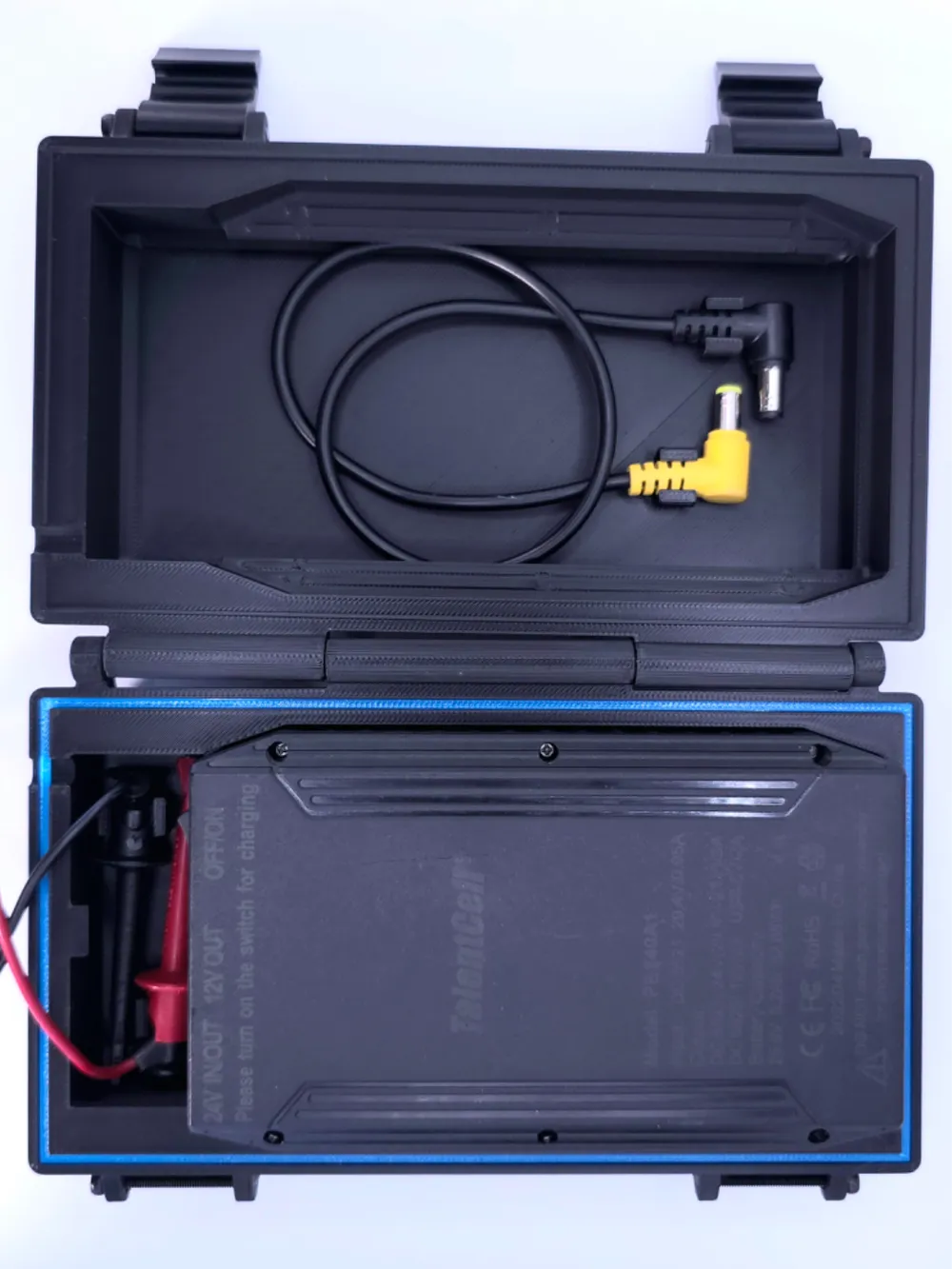

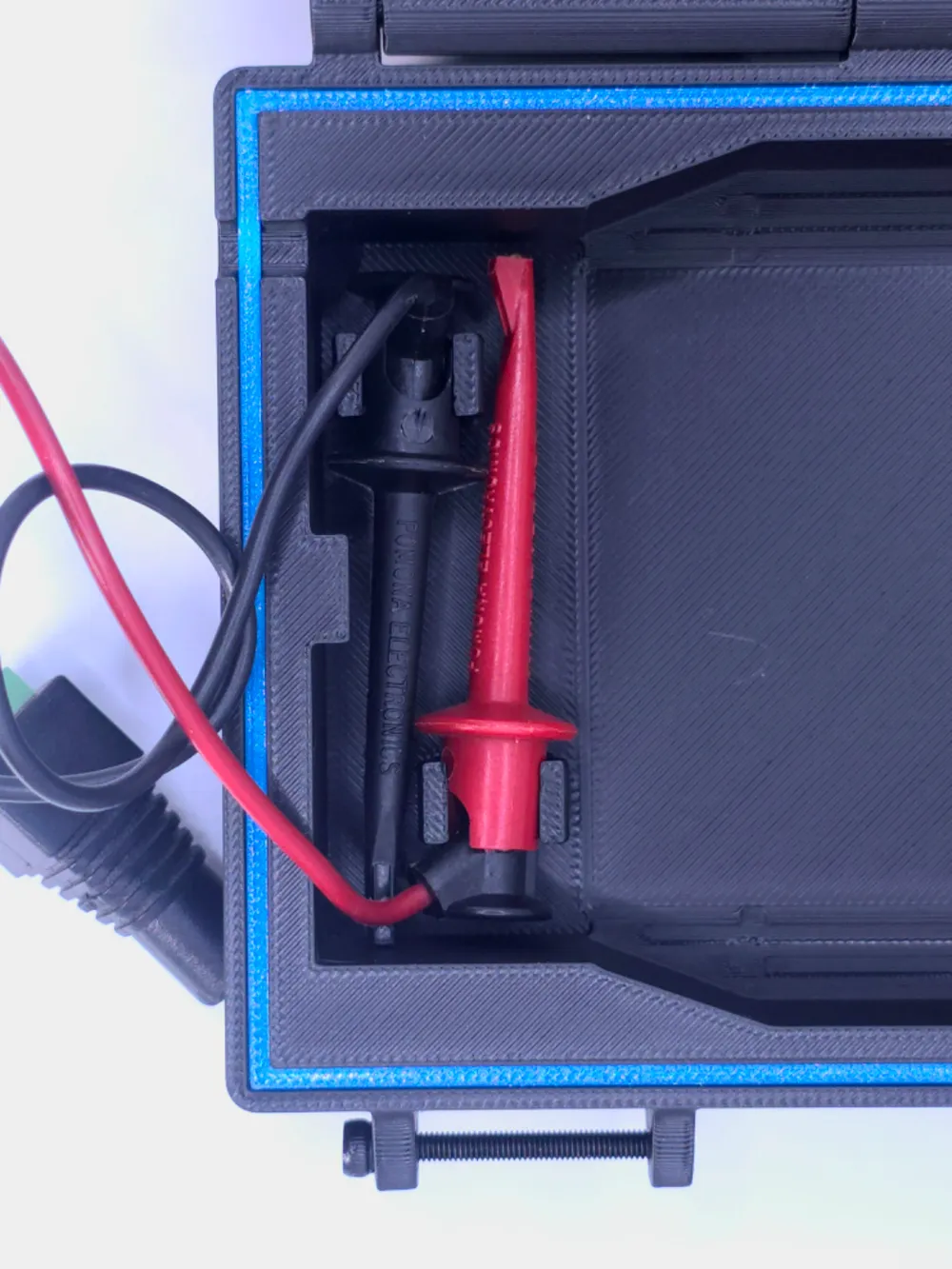

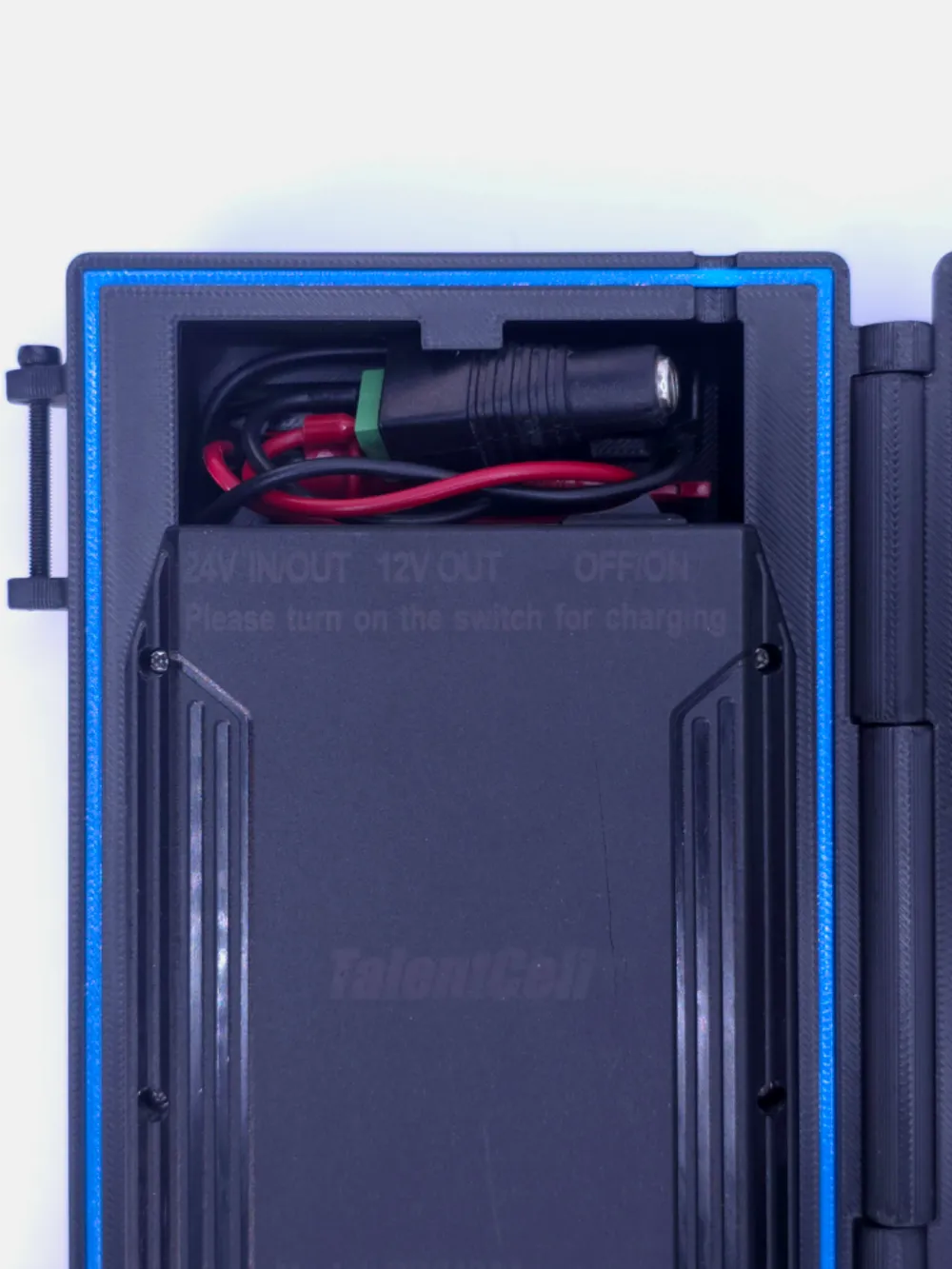

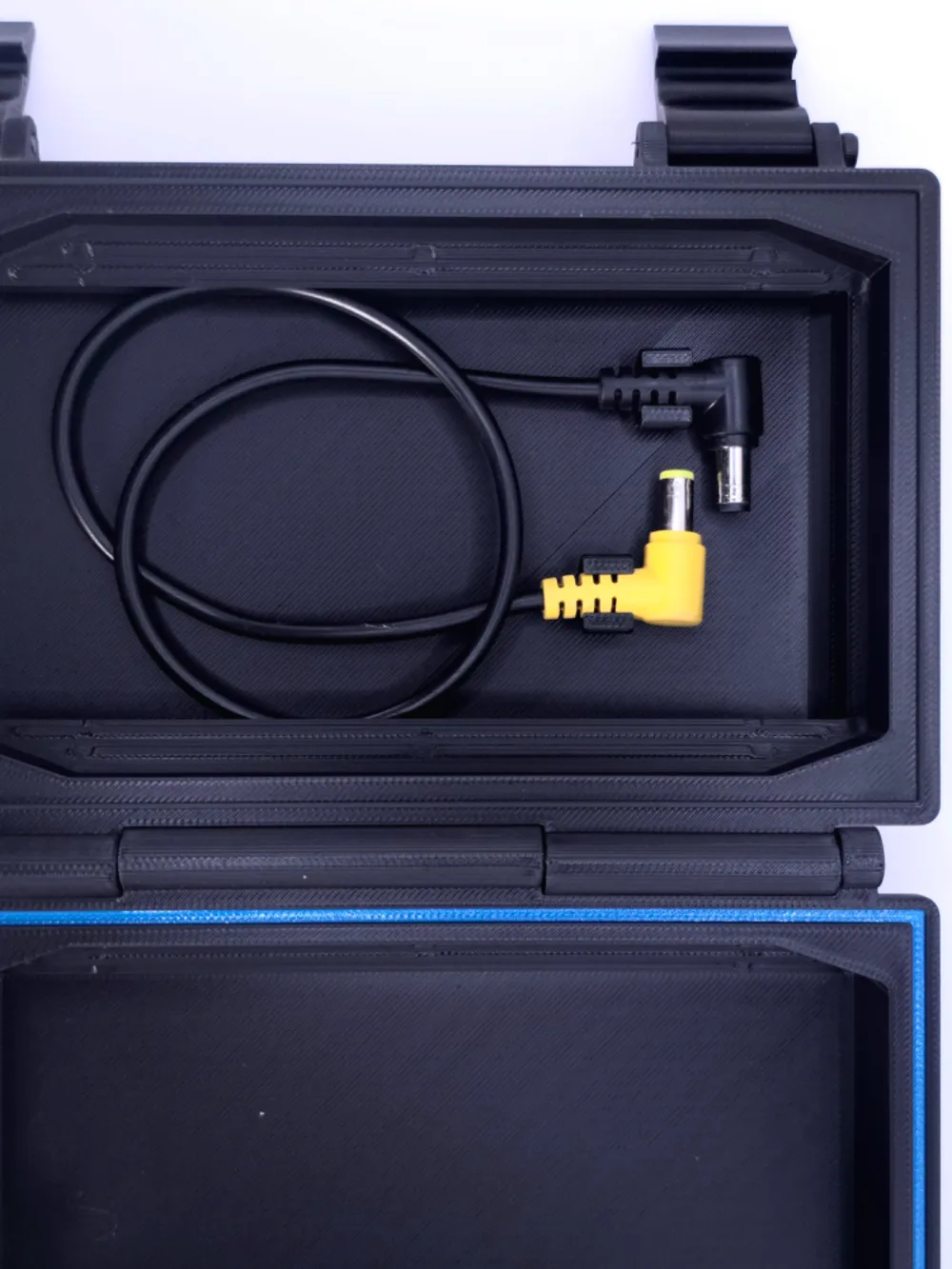

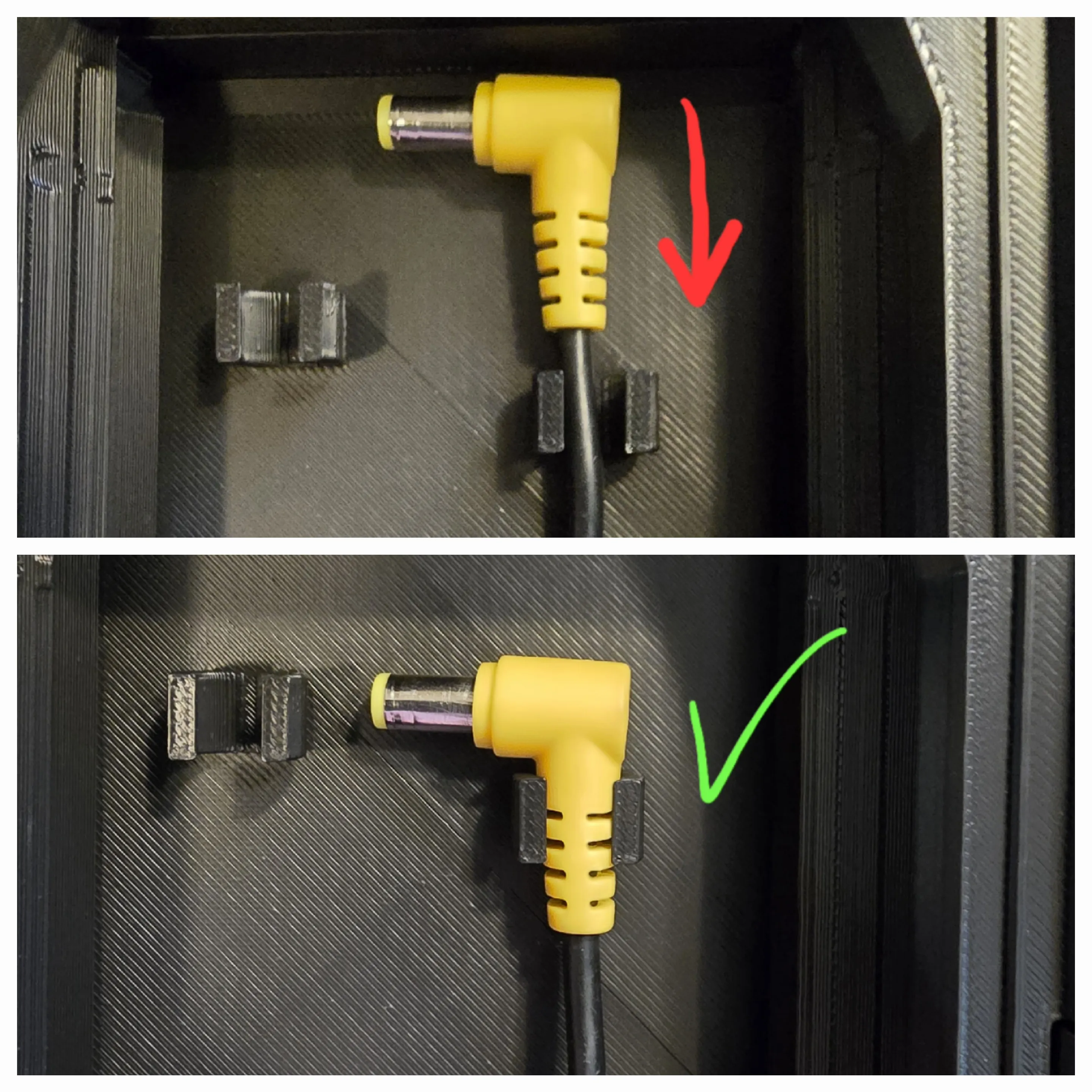

There are clips on the interior of the case for the probes and barrel connector cables. The probes are sold separately from from the Talent Cell but the male barrels are included. The probes snap into the clips like you'd expect but for the barrels, put the cable in before the strain relief and slide into the clip like depicted below.
