1919 Leyat Helica Roadster

1919 Leyat Helica rodster replica

this is a 3d printed replica of the 1919 Leyat Helica, better known as "The plane without wings"

here is the wikipedia link if you want to know more https://en.wikipedia.org/wiki/Leyat

this is a “roadster” version

check out the “regular” version

On the web you can find photos of different models that change due to small details. I tried to capture the important aspects of the machine for its originality

the print plates are divided based on my choice of colors (I don't have an ams)
for some parts (window shading, wheel axles) it is essential to have excellent quality filament.
arm yourself with patience when removing print supports

if you like it download it

Assembly guide

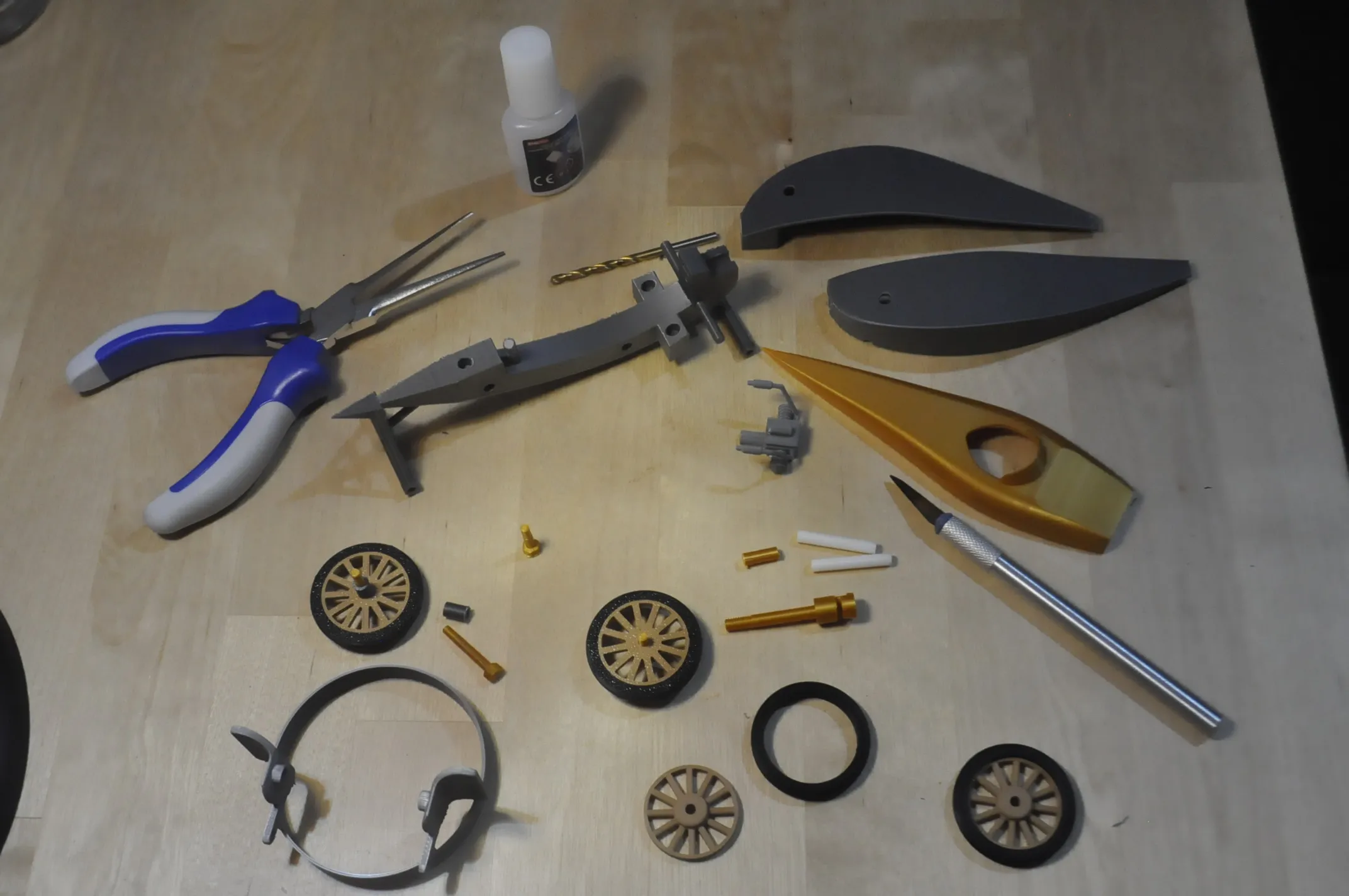

most of the parts are press fit, you just need some glue for the wheels, tools to remove the supports. keep close a 3 mm drill bit, you mai need to rectify the holes in the rims and the spacers for the wheels

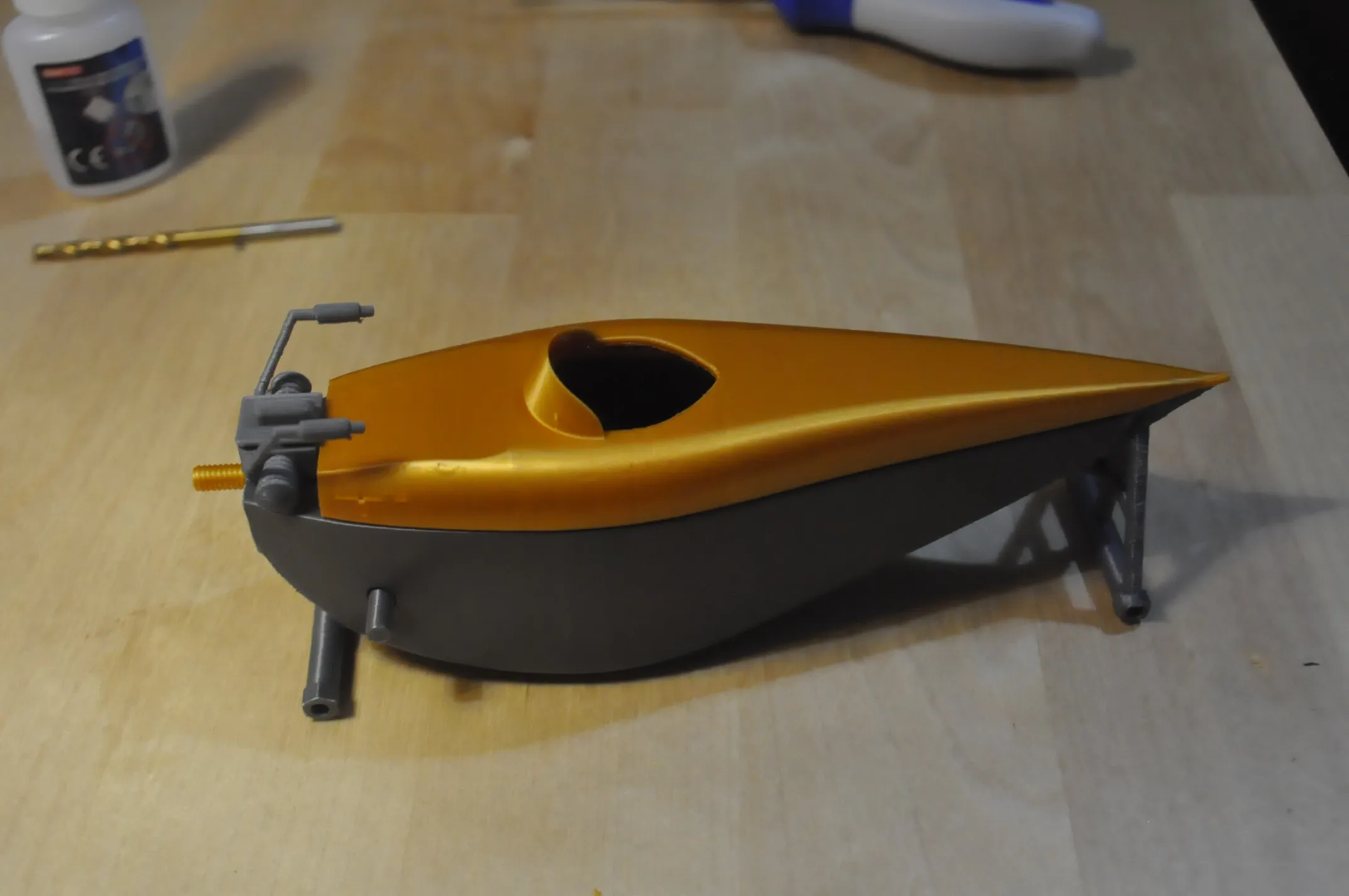

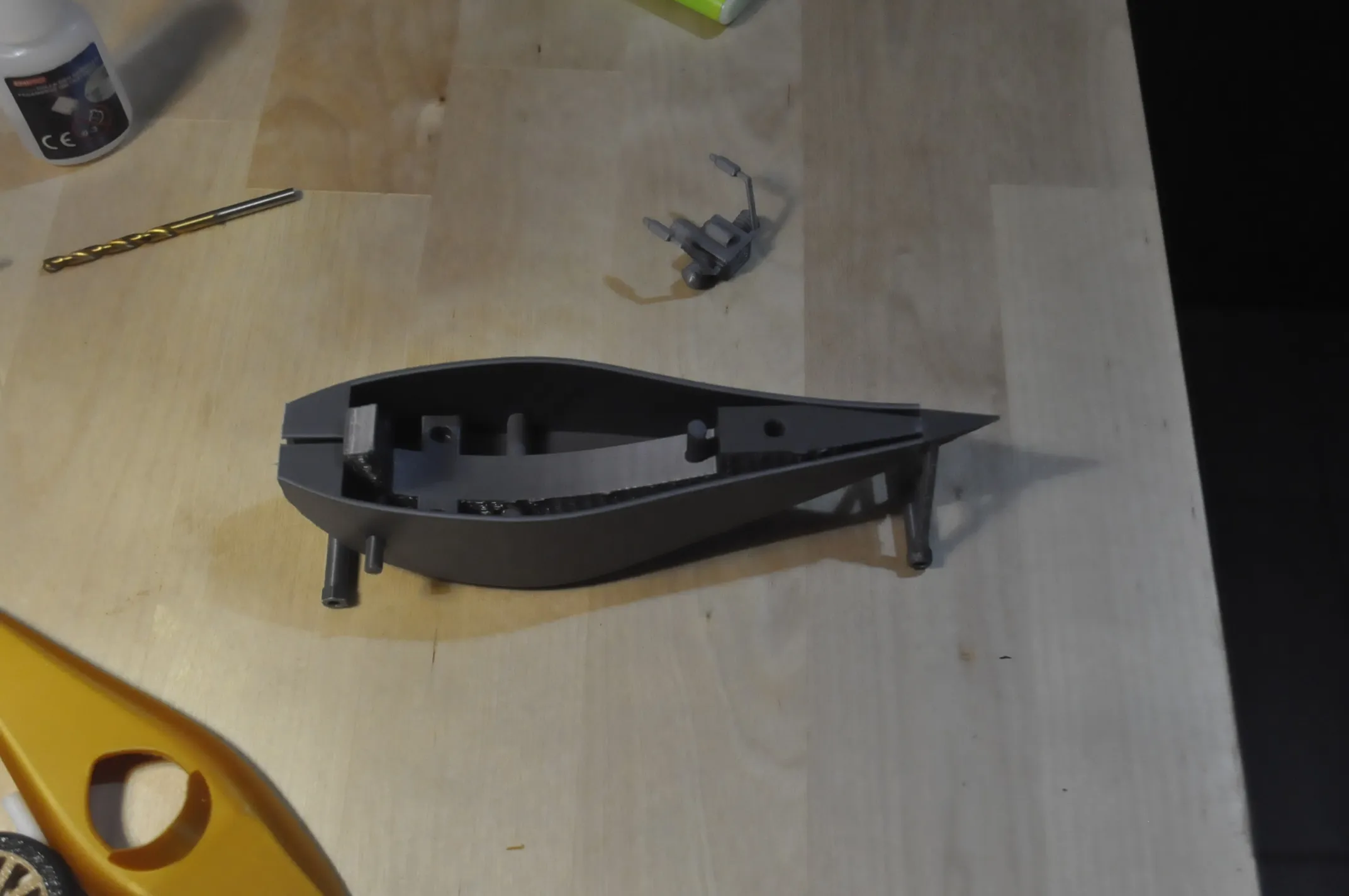

• assemble the lower part of the bodywork by aligning the pegs with the holes.



• now install the propeller shaft and if you want an elastic fixing it to the frame pegs.

  the rubber band could bring the propeller shaft out of place. screw the propeller onto the axle just enough to lock everything in place (it will need to be dismantled later and you will have to hold the axle in place with your finger but for now it will make it easier to install the rest of the pieces) and install the pegs as you see in the photo. the shorter one goes to the back of the frame. this peg is cut diagonally at the top. position it with the highest part towards the propeller

•

• install the upper part of the bodywork by fitting it onto the newly installed pegs. insert the motor into the appropriate slot. you may need to remove the propeller and hold the shaft with your finger during this step. then you can reinstall the propeller





• you can now install the mudguard by slightly tightening the structure to connect it to the frame peg

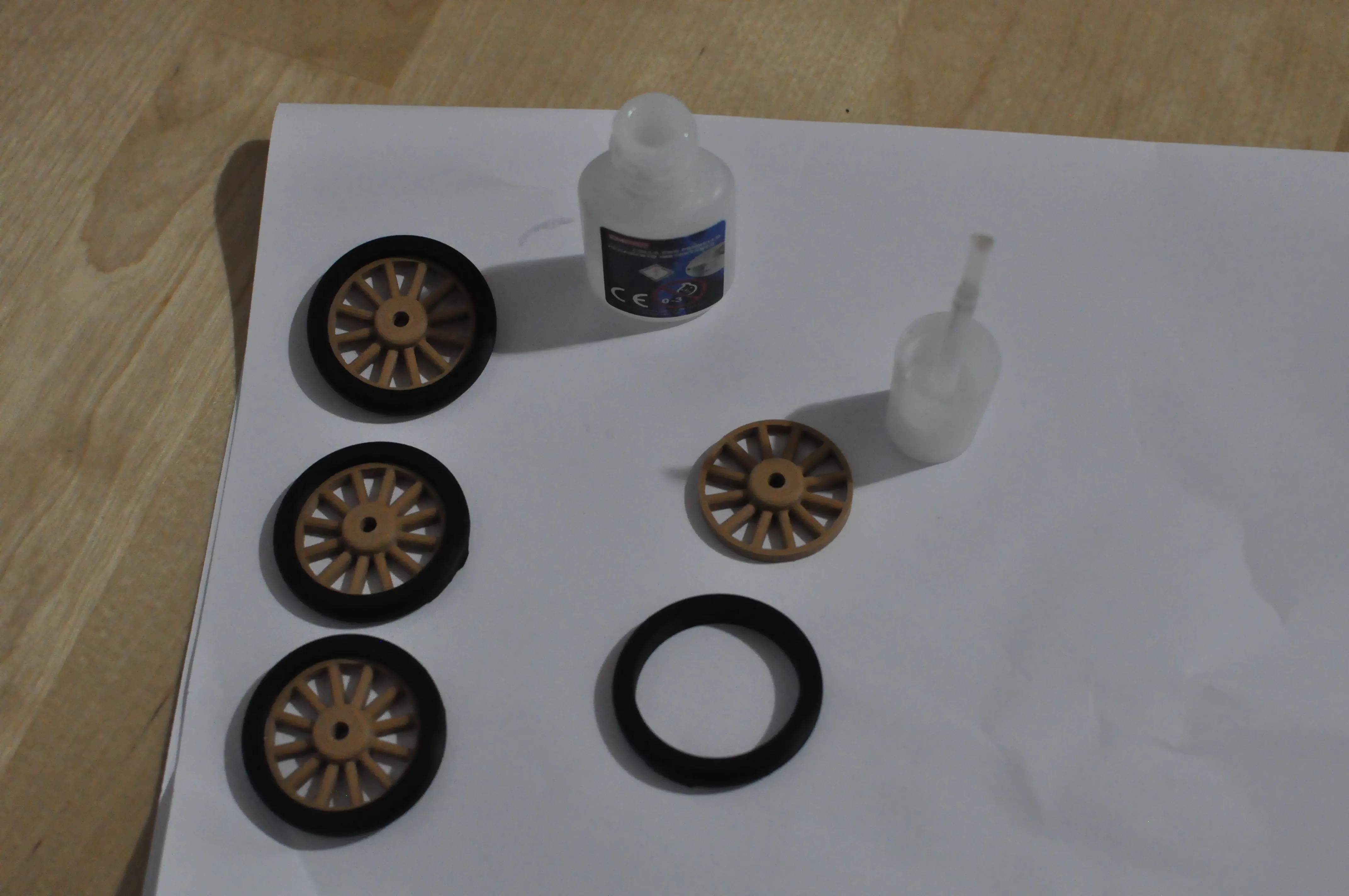

• prepare the wheels by gluing the tire to the rim



• you can now attach the wheels to the model by screwing the axles to the frame. the longer screws are for the front of the car and you need to insert the small spacer before inserting it into the hole in the fender and connecting it to the frame

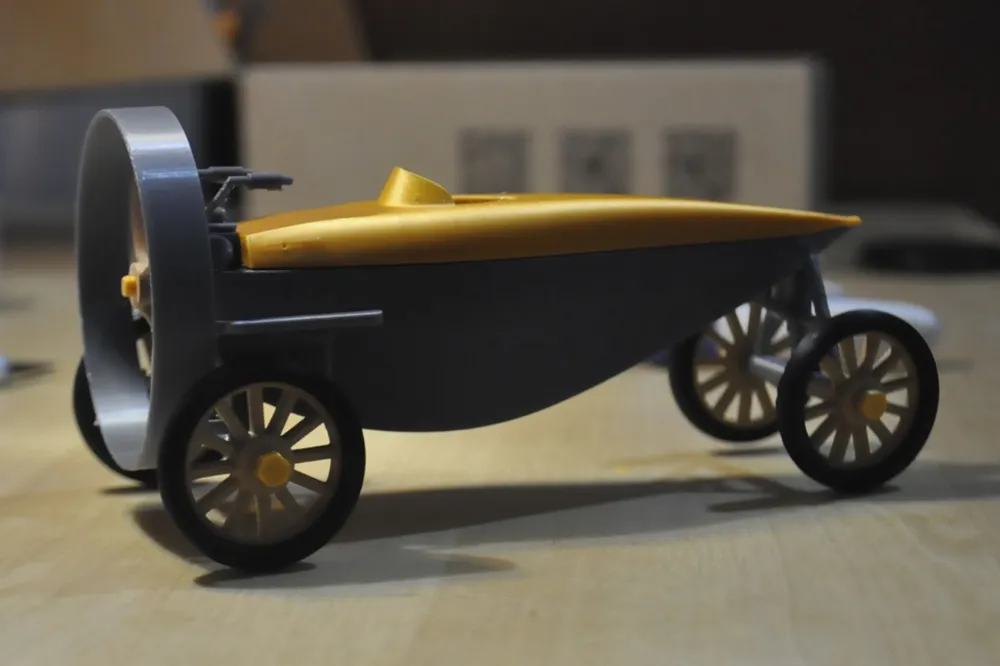

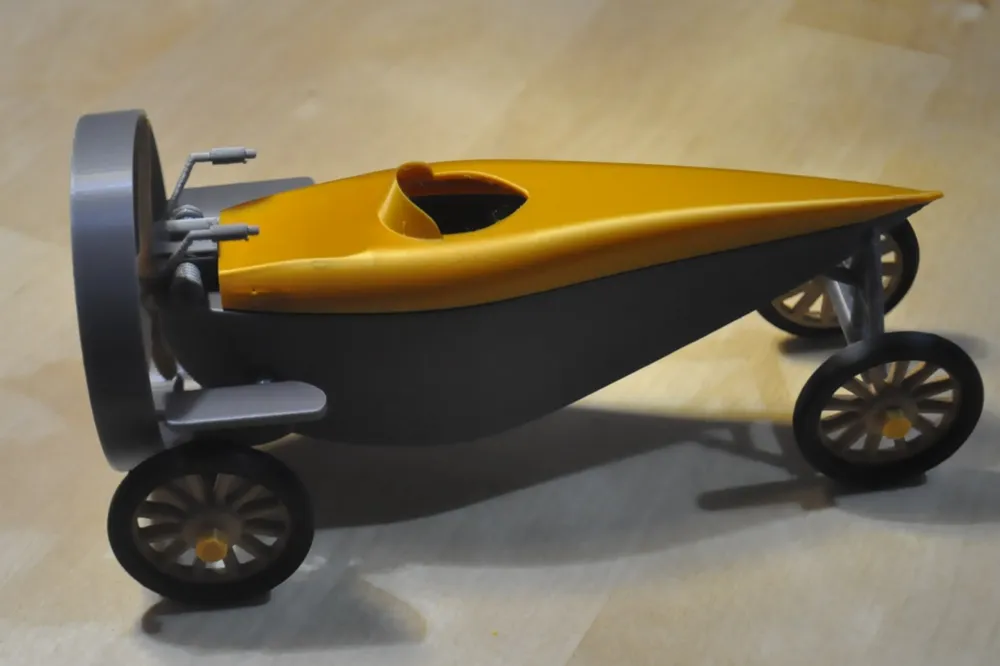

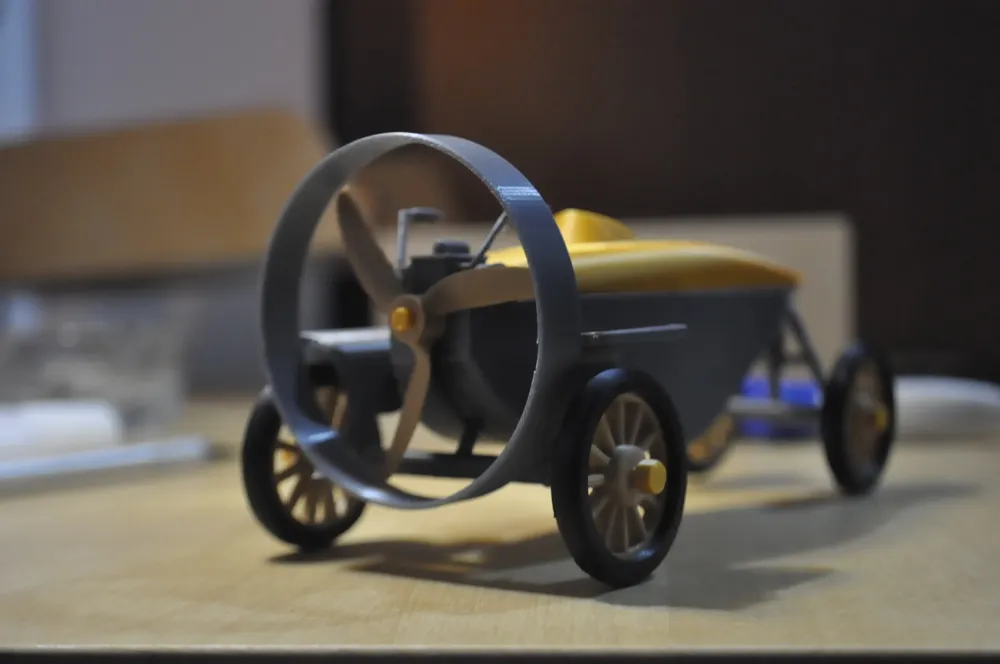

• finished assembly!
