DJI Avata 2 FPV Controller 3 Phone Mount - Free 3D Print Model

Search models, users, collections, and posts

Delta

Hobby & DIY>RC

IP Report

Print Profile(2)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.16mm layer, 2 walls, 15% infill

Designer

2.5 h

1 plate

4.8(14)

0.2mm layer, 6 walls, 25% infill - stronger clamp

1.6 h

1 plate

5.0(5)

Open in Bambu Studio

Boost

202

417

523

199

Released

Description

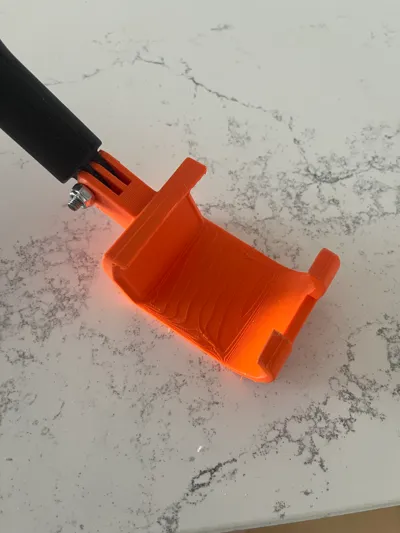

Snug-fitting phone mount for the DJI FPV Controller 3. It is relatively compatible with various phone (GoPro) mounts of your choosing.

Printed in PETG

Comment & Rating (42)

@Pwn00x

Print Profile

0.16mm layer, 2 walls, 15% infill

This profile printed really well Clean layers good detail and perfect bed adhesion right from the start Filament used PLA Printer Bambu A1 Mini I did not have to change anything Worked great out of the box Photos show the raw result without any post processing If you want more tested profiles real print examples and practical 3D printing tips Check my profile for more useful content and print tests Click my name to see more

The profile uploader has replied

@DeltaCharlie

thanks for the feedback!

@adamb.kotala

The print profile is no longer public

Super thank you

@user_1770916492

could you make a mount like this but for a xbox controller??

The designer has replied

@DeltaCharlie

I could. this is the only reference I have though, model 1708

@user_1770916492

Replying to @DeltaCharlie :

That's the exact controller I was trying to find one for. (sorry about the late response)

@vs1020

bruh how to print top part

The designer has replied

@DeltaCharlie

Im assuming by the "Top Part" you mean the black part? If that assumption is correct, that is the mount for my QuadLock case. Like I mentioned in the description. This is relatively compatible with some mounts, like the mounting tabs found on a go pro. You can mount whatever you want to it but you'll have to design something for your needs. Here are some examples I mentioned to another Maker in the comments. mounts with the 2 mounting tabs/hinge points will work (Check your measurements) Here are some examples: https://www.thingiverse.com/thing:3038539 https://www.thingiverse.com/thing:2444200 https://www.thingiverse.com/thing:2444200 https://www.thingiverse.com/thing:4928311

(Edited)

@vs1020

Replying to @DeltaCharlie :

where did u get your mount from is it purchasable and is it MagSafe

@PrettyFlyPrints

I'm surprised there aren't more phone mounts for the DJI FPV Remote 3. I think you are on the right track with your design, however the mount location on the top means the phone is unbalanced/top heavy. Also, with the print orientation, the mounting point is structurally weak with the layer lines. I think a front plate instead of a rear plate would be more beneficial, and with the mount closer to the front centre of the controller. It will also allow the print to be orientated for the layer lines to be in a stronger orientation. Google the Aerial Pixel FPV 3 phone mount on Etsy for a better design idea.

The designer has replied

@DeltaCharlie

Thanks for the feed back. I’m new at designing and 3D printing so this really helps! I will look into it

@JustPrintSmth

Pls give link to mount

The designer has replied

@DeltaCharlie

Any GoPro mount will work. links should still be in the comments

@user_4199596906

Boosted

lovely.

@hogrods

Boosted

great design. much appreciated.

The designer has replied

@DeltaCharlie

Thanks for the Boost!

@Kenny85

Print Profile

0.16mm layer, 2 walls, 15% infill

good fit

@makerfortuna

Boosted

works perfectly and I love it, I was worried about the antennas but I forgot that he talks to the goggles 3, so no problem,
