Reversible lens hood for Fuji 35mm F/1.4

Why?

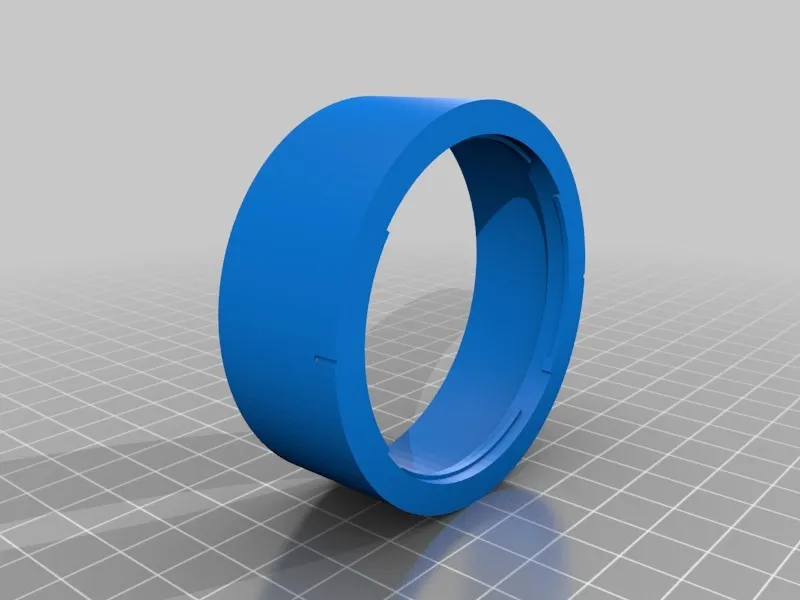

If you own a Fuji mirrorless lens you know how beautiful the metal square lens hoods are.

Sadly you'll also know how annoying they are, because they can't be reversed for transport and you have to take them off to remove the lens cap. My lens hood fixes both of those problems.

Features:

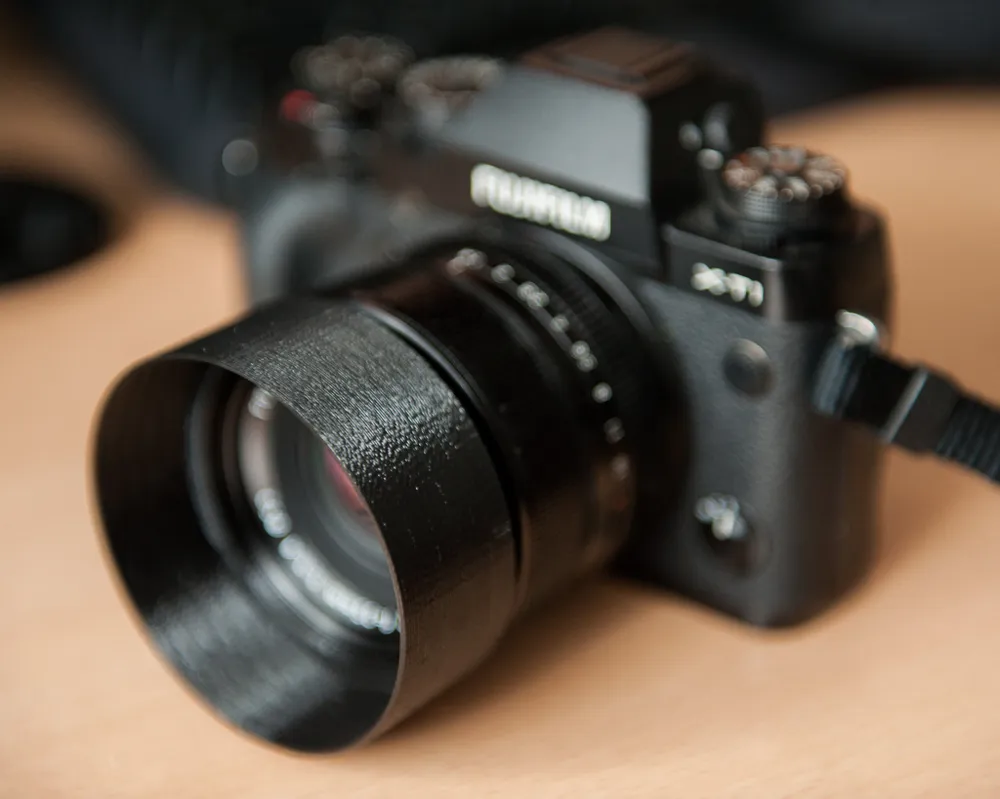

• The hood can be mounted in reverse to go around the lens barrel, making it easier to transport your camera in a small bag

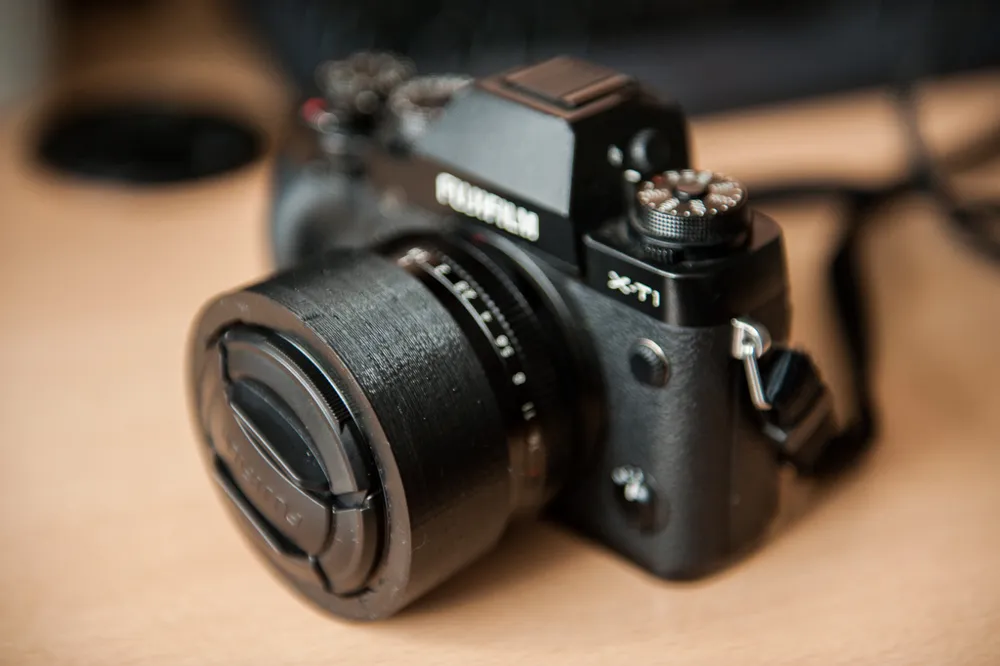

• The lens cap can be placed or removed when the hood is mounted.
• Uses existing threads on your lens barrel

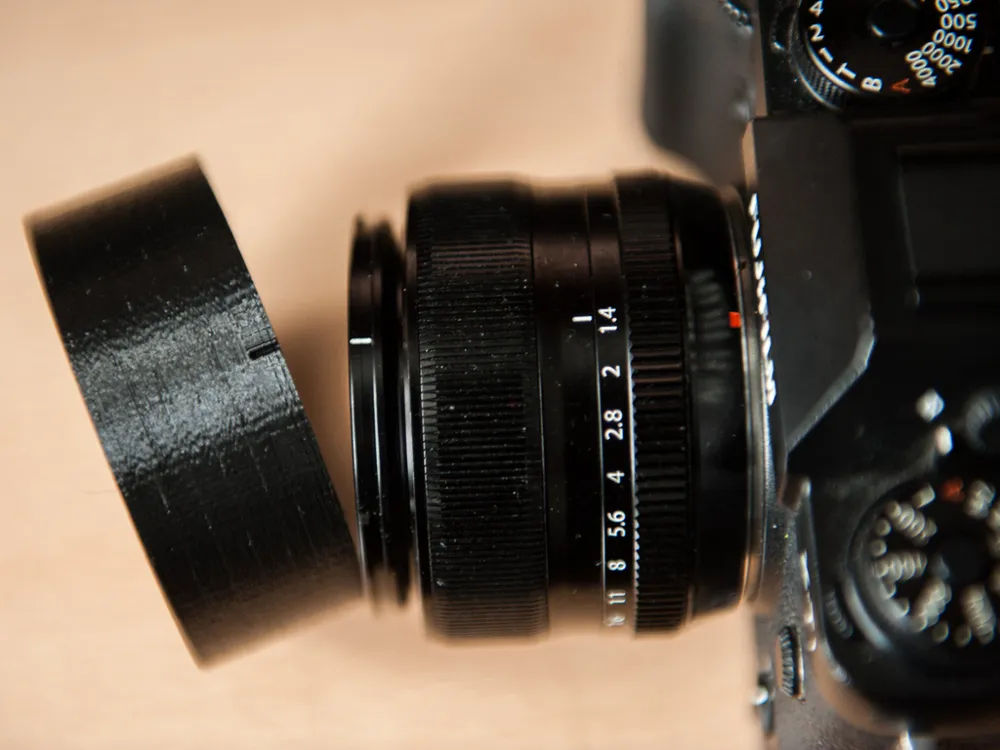

• Features a notch that lines up with the white notch on the lens when mounting
• Long enough to prevent lens flare, short enough to prevent vignetting.

Instructions:

Rotate clockwise to mount, counter-clockwise to dismount.

Print in black, matte filament for best results. I recommend PETG for strength/flexibility.

Print with supports under the upper set of threads!

Open source

As always the original design file (fusion360) is included, so feel free to improve it,

Print Settings

Printer Brand:

Wanhao

Printer:

Rafts:

No

Supports:

Resolution:

.2mm

Infill:

Notes:

Print with supports under the second set of threads, your 3D printer might not be able to print them otherwise.

I used 3 top/bottom layers and 2 perimiter/shells.
