Creality K1 side fan improved Flow duct

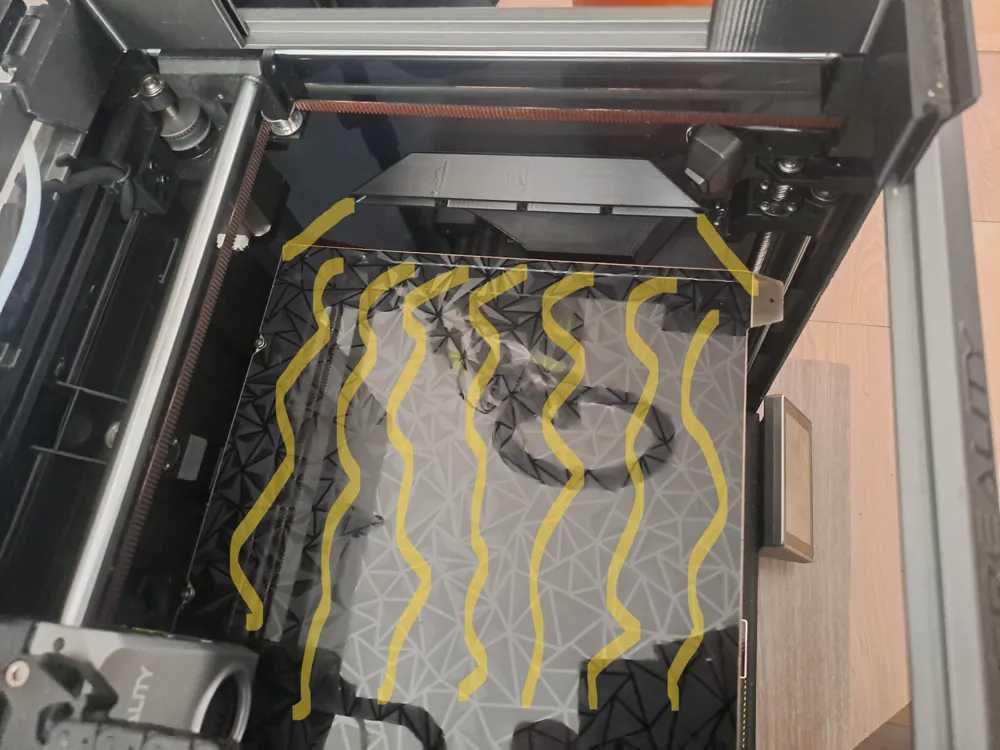

The duct greatly improves the air flow on the surface of the entire bed, thus guaranteeing good cooling at high speeds.

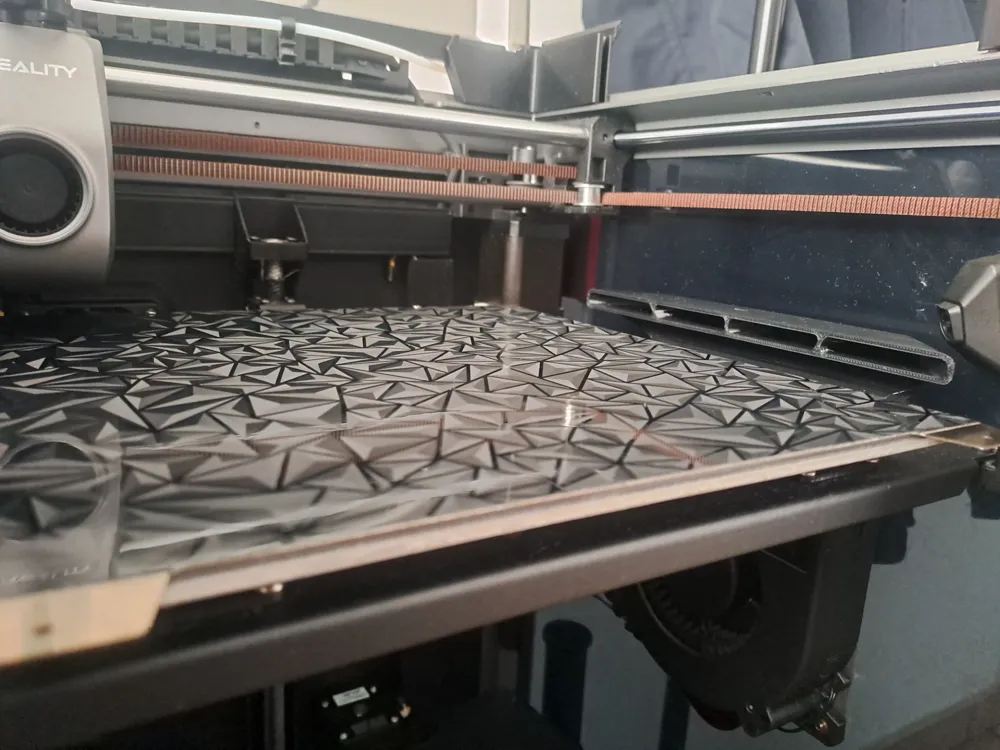

It mounts the same as the original duct, however you will need an M3 insert nut or m3 normal nut like the one in the image below,

There is a model for each type of nut

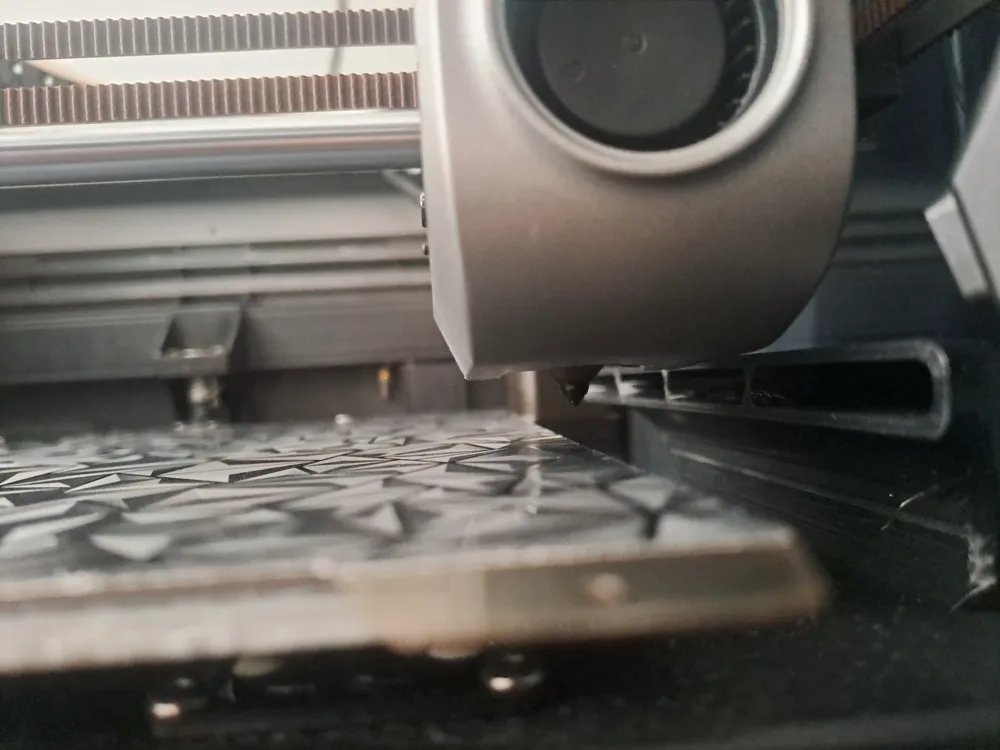

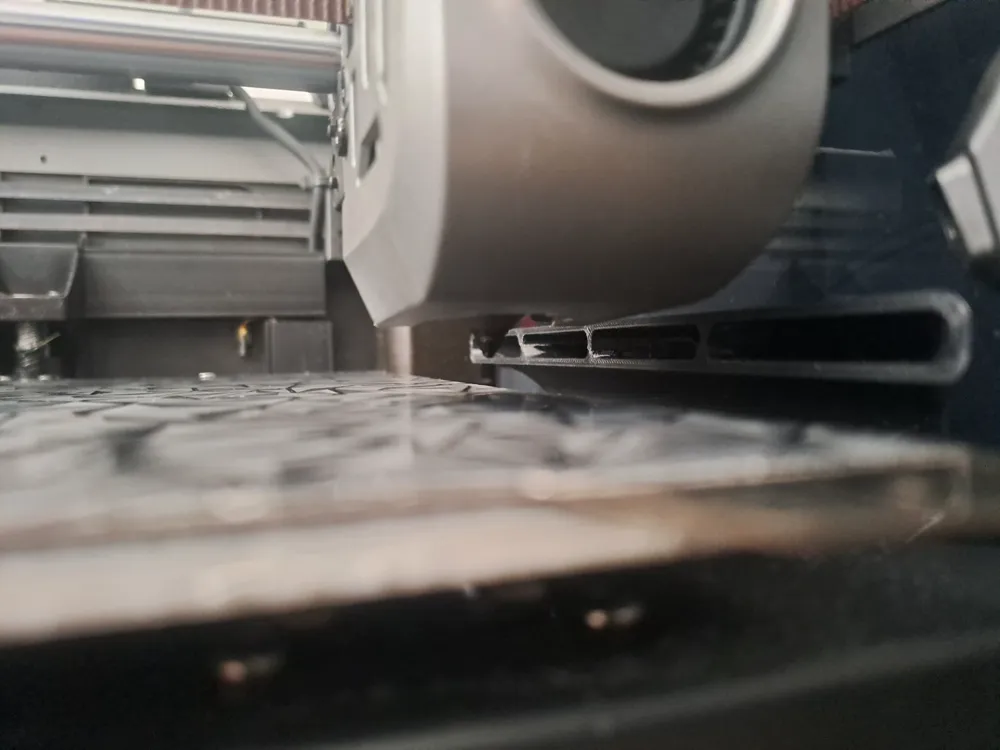

Additionally, this duct is 5mm lower, since the original duct seems to me to be pointing to the hotend housing but not to the model that was being printed

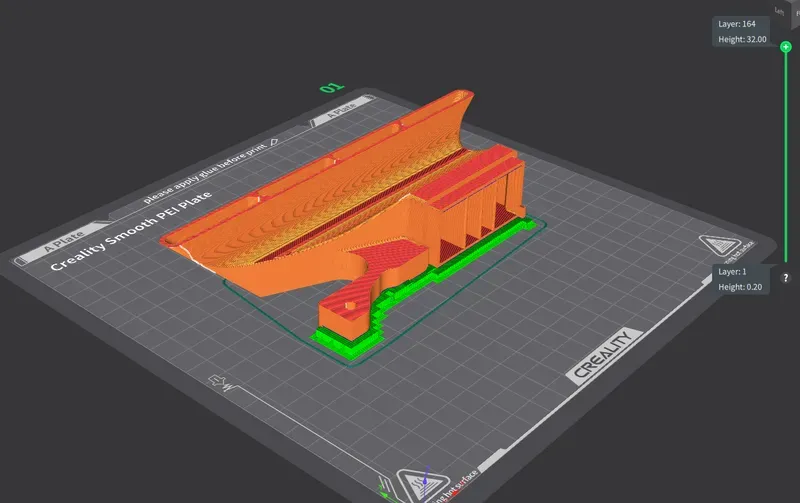

Requires supports only on the base

Print settings:

- Material - ABS or PETG, PLA is not recommended

- 3 walls

- 5 top and bottom layers

- infill from 15% to 20%

- It is very important that you have your machine well adjusted for the flow and cooling of the bridges

Finally, I apologize for my english.
