NR200P Phanteks LED Fan Mount Bracket

Have you been wanting to spice up your Cooler Master NR200(P) with some of the cool Phanteks LED's everyone's using, but the adhesive backing and “universal” brackets not doing the job like they should and constantly sagging down?

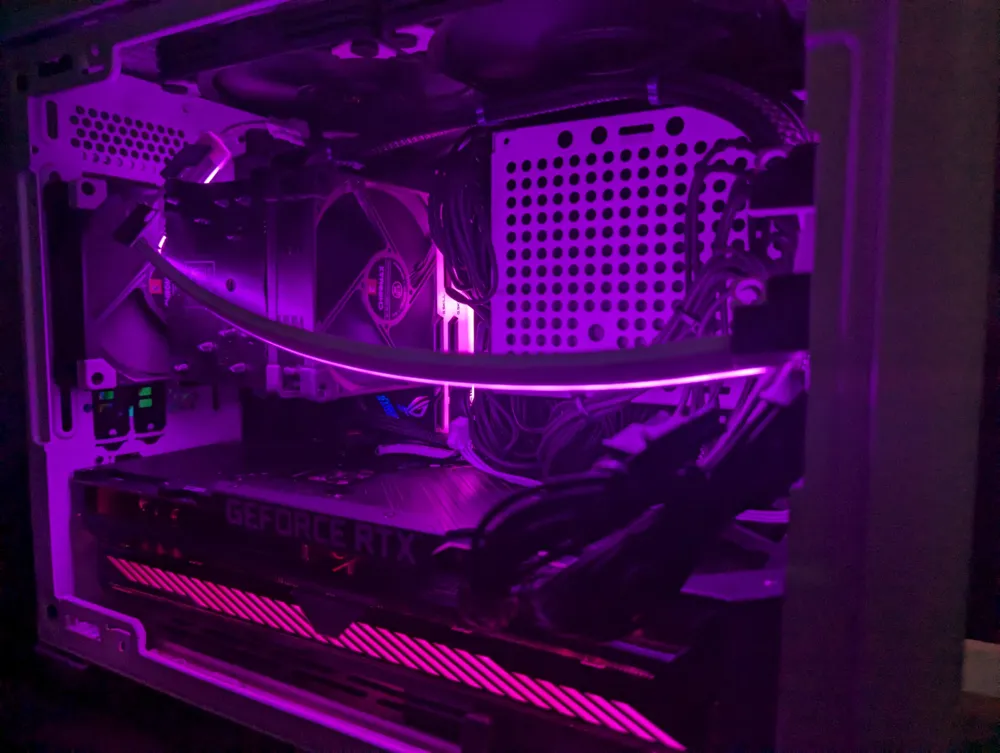

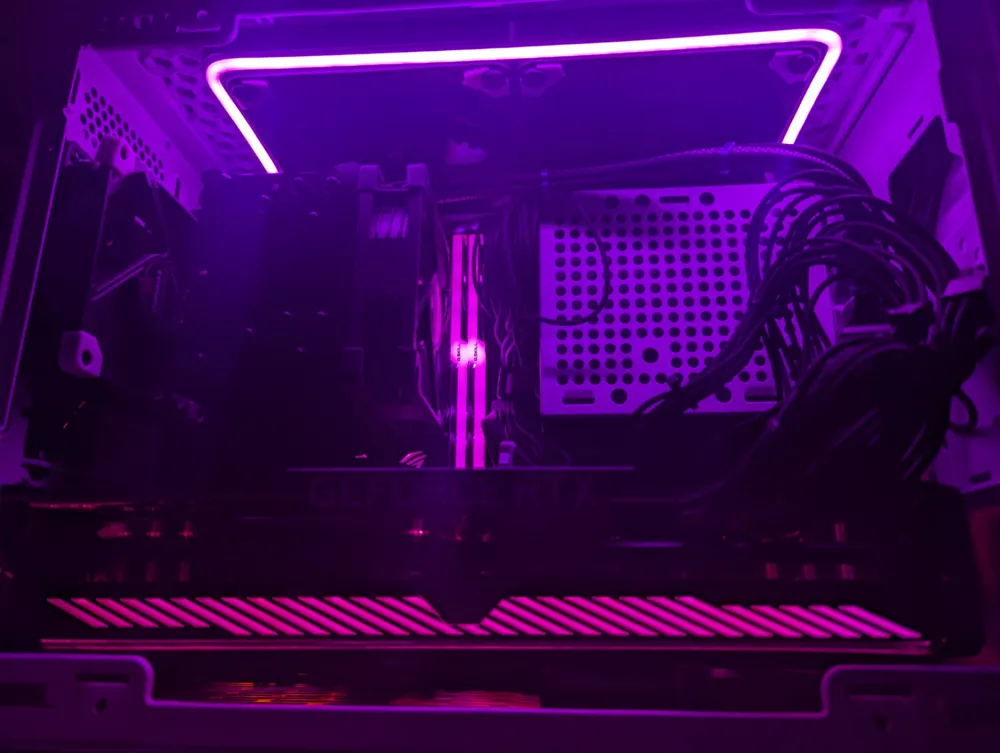

Well me too! Which is why i have designed this bracket that is perfect for the job. Using the Phanteks 400mm LED strips I have made it so that the strips will mount around the 2 120mm fans on top of the case sitting perfectly flush in there for an extremely clean aesthetic!

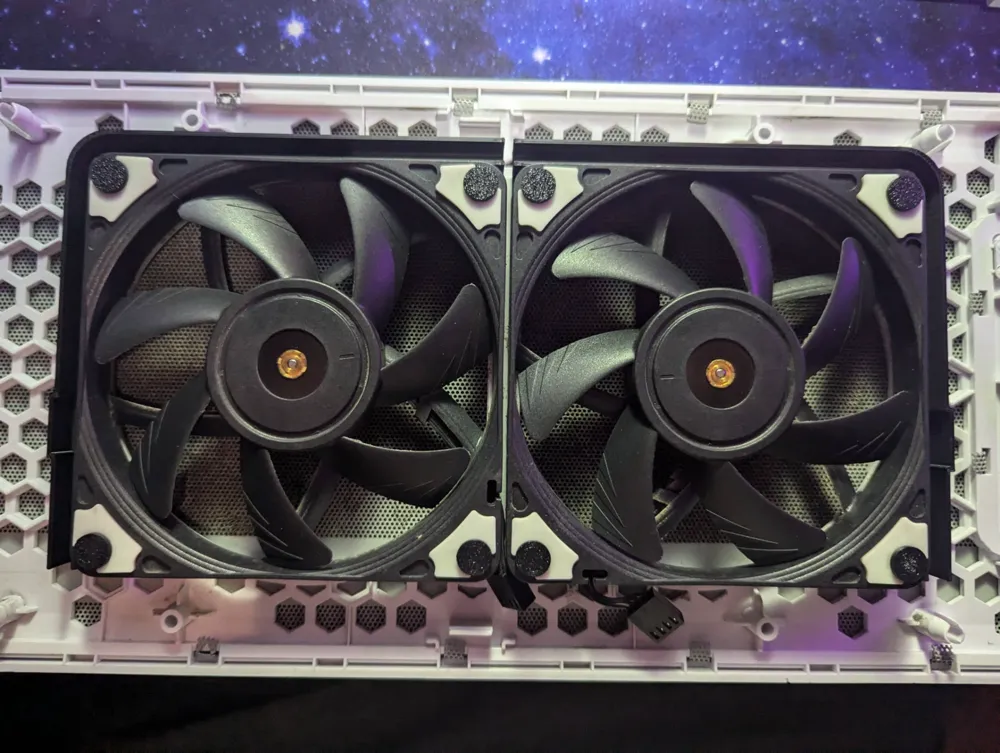

Just print the two parts, preferably in PETG (as gaming PC's get hot!) and seat them underneath the fans before securing it all with the Cooler Master's supplied tool-less push pins.

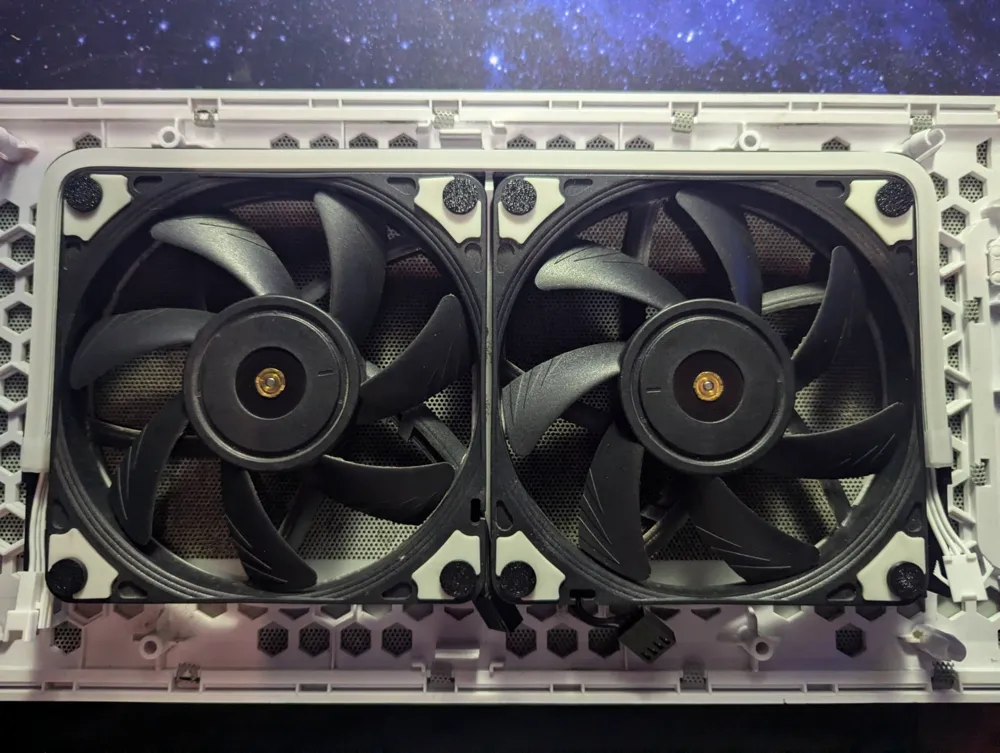

Personally I have gone with Noctua's slim fans and have also designed a smaller version of the push pins to accommodate the slimmer profile. So i must mention that i have not tested this bracket with the stock or equivalent thickness fans, which i believe to be 25mm, opposed to Noctua's 15mm. That being said i believe thickness of fans not to be an issue, but rather the possibility of a wider fan shroud. With such uncertainty i would love it if others tested this and let me know! Thanks

Regarding installation

Due to the crowded area that is the top-hat of this case the bracket will not install if it is secured before putting the top-hat back on to the case. I was able to combat this issue by securing 4 pins to the fans on the backside of the top-hat (the PSU/back of motherboard side), dropping the top-hat down into the case, then installing the last 4 pins to the fans to hold it all together. Fitment is perfect and will only install this way, trust me ;)
