HTU21 Sensor Cover
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
14 min
1 plate
Open in Bambu Studio
Boost
3
12
1
0
17
9
Released
Bill of Materials
List other parts
- M3-hex-bolt-countersunk x 2: select-required-length-for-your-project
- M3-nut x 2:
- M2.5-nylon-bolt x 1:

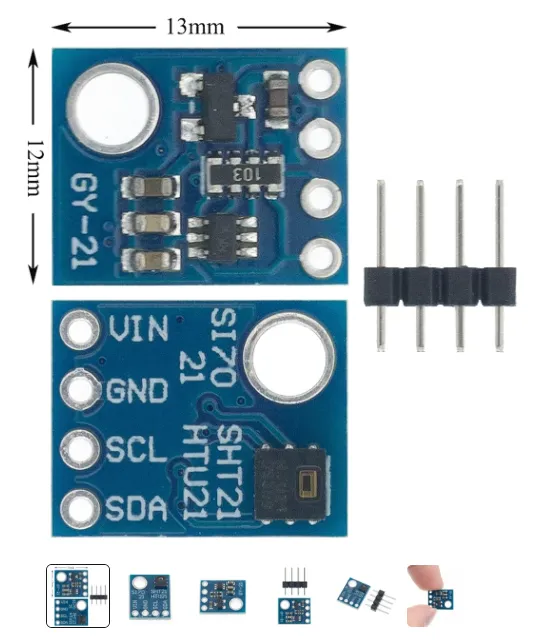

- HTU21-temp-humidity-sensor x 1:
Description
I needed to externally mount a HTU21 sensor for my Telescope Dew Controller project.
It had to be mounted on the outside of the project case, since it is used to measure the outside temperature and humidity.
The cover is designed to be fixed with two 3mm countersunk bolts ( I use the hex head type )
and the sensor is mounted to the base plate with a 2/2.5mm nylon bolt.
( I used nylon, so there was no chance of any electrical connection on the tiny sensor pcb )

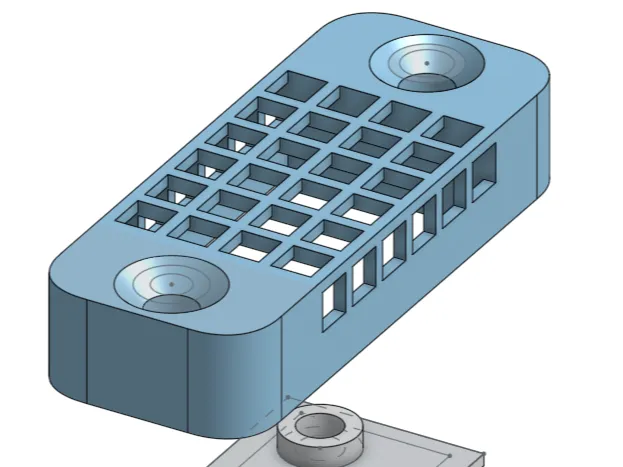

This model was designed in onshape and could be used with other sensors of similar mounting/size.

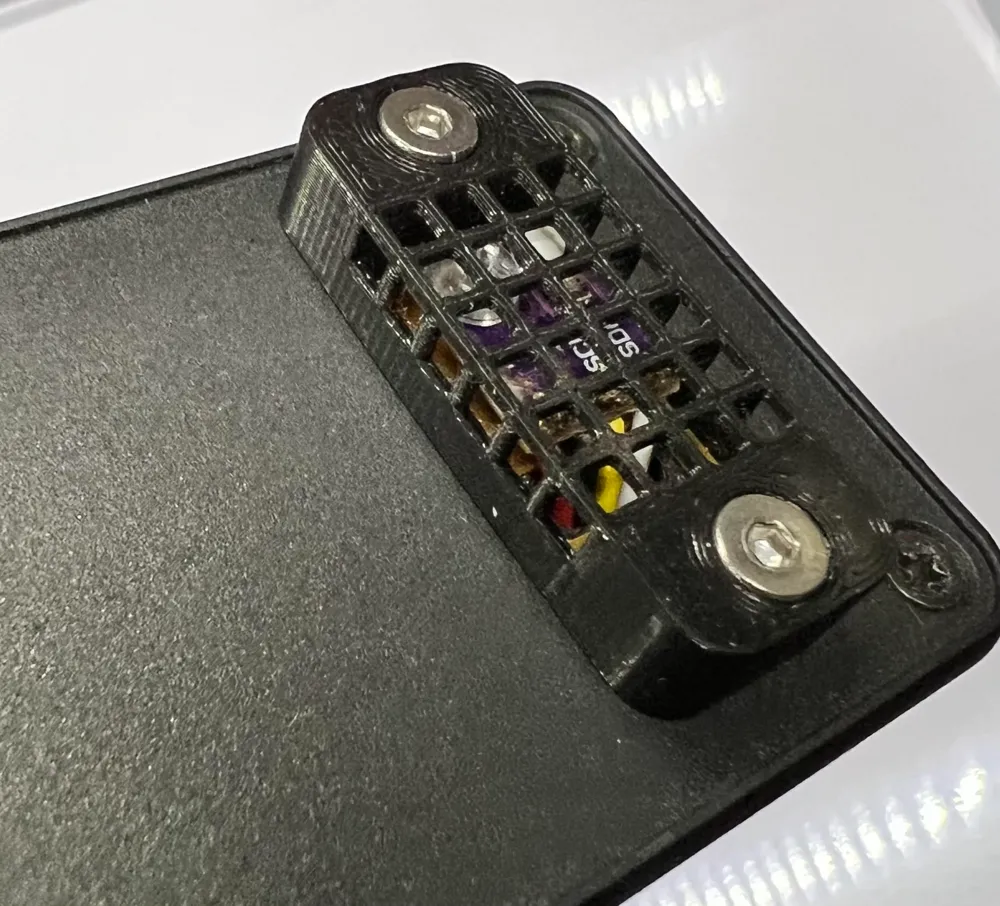

NB: The photo shows my Ender3v2 finished print.
