Description

IMPORTANT NOTE ON COMMERCIAL USE OF MY MODELS

Please note that I am sharing my designs for everyone to enjoy but for personal use only. You may share physical copies for FREE but not the digital copy nor sell as I have NOT provided any commercial license to any one to sell either digital or physical copies of my designs. I will not hesitate to report to Etsy's and other online sites' admin if I find them being sold there for profit.

__________________________

REVISION HISTORY

2024-08-18 - Plate 26 has been updated to fix the issue with the quarter high couplers being too sunk into the build plate. Pls re-print plate 26.
2024-08-08 - Uploaded complete Assembly Guide (pls redownload if you happen to download the early version).
2024-08-07 - Profile updated to v1.01 to add marker to the axle mount (pls reprint this part) to ensure correct orientation; increased no. of parts on some of the plates and labeled the plates.
2024-08-06 - v1.0 profile uploaded

IMPORTANT WARNING

Note that there are a lot of variables that affect parts fitment, e.g., flow rate, temperature, speed, etc. Please do a quick, test print for each filament type and color to test for fitting first before printing all the parts. This way you know that the filaments have already been calibrated and you're sure the fitting will be correct when you print the parts. I have provided the profile test print plate - BL PLA Basic for you to test.

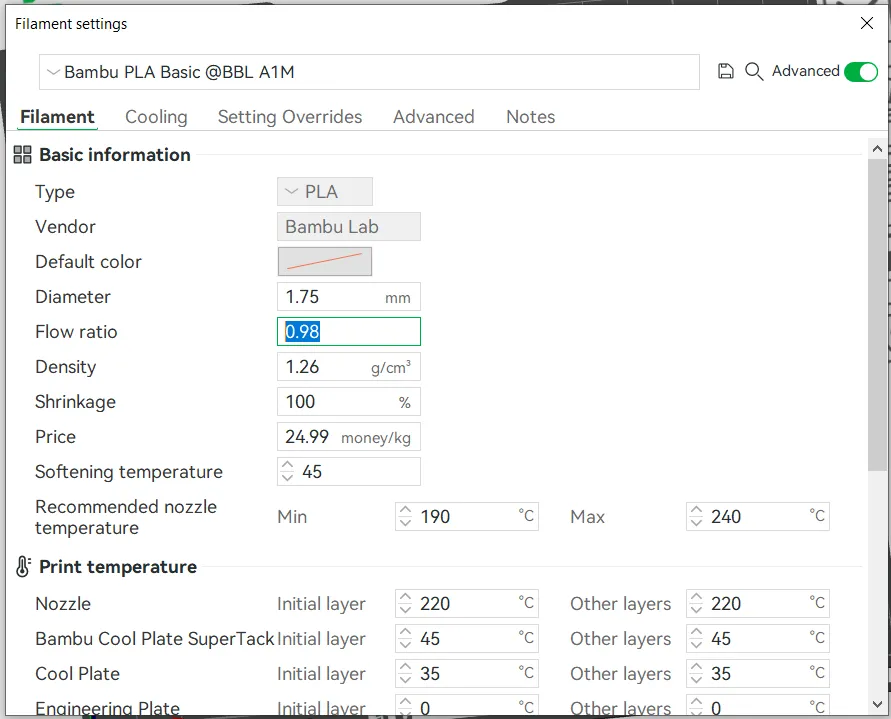

If you find the fitting too tight, the easiest you can do to adjust the fitment is play with the the Flow ratio (see below). Keep reducing it by 0.01 until you find the right fit.

Using Bambu Lab PLA Basic Silver, I have not adjusted anything and the printed part fits exactly as intended. See video below. As stated above, depending on the filament to be used, you may have to calibrate first to get the right fitting.

INTRODUCTION

This is another expansion set for my Minecraft-inspired building blocks / base & diorama builder. This most recent expansion further shows the versatility of the design as base for a marble run featuring Steve and various mobs riding in mine carts! Pretty unique I should say as I'm yet to find an actual Minecraft-themed toy that combines building blocks and marble run in one that provides hours of interactive play!

FULLY CUSTOMIZABLE

The straight and corner tracks/ramps are the same size as the blocks and tiles of the Minecraft-inspired building blocks / base & diorama builder. You can re-use any blocks you already printed but I recommend printing the new pillar supports from print profile provided for better stability.

The tracks can be re-arranged and customized as long as it starts and ends in the elevator/lifter. See the assembly manual on how to create track arrangements on your own. After assembling the tracks, go ahead and customize the look by printing blocks from the Minecraft-inspired building blocks / base & diorama builder.

ADDITIONAL HARDWARE

This marble run uses 10mm steel balls for the mine carts and a TT motor to power the elevator/lifter to work. You can purchase these hardware from the Bambu Lab online store by clicking on the links below in the Bill of Materials section.

This minecart marble run is compatible with the BL Marble Run 003 kit. You can use the motor and plastic marbles that came with the kit on the tracks but the marbles will not fit the minecarts. Below is a video showing that the marbles from BL Marble Run 003 roll and fit this minecart marble run.

PRINTING AND ASSEMBLY

IMPORTANT NOTE: Elephant's foot (first layer too squished into the build plate) may cause the blocks to be tight. DO NOT REMOVE assembled blocks right away. Wait at least a day and due to material creep, the blocks will get loose over time.

Print all parts as oriented in the print profile. Glue will be needed to assemble some of the parts and are indicated in the Assembly Guide.

FILAMENTS USED

minecart: Bambu Lab PLA Basic Silver (10102)
grass, ramps, tree/leaf block: Bambu Lab PLA Basic Mistletoe Green (10502)
base, soil, tree trunk: Bambu Lab PLA Matte Dark Brown (11801)
cave block: Bambu Lab PLA Basic Gray (10103)
ore block pattern: Bambu Lab PLA Basic Black (10101)
water: Inland Glass PLA Blue

Boost Me (for free)

If you find this creation useful or just to show appreciation for the effort in making this model, please hit the BOOST button!

Documentation (1)

Assembly Guide (1)

Mine Cart Chase Assembly Guide v1.pdf

Comment & Rating (467)

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
