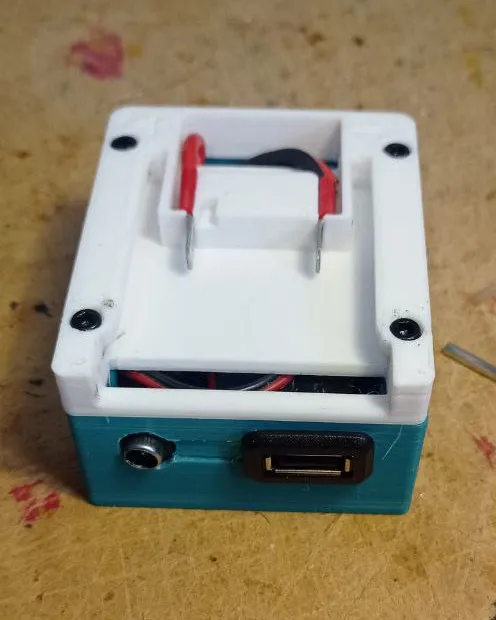

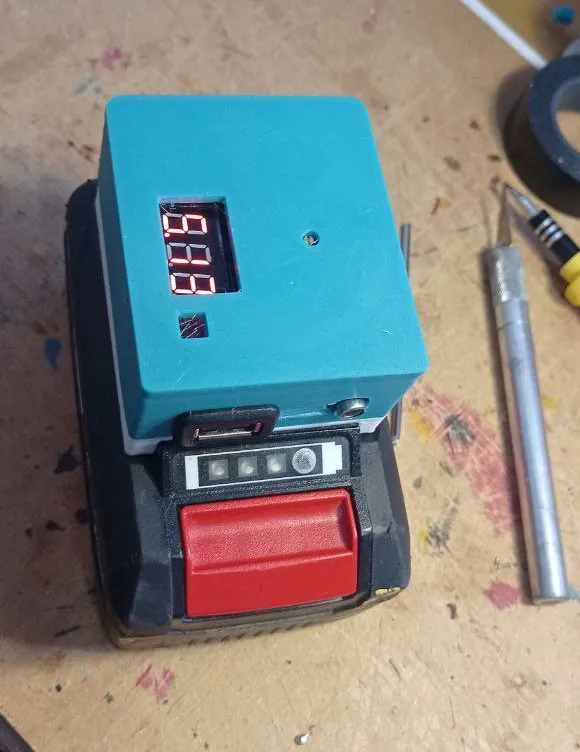

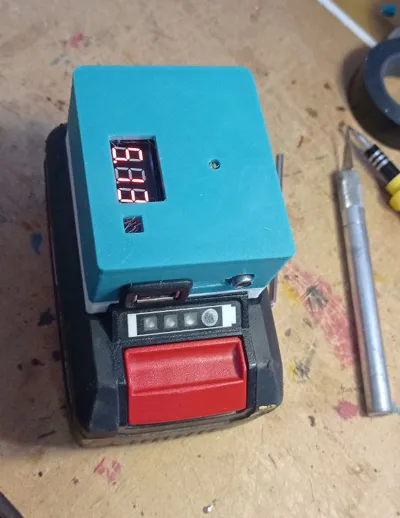

Einhell battery power bank connection box
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
6
7
0
0
6
2
Released
Description
To use with https://www.printables.com/es/model/919051-einhell-battery-adapter-with-screw-m3-holes

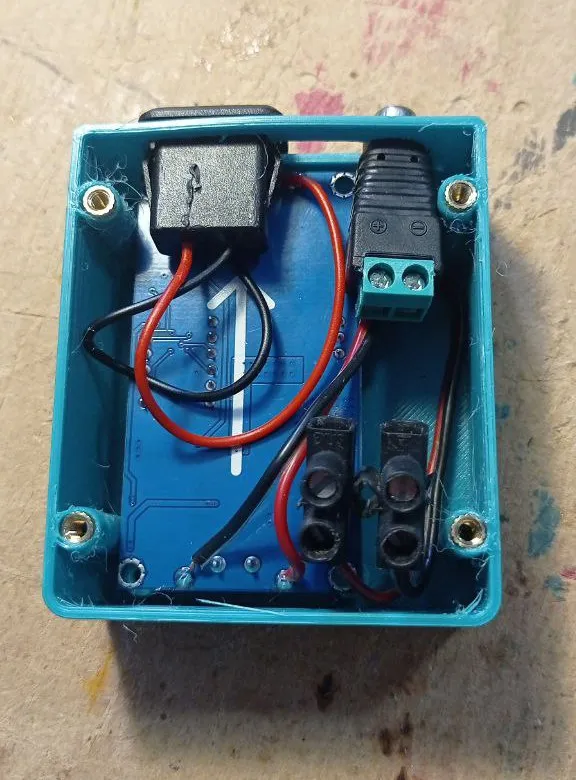

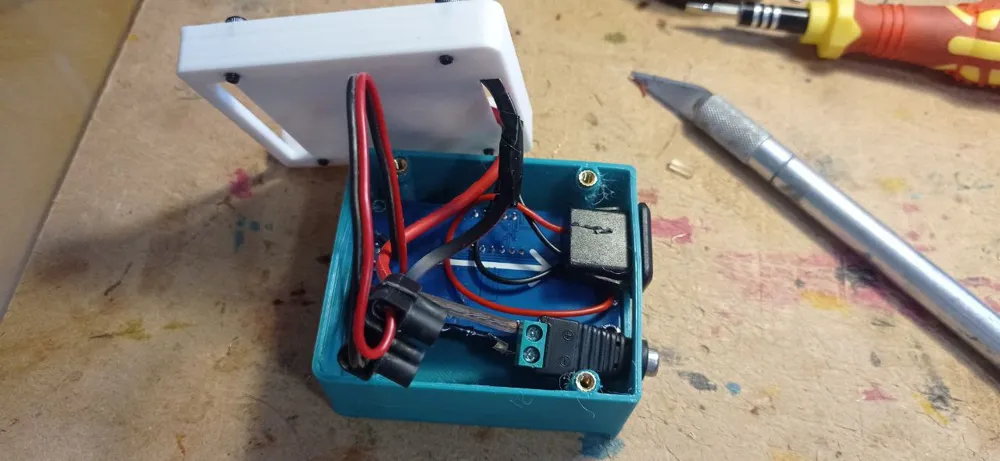

You need a LM2596 DC reductor to get 5V to power a Raspberry Pi (or whatever you want).

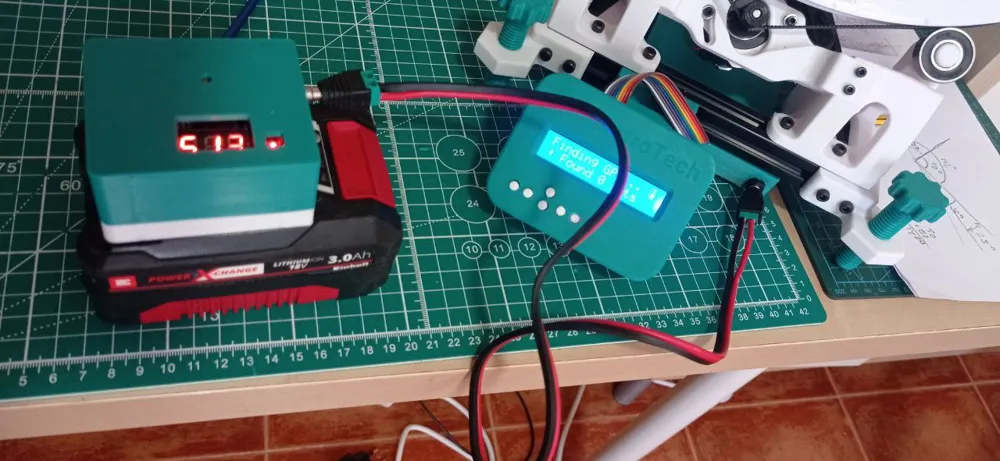

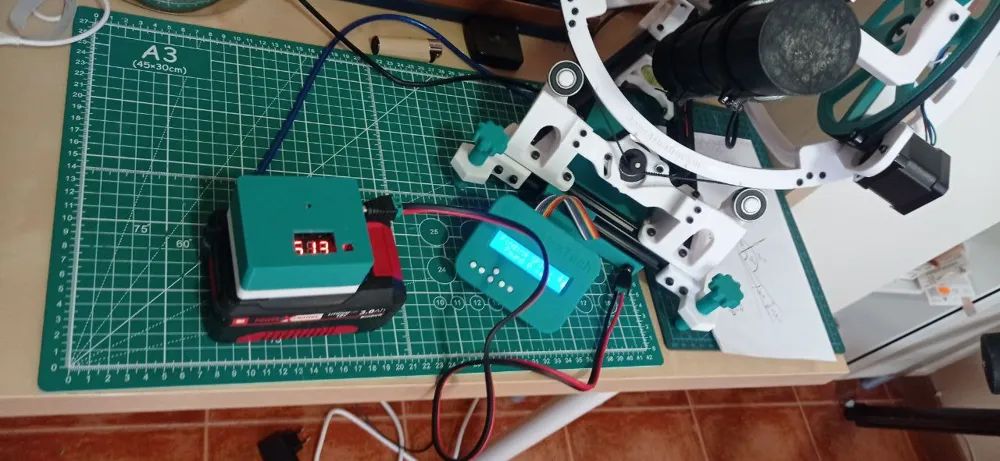

You need to split 20V from battery to power LM2596 and a female jack ready to power OpenAstroTracker (or whatever you want).
You need:
· 4 metallic inserts for M3 screws (M3 x OD4.6 x H6.0).
· 4 M3x12 screws.
· LM2596
· Female DC connector (optional)
· Female USB connector
· Some DC cable.
· Cable connector
