Arlo Essential Camera Mount Holder for Ender 3 Pro

Works with the Base (Basis) that can be found at https://www.thingiverse.com/thing:3816235 that was created by Writable.

Other pieces from that thing can also be mixed with this.

My instructions to put it all together:

1. Print the Base and Splints from the link above
2. Print the Arm and the Holder from this thing
3. Install Base on the Y-Axis of the Ender Pro 3 using Splints to hold in place.

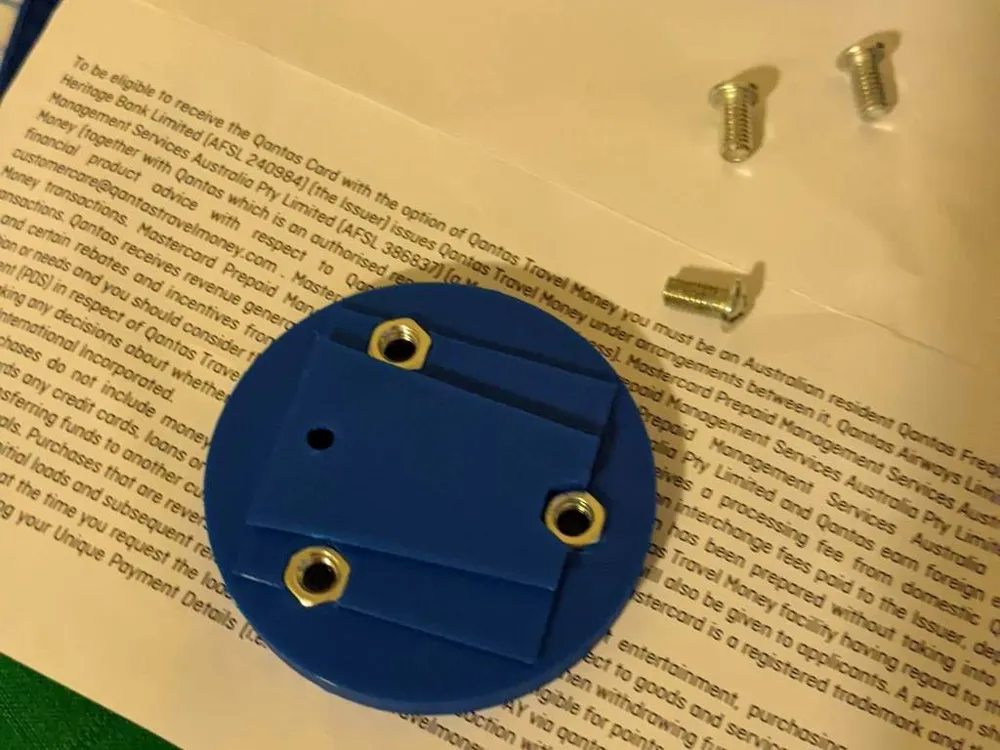

4. Pop three M5 x 0.8 nuts in the nut cutouts of the holder.
5. Slide Holder including Nuts onto the Arm piece where the cutout is located on the short side.
6. Pop a Splint in the back hole of the holder (hole without a nut underneath) to lock it into place.

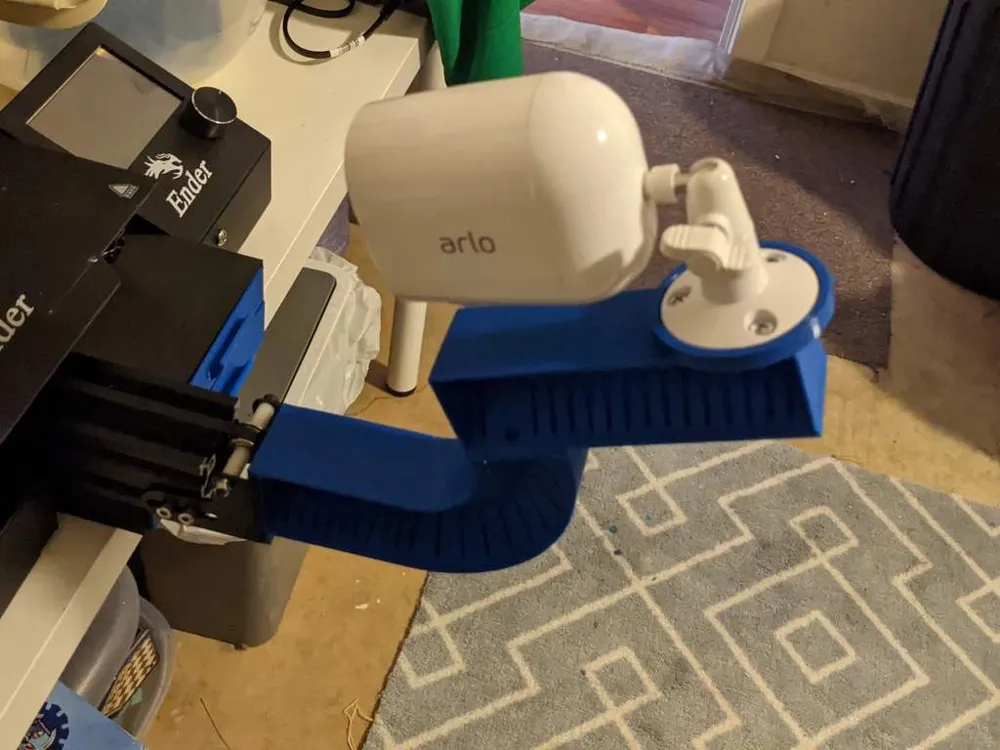

7. Slide the Arm into the Base and place a Splint in the side of the Arm.

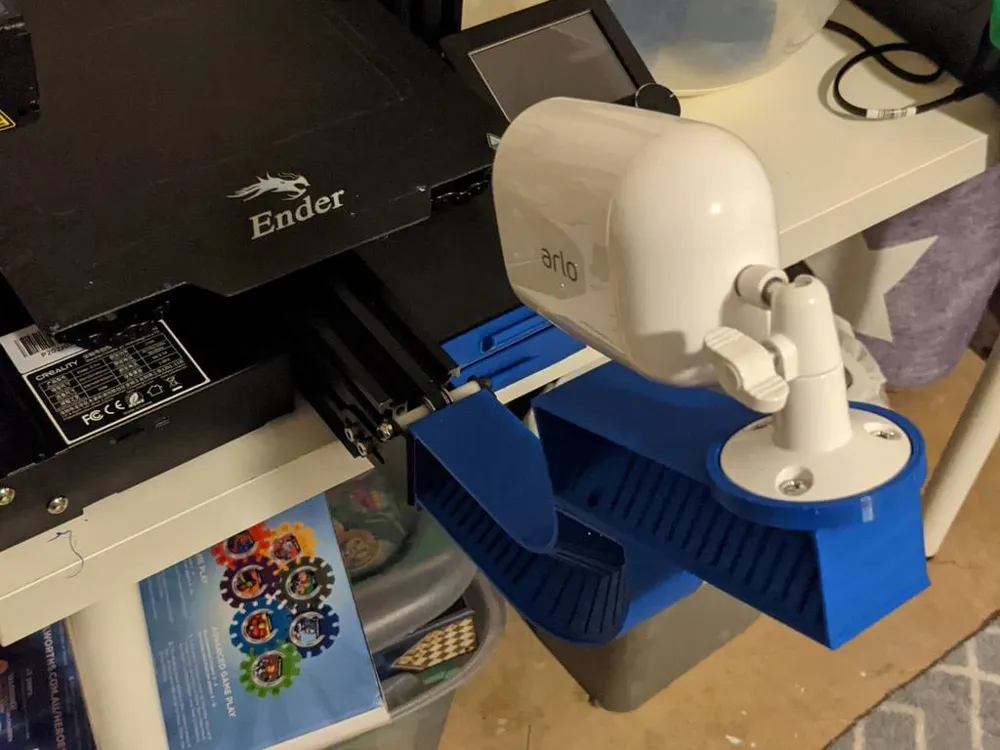

8. Place the Arlo Essential factory Camera Mount on top of the mount, lining up the holes in the factory mount and screw into place.

This object was remixed in Tinkercad. Edit it online

Holder - https://www.tinkercad.com/things/hBBdvkWFB5U

Arm - https://www.tinkercad.com/things/6YytjFr3TIw

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

30% Triangles

Filament: eSun PLA+ Blue

Notes:

When I printed these pieces, I did the following:

Both pieces with the cut out underneath. with Support Touching Buildplate.

Category: 3D Printer Accessories
