Description

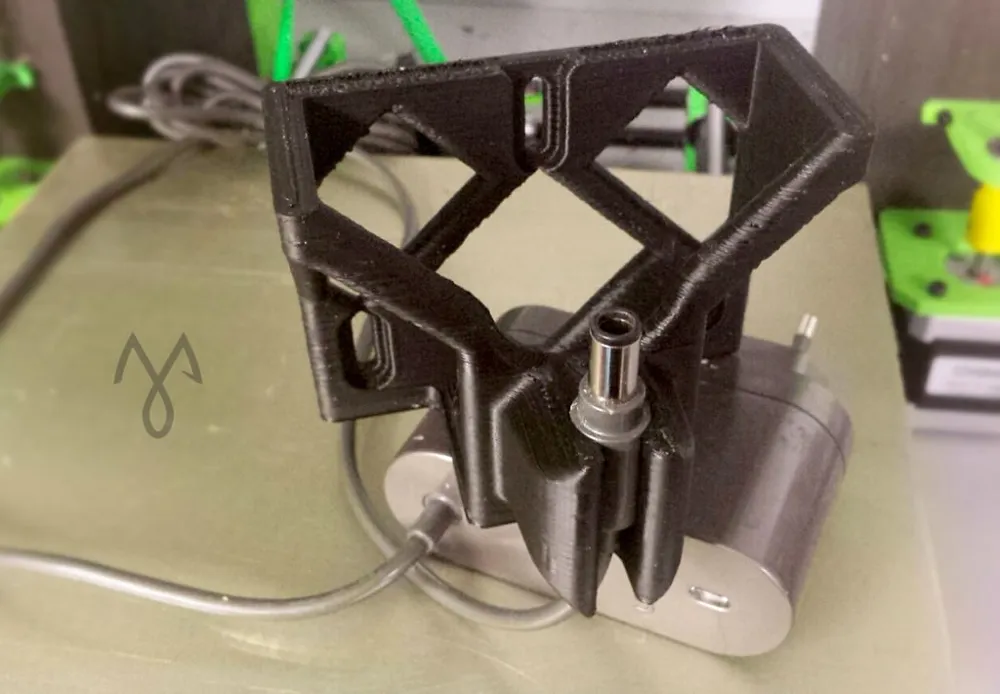

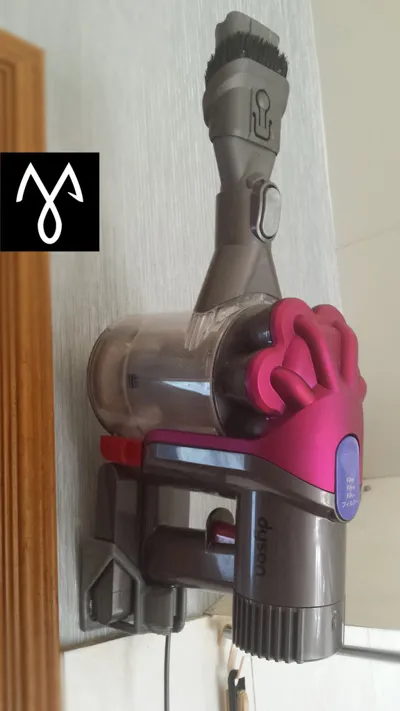

A simple heavy duty wall mount holder for Dyson DC series cordless vacuum cleaners. A recess holds the power cord just in place. Just store your Dyson and forget it until next utilisation.

Tested with Dyson DC34 vacuum cleaner. It's the same shape from DC1 to DC V6 series.

Print Settings

Printer Brand:

RepRap

Printer:

Prusa I3

Rafts:

Supports:

Resolution:

Best print : 0.3mm Nozzle, 0.2 layers, 4 walls, 6 layers for top and bottom

Infill:

20 to 30% for extra strenght

Category: Parts

Comment & Rating (8)

@JeremySpecce

Boosted

works great, used a little hot glue for the plug to keep it in place. I kind of wish it was a little bigger to give the vac more support but it is holding up great.

The designer has replied

@jeanmarieastruc

Thanks for your feedback. And you're right, I try to pay attention to filament use in all of my designs.

@jeanmarieastruc

It's always the dilemma between saving materials, printing time, overall look... This is the result of some decisions. Note Dyson made different plugs along the way (or used different manufacturers) and their dimensions are subject to fluctuations. As you said, a little bit of hotglue and it's no big deal.

@AlexandreM.

Boosted

Thanks, it works perfectly!

@KurtLopes

Printed great. thanks
