Utility Case XL

If you like my work and enjoy my models please consider leaving me a tip/donation, It helps me to continue creating awesome models for you for free.

https://paypal.me/muddymaker

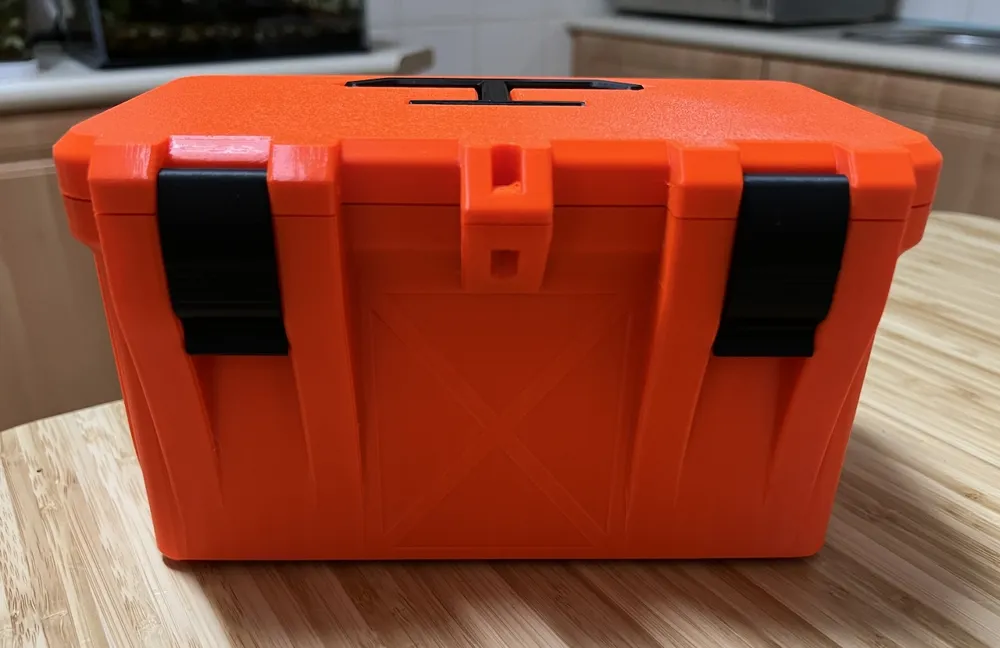

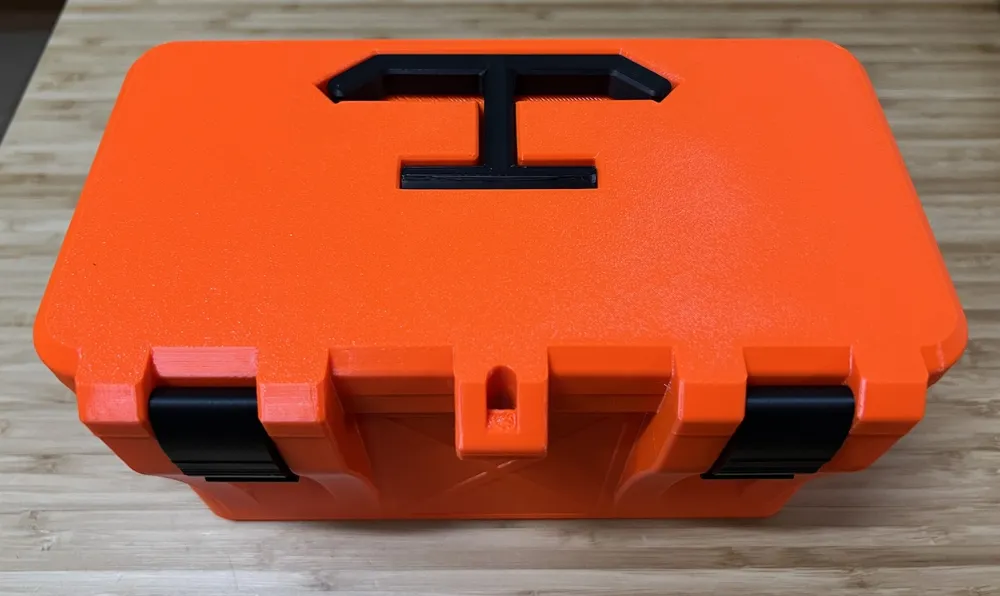

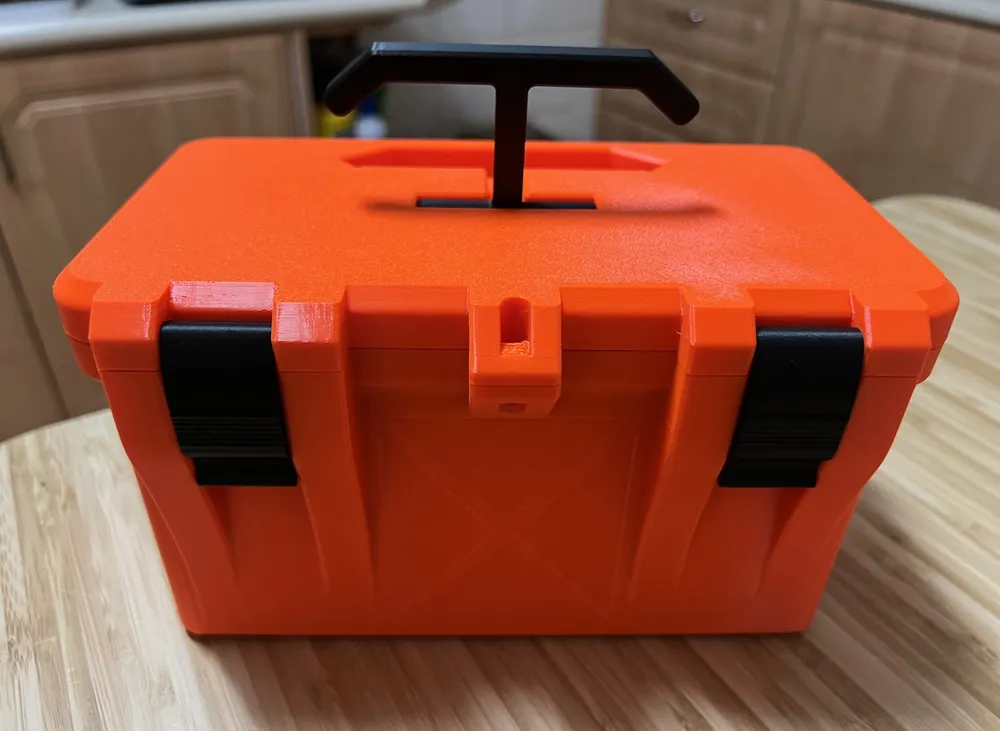

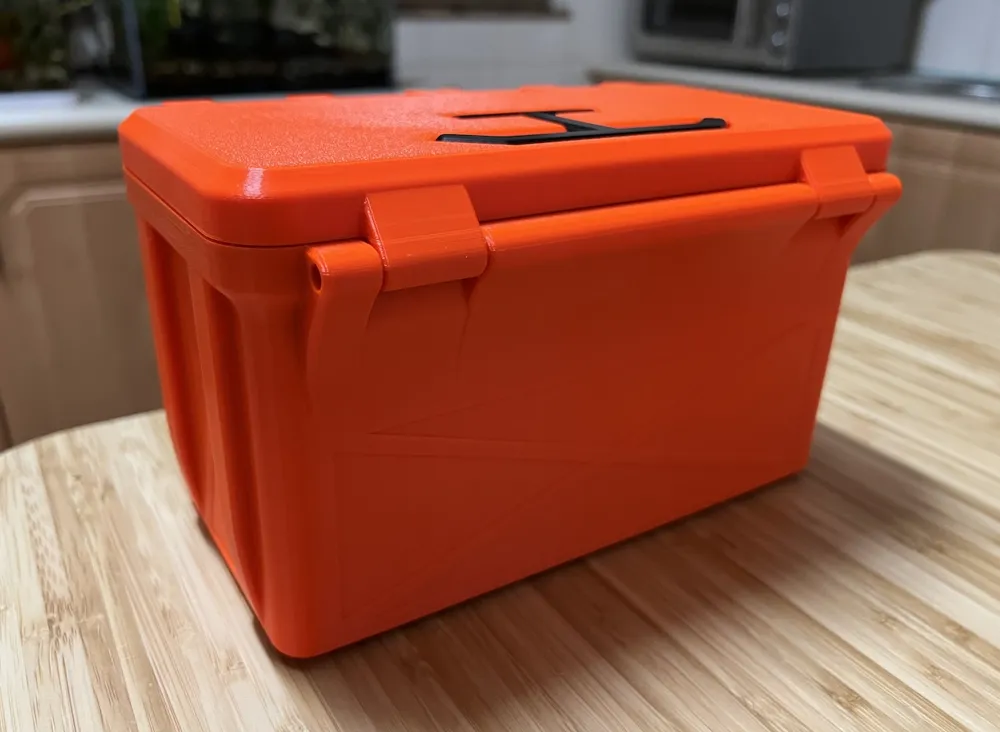

Utility caseXL. This case has the same design cues as my utility case only in this one you can fit up to 6 trays and because it's bigger I've added an integrated stowable handle into the lid to make it easier for transportation. You will need an additional 2 M3x10mm fasteners for the handle.

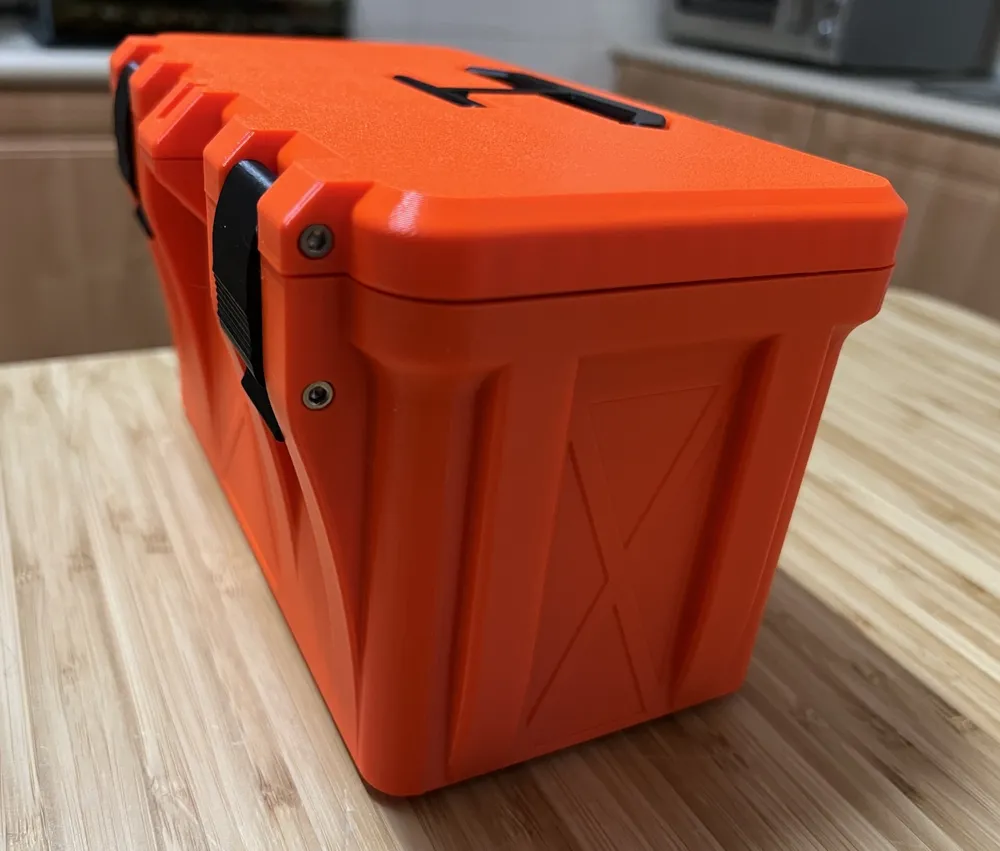

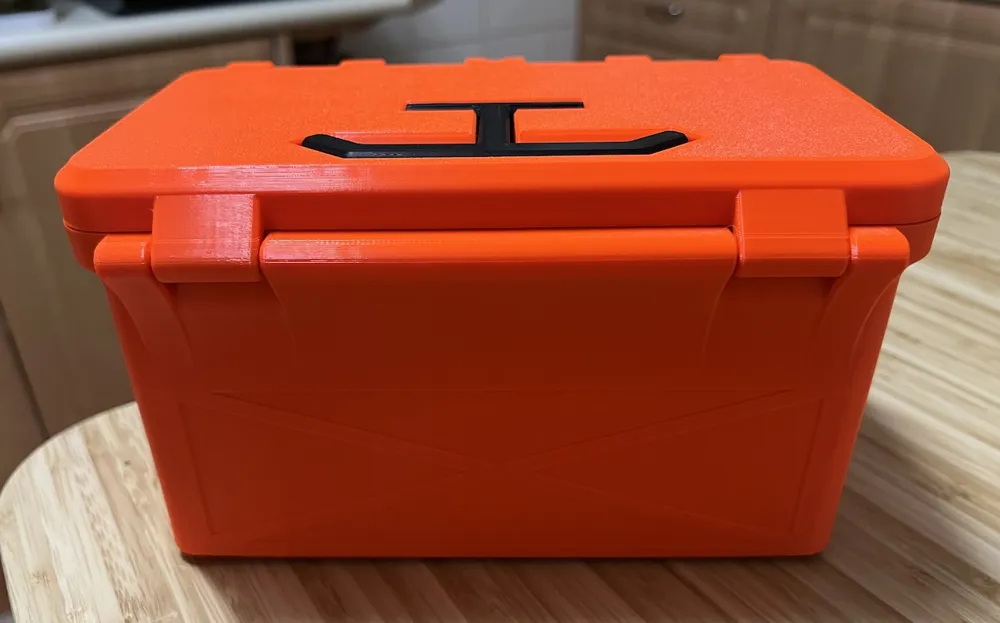

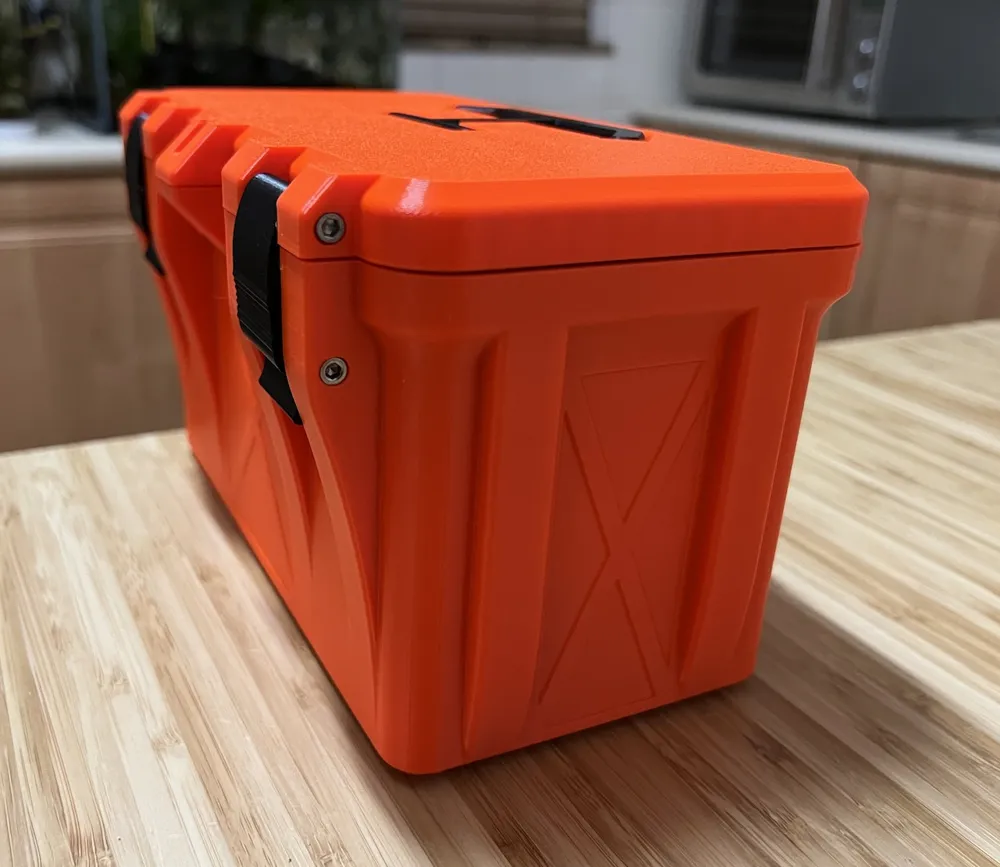

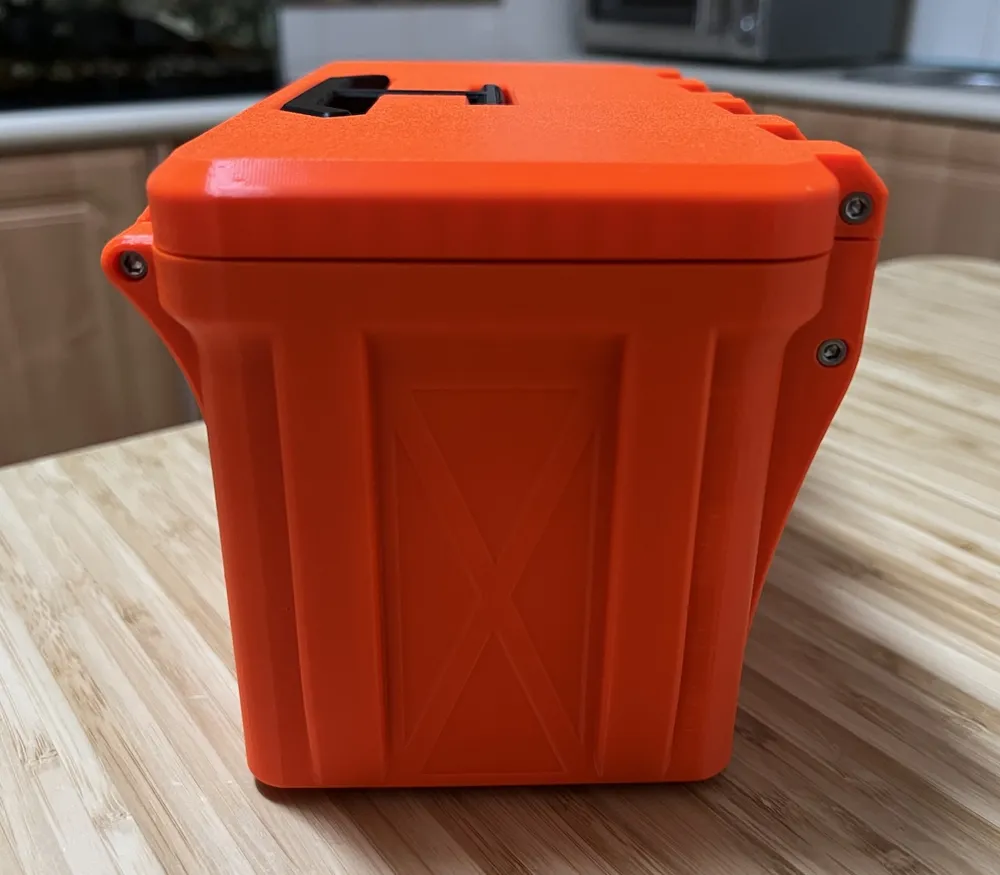

I've considerably beefed up the clips and hinges on this model because of the size and weight that it's capable of carrying, hence the need for M3x40mm fasteners. I've also added an integrated locking clasp for folks that want to lock their stored goods.

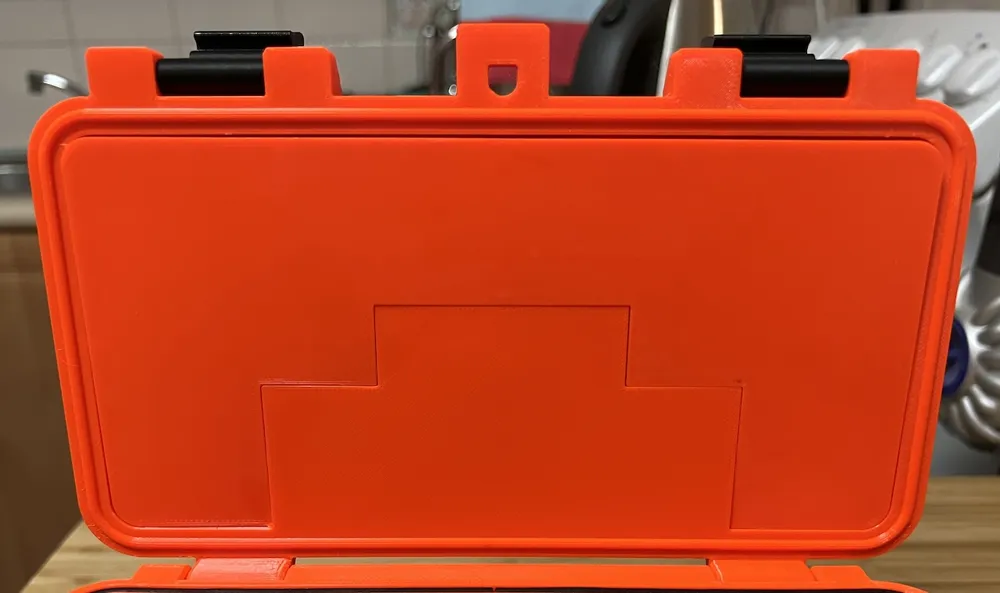

The optional lid insert parts keeper just snaps into place in the inside of the lid as shown in the photo description.

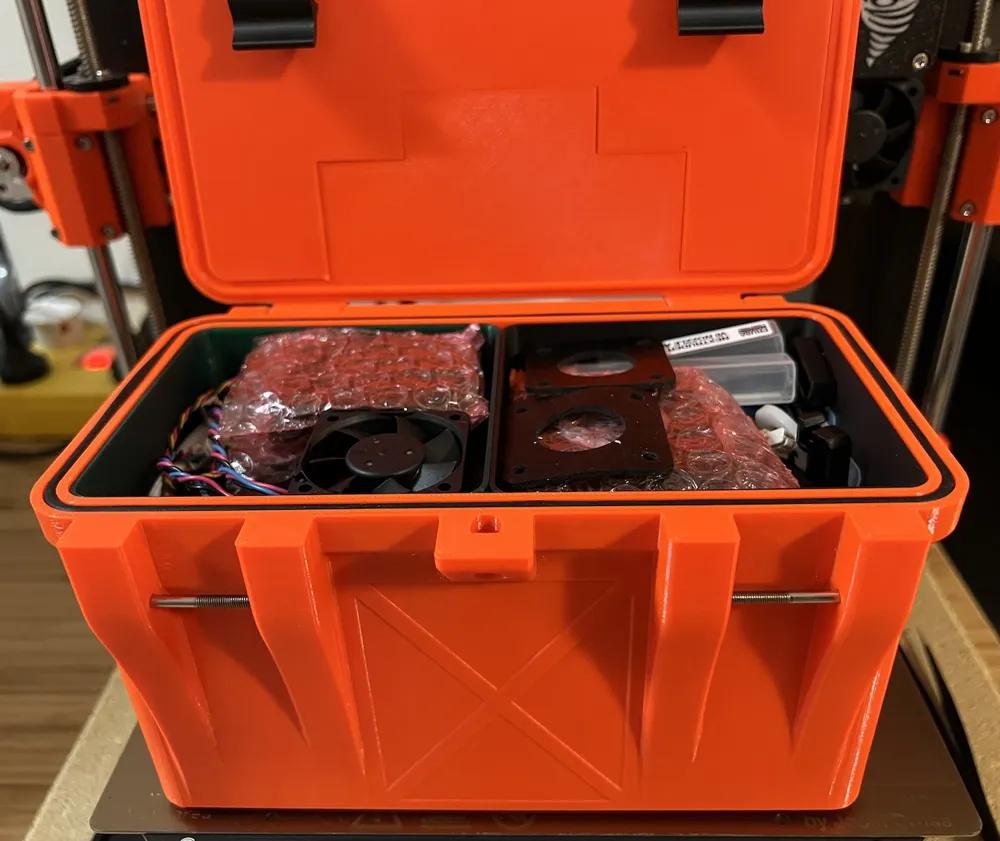

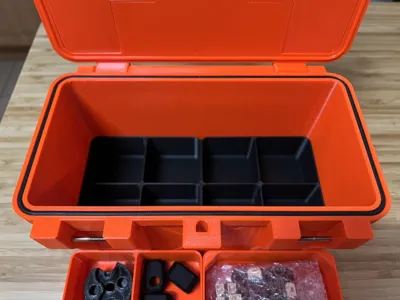

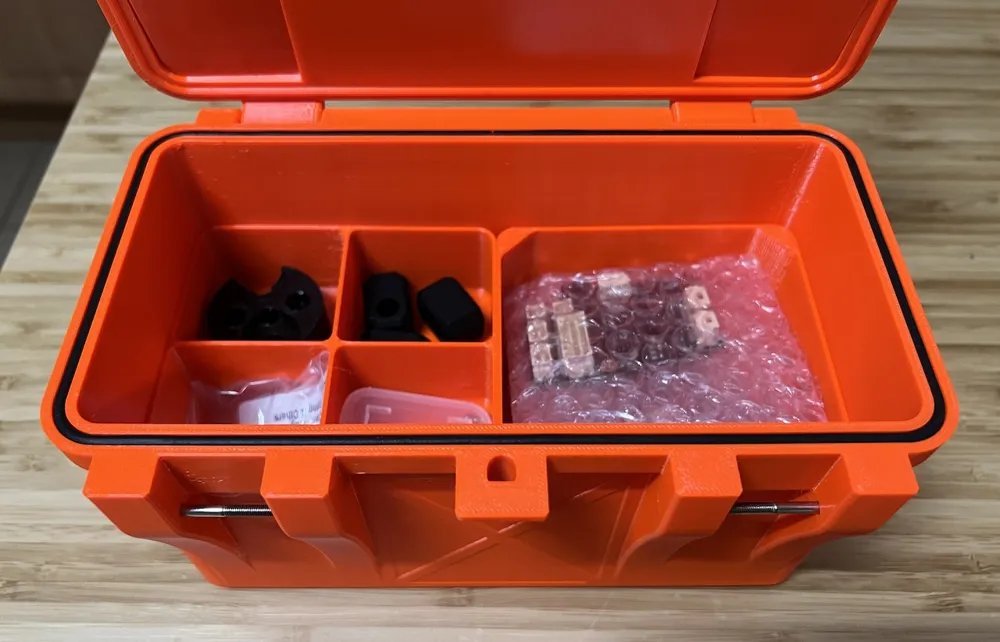

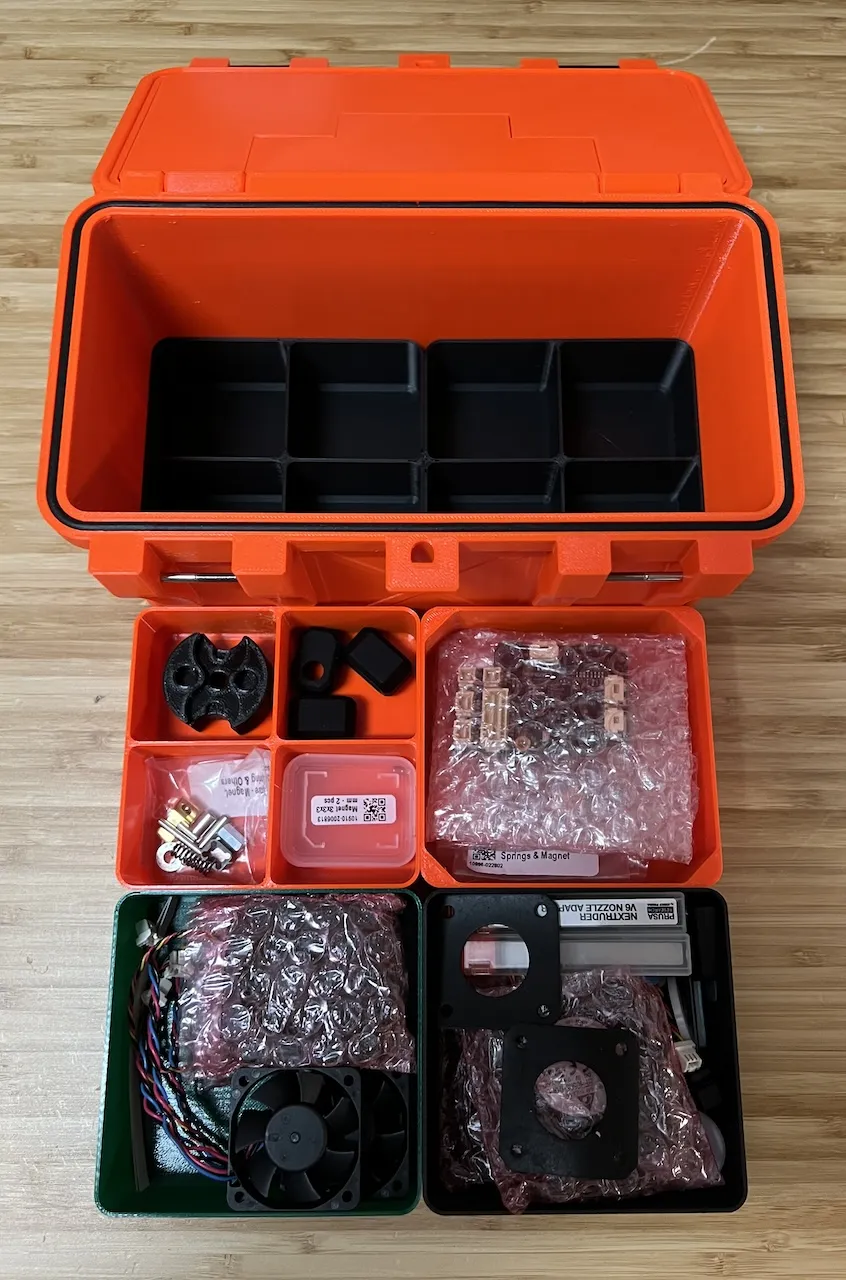

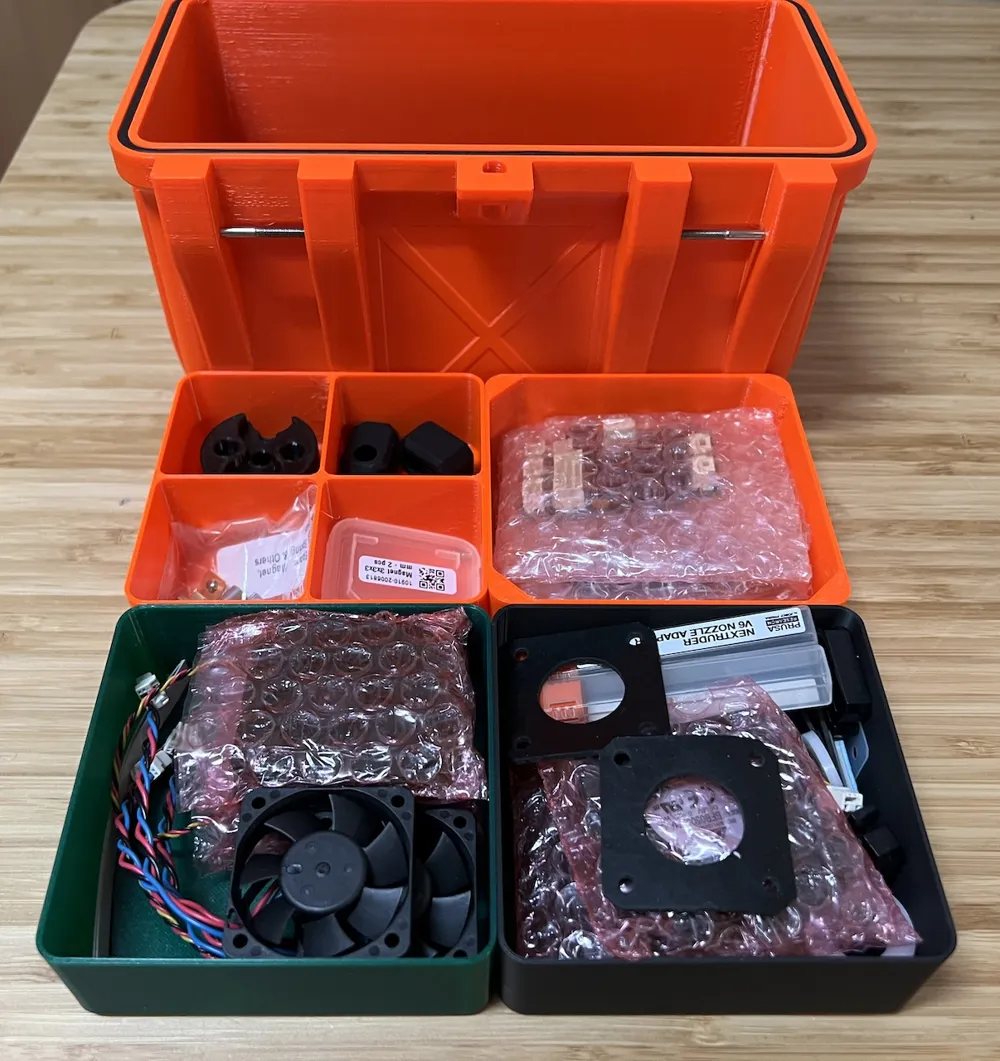

The trays are interchangeable, meaning they can be placed anywhere in the case. Mix and match to suit your needs.

You'll need 6 M3X40mm fasteners and 2 M3x10mm for the handle, they all screw into the plastic.

Print the clips with PETG@100% infill.

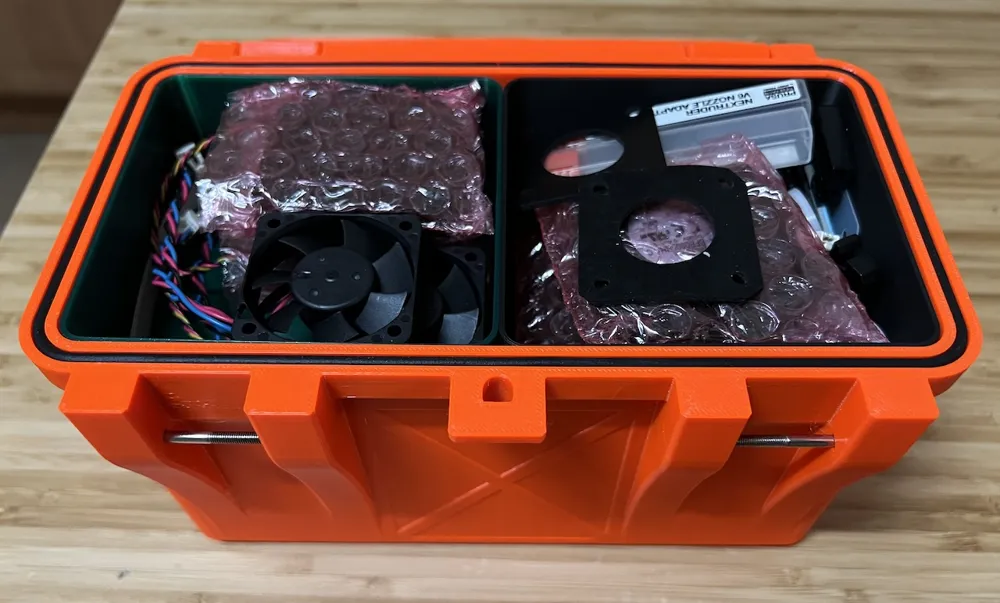

If you print the optional TPU seal, print with 1 to 2 perimeters/walls and 0% infill, the seal needs to be squishy otherwise you will have trouble closing the lid.

No supports are needed.

Happy printing.
