Sailing Block / Pulley for 3/8" and Less
Print Profile(1)
Bill of Materials
- Stainless M4 x 25mm x 2:
- Stainless M4 Nuts x 2:
- Stainless 5/16" or M8 x 30 Hex Bolt x 1:
- Stainless M8 Nut x 1:
- Stainless M8 Washers x 2:
- 608RS Bearing x 1: https://a.co/d/ftNG3Js
Description
Sailing Block / Pulley used for 3/8" lines or smaller
Boost Me (for free)
I will continue to provide quality sailing and other functional prints!
You might also be interested in my Block & Tackle: Here
Bill of Materials:
- Stainless M4 x 25mm (x2)
- Stainless M4 Nuts (x2)
- Stainless 5/16" or M8 x 30 Hex Bolt (x1)
- Stainless M8 Nut (x1) and Washers (x2)
- 608RS Bearing (x1) (https://a.co/d/ftNG3Js)

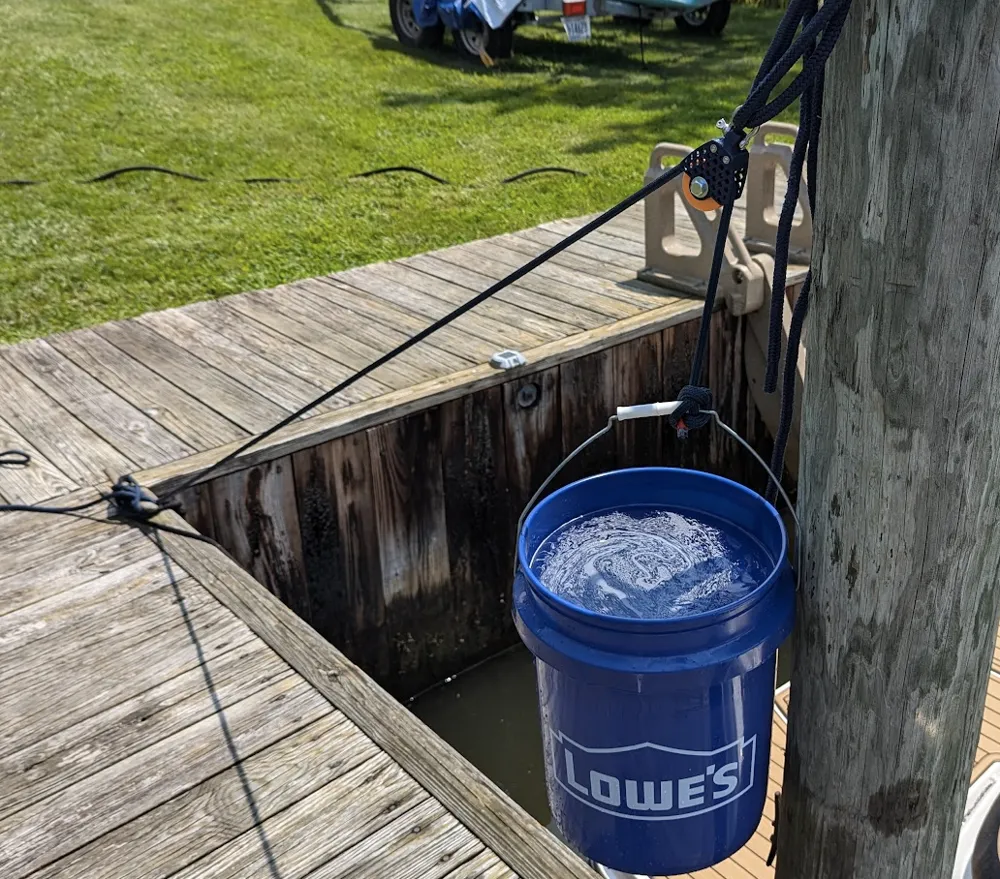

I prefer all stainless parts because I am using this on my sailboat, however use whatever you like at your own risk!
PA6-CF would be best choice to print for strength and elements protections.

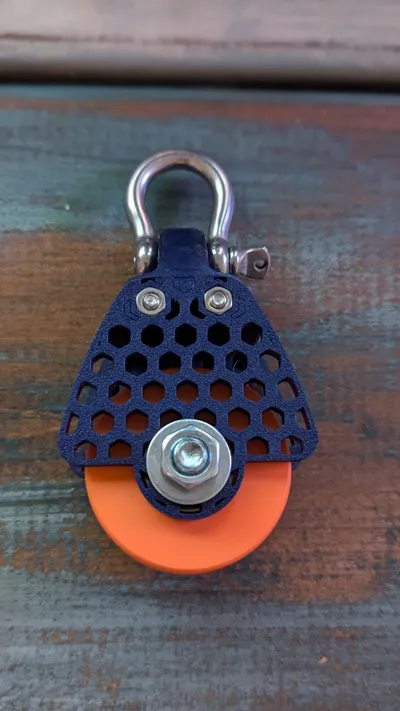

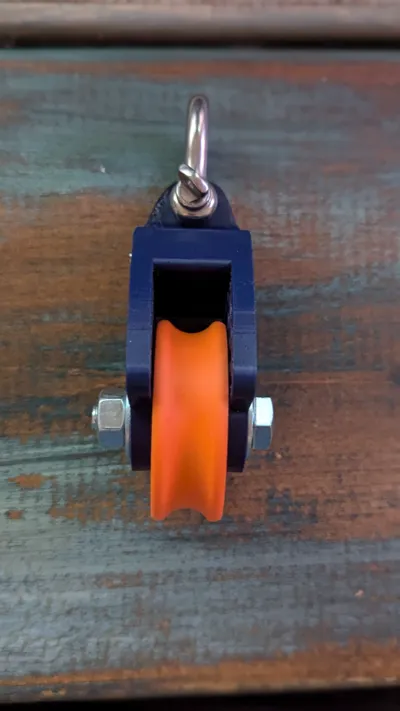

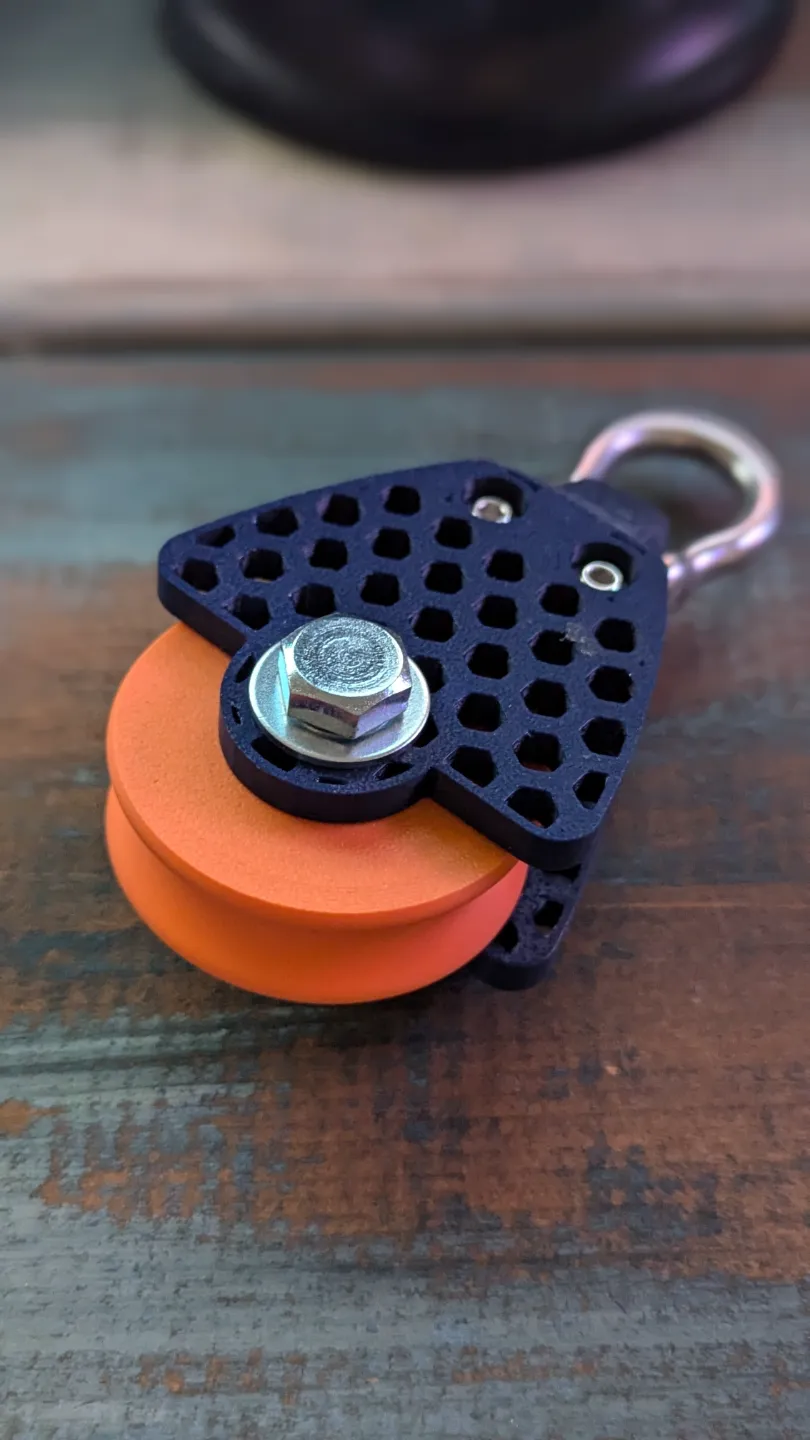

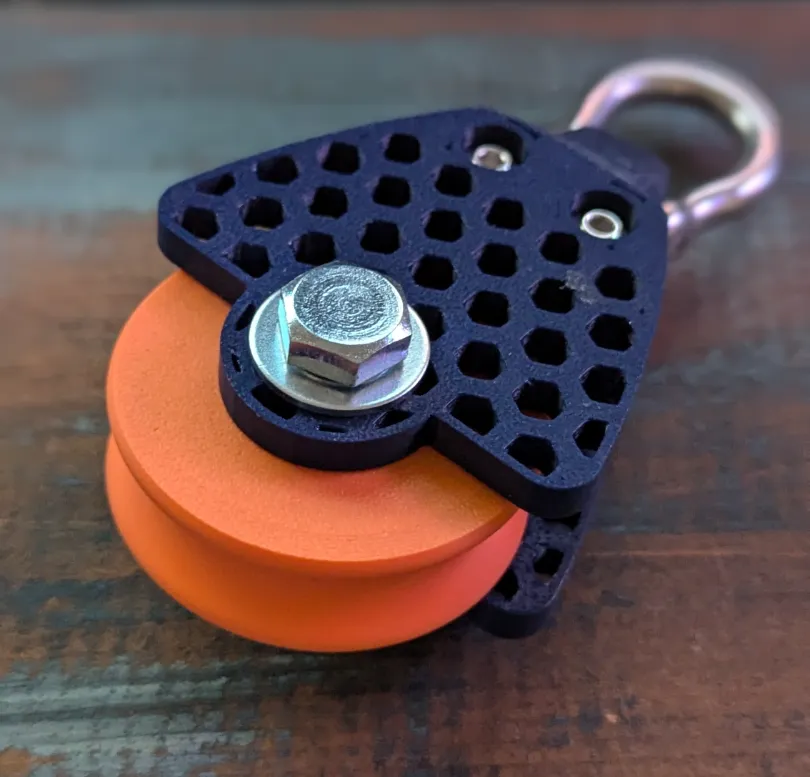

My prototypes were made out of ABS (parts in blue) and Matte PLA (orange)… they are pretty damn strong!
