Block & Tackle v4.1
Print Profile(1)
Description

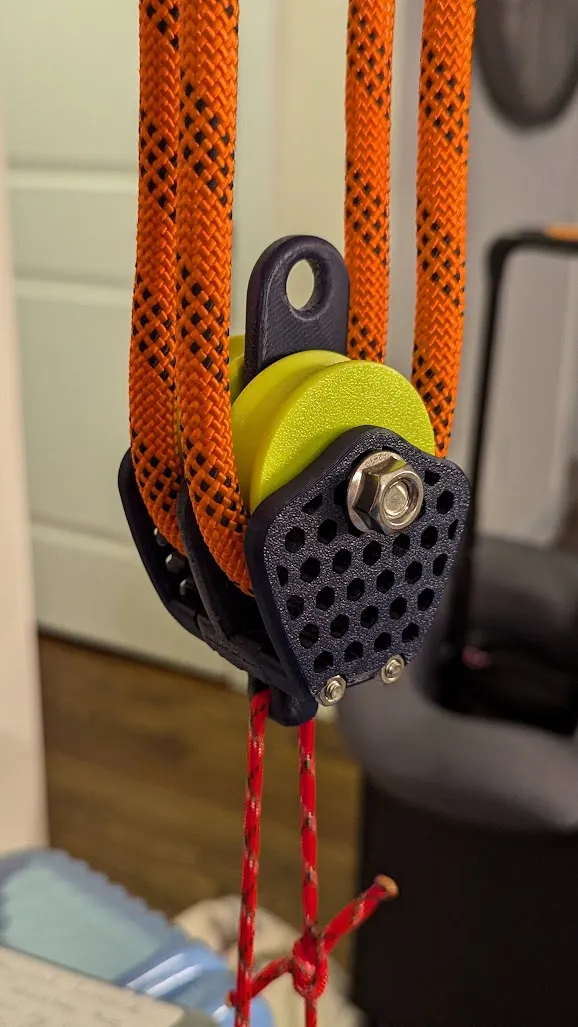

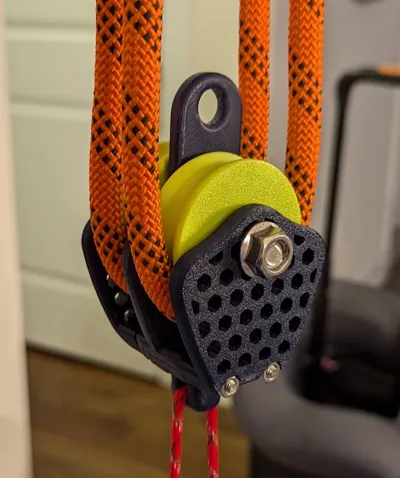

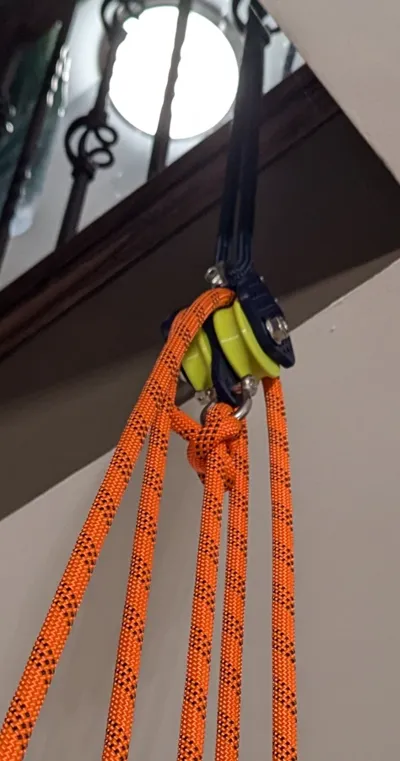

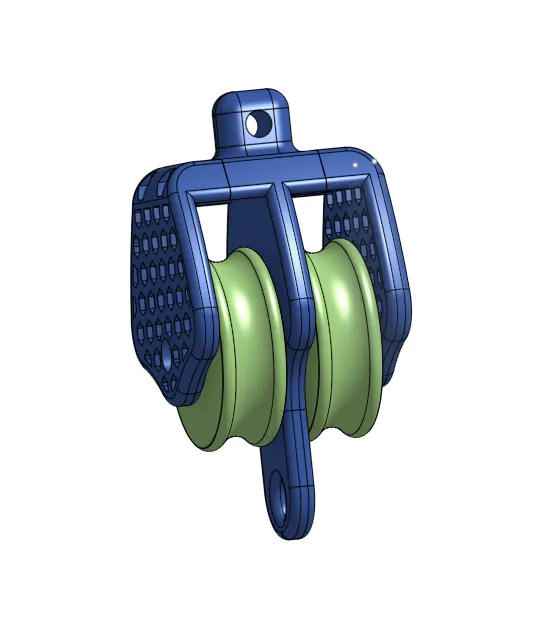

Sailing Block & Tackle (Mainsheet System) used for 3/8" lines (or similar)
Boost Me (for free)
I will continue to provide quality sailing and other functional prints!
Check out my latest model that holds up to 200lbs: Here

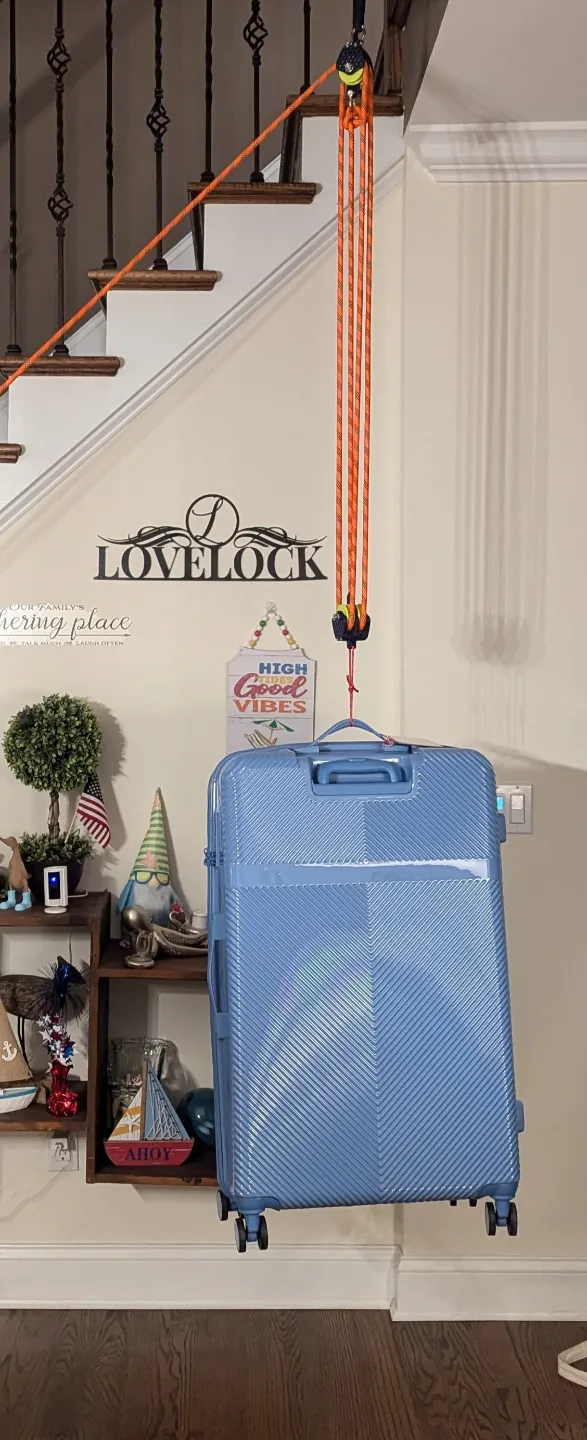

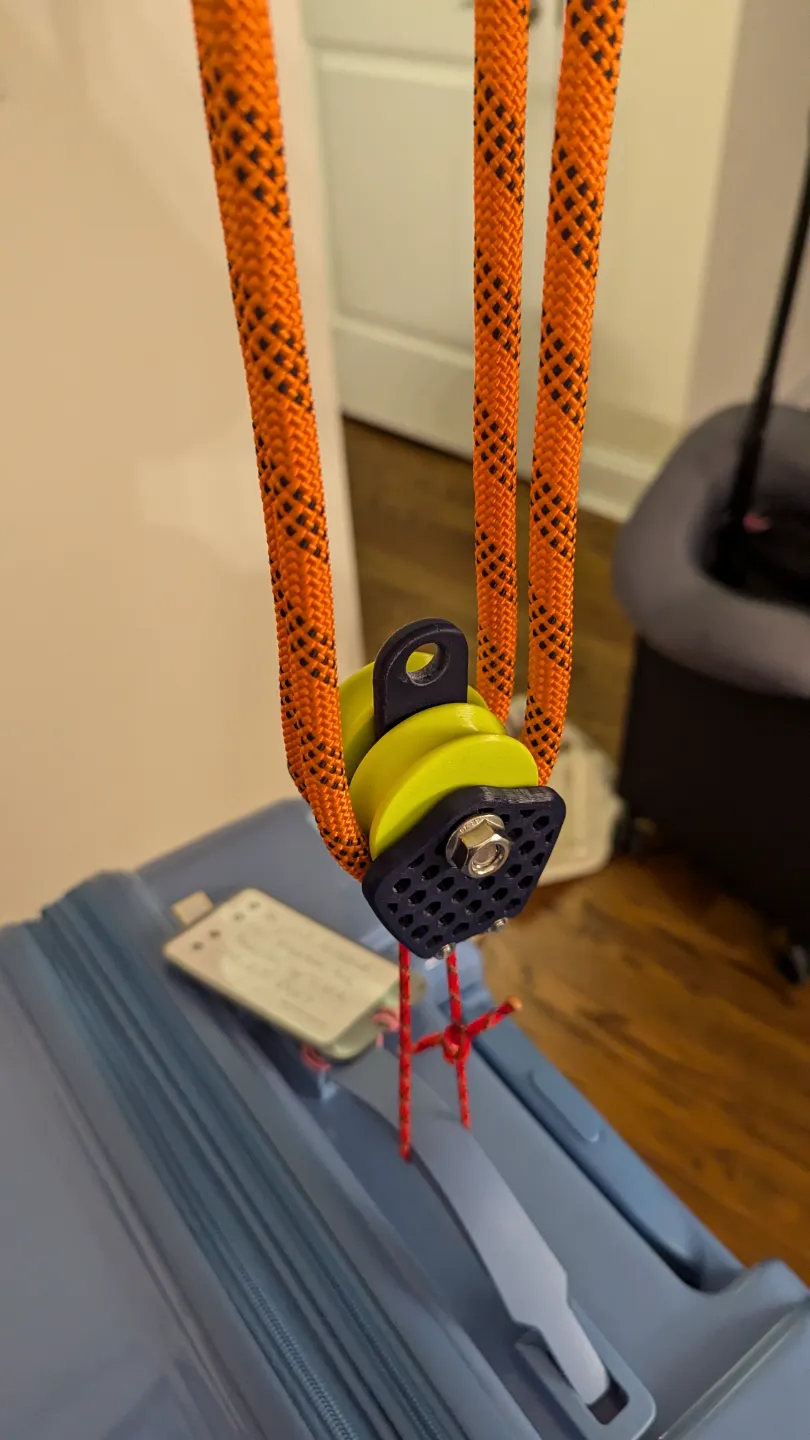

FYI… the luggage being lifted is 48lbs, working load force was 12lbs tested with a digital gauge.
Bill of Materials:
- Stainless M4 x 50mm (x2)
- Stainless M4 Nuts (x2)
- Stainless 5/16" or M8 x 60mm Hex Bolt (x1)
- Stainless M8 Nut (x1) and Washers (x2)
- 608RS Bearing (x2) (https://a.co/d/ftNG3Js)
I prefer all stainless parts because I am using this on my sailboat, however use whatever you like at your own risk!
PA6-CF would be best choice to print for strength and elements protections.
My prototypes were made out of ABS (parts in blue) and TPU 95A (green)… they are pretty damn strong!
