Tampon- & Sanitary Pad-Case - Free 3D Print Model

Search models, users, collections, and posts

jns

Tools>Organizers

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 2 walls, 18% infill

Designer

19.8 h

7 plates

4.4(17)

Open in Bambu Studio

Boost

123

434

300

163

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

Round Magnet

Description

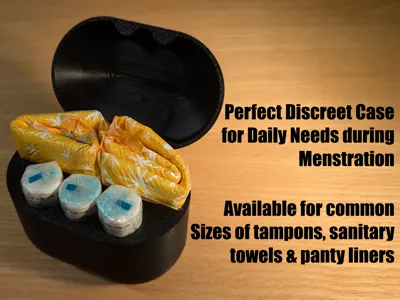

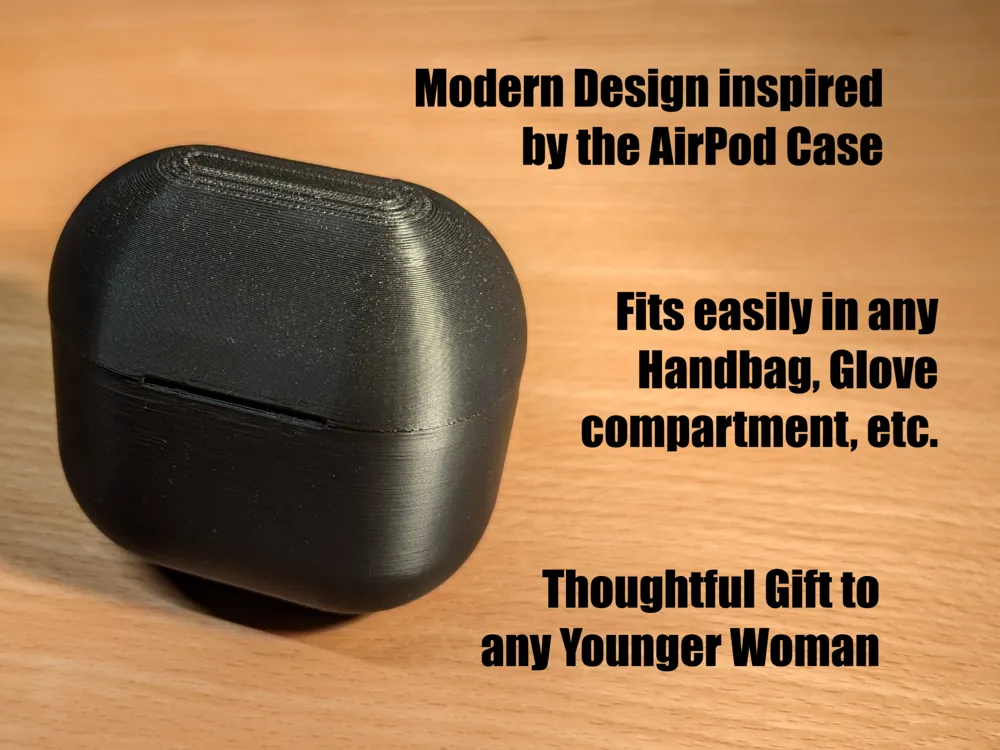

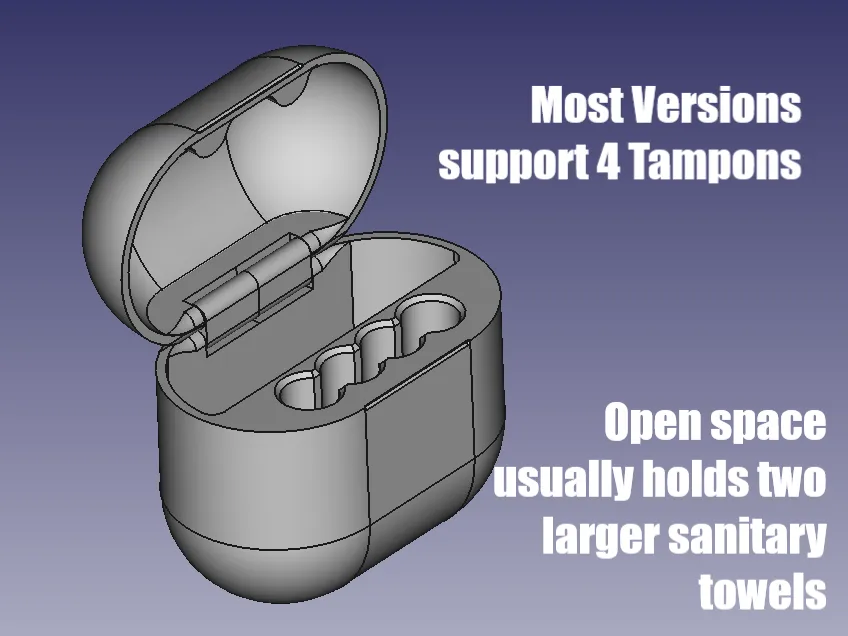

The four different provided sizes should hold 3-4 tampons and usually at least two sanitary towels / pads, i.e. anything any woman might require throughout one day during menses. This case offers a handy, compact and rather stylish way to carry these hygiene products discreetly. This makes this case a perfect to carry in a purse or store it in the car in case of emergency. Therefore, it also suits as a thoughtful and useful gift to any younger woman.

Update: Now also available in typical mixed sizes with 2 tampons of each size. (Super Plus + Normal, Super + Mini, Normal + Mini)

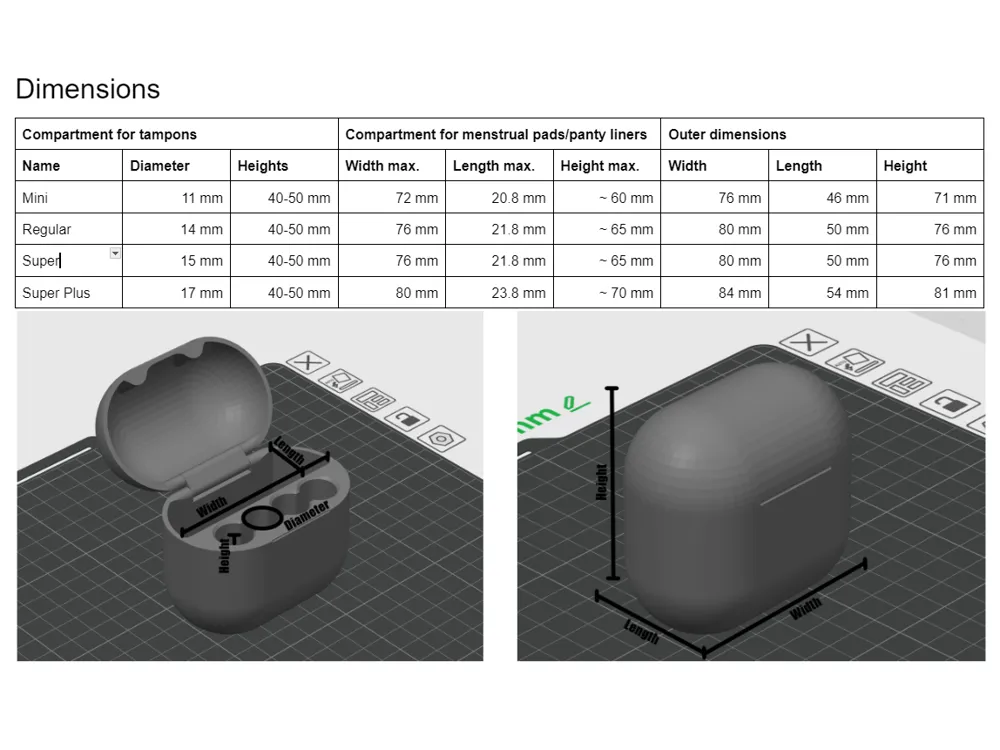

To estimate the size of any mixed-size box, use the size of the larger tampon box. Any mixed-size box has smaller dimensions than the larger single size version.

Material Requirements

4x Neodym Magnets with diameter of 5 mm and height 3 mm
I purchased mine here: https://amzn.eu/d/00OUIcYo

Printing

The models print in approximately 90-120 minutes on my A1. The contures turned out great with the provided settings. Please make sure to pause your print at the beginning of layer 19 to insert the magnets. Furthermore, ensure that the magnets face the correct way s.t. they attract each other at closing.

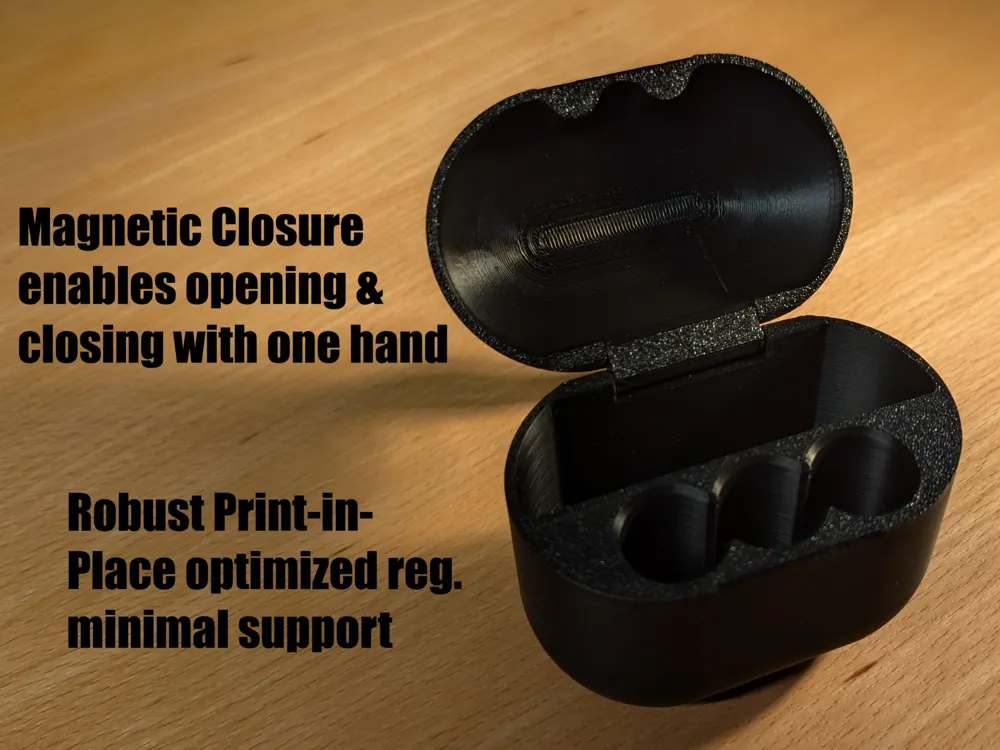

Otherwise, the model contains a Print-in-Place hinge and requires minimal and easy to remove support material.

Boost Me (for free)

I hope my model fits your needs and prints according to your expectations. Please consider boosting this model. Happy printing!

Comment & Rating (24)

@klettern00723

Print Profile

0.2mm layer, 2 walls, 18% infill

My girlfriend is thrilled and wants two for her handbags

Show original

@mischlack

Print Profile

0.2mm layer, 2 walls, 18% infill

@user_3231082128

wow what material is that

Show original

@mischlack

Replying to @user_3231082128 :

Hi, this was an inexpensive filament from A. Unfortunately, I no longer have the spool and it was given to me as a gift. Sorry

Show original

@hia_007

Print Profile

0.2mm layer, 2 walls, 18% infill

Other Issues:printed on a1 mini the large 17mm model. the hinge is totally mismatched. bad designing.

The profile uploader has replied

@jns58

Depending on the filament you're using, you sometimes have to free the mechanism / hinge. The hinge is printed without supports but the hinge can't be connected to the rest of the case. Sometimes the filament from the hinge connects slightly to the case, which is a connection that you can break / free pretty easily. The angle / way your case is opened seems to be resting on this issue exactly. Just try to bring the hinge in an upward position with a bit of a push and it should work perfectly afterwards.

@user_698252284

@MoonPrism

Print Profile

0.2mm layer, 2 walls, 18% infill

@user_698252284

Design is good but the lid doesn't stay closed. small screed open, perhaps add a clip in front to secure the closing of the lid.

The designer has replied

@jns58

" Material Requirements: 4x Neodym Magnets with diameter of 5 mm and height 3 mm " " Please make sure to pause your print at the beginning of layer 19 to insert the magnets. " (see more in the description)
