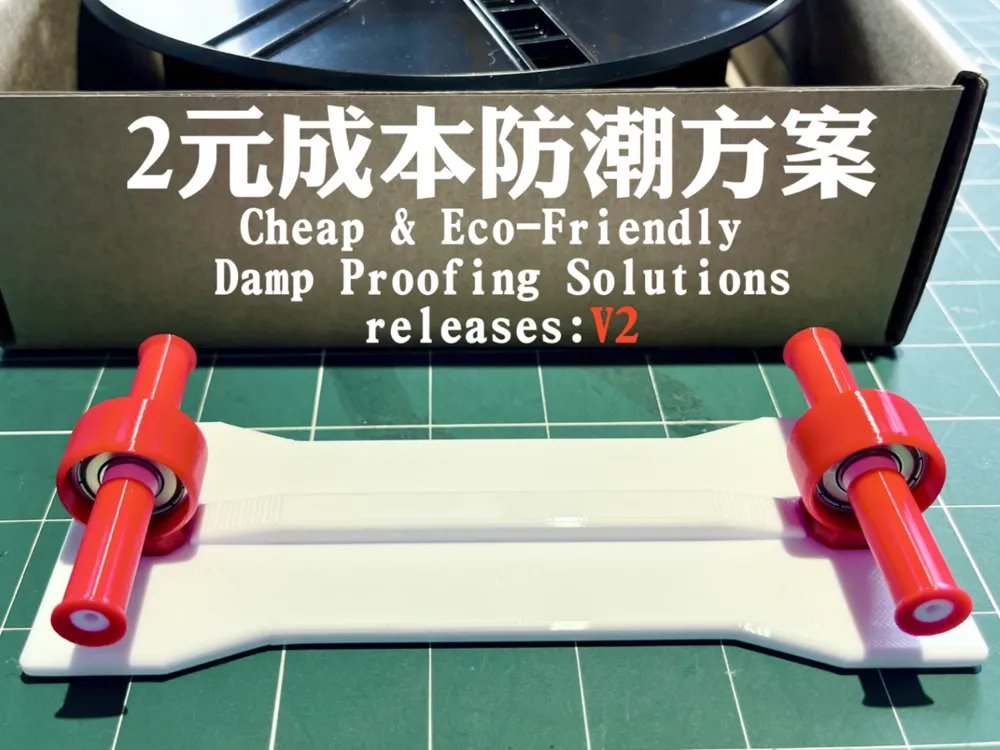

2元成本防潮Cheap & Eco-Friendly Damp ProofingSolutions

A moisture-proofing solution compatible with any original consumable cartridge

Moisture-proofing solution compatible with any original consumable cartridge

Updated log:

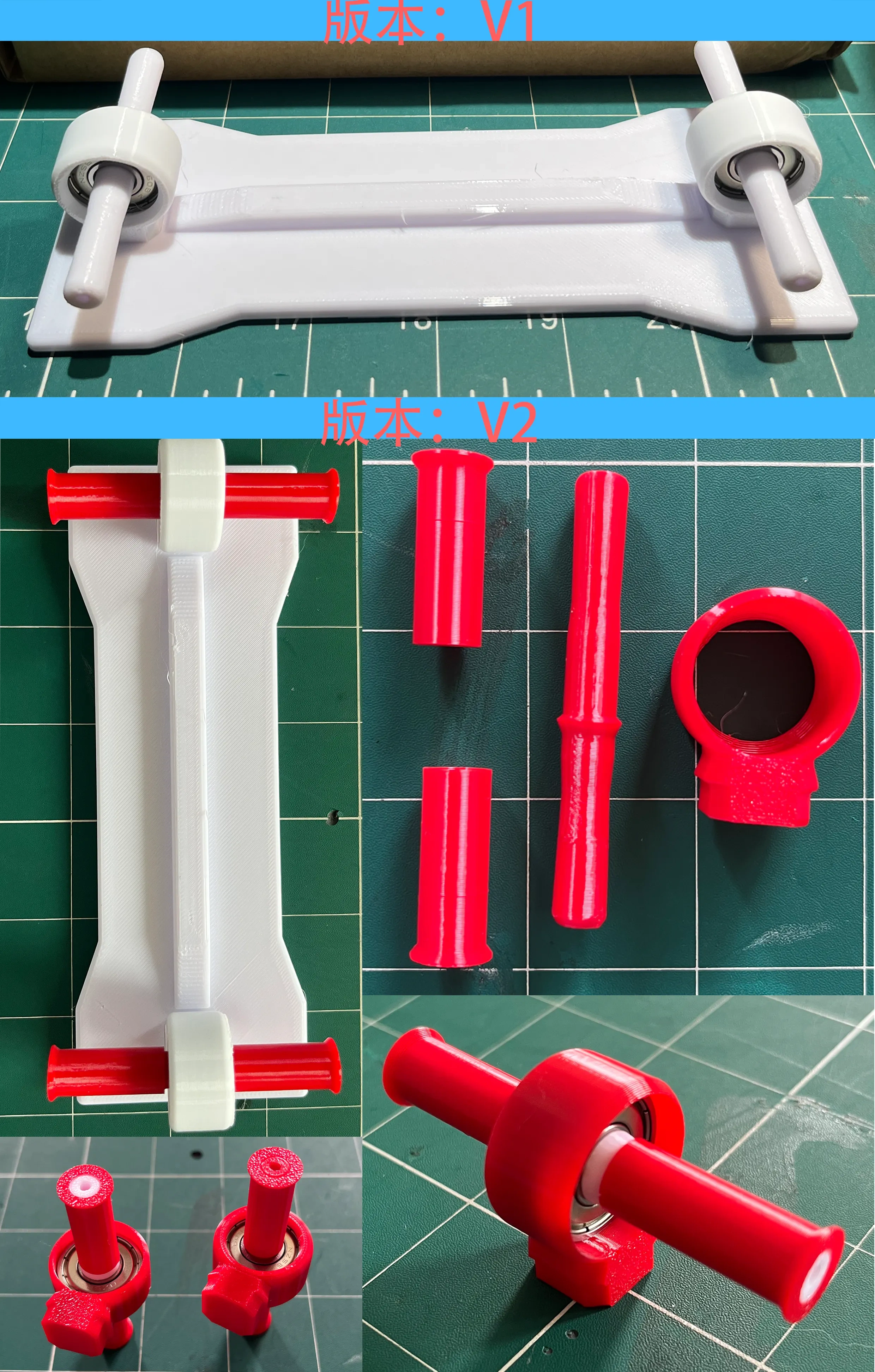

V2 2024-07-21: Updated components except the base. Added extended sleeves to the crossbar to limit displacement of supplies, older versions of the crossbar also apply and are recommended for printing. Added limit design to the component that holds the bearing to the base.

Updated log:

V2 2024-07-21: Updated components except the base. Added extended sleeves to the crossbar to limit displacement of supplies, older versions of the crossbar also apply and are recommended for printing. Added limit design to the component that holds the bearing to the base.

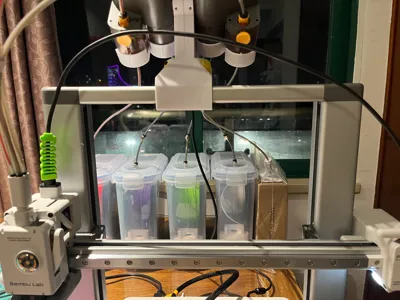

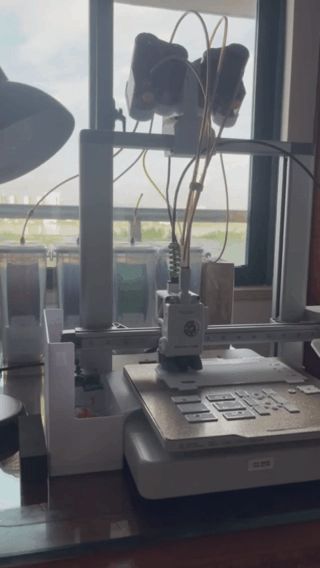

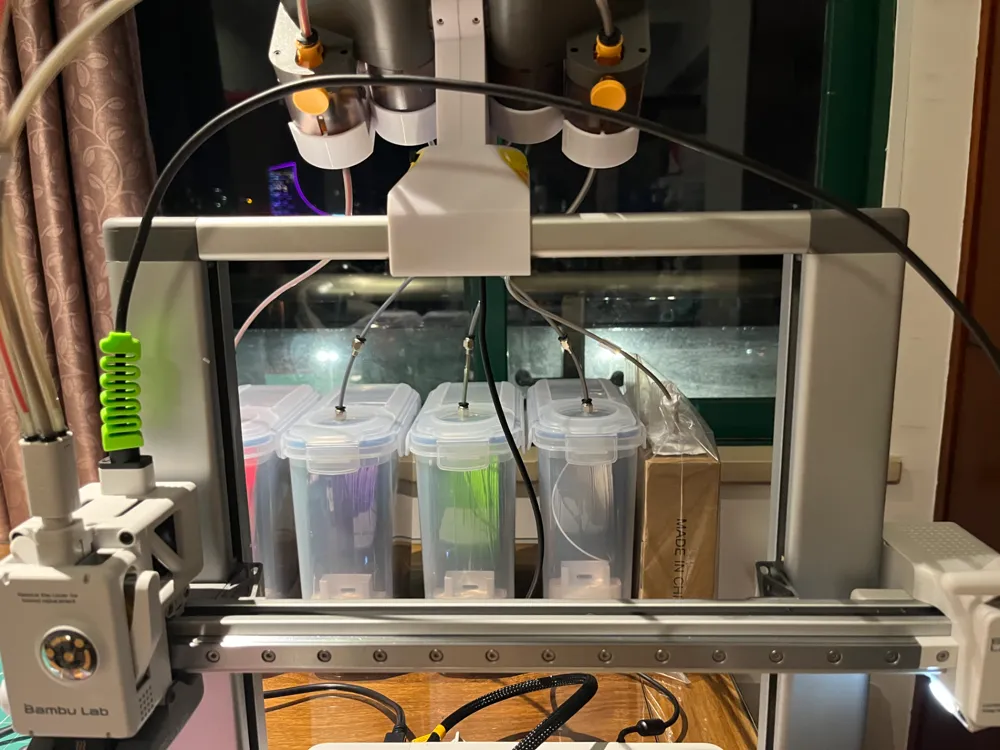

Recently, I have tried a DIY moisture barrier, tried a 4L rice bucket moisture barrier, and I feel that the cost is high again and the printing time is long. So what is a simple moisture program?

Recently, I have tossed a diy moisture barrier, tossed a 4L rice bucket moisture barrier, and I feel that the cost is high again and the printing time is long. So what is a simple moisture program?

Often buy Tianrui materials, usually, Tianrui will come with a moisture-proof bag. Then I sprouted the use of Tianrui to give the material directly combined into a moisture-proof, the main focus is on environmental protection.

Often buy Tianrui materials, usually, Tianrui will come with a moisture-proof bag. Then I sprouted the use of Tianrui to give the material directly combined into a moisture-proof, the main focus is on environmental protection.

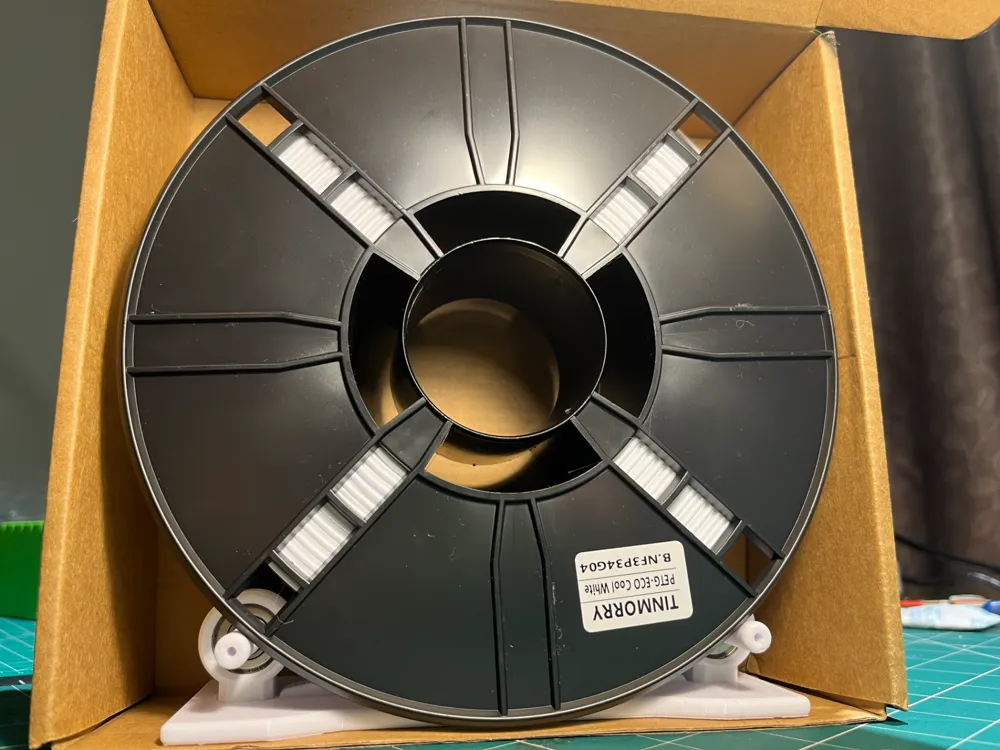

First of all, you have to prepare: an original consumable box, original consumable moisture-proofing agent, original moisture-proofing bag, and buy another 2 608zz bearings.

First of all, you have to prepare: an original consumable box, original consumable moisture-proofing agent, original moisture-proofing bag, and buy another 2 608zz bearings.

No need to open the support. If the crossbar doesn't fit into the inner ring of the 608zz, please adjust it yourself, or grind it with sandpaper (usually it's no problem, just right).

No need to open the support. If the crossbar doesn't fit into the inner ring of the 608zz, please adjust it yourself, or grind it with sandpaper (usually it's no problem, just right).

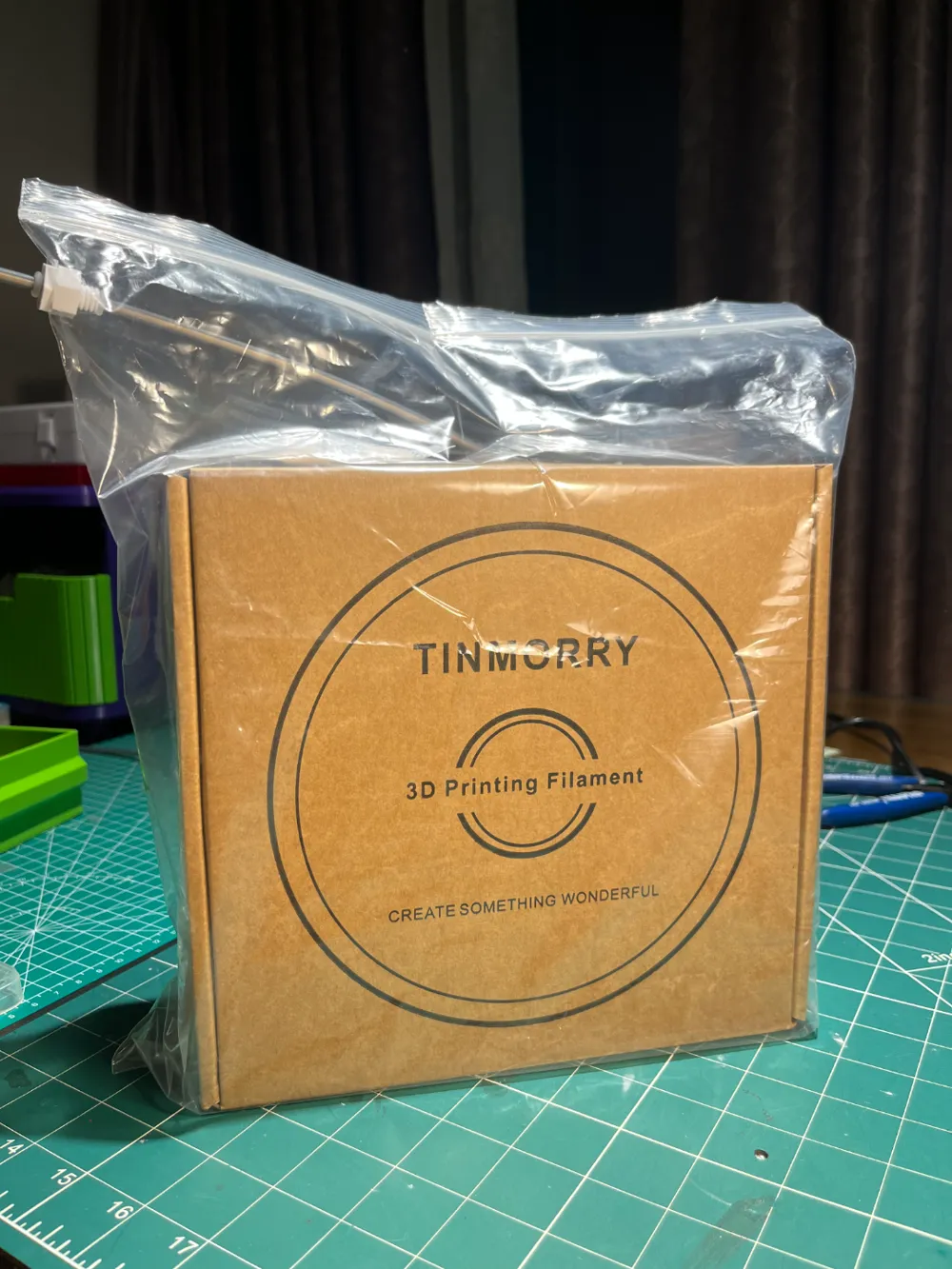

Teflon tubing is assembled by threading it through the bag from the outside and into the inside of the carton.

Teflon tubing is assembled by threading it through the bag from the outside and into the inside of the carton.

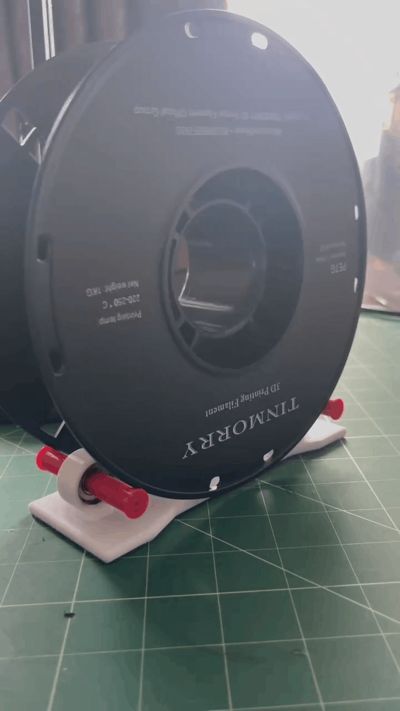

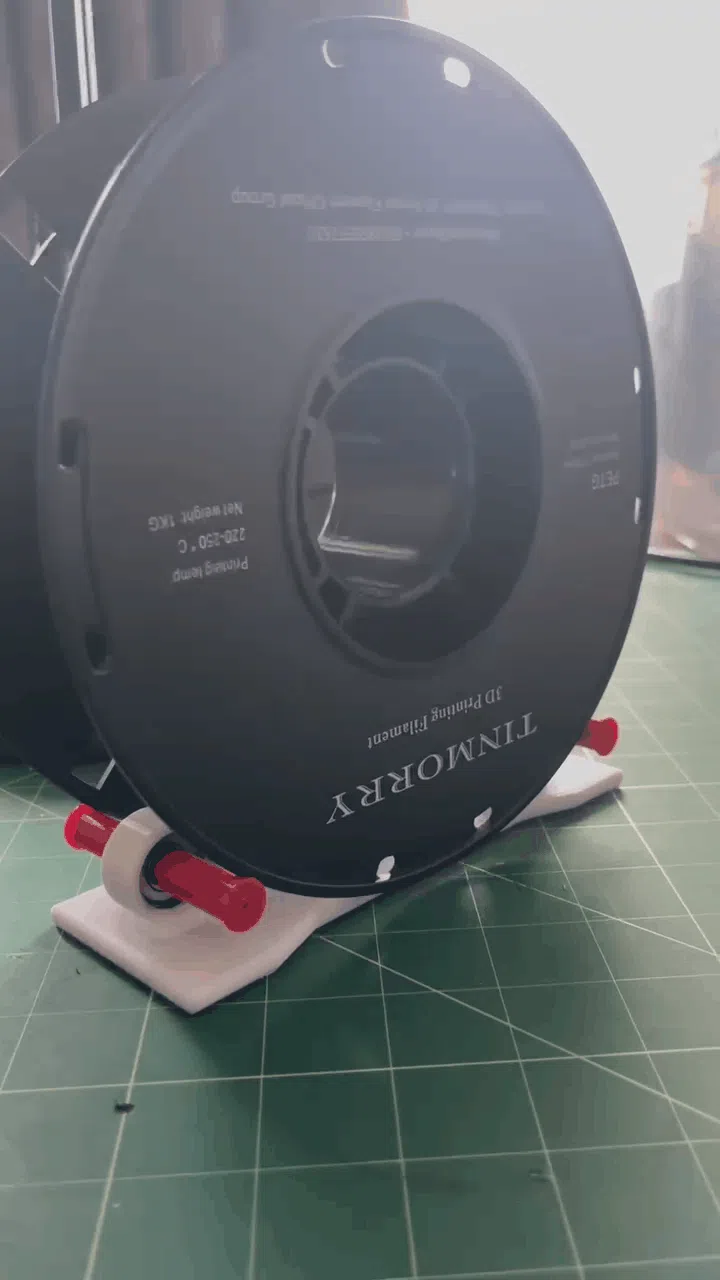

If it is not a Tianrui consumable, you can still use this program. As long as there is a certain distance between the consumables and the box, you can use this program. The holder is very extreme on the distance, and it takes up very little height in the narrow box to lift the consumables and discharge them in a smooth way. If there is a difference in the width of the consumables, the height of the sleeve can be manually adjusted to fit most consumables. If there are no holes in the box for Teflon tubing, you can poke holes in the box yourself with scissors or a craftsman's knife.

If it is not a Tianrui consumable, you can still use this program. As long as there is a certain distance between the consumables and the box, you can use this program. The holder is very extreme on the distance, and it takes up very little height in the narrow box to lift the consumables and discharge them in a smooth way. If there is a difference in the width of the consumables, the height of the sleeve can be manually adjusted to fit most consumables. If there are no holes in the box for Teflon tubing, you can poke holes in the box yourself with scissors or a craftsman's knife.

The tool for securing the Teflon tubing is recommended to use the model shared by this one, which snaps the Teflon tubing very tightly.

The tool for securing the Teflon tubing is recommended to use the model shared by this one, which snaps the Teflon tubing very tightly.

https://makerworld.com.cn/zh/models/191008#profileId-115673

Bearing model size: 608ZZ-8*22*7

Bearing model size: 608ZZ-8*22*7

This project was originally released on China Station

This project was originally released on China Station

https://makerworld.com.cn/zh/models/364079#profileId-271634
