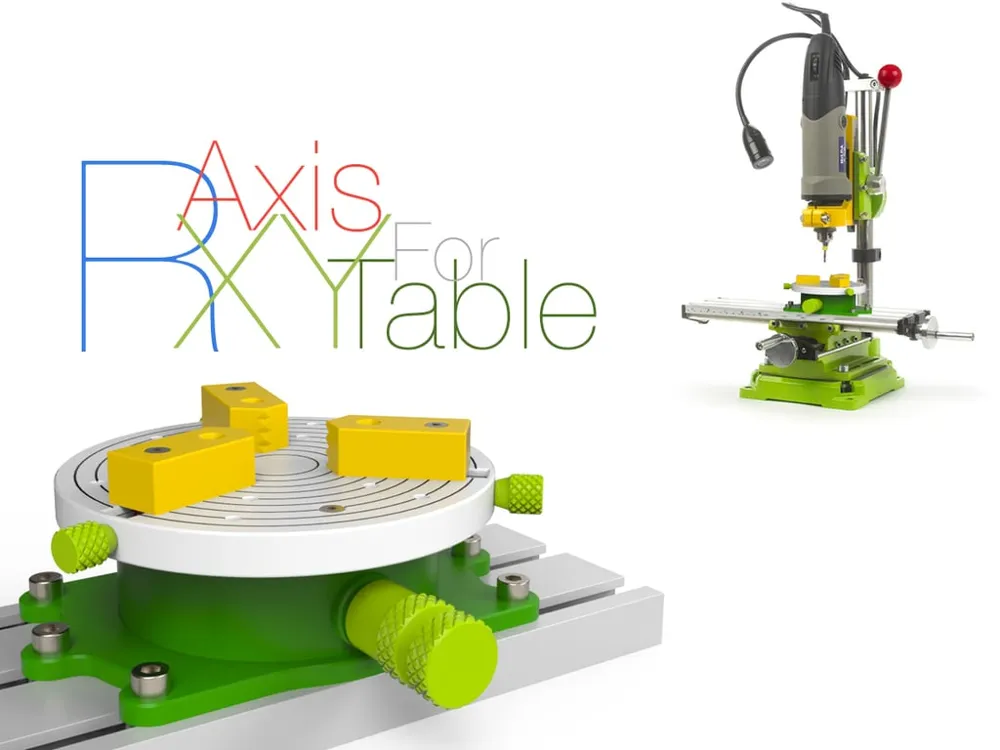

R-Axis for Coordinate XY-Table

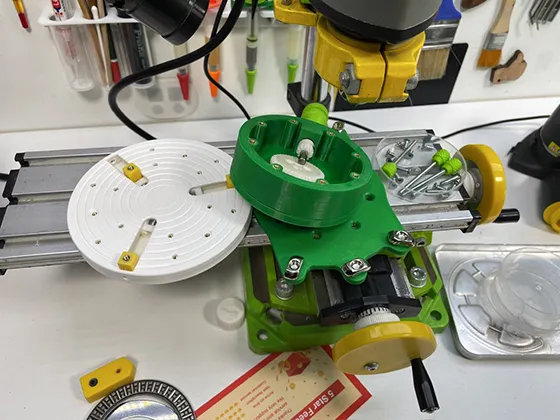

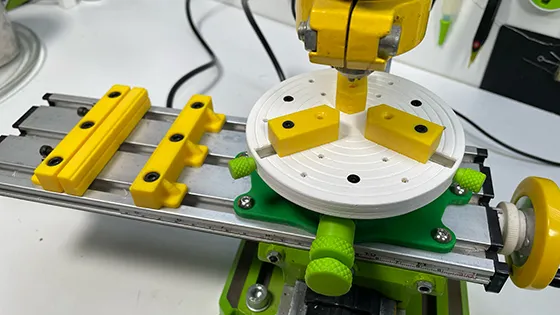

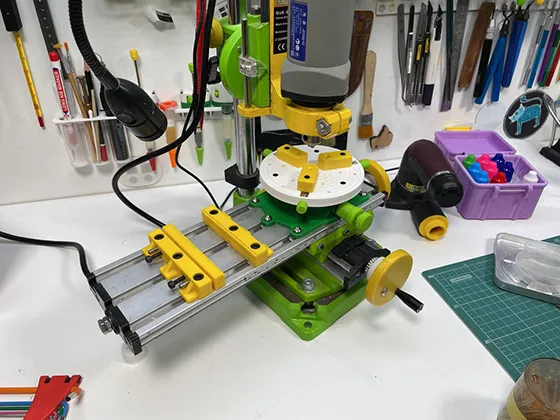

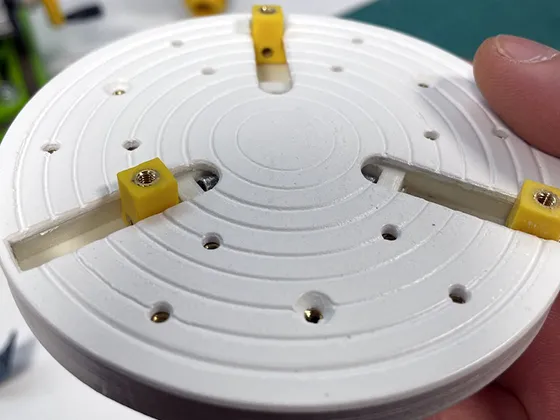

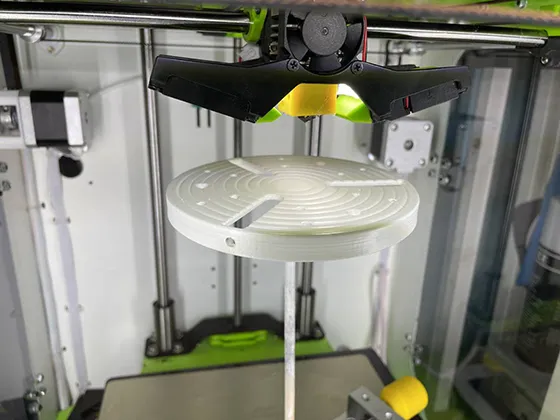

In one of my new projects, there is a component that simply cannot be printed without subsequent processing. That's why I needed a rotary table, which would allow me to align the surface that was printed with supports. It provides the ability to rotate and lock workpieces in the desired position, significantly simplifying processing and increasing the efficiency of the process, as well as circular milling. The rotary table is equipped with a special clamping mechanism in the form of a collet, securely fixing the workpiece in the desired position, ensuring precision and process stability.

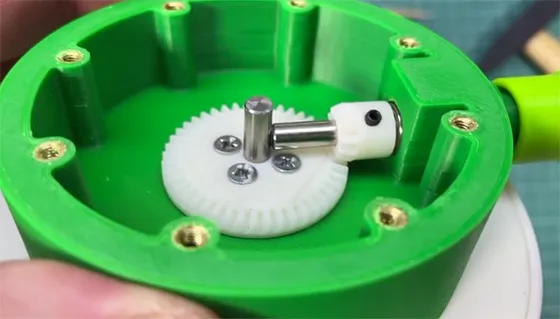

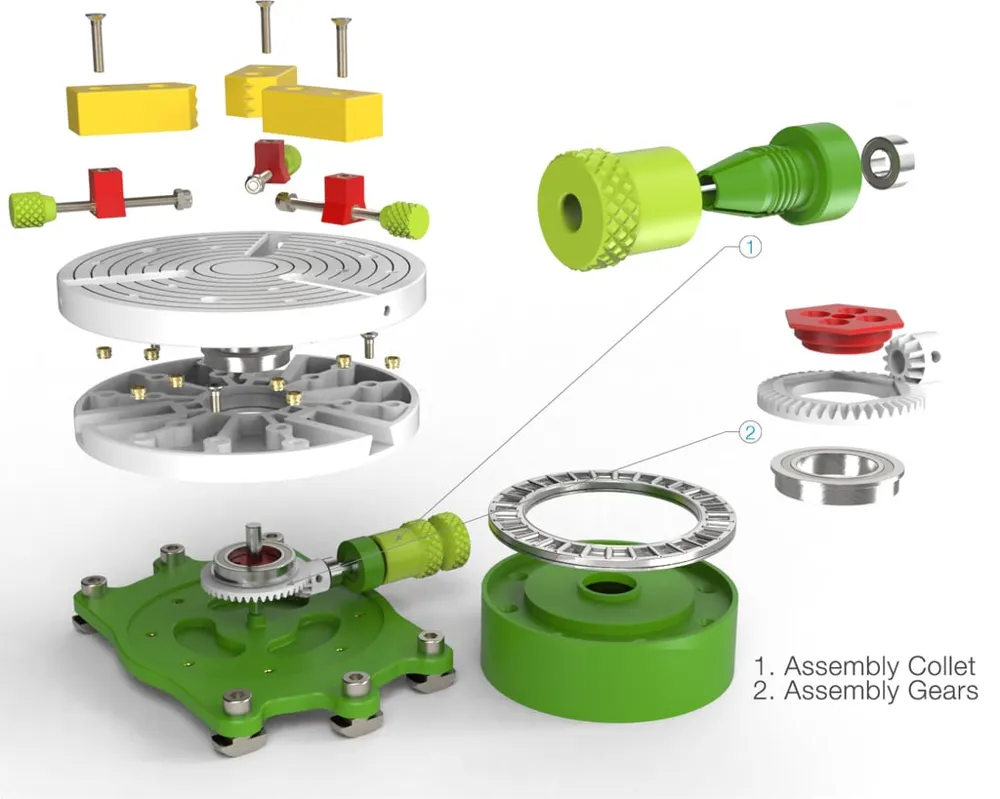

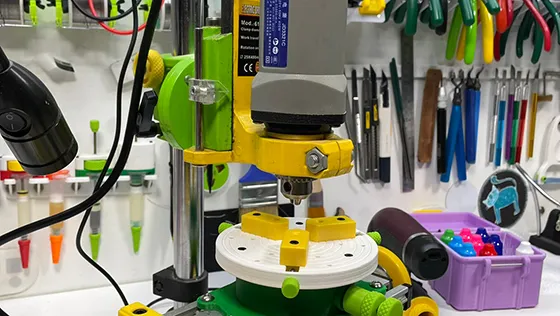

The rotary table can be used for milling, drilling, cutting, and other types of processing of soft materials. However, you will see it in action in my videos in the future, but for now, I have a video of its assembly since the mechanism is relatively simple, and there are some nuances that are worth seeing before assembling it.

See the video for details:

If you liked this thing - let me know by putting like!


Parts links below:

• Bearing AXK5578
• Bearing MR105 5x10x4
• Bearing F6803-ZZ 17x26x5
• Insert Knurled Nuts M3
• Button Head Screw
• T-Nut M5 3030
• Lock Nut
• Set Screw
• Head Flat Screw
• Threaded Rod
• Threaded Rod Brass
• Stainless Steel Rod
• Carbon Fiber Rod
• AB-Glue Epoxy
• Glue 242
• Tree Frog 502 50g Strong Super Glue
• Lubricant for Plastic Gear XY-2
