Lenovo Tiny M93p 1U Rack
Print Profile(2)
Bill of Materials
- * M4 nuts (4) x 1:
Description
Boost Me (for free)
Love this design? want more? boost me to show your appreciation!

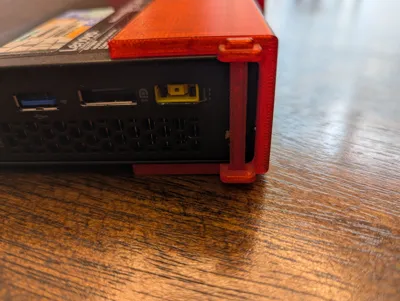

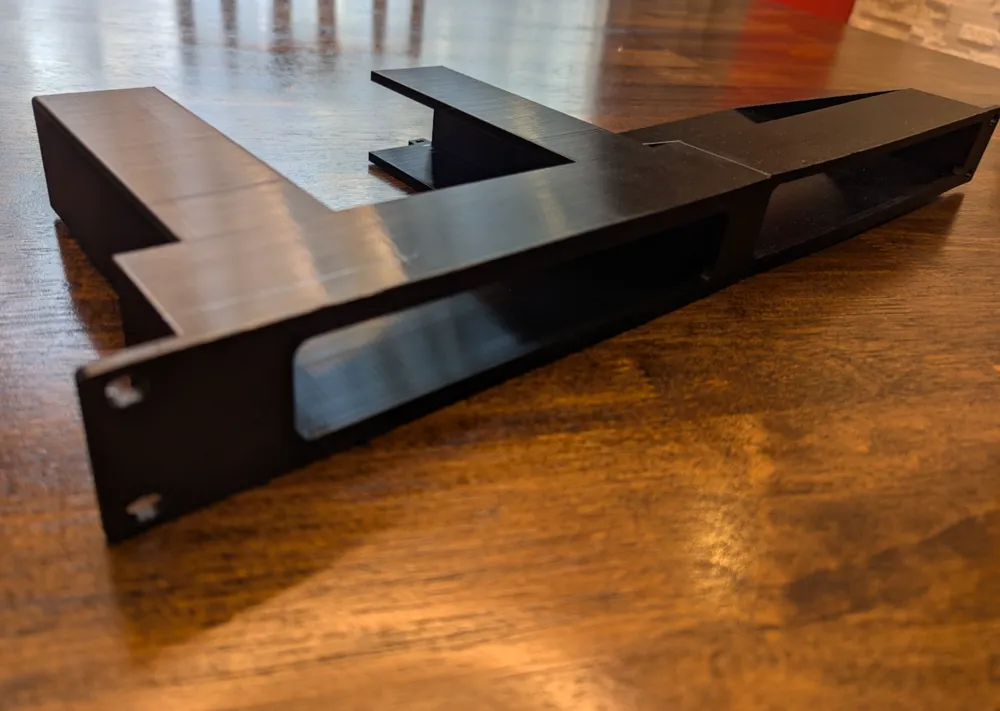

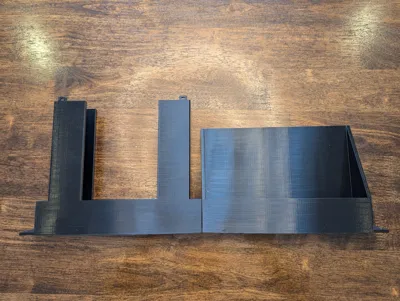

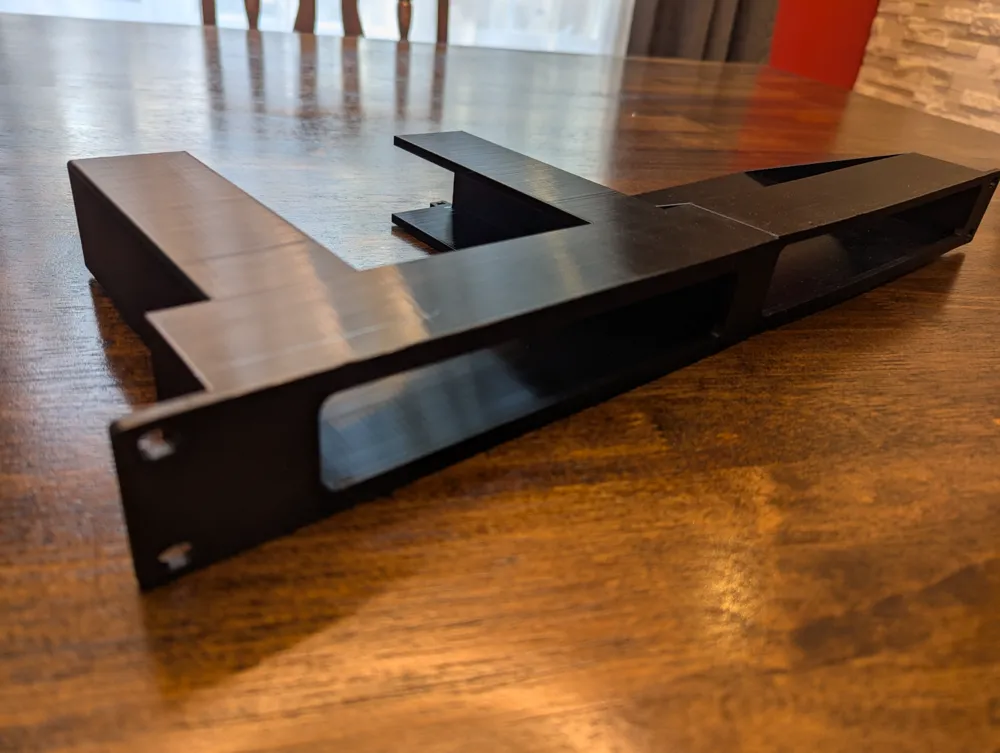

Wanted to rack mount my Lenovo M93P. Did not find the model I wanted, so i created my own to practice my modeling at the same time.
- Can mount 2 Lenovo Tiny Small form factor (7.0" W X 7.2" D X 1.4" H or 179mm W X 182mm D X 34.5mm H)
- If only one, print a shelf to complete the 1U.
- Printed in PETG for heat resistance, been working great for over a year.

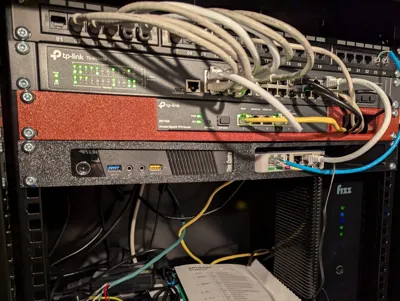

- Fit 19 inch server rack
Need 4 M4x16mm screws and nuts to attach both side togethers.
If you have a similar tiny server with different dimensions, contact me, I'll modify my model for your tiny server.
