Vise for Drill Press (fully printed) - A1 Mini - Free 3D Print Model

Search models, users, collections, and posts

Andrew M

Tools>Machine Tools

IP Report

Print Profile(2)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 6 walls, 25% infill

Designer

10 h

2 plates

4.7(47)

150% BIG ONE PA6-CF / PETG 0.2mm layer, 6 walls, 25% infill

34.5 h

3 plates

Open in Bambu Studio

Boost

345

894

918

348

Released

Description

Description

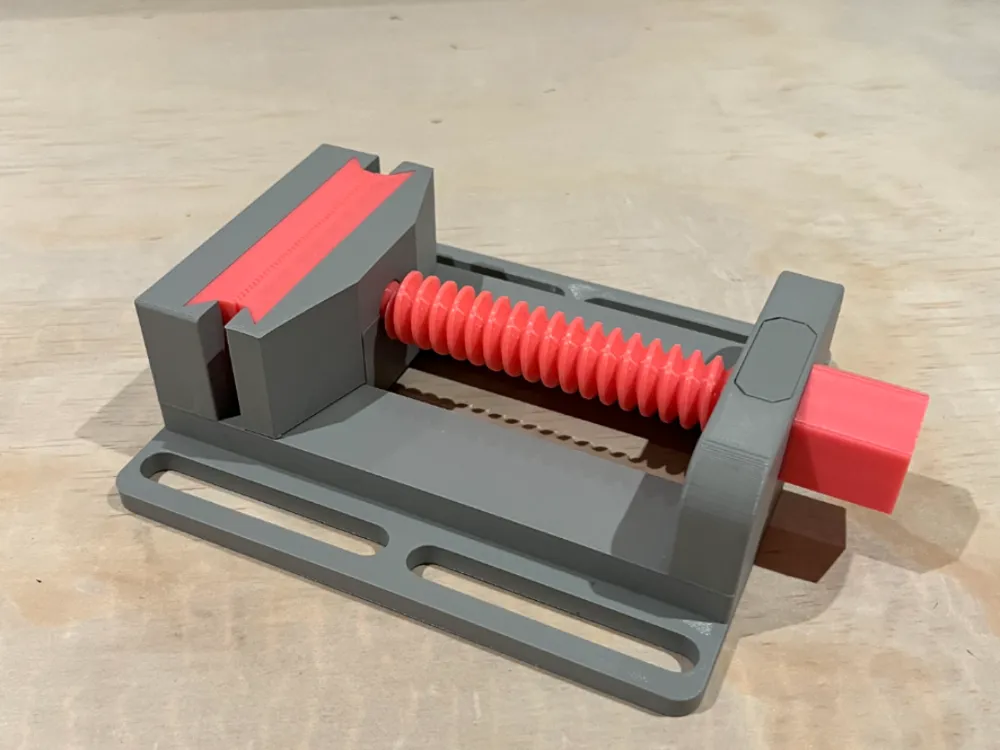

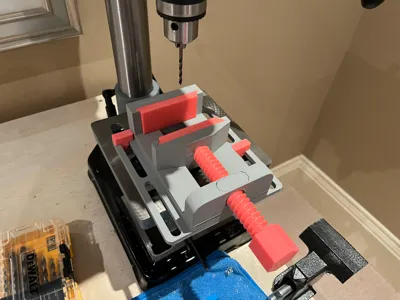

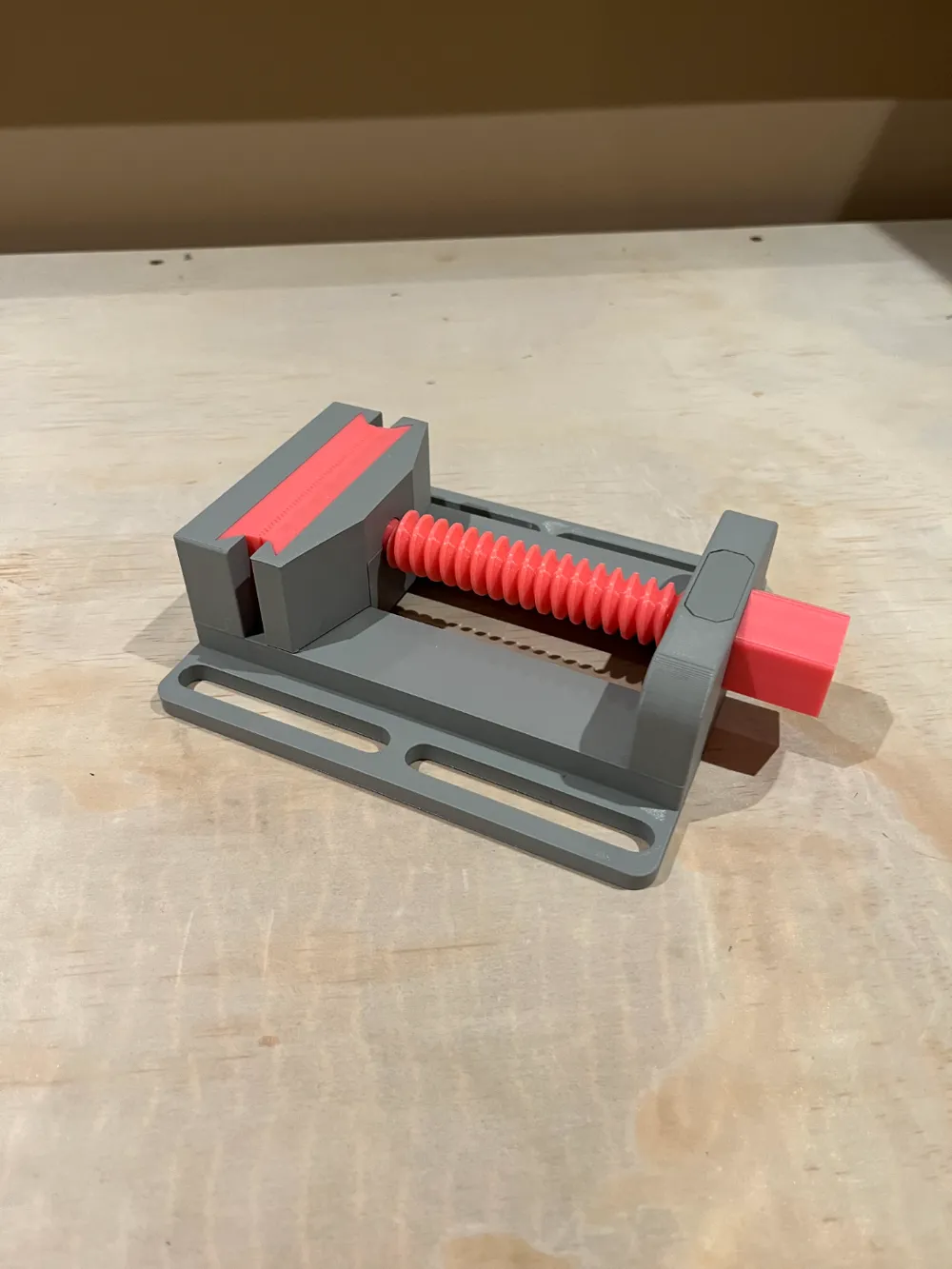

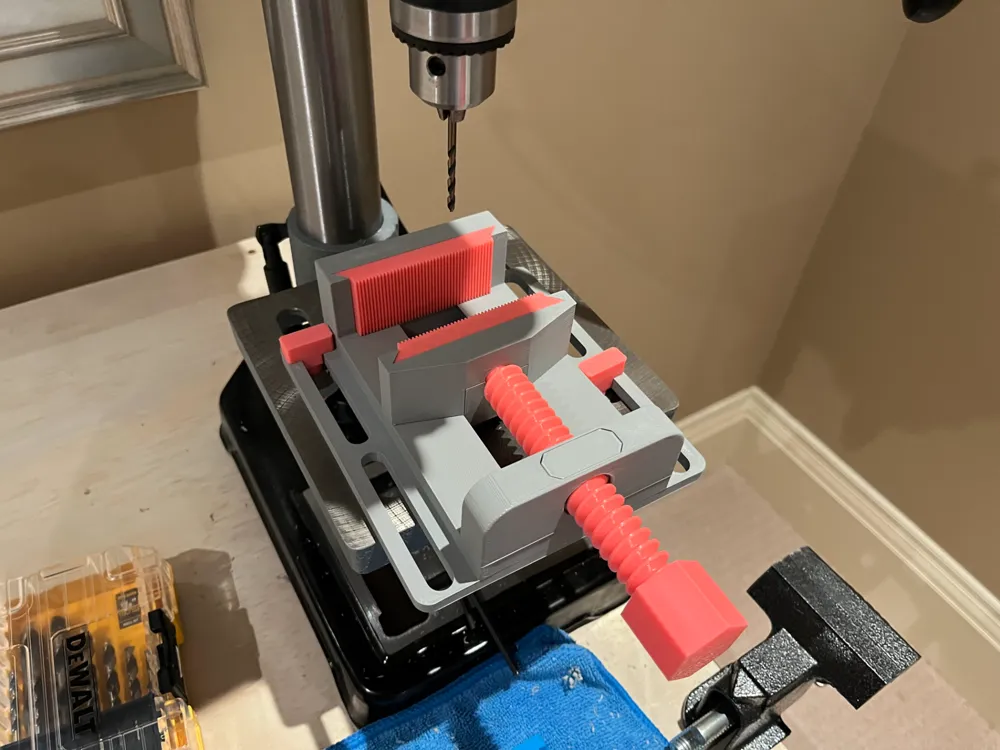

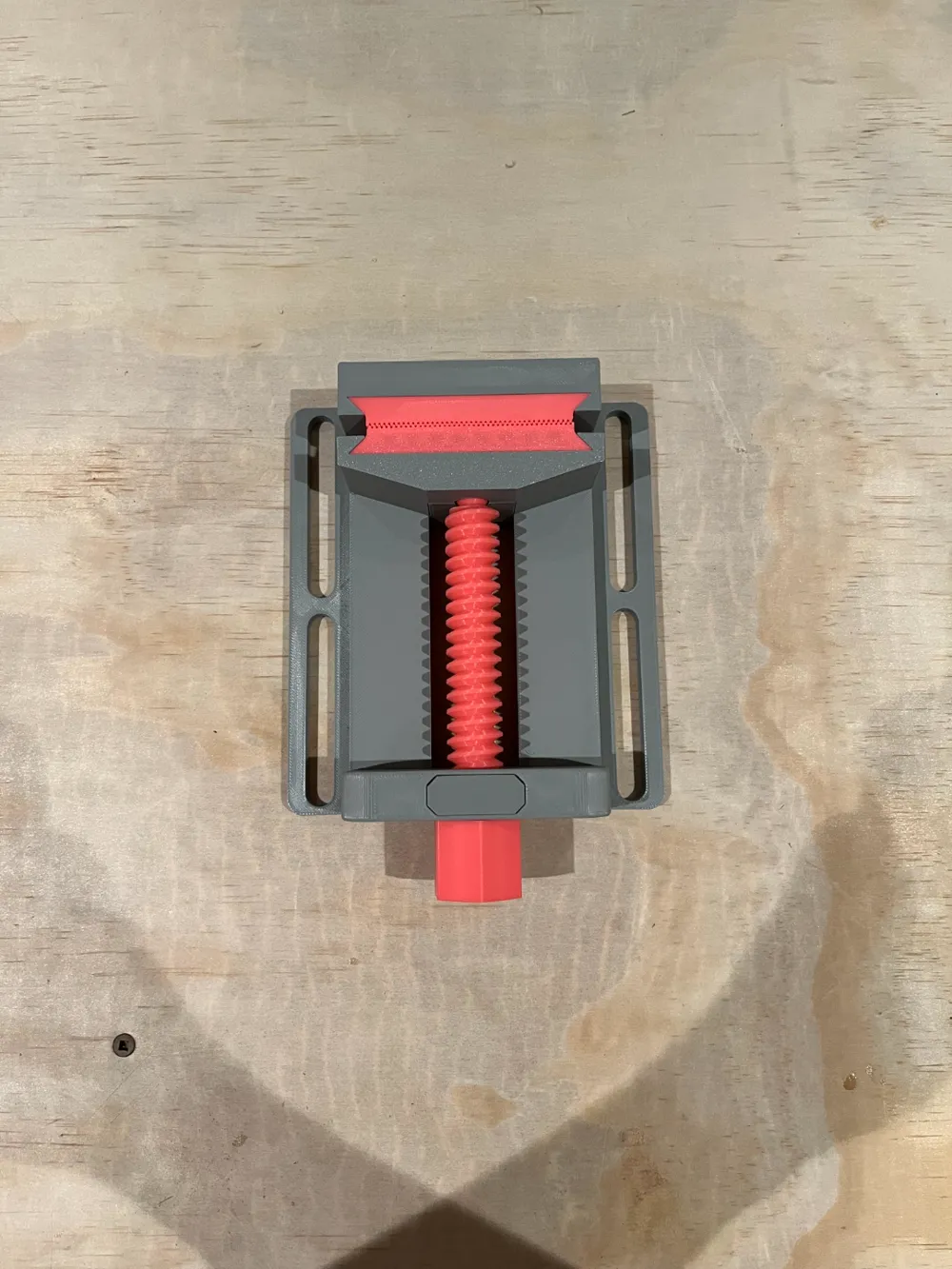

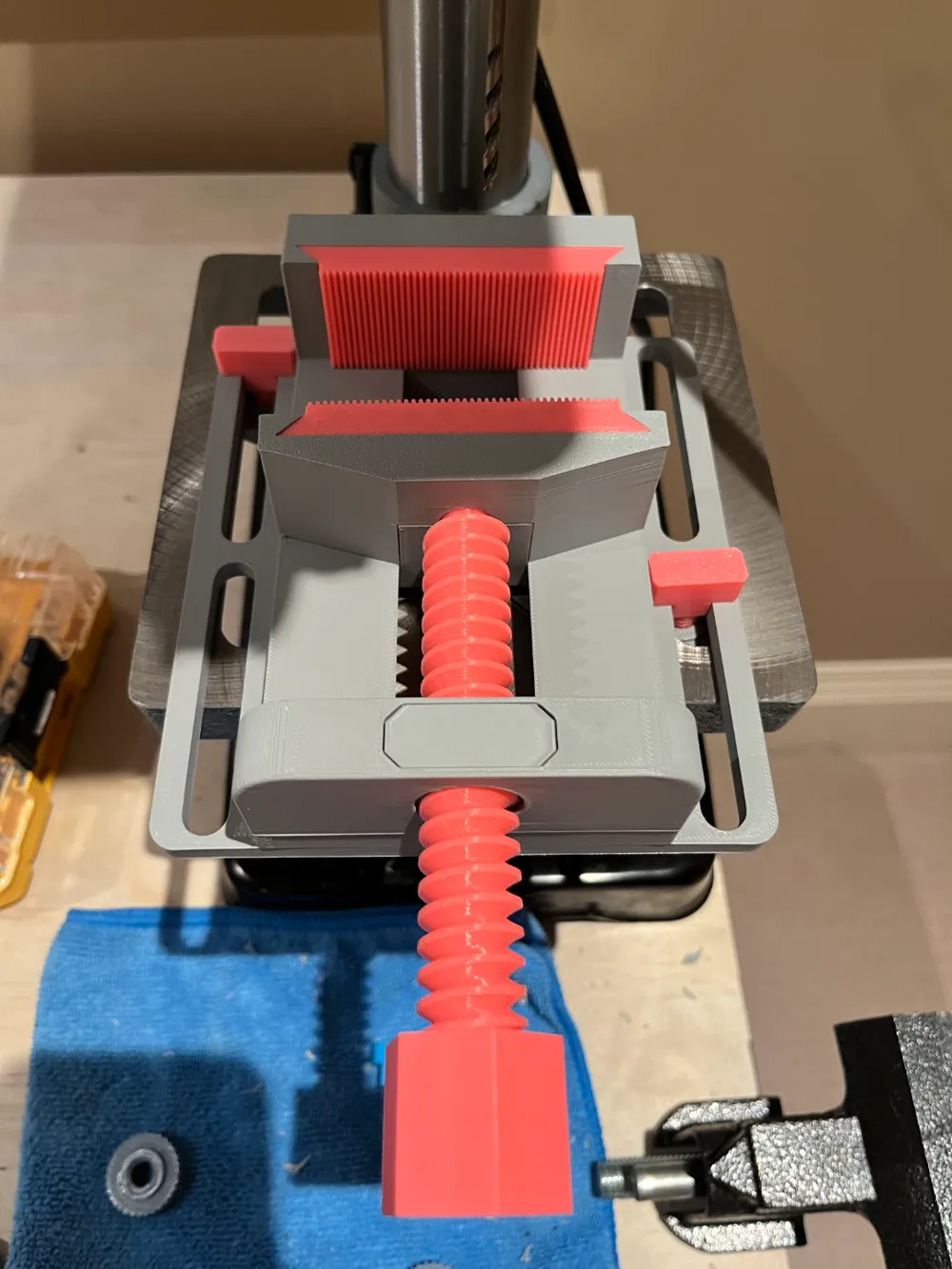

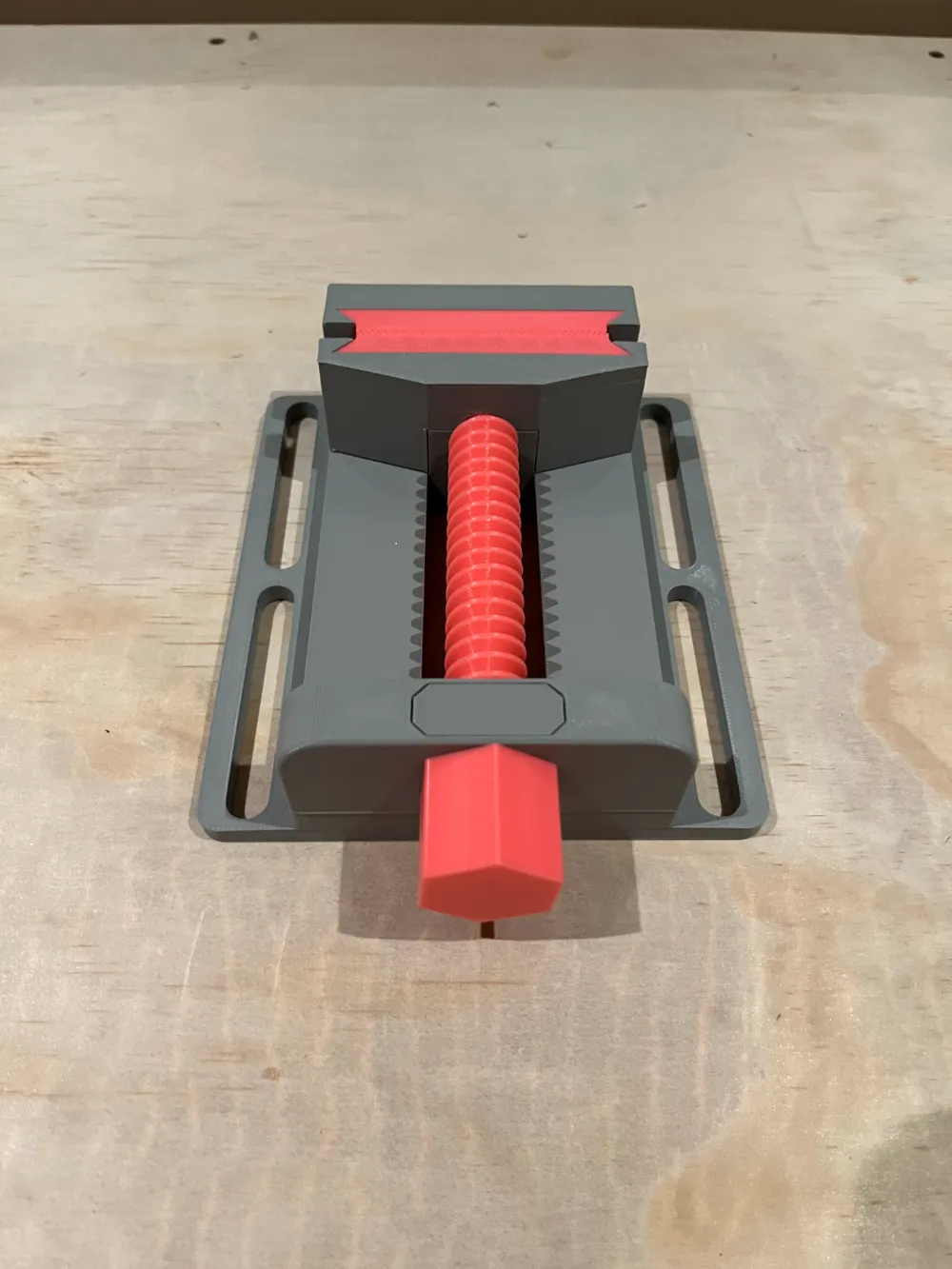

I orginially printed a vise made by a user named thebelin and it was really good execpt it did not fit my drill press so I designed one myself. It attaches to the drill press with the srews you print for it and it is suprizingly strong. I have never had a problem with it not being strong enough to hold something when drilling

Assembly

Insert the threaded key into the body of the vise
Thread the main screw part of the way through the key you inserted
assemble the top and bottom part of the moving jaw around the sphere on the end of the main screw (should be a friction fit but if you would like you can glue it in place)
Insert the replaceable jaws (make sure they are setup so that the teeth fit into eachother if it is the wrong way round you just have to flip it)
YOU ARE DONE!!!
