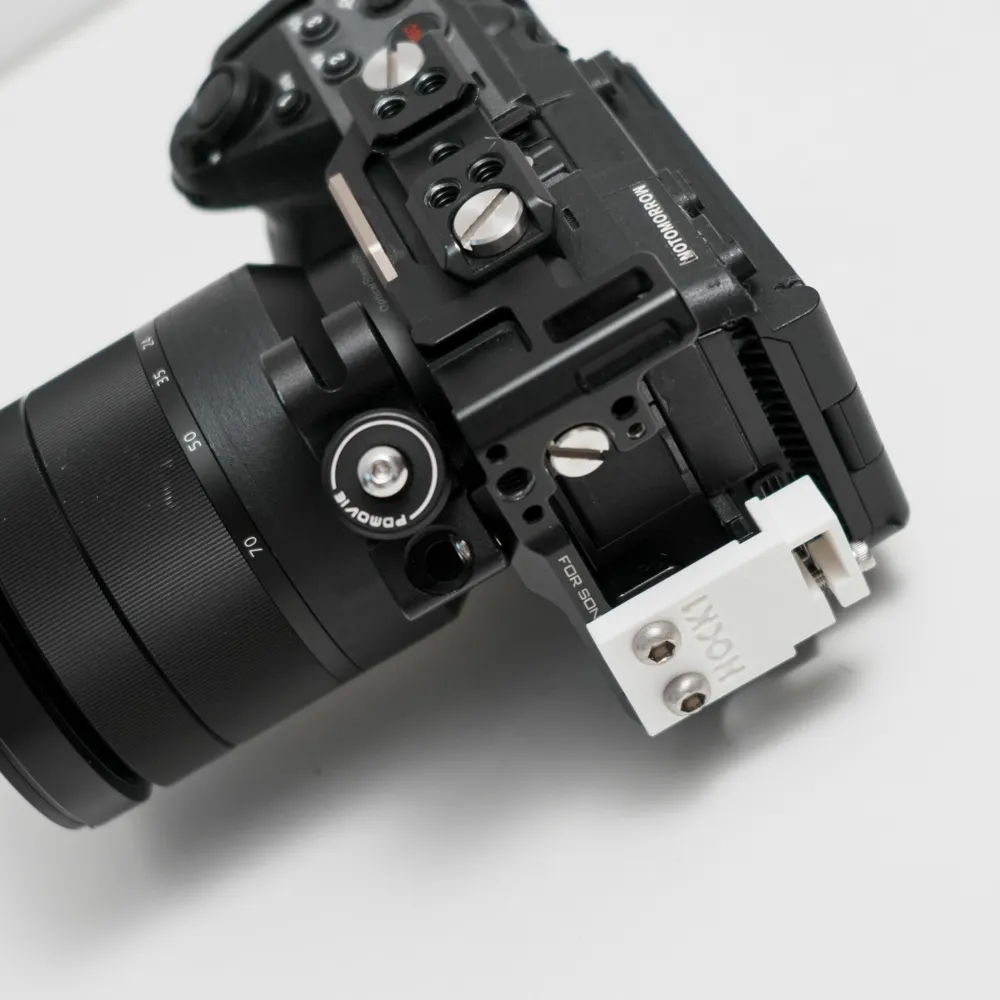

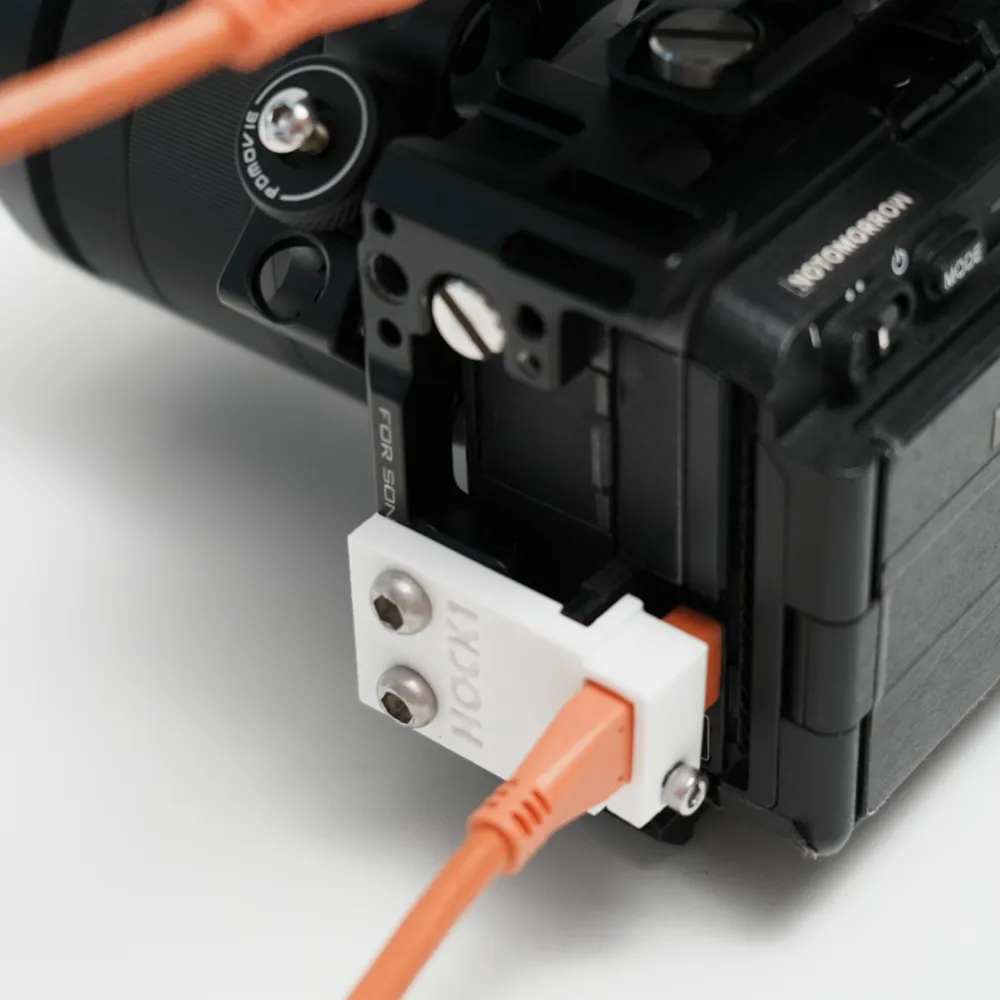

sony FX3 TILTA typeC Cable Fixer | Fx3 铁头兔笼固线器

FX3一直用铁头的兔笼。因为Fz100拉垮，并且FX3的C口支持快充，所以干活都喜欢外挂充电宝或者V口。
但是用了快2年，都苦恼买不到C口固线器。
最近买了3D打印机，开始倒腾自己做一个！！

主要因为C口盖板打开会高于兔笼高度，所以我之前买过七八个C口夹都装不上，所以自研固线器为盖板开了槽
为了不影响底部冷靴正常使用，固线器底部做了斜切
为了3D打印件不会因为多次使用磨损，M3螺丝口增加了金属垫圈
ps：里面埋了一个螺母，M3螺丝是和螺母🔩作用夹紧数据线。
在不断修改后，感觉这版是比较满意的状态了。
目前使用拓竹pla打印，弹性和钢性感觉都足够使用～

有条件可以试试更高硬度和弹性的材料~

配件清单:

M3×12 2个

1/4螺丝 2个

——————————————————————————————————————
machine translation:

I have always used a rabbit cage with an iron head for FX3. Because Fz100 is lagging behind, and the C-port of FX3 supports fast charging, I like to use an external power bank or V-port when working.
But after using it for almost 2 years, I am still worried that I can't buy a C-port cable holder.
I recently bought a 3D printer and started to make one myself!!

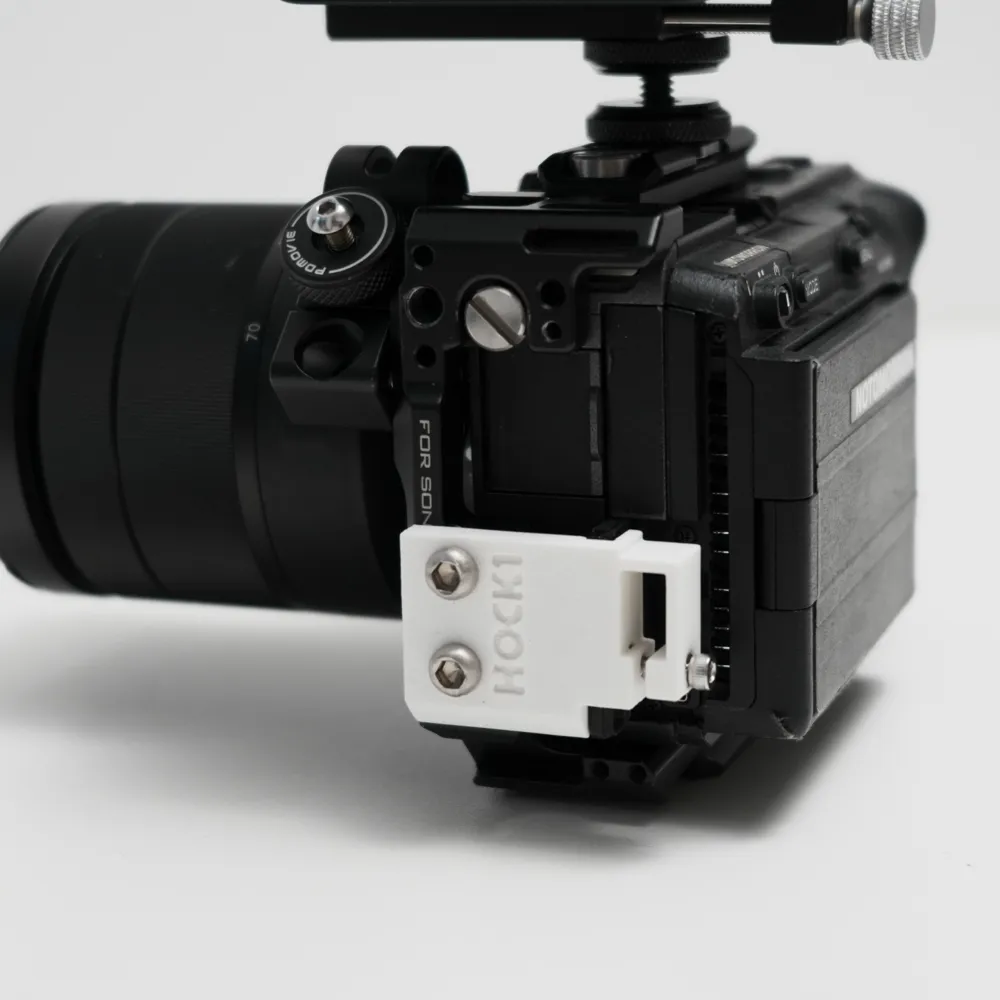

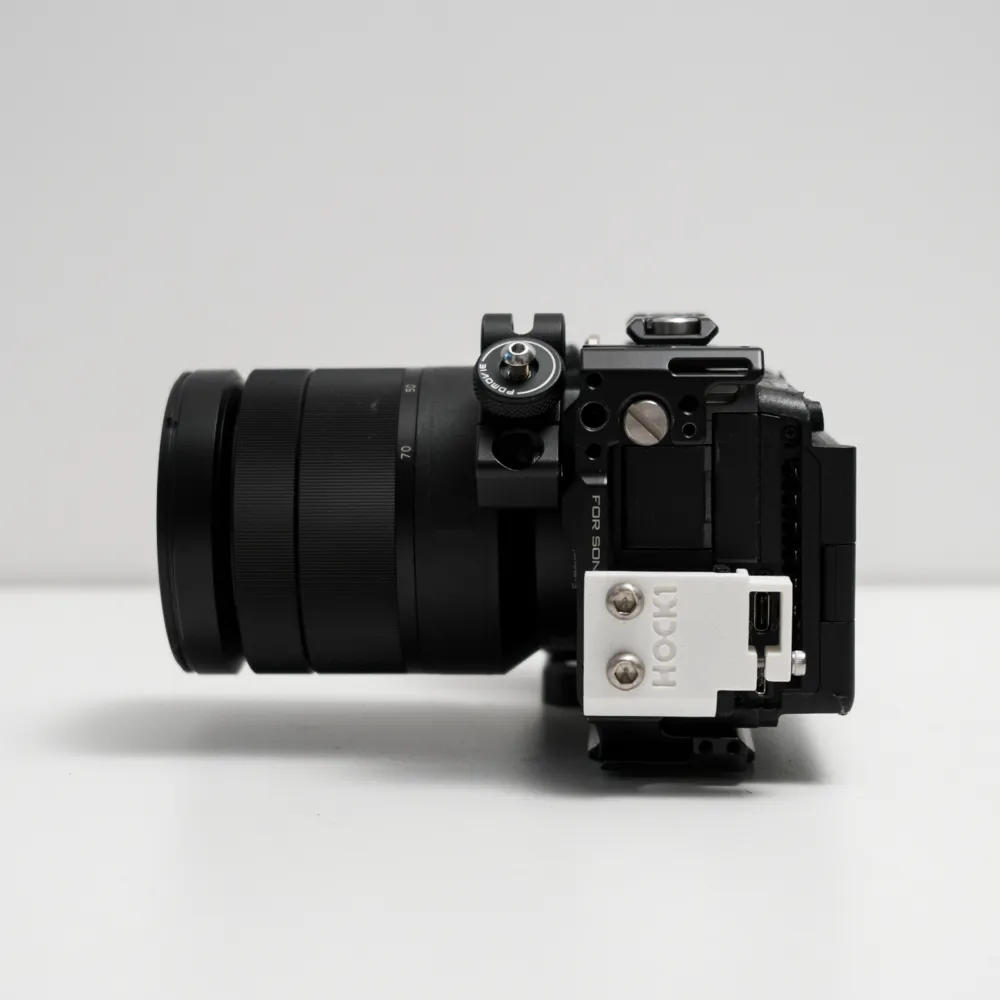

Mainly because the C-port cover will be higher than the rabbit cage when opened, so I bought seven or eight C-port clips before and couldn't install them, so the self-developed cable holder opened a slot for the cover

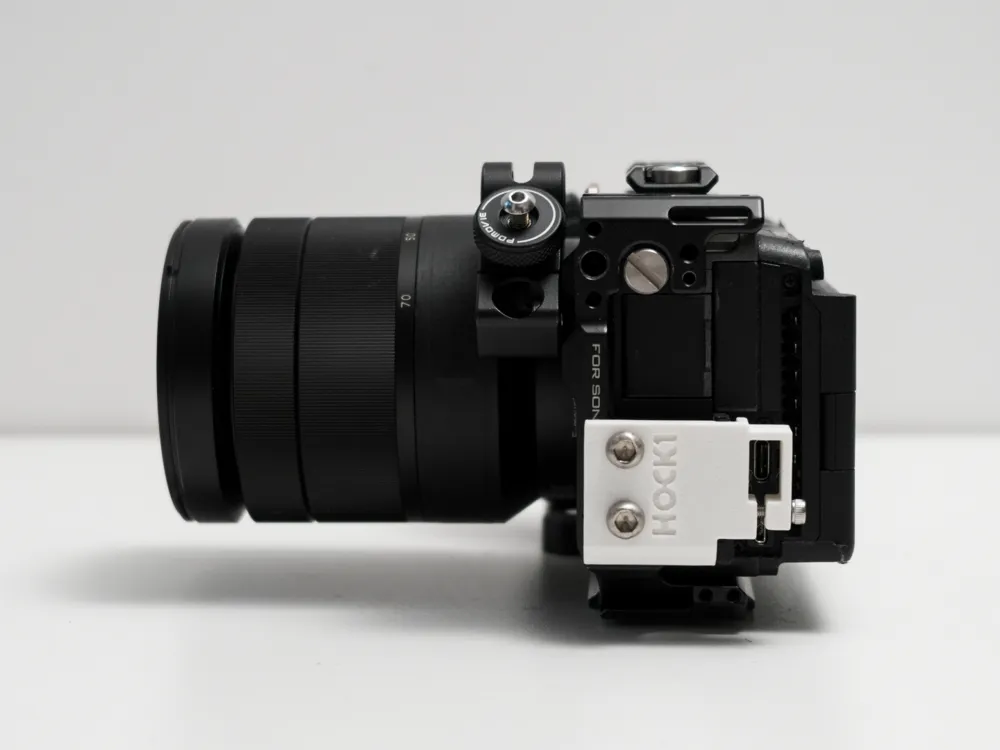

In order not to affect the normal use of the bottom cold shoe, the bottom of the cable holder was beveled

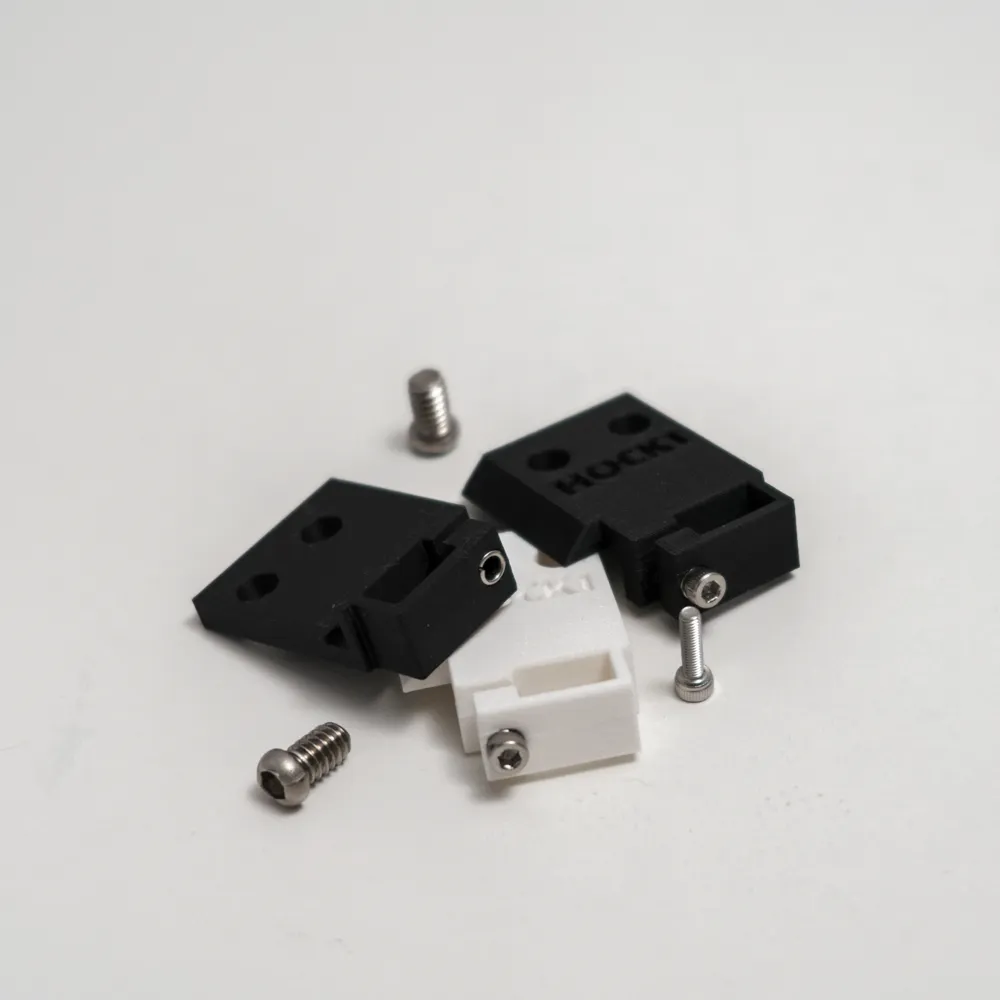

In order to prevent the 3D printed parts from being worn due to repeated use, a metal washer was added to the M3 screw port

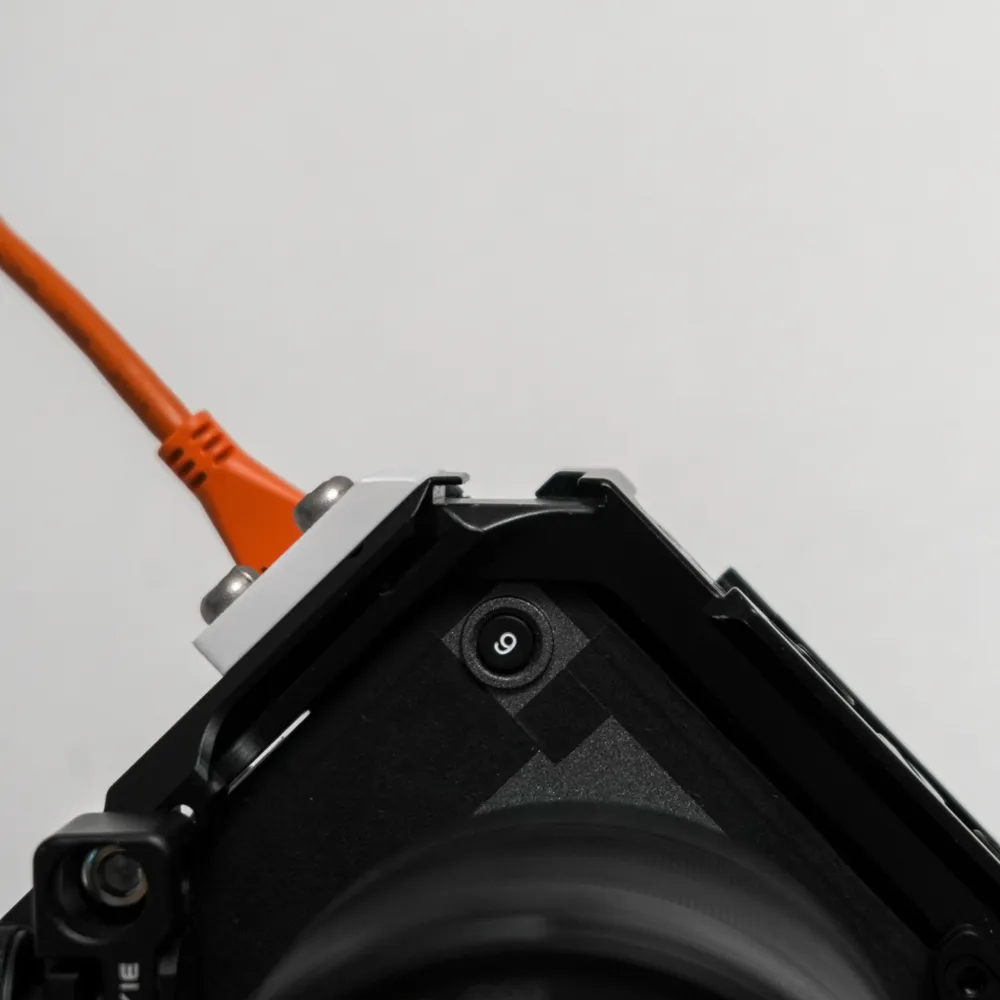

PS: There is a nut buried inside, and the M3 screw is used to clamp the data cable with the nut 🔩.

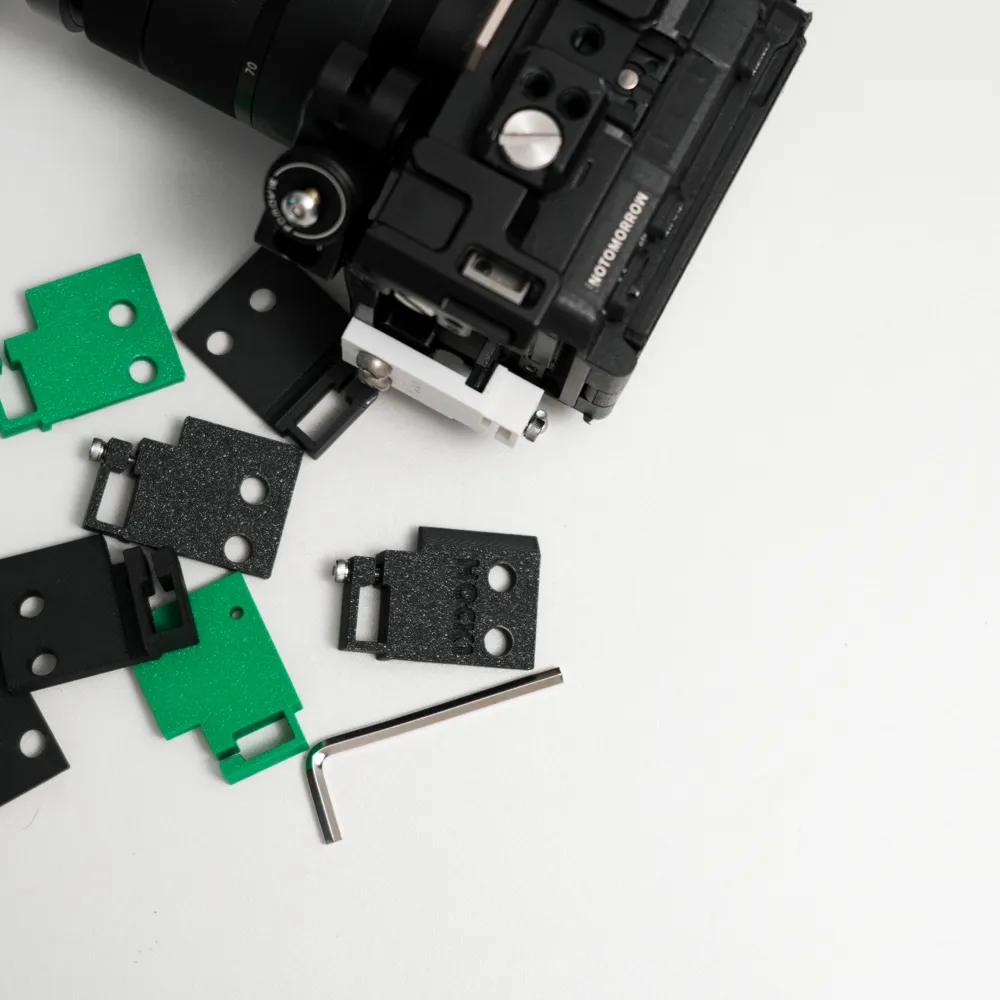

After continuous modification, I feel that this version is in a relatively satisfactory state.
Currently using Tuozhu PLA printing, the elasticity and rigidity seem to be sufficient for use~

If conditions permit, you can try materials with higher hardness and elasticity~

Accessory list:

M3×12 2 pcs

1/4 screw 2 pcs
