Description

Membership

💸 Start making money today 💸 — Sell physical prints from ALL of my designs. My commercial license gives you rights to print and sell with limited restrictions.

Join

Boost Me (for free)

Boosts are always appreciated! — Your support makes these designs possible!

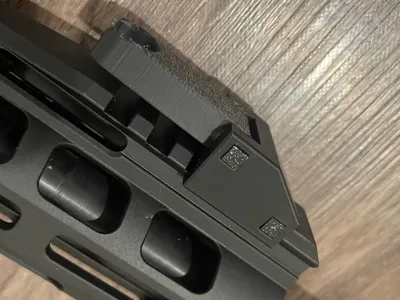

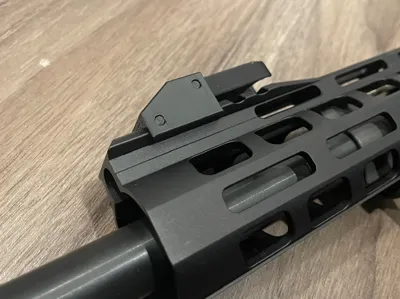

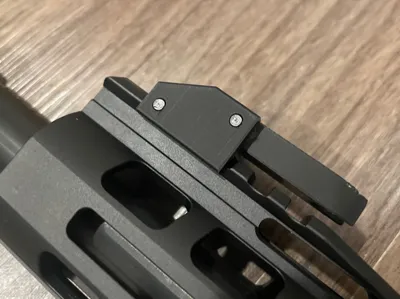

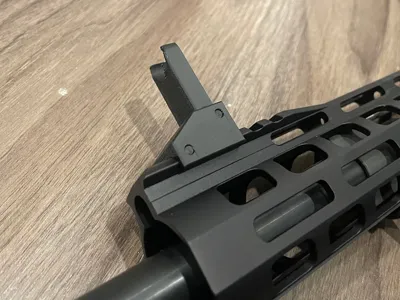

Fully printable flip up iron sights!



Things to note:

  • These use a friction fit to stay in the up and down position and can wear out over time
  • The sights should be a snug fit on your picatinny rails and be locked in place with a printed pin. If too tight or too loose for your rail, slightly scale all parts up or down.
  • Non adjustable.
  • Will co-witness most standard height optics.
  • Recommended to print with a very fine layer height. 0.08mm used in print profile.
iron sights
sights
ar15
front sight
rear sight
flip
airsoft
optic
optics
post
scope
red dot
picatinny

Comment & Rating (52)

(0/1000)
@PrintLocker
Pinned by Designer
V2 has now been posted with durability improvements as well as 2 color AMS features!
2
Reply
@zackza
Print Profile
0.08mm layer, 4 walls, 25% infill
huge waste of time since yiu cannot even screw it down I to a rail and it wobbles. and the pegs make it useless if u ever wanna remove it. I guess it's just a toy
The profile uploader has replied
0
Reply
@PrintLocker
Please check out version 2 for some improvements over this design!
0
Reply
@QGJ37
Boosted
Well printed, nice Sight. Need now to be tested outside !
0
Reply
@CreeperCT3D
this is the craziest brace ive seen. never seen a brace on a revolver. dudes in the wild west would loose their minds. nice piece dude.
0
Reply
@user_825668203
Print Profile
0.08mm layer, 4 walls, 25% infill
0
Reply
@InterestingName
Print Profile
0.08mm layer, 4 walls, 25% infill
didnt work well couldnt assemble due to issues in print quality
The profile uploader has replied
0
Reply
@PrintLocker
I am sorry the print profile did not work out for you. Could you give more details on what went wrong and if any materials or settings were altered?
0
Reply
@InterestingName
tolerance between the rod and the housing/sight was too tight and didn’t fit
0
Reply
@PrintLocker
Replying to @InterestingName :
it takes some force to get the rod in that way it stays in place. I push it against a table top to pop it in. if it still won’t fit you can try to widen out the holes with a blade.
0
Reply
@user_2199541958
Print Profile
0.08mm layer, 4 walls, 25% infill
I still need to install them, but it printed very well. it's amazing how much you can do with 3d printers. also, random, but there's apparently a company that makes filament similar to optical wire. I may have to try to implement it with this
The profile uploader has replied
1
Reply
@PrintLocker
thanks for the review! also be sure to check out my version 2 of these sights for some improvements
0
Reply
@SkyFreek60
Print Profile
0.08mm layer, 4 walls, 25% infill
really impressive how positively these click into the detents without any springs or bearings
The profile uploader has replied
profile
1
Reply
@PrintLocker
Thanks for the review! Check out my V2 of this print whenever you have a chance. It has been slightly improved to enhance durability in the longer term for the detents.
0
Reply
@zackza
terrible. no way to secure to rails,. waste of time. add an axctual hole for bolts dude lol like an m4x25 or m4x20 and m4 bolt or smaller or whatever fits sheesh, wobbles . lil stick aint holdin it anbbd u cant remobve the peg
The designer has replied
1
Reply
@PrintLocker
Sorry to hear your experience. My page is dedicated to fully printable accessories which is why this design was not meant for screws. Pegs are completly removable with a punch (or just use a screwdriver). Thank you for the feedback, version 2 has some slight improvements over this one and can also be found on my page.
1
Reply
@zackza
just need to fix the supports, there doesnt nee dto be any, we shoudl stretch the sights down so they dont need to be as thin, they can even have a cone etc. or even maybe print ring seperate with a stem, and hole in part it normalyw as so it can slide ina nd be adjustable even lol
(Edited)
The designer has replied
0
Reply
@PrintLocker
Thank you for the additional feedback. Will take note for a potential version 3 in the future.
0
Reply
@Grenold
Boosted
Print Profile
0.08mm layer, 4 walls, 25% infill
Great design, they work very well. have you thought about making a version that are spring loaded?
The profile uploader has replied
0
Reply
@PrintLocker
Thanks! I have plans to make a revised version of this soon with improved snaps or a spring mechanism.
0
Reply
@Ether_Mafia
is there any info on the laser dot
The designer has replied
0
Reply
@PrintLocker
Firefield LPVO scope
0
Reply
