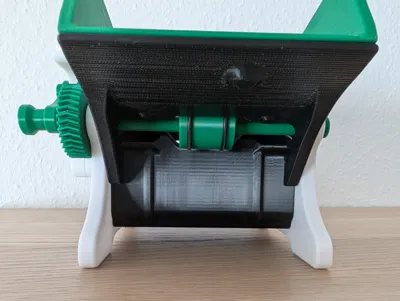

Card Shuffler M3 Screws Version

This is a remix of Josh-3d's great card shuffler Standard Version and Tall Version (up to about 100 cards).

As I didn't wanted to buy the quiet special BambuLabs screws he used, I modified it to use standard M3 screws.

So everything needed ist available at amazon, see links below.

For assembly have a look at the original manual

There are three versions:

• Standard Version
• Tall Version
• Standard M3-inserts version
  in this version you can use threaded inserts for most parts
  the shafts, gears and crank arm knob are too small for inserts, so they are the same as in the standard version

Additional needed parts (amazon.de affiliate links):

• a lot M3x8-screws
• 9x MR128ZZ bearings
• 2x O-rings the 22x2.5 worked just fine
• M3-inserts (only for the insert version)

The last build plate of the print profile contains a small test part. If you are unsure about tolerances print this first and try to screw in a M3 screw. If it is too loose/tight check your extrusion settings.
