Update 7/7/2024 - Updated V2 uploaded. Changes made to the picatinny dimensions to help avoid having to scale. Seems to work with PLA, PETG and PA6CF so far. V2 files do not include a blank one with no design because I'm lazy. Lone star one for DB9 has a slightly larger and deeper hole for the M3 nut to recess into.

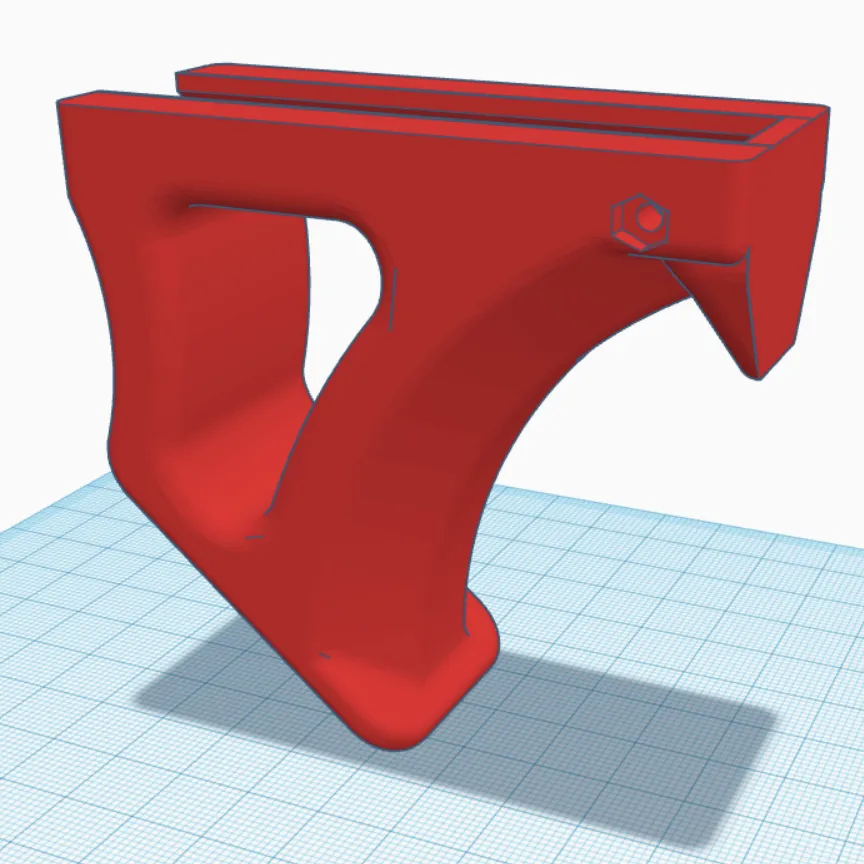

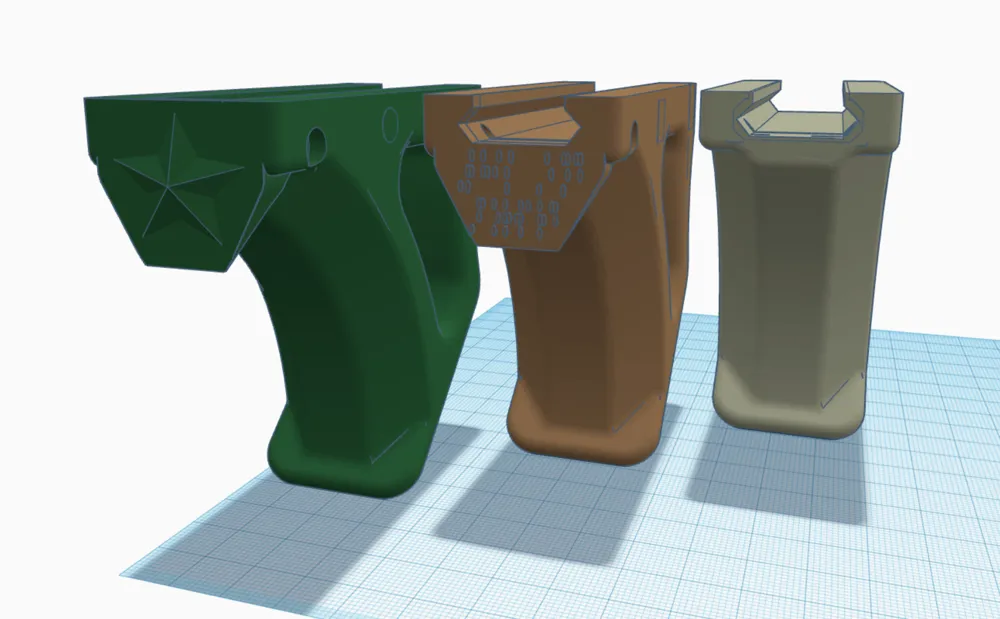

Remix of shoelesshistorian's angled nerf grip. I had fitment issues with the original model, but I REALLY liked it. I am not a CAD magician but I mashed several things together to make it work for milspec picatinny rails and added models with integrated hand stops as well as two designs. With the hand stop it gives the appearance of a snake bite, hence the name. I intentionally used one nut and bolt at the front to give it the appearance of an eye sort of.

NOTE: Depending on your settings and filament you may need to scale the V1 files. I've had some filaments work at 100%, others needed to be scaled up. I printed with 5 walls, 50% infill (less is probably fine, but I like more).

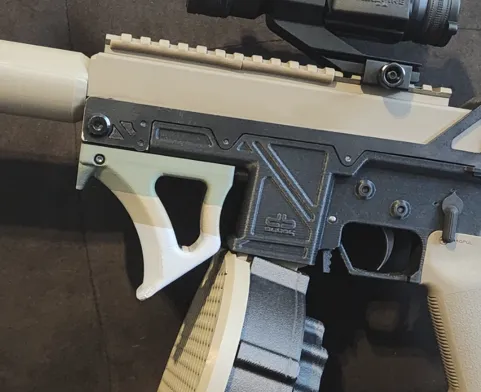

Closed face versions are made for the DB9 Alloy specifically but work with anything with a milspec picatinny.

Hardware:

M3x30mm button head bolt

M3 nut
