DEWALT DWE 7485 TABLESAW CLIP
IP Report
Print Profile(2)
0.2mm layer, 3 walls, 20% infill (M5 Bolt)
Designer
29 min
1 plate
0.2mm layer, 3 walls, 20% infill (M3 countersink wood screw)
Designer
29 min
1 plate
Open in Bambu Studio
Boost
151
556
54
16
344
236
Released
Description

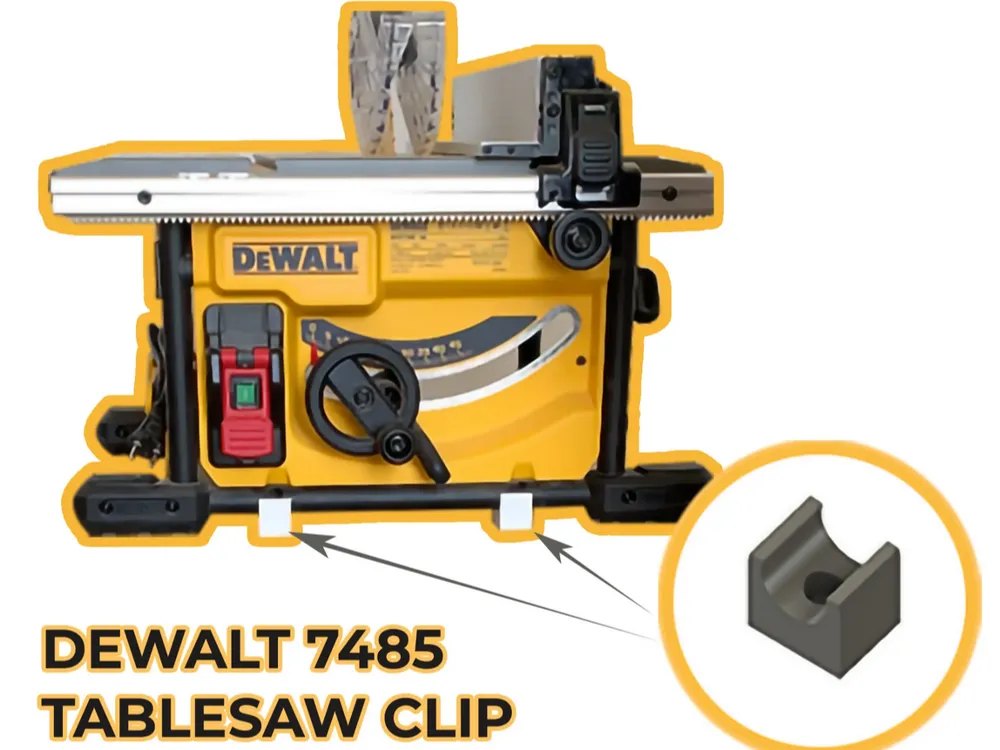

This design is made for the DEWALT DWE 7485 TABLESAW ONLY.

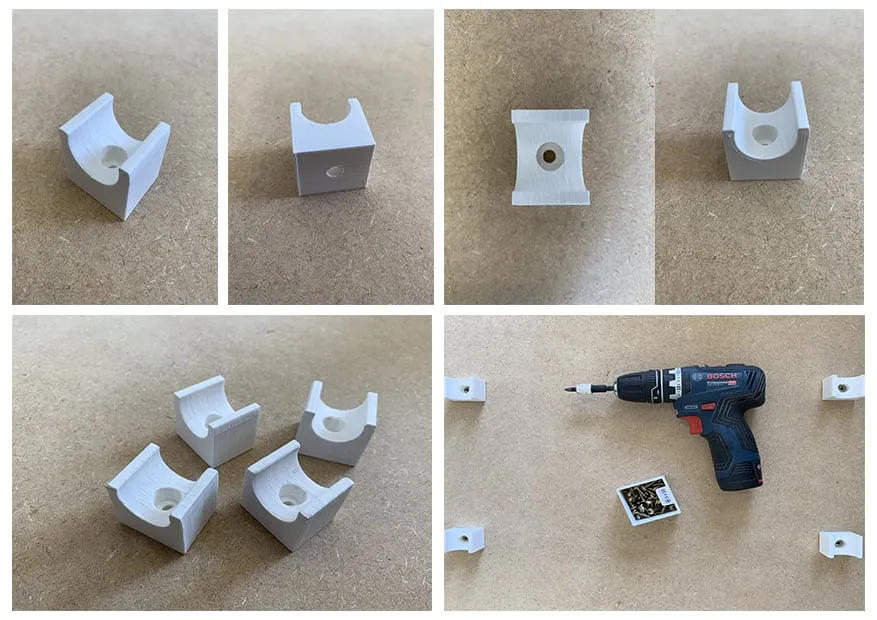

This clip allows you to hold and remove the tablesaw when it's needed. No need to unscrew it, just grab it and move.
To get a stronger print, I recommend you to print it with the " U " face against the bed plate. Layers would be less strained this way.
The clip is designed to be fixed with wood screws (5x20 screw on 19mm MDF in my case) or with an M5 bolt.
4 of it is enough to hold it in place.
