TSO parallel guide system holders (v1 only) - Free 3D Print Model

Search models, users, collections, and posts

96 Degrees

Tools>Measure Tools

IP Report

Print Profile(1)

All

P1S

H2C

H2D Pro

H2S

H2D

X1 Carbon

X1E

P1P

A1 mini

P2S

X2D

A2L

0.2mm layer, 2 walls, 15% infill, standard strength

44 min

1 plate

5.0(2)

Open in Bambu Studio

Boost

115

Released

Description

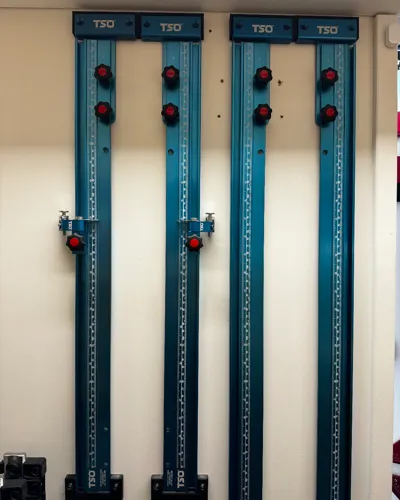

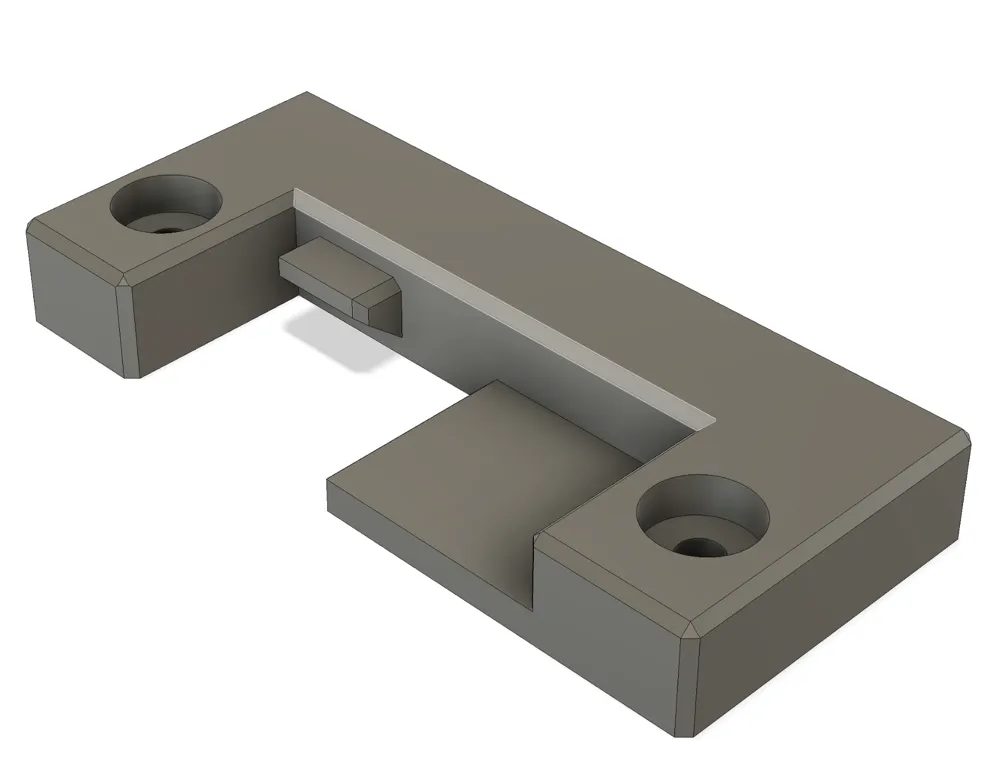

3D printed TSO parallel guide storage holders for the TSO parallel guide that drops onto a festool track saw rail (i.e., drop-on TPG adapter). For vertical storage and avoids having to remove the TPG adapter from the guides. There is a top bracket and bottom bracket. Place the bottom of the parallel guides onto the bottom bracket and tip parallel guides into top bracket. Holes are sized for Kreg pocket screws (1 ¼"). Only fits v1 version not the newer v2 model.

Comment & Rating (7)

@user_2794849336

There looks to be a specific left and right bottom brackets. The download is missing the bottom left bracket. Can you provide it?

The designer has replied

@96_Degrees

Sure, added the STL for the other side bottom bracket

@user_1497567523

The top bracket in the STL doesn't match the picture and the one in the STL doesn't seem to work.

The designer has replied

@96_Degrees

Sorry about that, the correct STL should be loaded now

@bwilfong15

Print Profile

0.2mm layer, 2 walls, 15% infill, standard strength

Printed great!. But does not fit the Gen2 version.

@bwilfong15

Printed fine, but doesnt fit the V2 models

@user_1312240339

Print Profile

0.2mm layer, 2 walls, 15% infill, standard strength
