Woodworking Setup Blocks - Imperial
Print Profile(3)
Description
Boost Me (for free)
If you like my models and want to support me, please consider donating a boost 🚀! I will be grateful. 🤗
UPDATE: Version 2 of this model which include pull out tabs, a smaller case, and more block sizes is available here!

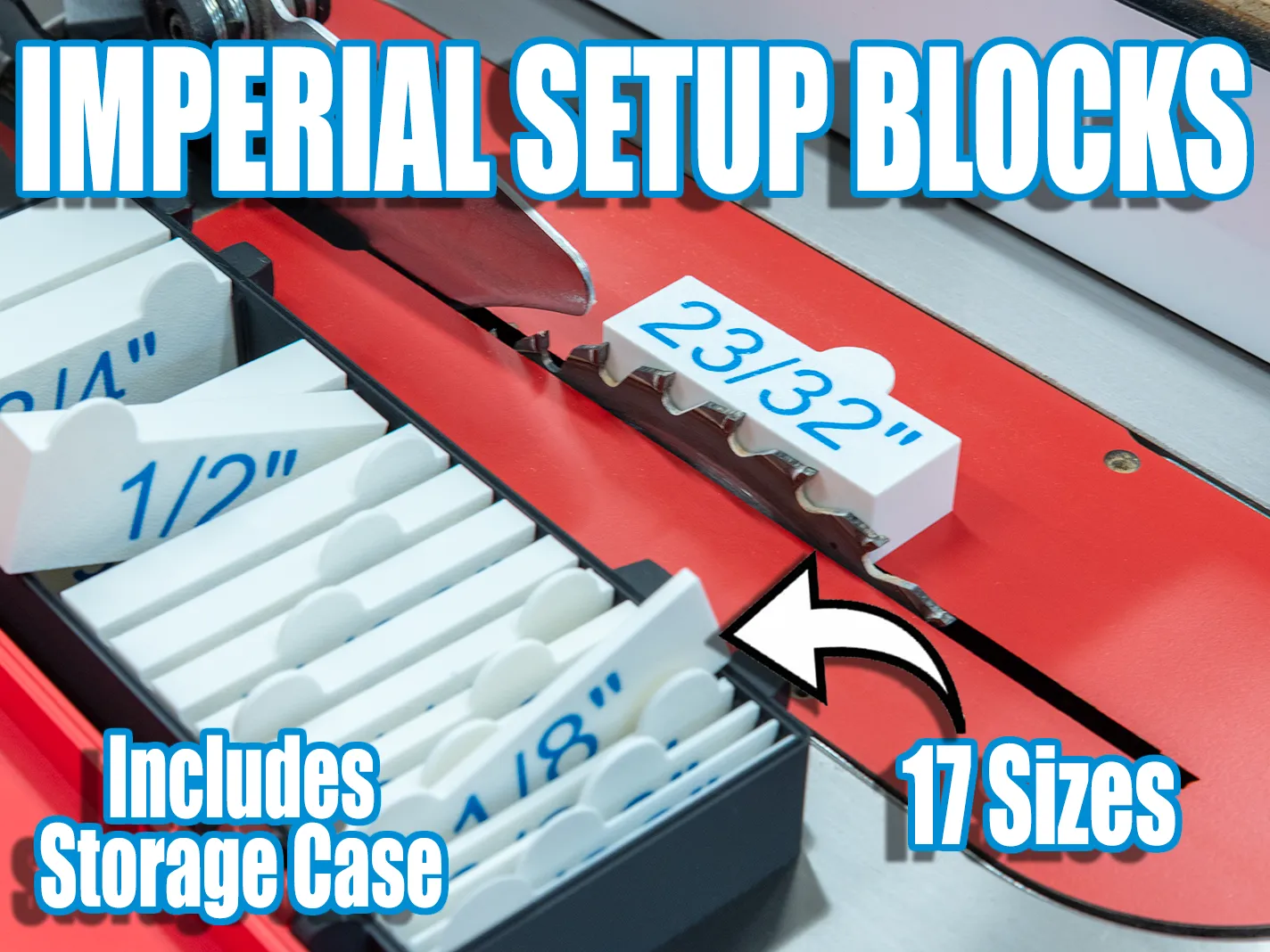

These are imperial setup blocks that can be used in woodworking and other similar maker activities.

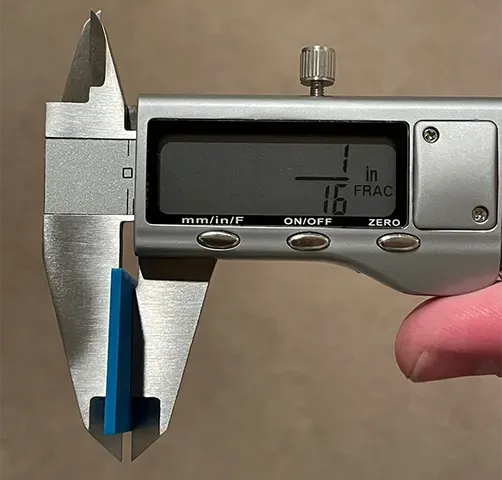

I've left the layer heights at 0.2mm so that everything prints fast, but if you'd like to have the Setup Blocks ever so slightly more accurate, you can adjust the plate with the Setup Blocks to 0.1mm layer height when printing.

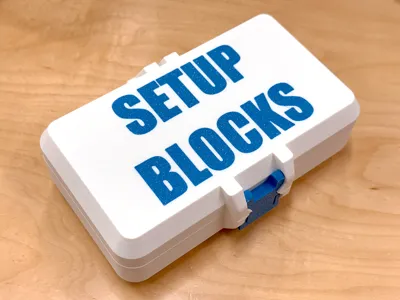

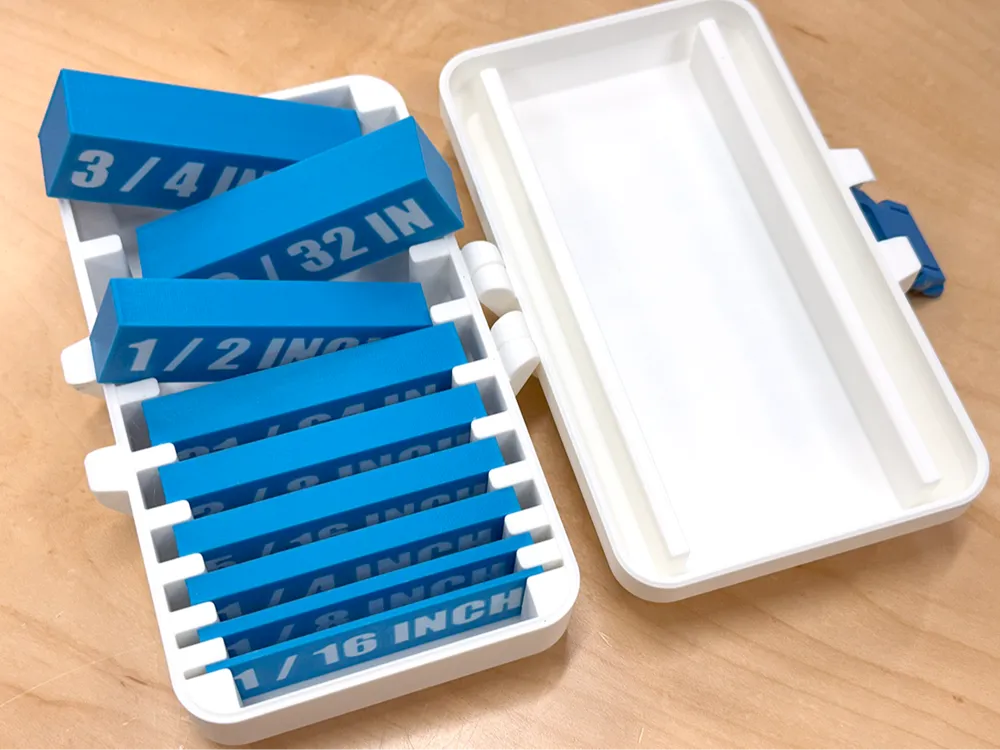

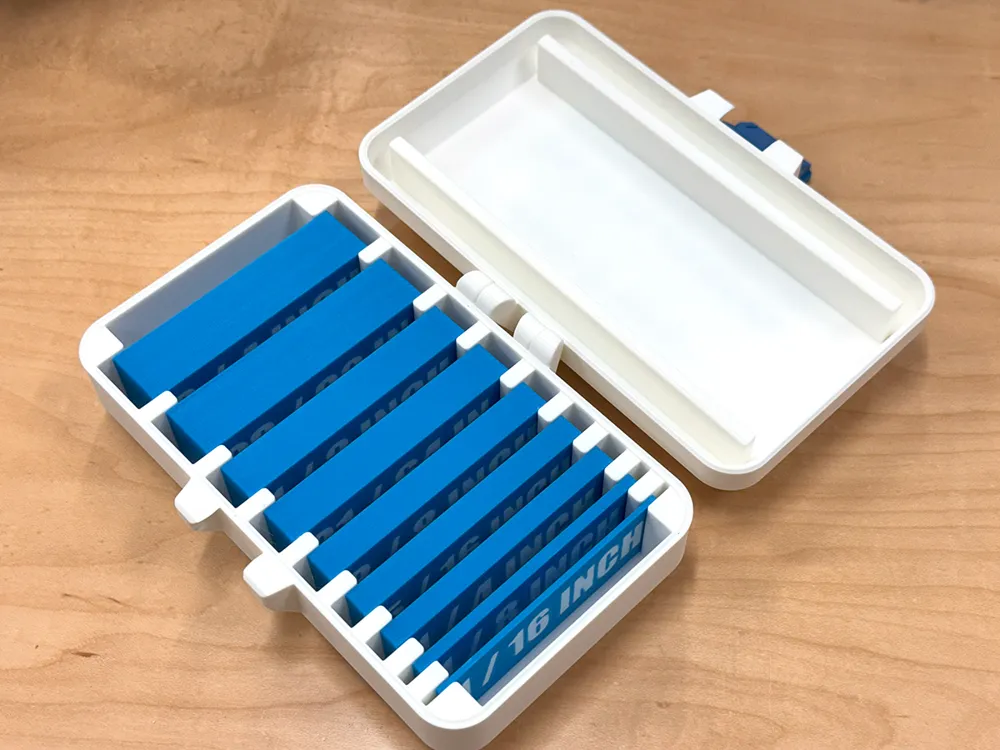

[UPDATE - 7/27/2024] - By request, I've added a storage case for these Setup Blocks. I used the amazing SnapLock Storage Boxes by Hugo as a base template for the storage case. You have the option of printing this with one (as seen in the photos) or two hinges and latches. The single hinge will have a little bit more wiggle to them as they have a single pivot point.
Note: Two double hinge designs exist within this download. One that includes a spot for a 1" Setup Block, and the older one that does not.

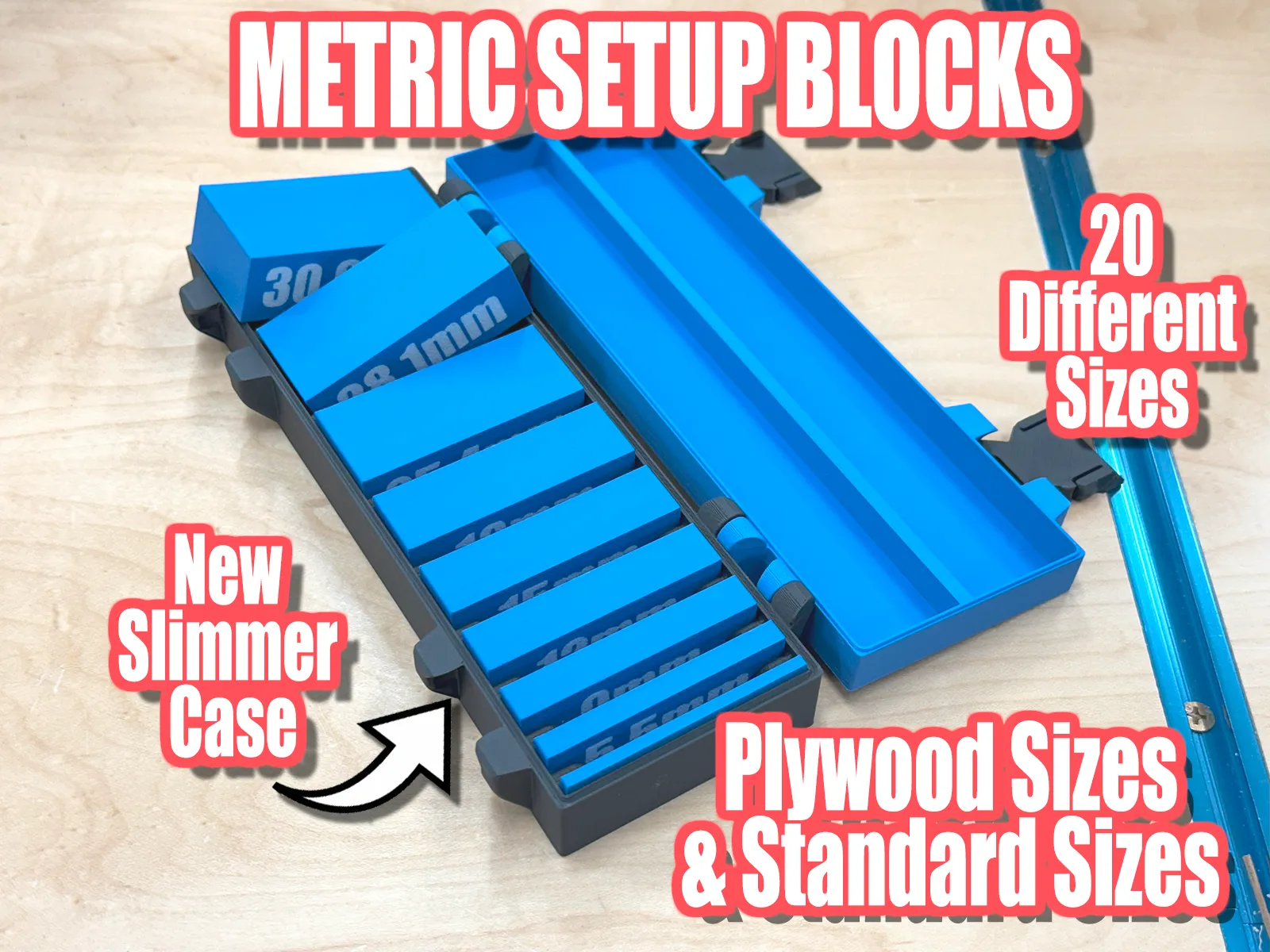

[UPDATE - 8/31/2024] A new metric version is available
Interested in more woodworking related 3D models? Check out my collection!
The box used in this design based off of SnapLock Storage Boxes (parametric) by Hugo - MakerWorld
