Woodworking Setup Blocks - Metric
Print Profile(2)
Description
Boost Me (for free)
If you like my models and want to support me, please consider donating a boost 🚀! I will be grateful. 🤗
This is based off my original Woodworking Setup Blocks - Imperial design. This design is more compact than my original design with the goal of taking up less room in your shop!
NOTE: When printing, the 0.2mm layer height is great for printing the cases more quickly, but I'd suggest using the 0.1mm layer height for the setup blocks to ensure you get the most accurate size.

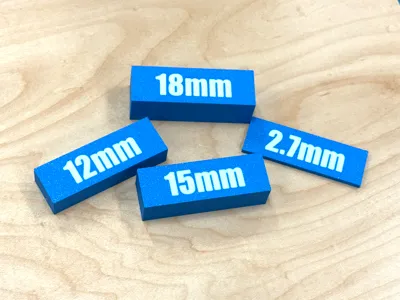

This design features two sets of blocks focused on plywood thicknesses (9 sizes) and general metric measurements (11 sizes). Three pre-configured plates are available to print. All 20 blocks, 9 plywood size blocks, or 11 general metric size blocks.

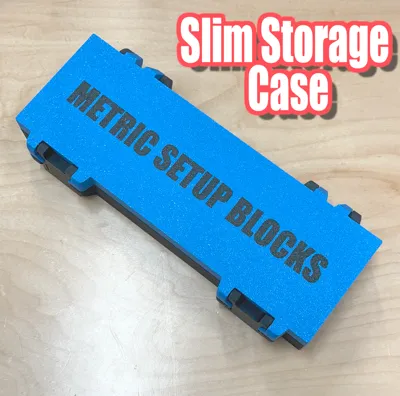

Two cases are provided, one for the plywood size blocks, and another case for the generic metric size blocks. The case and latches all snap together, no other tools/materials are needed.
If you'd like a different size block, I'm more than happy to make that for you, just leave a comment requesting the size!
Hope you enjoy this print!
| Plywood Size Blocks | 2.7mm |
| 5.5mm | |
| 9mm | |
| 12mm | |
| 15mm | |
| 18mm | |
| 25.4mm | |
| 28.1mm | |
| 30.9mm |
| General Size Blocks | 0.5mm |
| 1mm | |
| 2mm | |
| 3mm | |
| 4mm | |
| 5mm | |
| 10mm | |
| 15mm | |
| 20mm | |
| 25mm | |
| 30mm |
Looking for an imperial version of setup blocks?
Click Here
Interested in more woodworking related 3D models? Check out my collection!
The box used in this design based off of SnapLock Storage Boxes (parametric) by Hugo - MakerWorld
