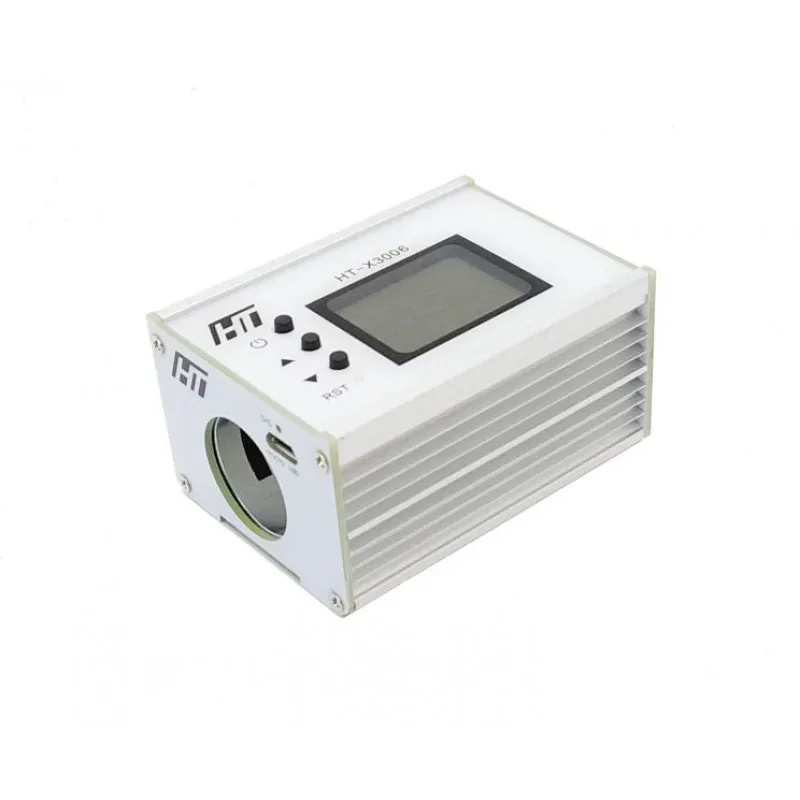

ADI Chrono Case for HT-X3006/3005plus Chronograph 24mm

ADI ChronoA custom case for HT-X3006/3005plus chronograph (24mm)=================================================================

FEATURES

1. A case with style
2. 3 parts build, ready for color combinations
3. Tripod mount thread
4. Direction indicator on sides as anti-skid slots
5. Enlarged buttons for better touch
6. Extension threads

INSTALATION

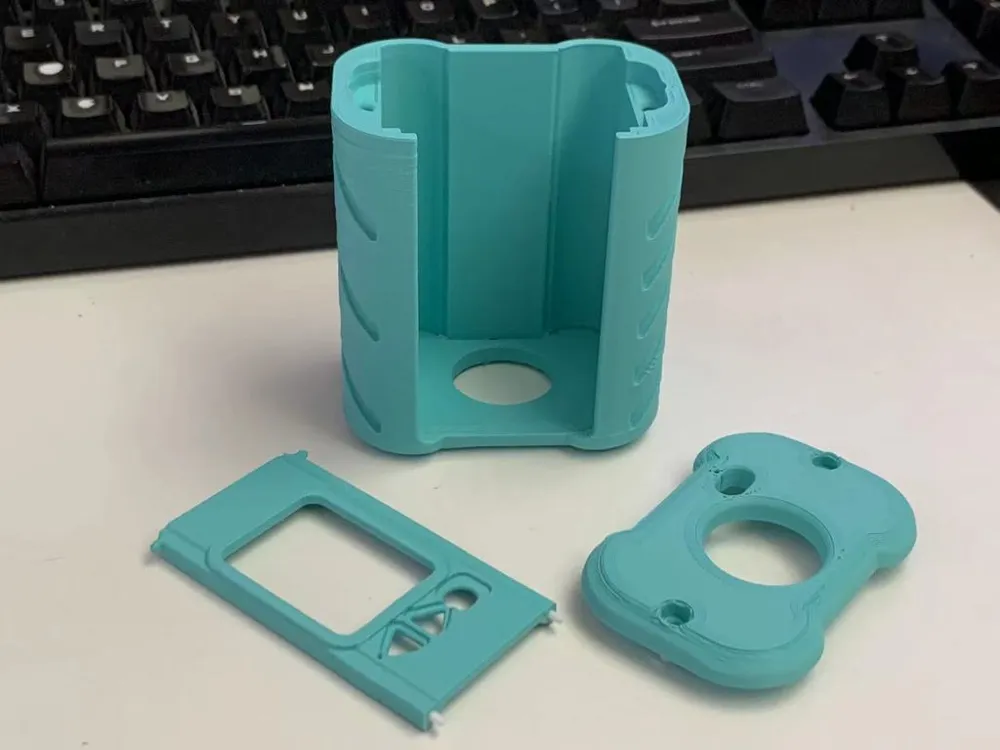

• 3 parts assembly as easy as you can see

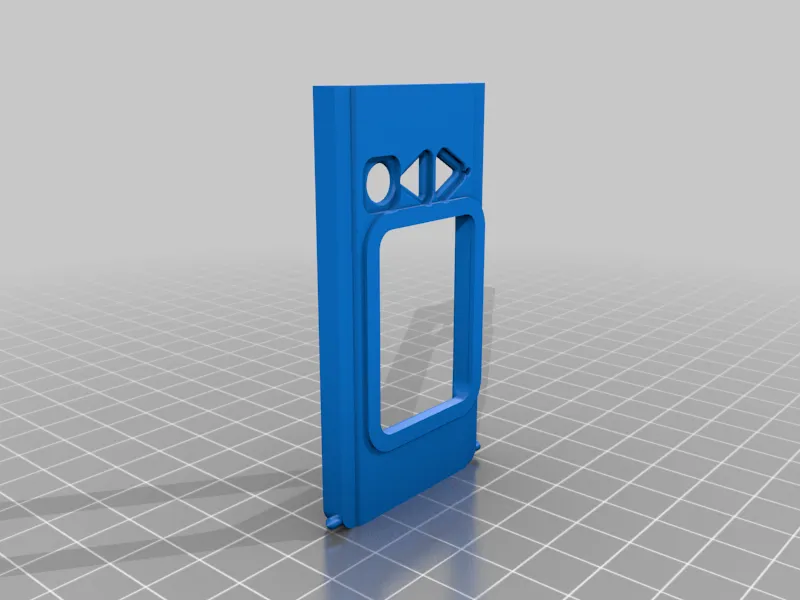

• the front panel uses axles for easier button assembly
• use two pieces of filament as pins to connect front panel and upper housing
• Snap-in design for two housing pieces, normally no need for screws
• In case you want to bolt two housings, use M3 heat threaded inserts (M344.5) and M3 bolds, for the best fastening
• Extension threads also use M3 heat threaded inserts
• 2 housing parts, button parts doesn't require support
• Print front panel in vertical direction, axles at the bed. Tree support recommended with brim for better adhesion

THANKS

Welcome any feedback.Please ask me for permission if you want to use in commercial purpose.
