AMS riser for Bambu Lab X1/P1 Series
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 30% infill
Designer
63.9 h
9 plates
Open in Bambu Studio
Boost
445
1229
131
103
2 k
411
Released
Description
These are all the changes I did:
- Made for wider LED strips (8,5 mm instead of 6 mm)

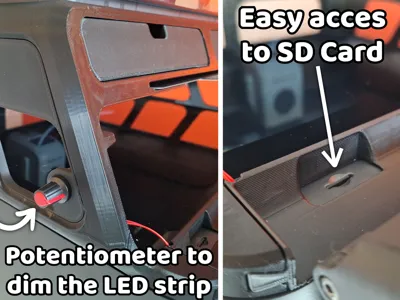

- Potentiometer (+ holder) added to dim LED strip

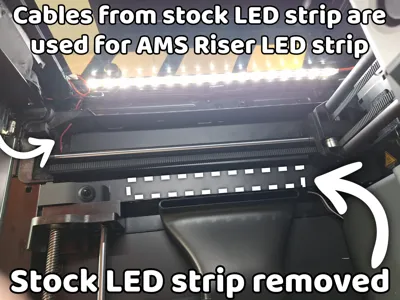

- LED strip can be operated via printer by removing original LED strip and connecting the cable to the new installed LED strip on the AMS riser.

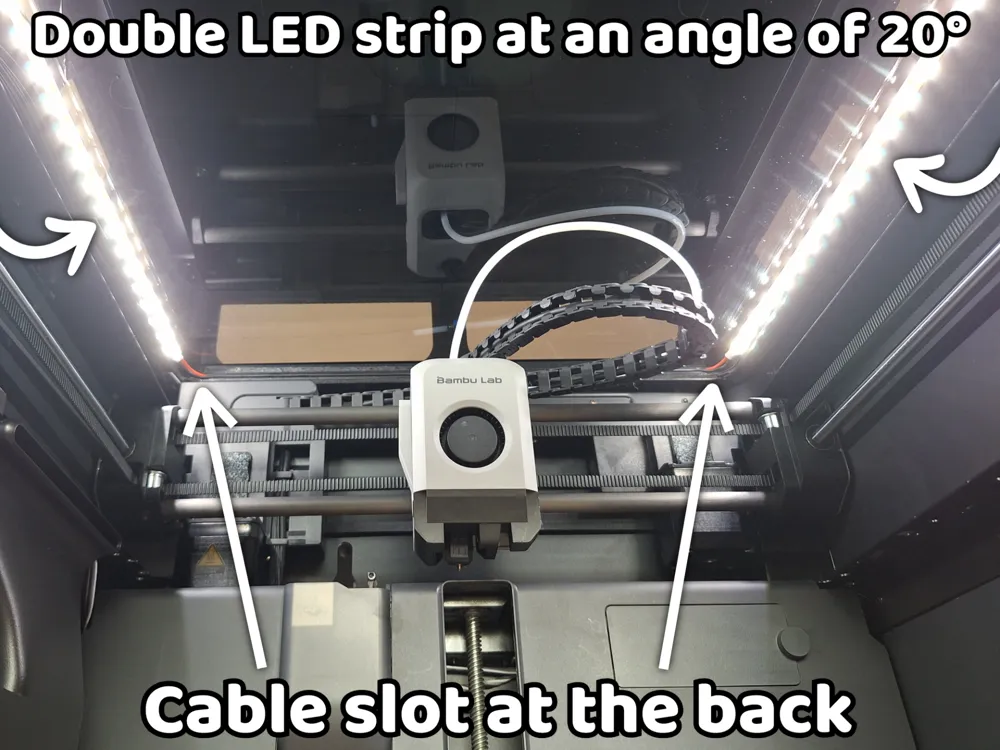

- Better LED strip angle (20° instead of 10°) (According to Benlevi, more than 10° can cause problems with the Lidar on the X1C)
- Easier acces to SD card
- Up to 500 grams less filament, I hollowed out parts 3 and 4 at the back + edited the tray which allowed me to save filament
- New front dash for xTouch
Used electronics in this project:
- LED strip: https://www.amazon.de/dp/B09SWQPDHC?p...
- Potentiometer: https://www.amazon.de/-/nl/dp/B07RFH8...
- Micro JST 2pin cable: https://www.amazon.de/dp/B06WGM9W7S?psc=1&ref=ppx_yo2ov_dt_b_product_details
You can also download the STEP files I made.
This is the remix I made of the amazing model of @benlevi: https://makerworld.com/en/models/19535#profileId-19420
