Edit: I've also released a Stamina Vessel Watering Can to go with this Here
Hello everyone!
One of my earliest designs was the Modular Sheikah Tower from Zelda BotW and i was pretty happy with it, as were others!
Initially, it was meant to be either a Floor Standing Lamp, or a Plant Stand with Plants on each of the Platforms, and after redesigning 99% of the parts from scratch, I've now completed one of those options, as well as made way for the Floor Lamp in the near future!
This is the Modular Sheikah Tower Planter, and while it's a fair bit of printing, for me it was well worth it!

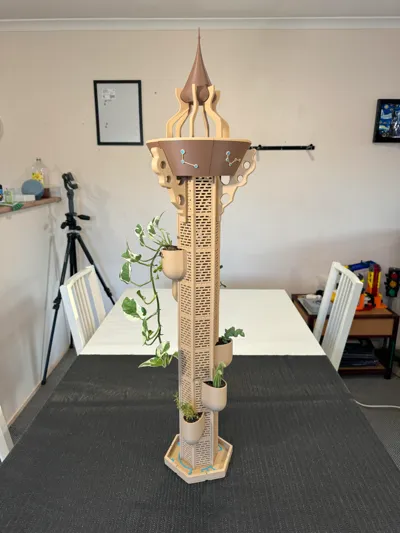

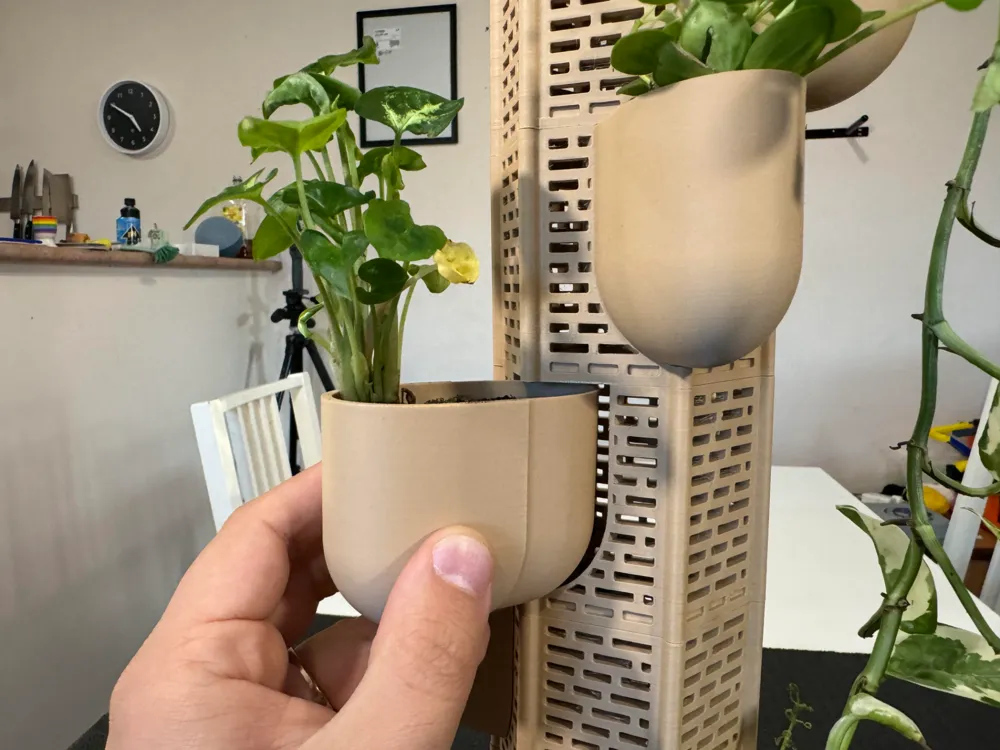

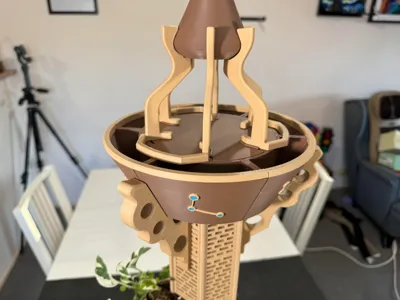

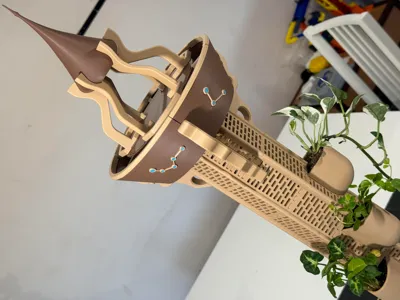

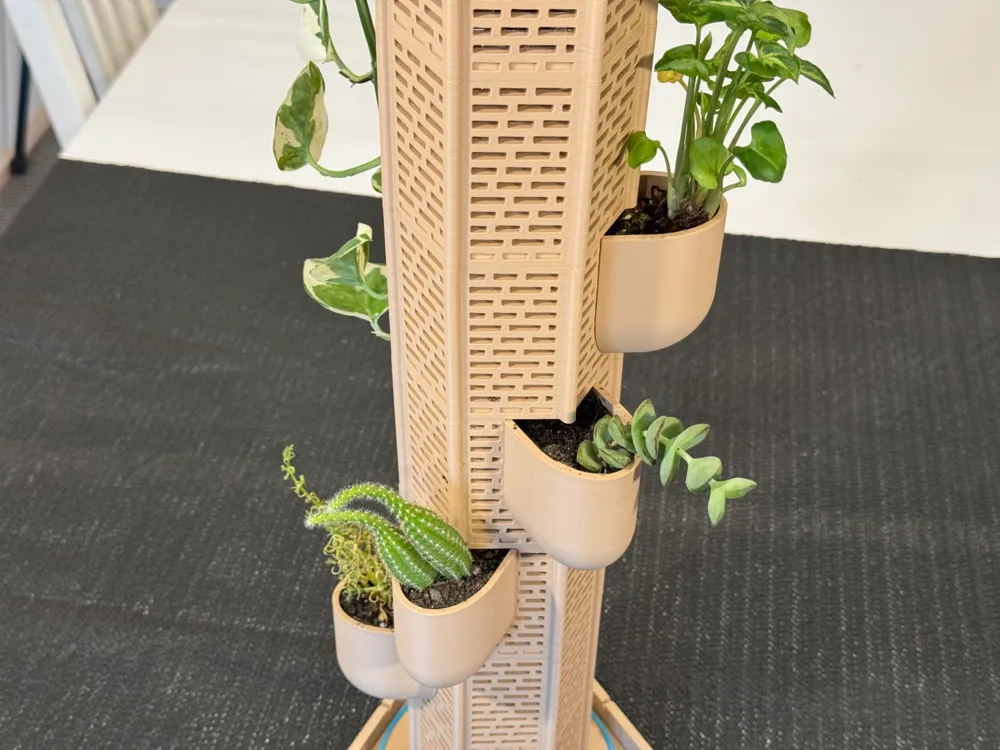

The one in the pictures stands exactly 1 Metre Tall and has 6 Perch Planters, The outside of the top platform can also house 6 more small flowers or succulents if you desire it!

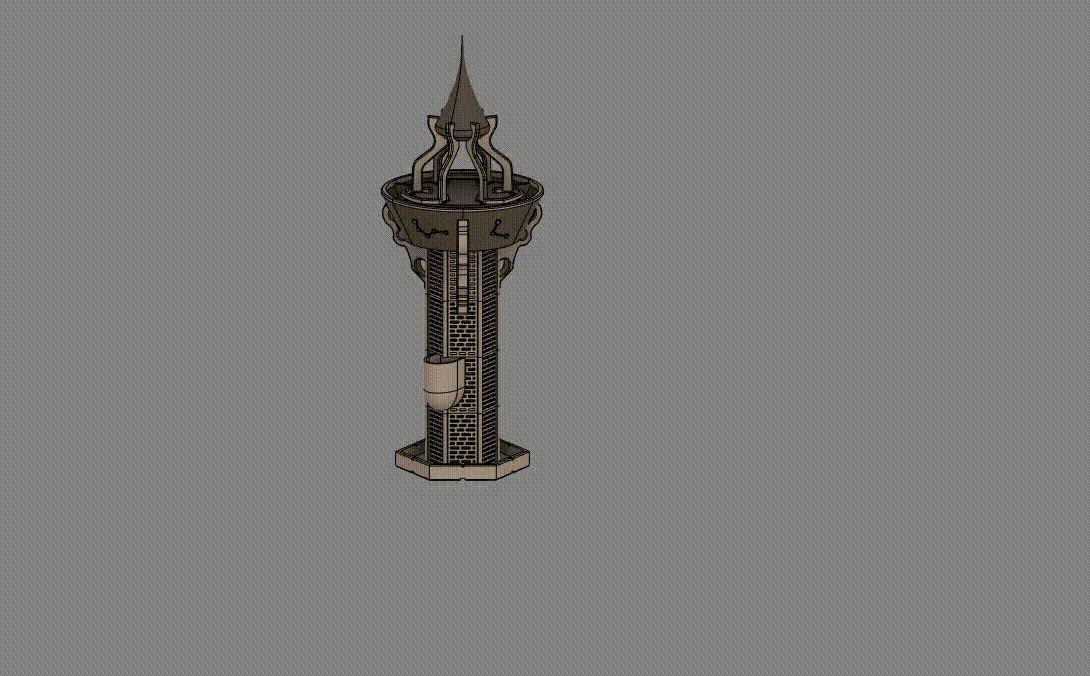

Assembly is fairly straight forward, and i've included a quick video run through below. Additionally, each Plate in the Bambu Studio Profile is named and has how many times that piece should be printed.
This Entire Tower was printed on an A1 Mini, You could definitely get more done at once on a larger build plate but it's not needed.
If your Filament isn't completely dry, the grate pattern will lead to a lot of stringing, nothing that a heat gun or lighter can't fix though. Please don't downrate my profile due to your filament not being completely dry!
For a basic tower you need the following:
- 1x Teardrop
- 3x Arms
- 1x Disc
- 1x Tub
- 6x Platforms
- 6x Ring
- 1x Grate SideThing
- 3x SideThing
- 1x Base Hex Tray
- 2x Grate (These two are important, 1 at the top and bottom, any perches in your pillar should be between these)
- And for each plant you will need

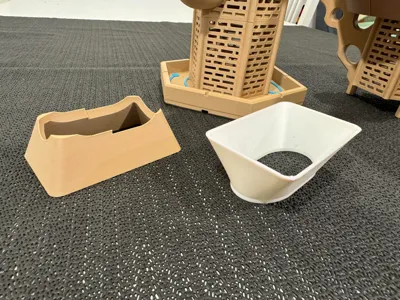

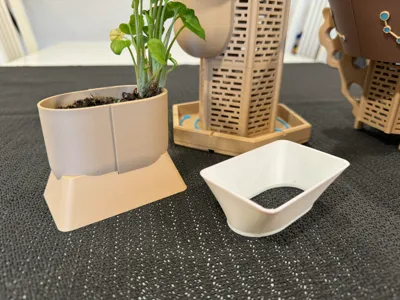

- 1x Grate Perch
- 1x Perch
- Just to reiterate, you can not have a Drawer Perch at the very bottom or top of your pillar, the perches will interfere with either the base, or the SideThings.
Enjoy!
All of my projects are 100% Free. However if you'd like to support me, feel free to buy me a coffee
