Bambu A1 Purge Poop Basket with Magnet Quick Remove

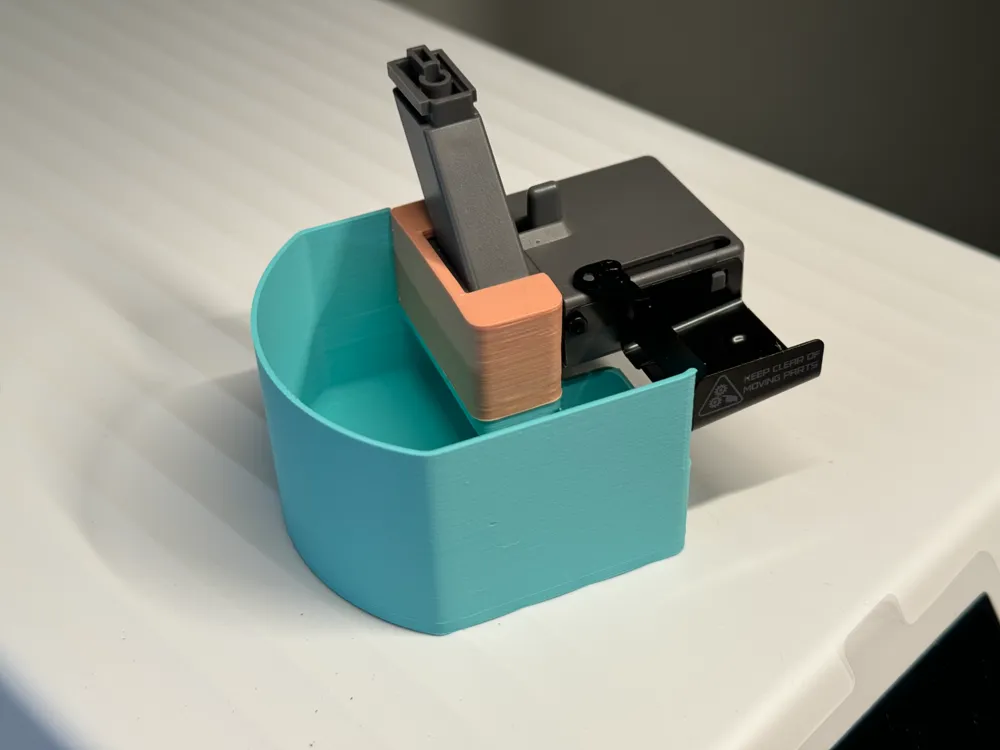

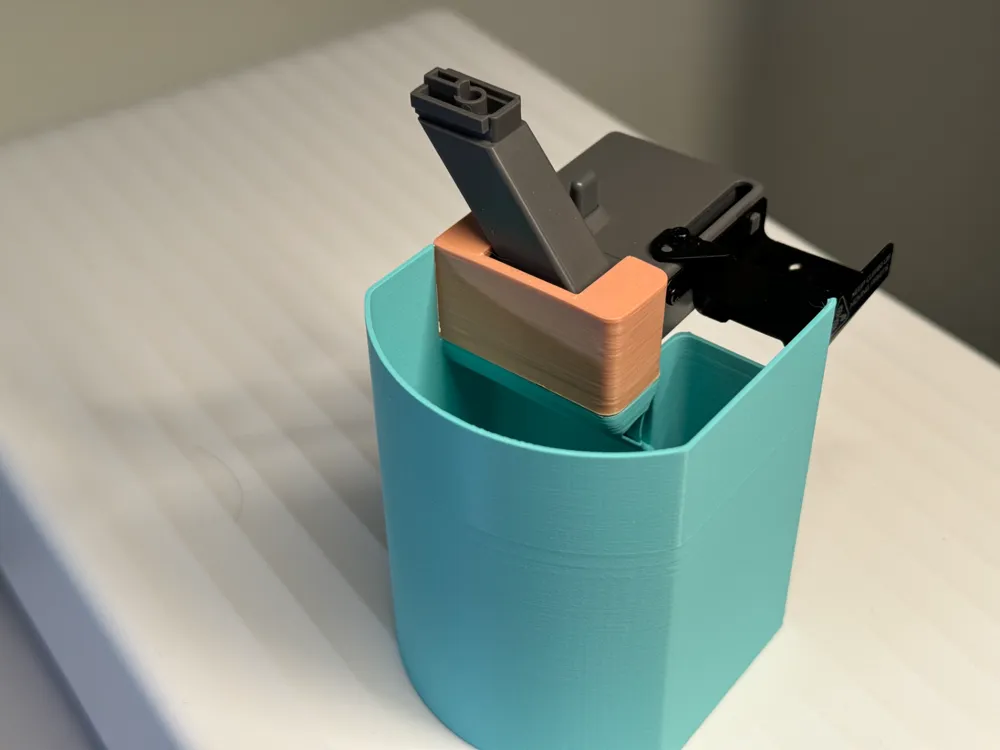

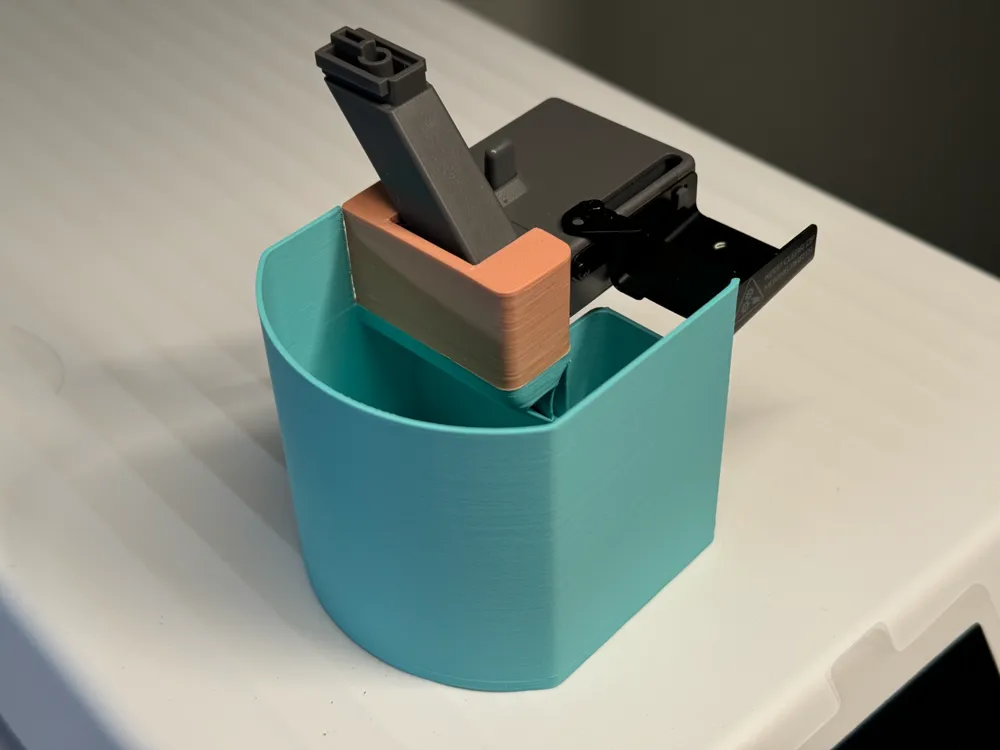

A poop/purge basket designed for Bambu Lab A1 Mini. It was designed to be light weight. Mounting is via 6mmx3mm round magnets. Three sizes are listed

• mini is 40mm tall
• mid is 60mm tall
• pro is 80mm tall

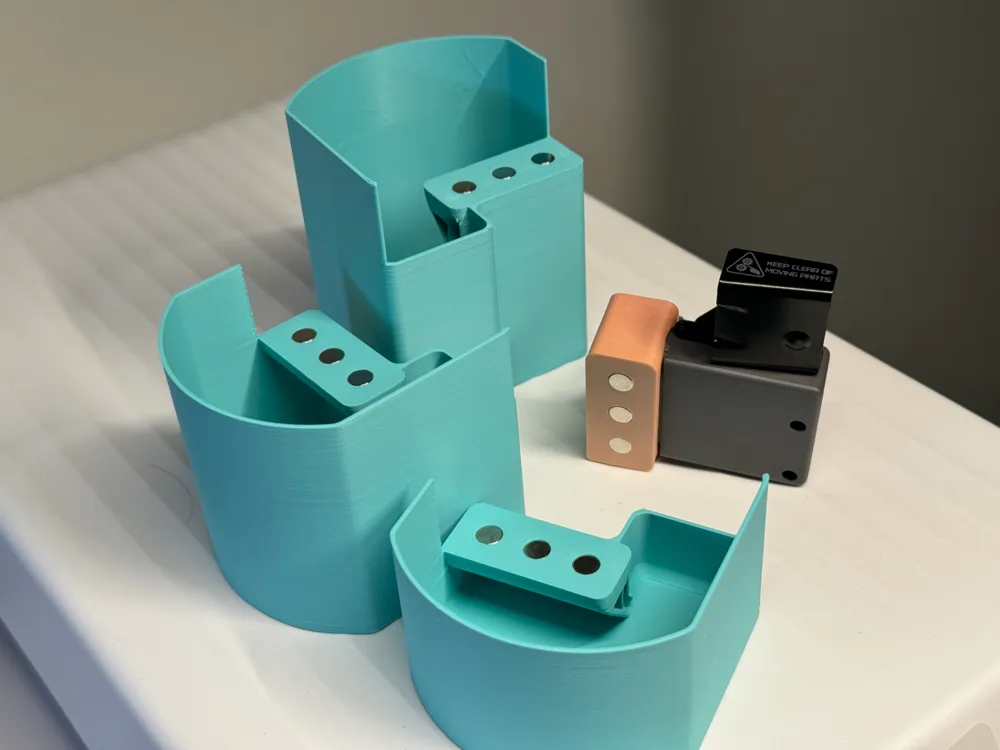

The baskets share the same mount and are interchangeable.

Available print profiles include basket and mount together or separately. When printed together, you may see a “hull line” on the basket. If this is undesirable, either slow down the print so the speed is uniform throughout the entire layer range or you can print the basket and the mount separately.

Link to magnets - please ensure the measurement of the magnet is exactly 6mm x 3mm.

US: https://www.amazon.com/gp/product/B096LZNZTQ/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Installation:

Magnets are press fit. You should be able to insert at least half of the magnet into the designated holes and use a flat object to press them in all the way flush. Please pay attention to the orientation of the magnet so that the basket will stay attached securely.

Future updates:

I will testing a new design that is quick remove but does not require magnets.

See my A1 Accessories Collection and A1 Purge Basket Collection.

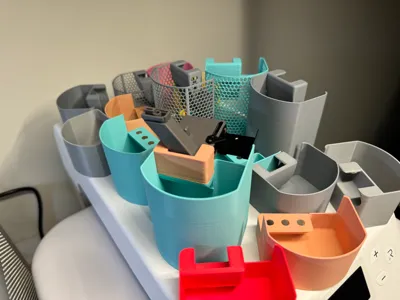

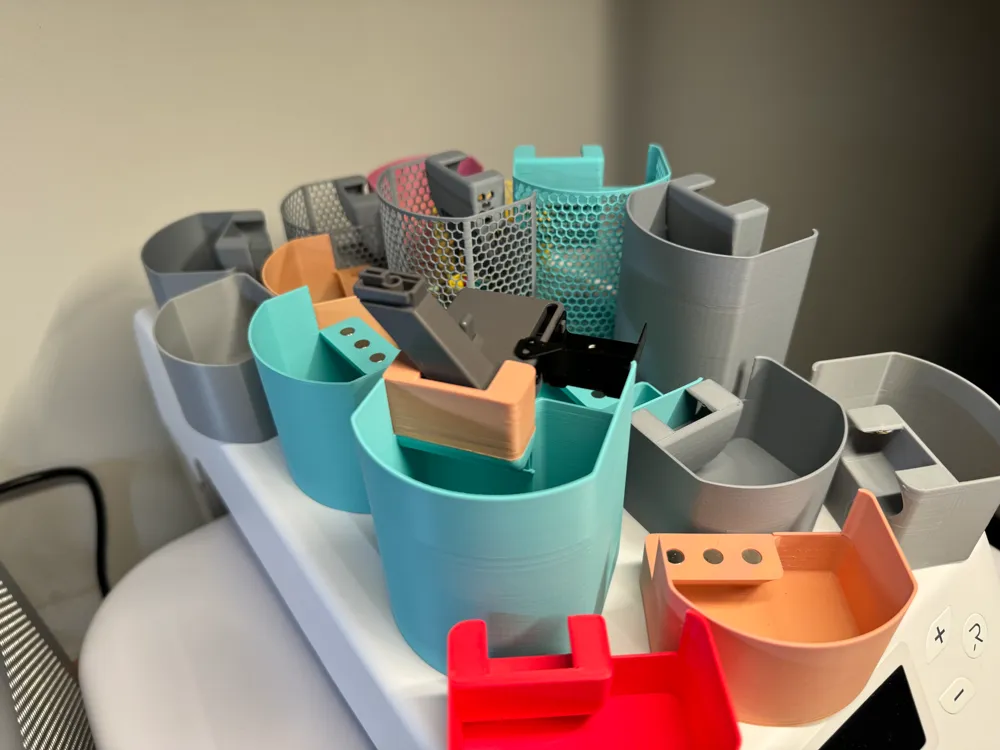

All versions of A1 basket:
