Bambu A1 Purge Poop Basket Pro Mesh by jayburd

jayburd

3D Printer>3D Printer Accessories

Print Profile(5)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

2.6 h

1 plate

4.5(32)

0.12mm layer, 2 walls, 15% infill

Designer

3.7 h

1 plate

4.6(5)

0.24mm layer, 2 walls, 15% infill

Designer

2.1 h

1 plate

3.8(4)

0.16mm layer, 2 walls, 15% infill

Designer

3.2 h

1 plate

3.5(2)

Click to see more

Boost

115

378

195

Released

Description

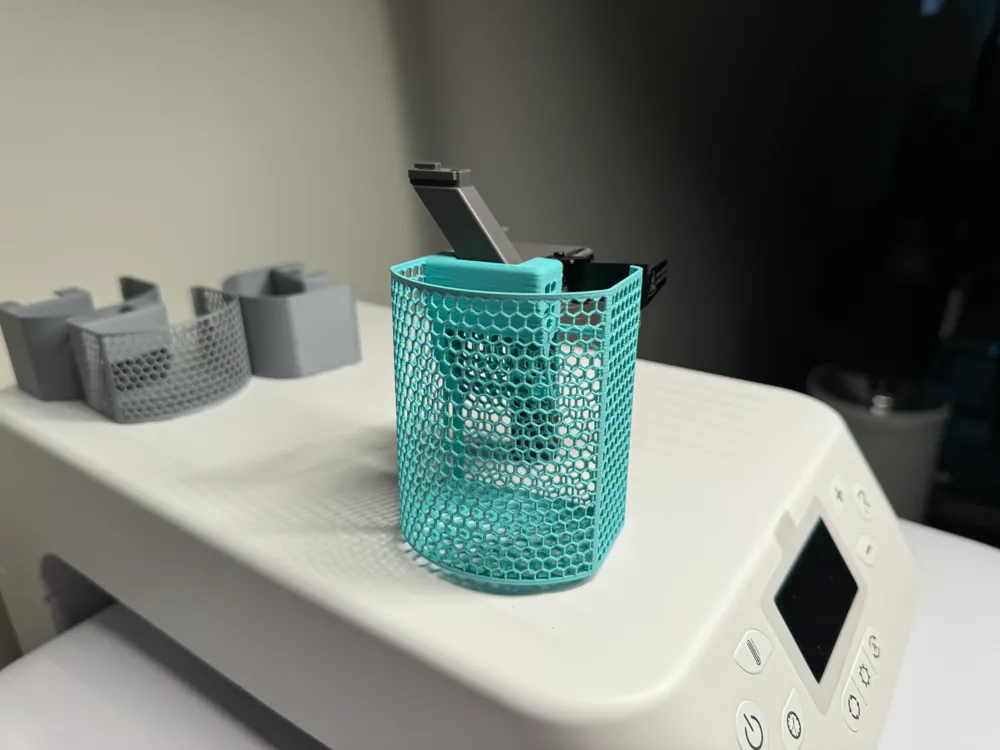

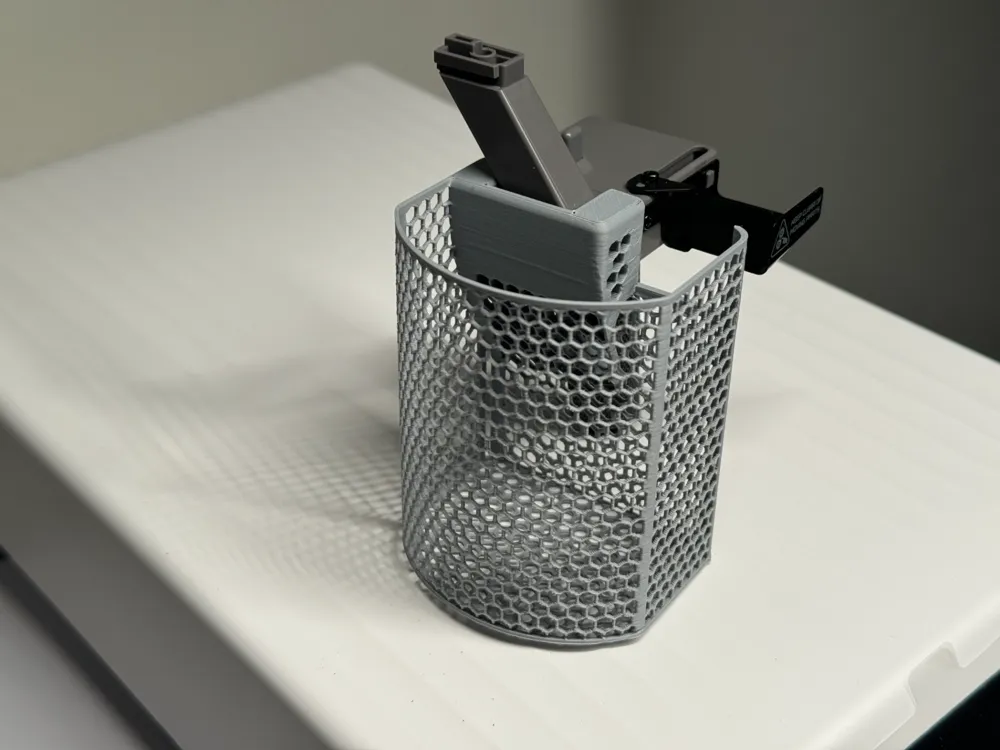

A poop/purge basket designed for Bambu Lab A1 Mini. It was designed to be light weight and friction mounted to the purge wiper. This Pro version is 80mm tall. See the table below for link to the other versions.

This mesh version is fragile for the sake of saving weight. The solid version is sturdier.

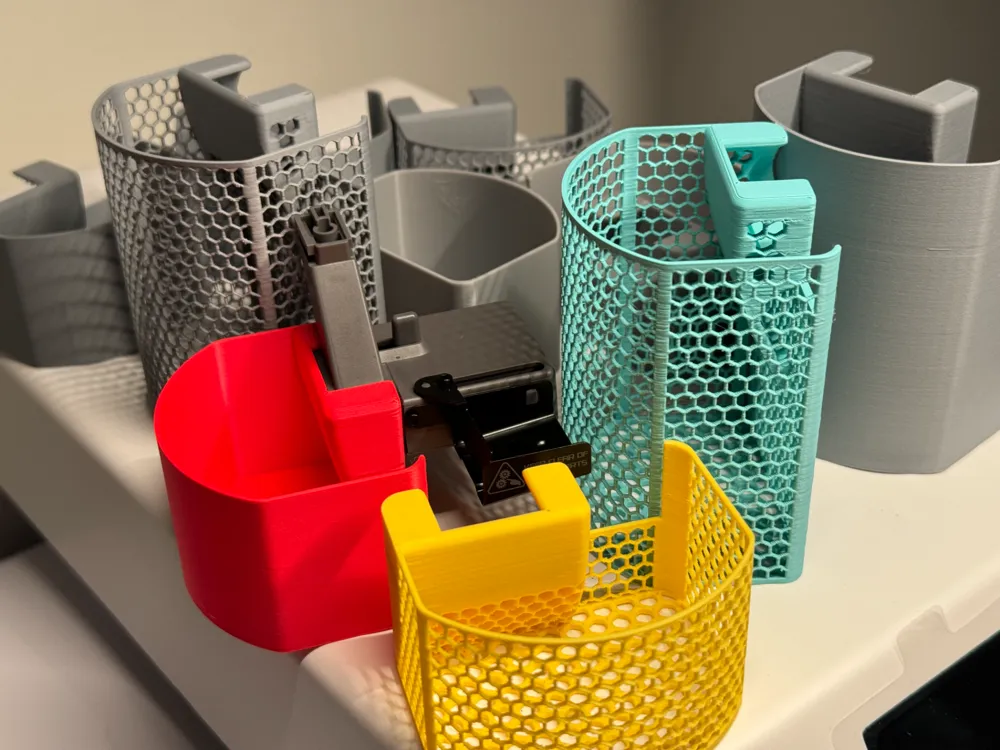

Model	Height	Weight
Magnet Quick Remove	40mm, 60mm, 80mm	22, 27, 33g
Pro Mesh	80mm	16.4g
Pro Solid	80mm	32.2g
Mini Mesh	40mm	12.3g
Mini Solid	40mm	17.6g

With the basket installed and the Z at the lowest point, there is about 8mm clearance between the bottom of the basket and the table.

See my A1 Accessories Collection and A1 Purge Basket Collection.

Update Oct 14: corrected a defect identified by @schiko, replaced STL and profiles

Update Oct 14: replaced the STL file to remove a defect in the model

Update Oct 14: replaced all print profiles with A1 mini compatible versions

Comment & Rating (68)

@KlemK

Elegoo Black PLA. I used the draft .24 for a 1:45 ish print time.

The designer has replied

@KlemK

I would love to see the mesh walls in this model. https://makerworld.com/en/models/42211#profileId-42923

@jayburd

Replying to @KlemK :

I will make one soon if somebody doesn’t get to it before I do.

@KlemK

Thank you. I was about to bite the bullet and print the full wall one. My cad skills stop at basic tinker cad.

(Edited)

@JoveA1mini

Where did I go wrong? Not all poop go into the basket

The designer has replied

@jayburd

is the poop ejecting normally?

@JoveA1mini

Replying to @jayburd :

Yes， the poop ejecting normally， but it couldn't be ejected into the basket correctly, and most of it was ejected on the table. This is my first time using the A1 mini. I don't know if the ejection device is too strong.
