Ultimate Ergo Saw with Finger Hole

Designer

1.1 h

1 plate

4.9(44)

Open in Bambu Studio

Boost

393

1186

761

536

Released

Description

Summary

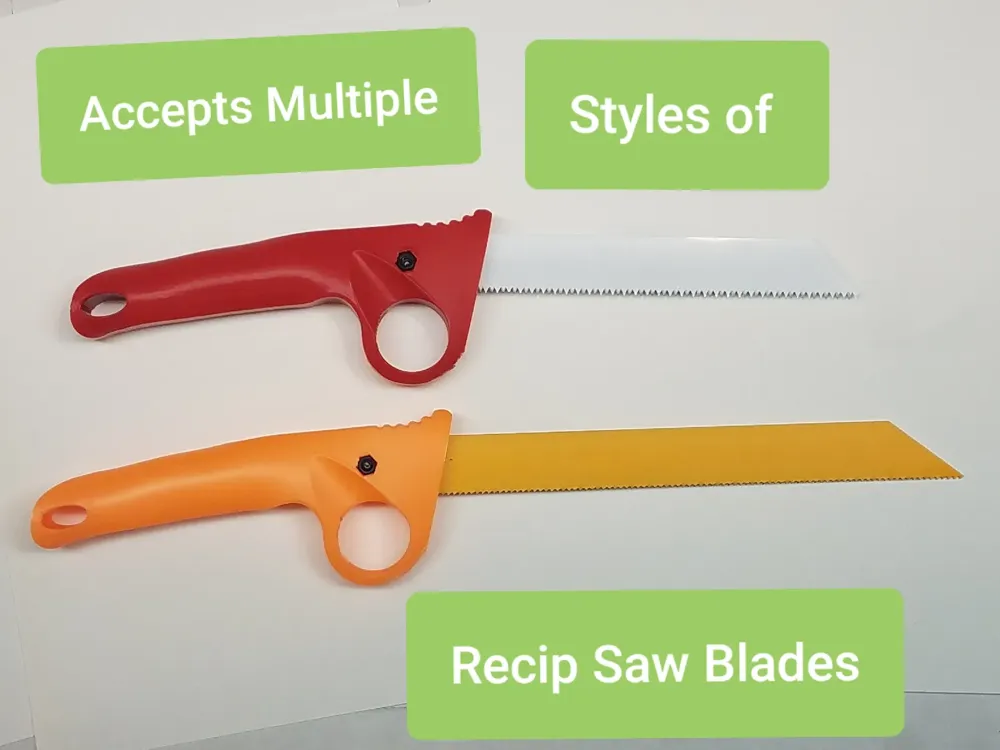

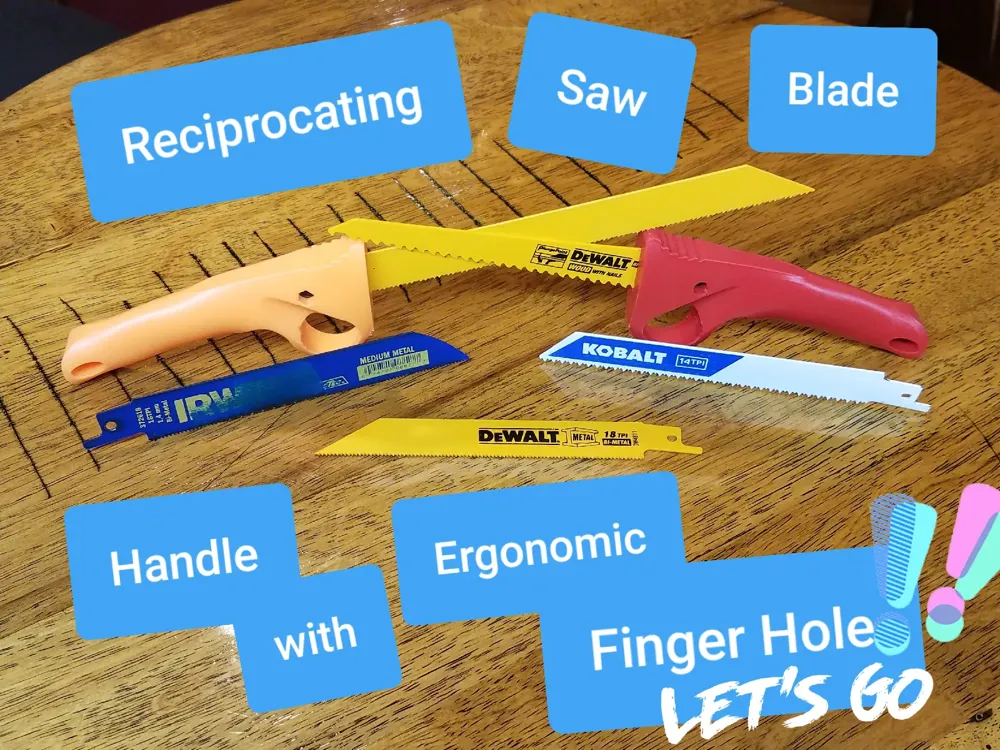

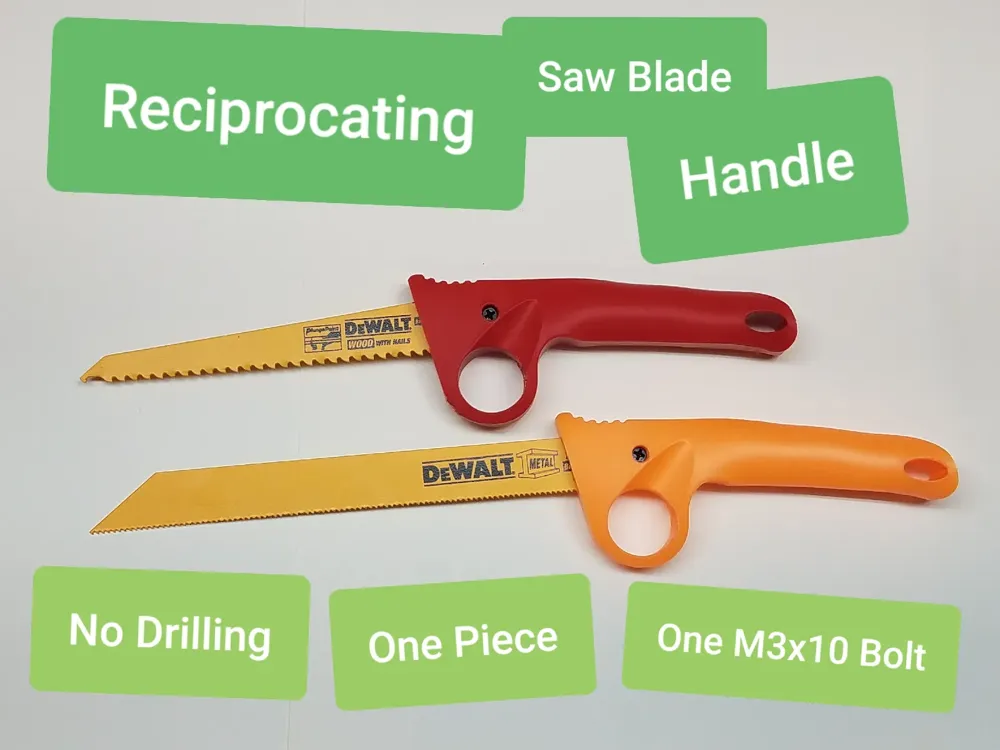

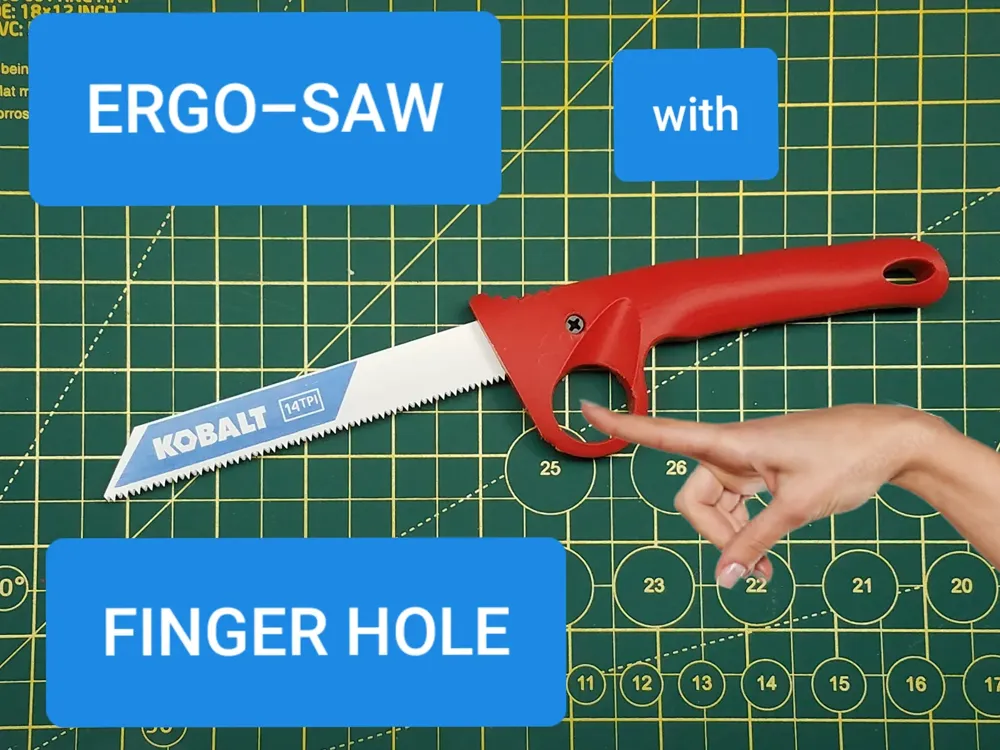

Finger-holed ergonomic handle for reciprocating saw blades. One piece to print, minimal supports, one M3x10 nut/bolt. No drilling or modifying the saw blade.

Print Settings:

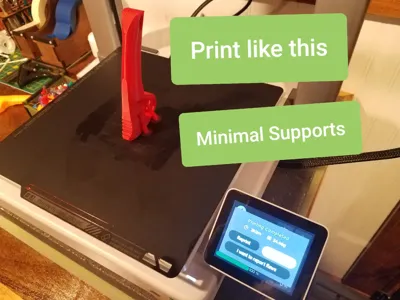

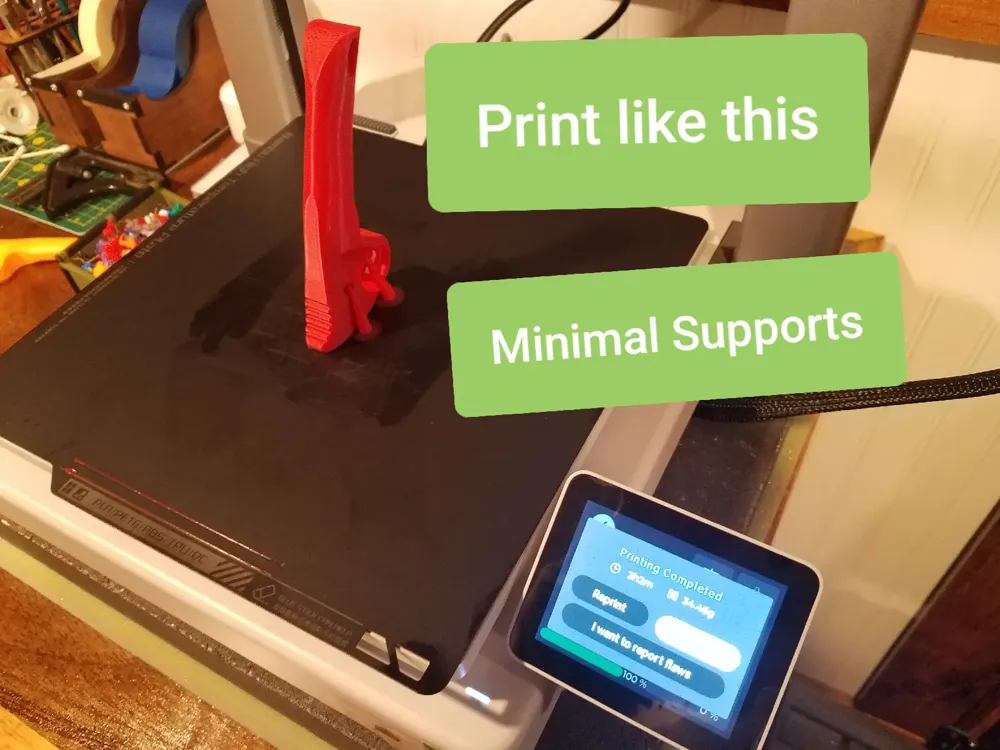

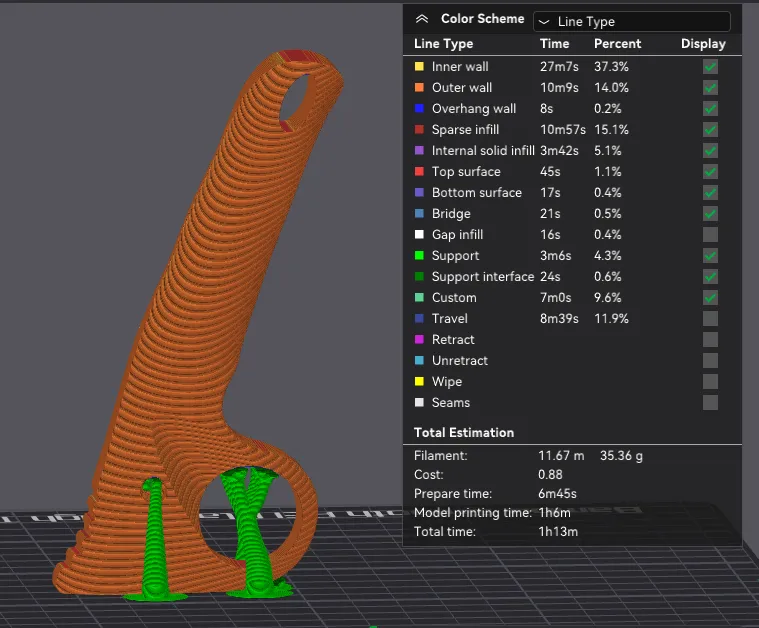

PLA, Smooth Plate, 0.4 Nozzle, 0.2 Layers, 5 Wall Looops, 5 Top/Bottom Shell Layers, 20% Cubic Infill, Auto Tree Support (supports blocked for uppermost hole and inside blade area).

This print is exactly what I was looking for. I printed it in PET from 100% recycled bottles. I also used the bricklayer script for additional strength https://github.com/TengerTechnologies/Bricklayers

@Mac1971

Print Profile

Ultimate Ergo Saw with Finger Hole

Great design and fun easy print, thank you. 💯💪

The profile uploader has replied

@ShopTeacher

looks good in the bushcraft set

(Edited)

@user_427594755

Print Profile

Ultimate Ergo Saw with Finger Hole

Model works well, many thanks!

@user_510199216

Print Profile

Ultimate Ergo Saw with Finger Hole

Works perfectly, thank you

Show original

@Redshift_zero

Print Profile

Ultimate Ergo Saw with Finger Hole

the print itself is great, but the clearance for the blade is too loose for fine tooth Milwaukee blades and too deep for the Diablo wood blade. can't say for other brands.

(Edited)

@andyyg

Print Profile

Ultimate Ergo Saw with Finger Hole

great

@johan3416

Print Profile

Ultimate Ergo Saw with Finger Hole

Nice

@Tehsquishyb

Boosted

This is awesome! Exactly what I was looking for. Perfect for cutting small pieces of wood without having to break out the whole heavy reciprocating saw.

The designer has replied

@ShopTeacher

Thanks for the boost

@user_356700953

I tried this and it printed really nice, however the blade was very loose in my case.

The designer has replied

@ShopTeacher

unfortunately recip blade thicknesses vary depending on the intended cutting material and brand. i tried to use a happy medium for that measurement so it would fit a thicker wood blade but also be ok for a thinner metal blade. ill look into making a few different versions depending on the blades people plan to use.

@user_4156552274

Boosted

What an awesome print. saved me $20, boosted

The designer has replied

@ShopTeacher

thanks for the boost.
