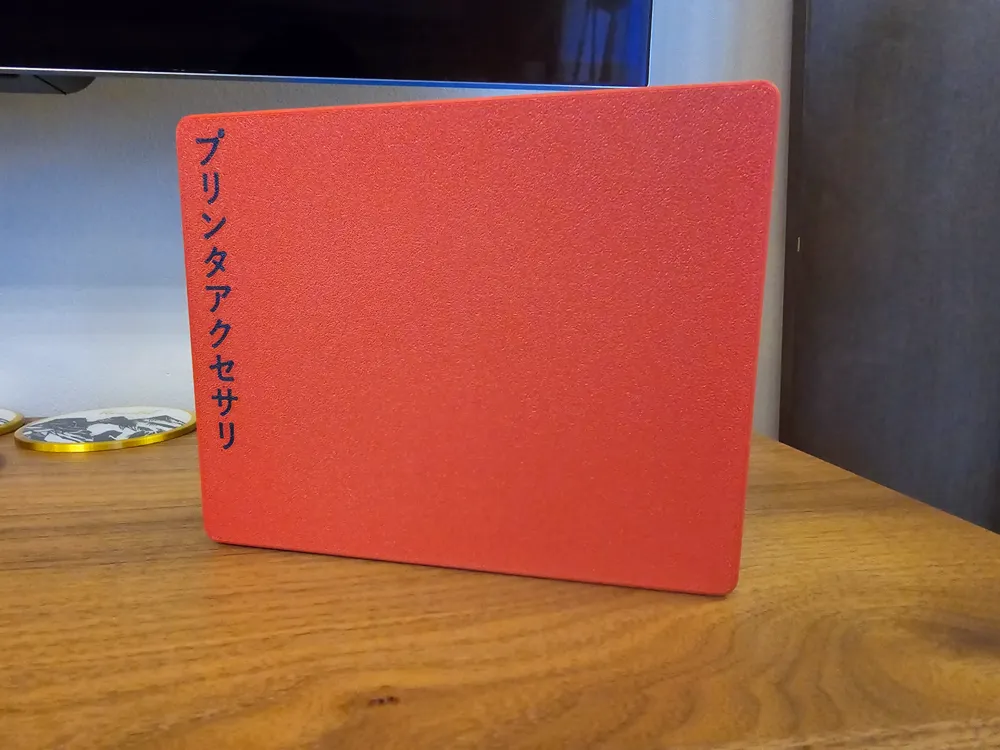

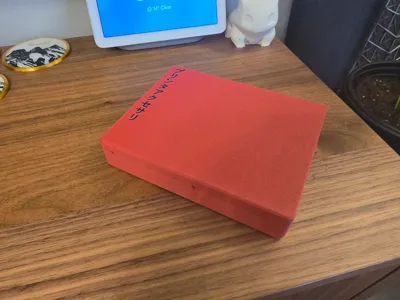

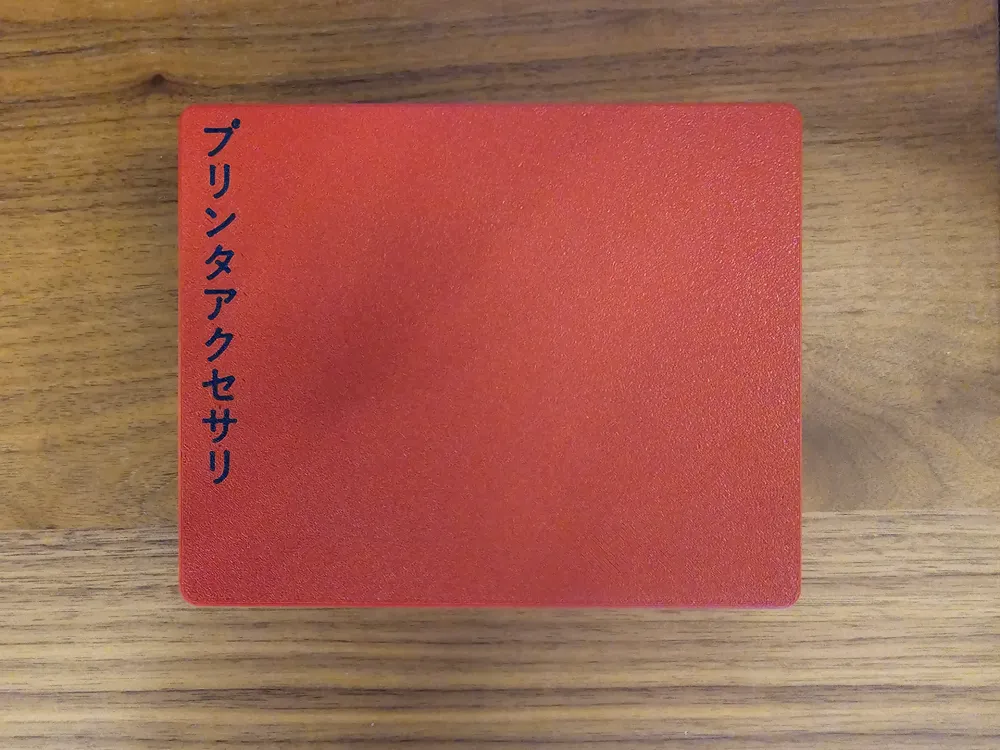

Japanese Inspired Bambu Accessories organizer box

Inspired by Japanese simplicity, this Printer accessories box is designed to work with X1C, P1P, P1S Hotend accessroies.

プリンタアクセサリ translate to Printer Accessories

UPDATE:

• increase width for nozzle wiper by 0.05mm
• increase the depth of nozzle wiper by 1mm

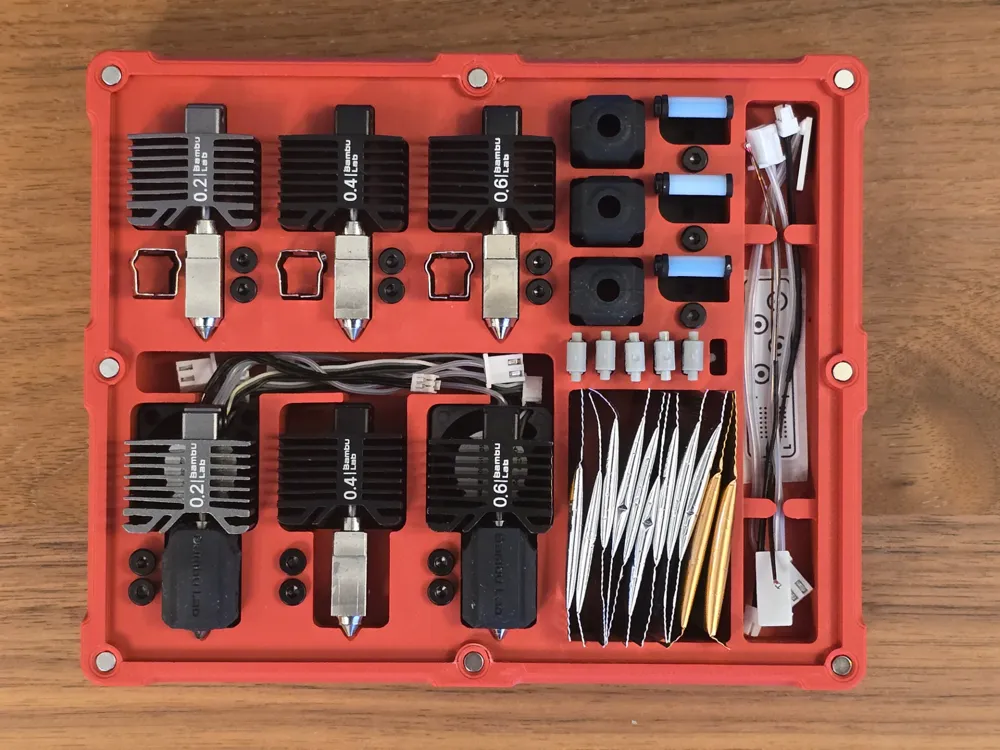

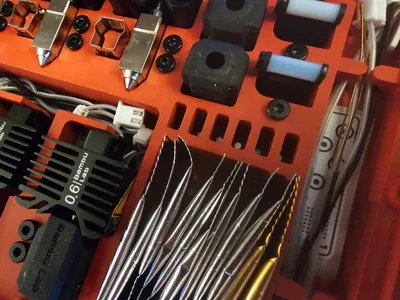

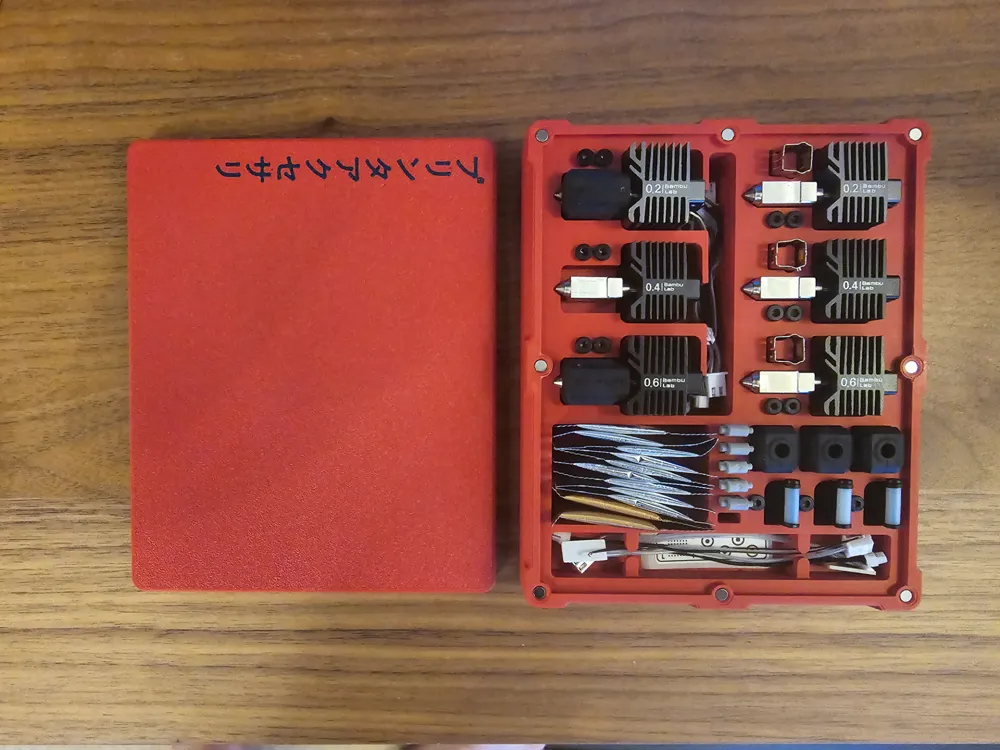

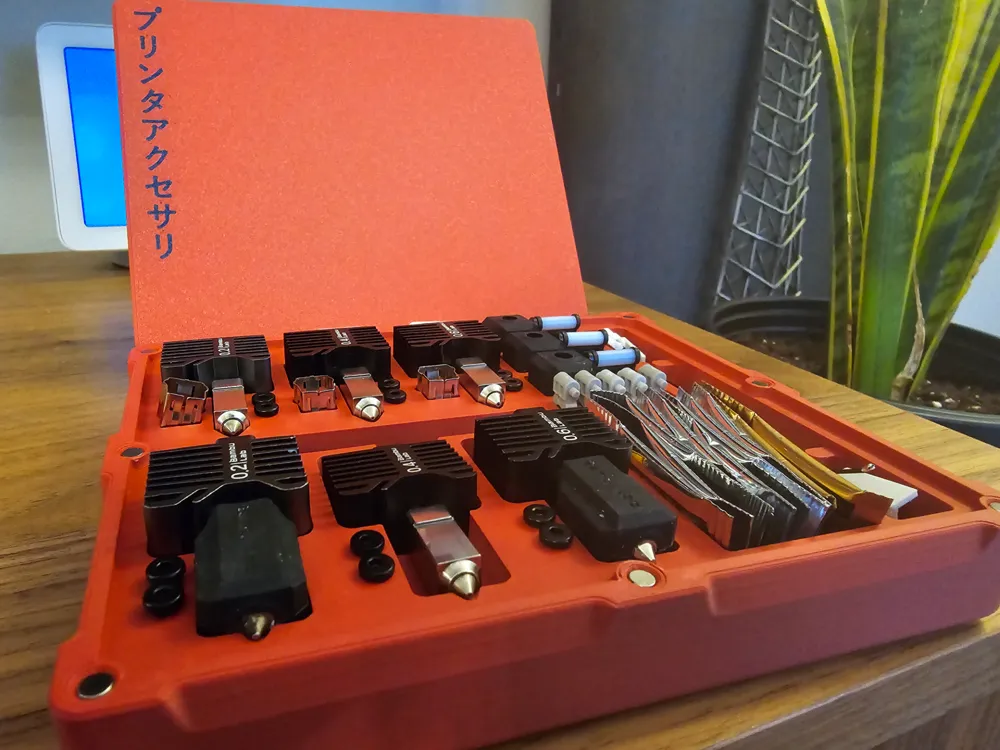

Compatible Accessories:

• Bambu Labs Hotend assembly
• Bambu Labs Hotend
• Bambu Labs Filament Cutter
• Bambu Labs Nozzle Wiper
• Bambu Labs Silicone Sock for hotend
• Bambu Labs Thermistor
• Bambu Labs Ceramic heater

Features:

• box is design to hold spare parts for Bambu Labs X1C & P1 Series
• Magnets is secure the lid onto the base & hold bits in place
• Base sides are design to make it easy to separate lid
• Magnets to hold screw and filament cutter (optional)

Requirement:

• Super Glue
• 16 QTY of 4mm diameter x 2mm thick Magnets
• 15 QTY of 2mm diameter x 1mm thick Magnets
• small hammer

Assembly:

• Apply super glue to the 16 holes on the lid & case.
• Push the magnets into the holes, ensure that magnets on the lids and base attract each other.
• use the hammer to push the magnets fully into the hole.

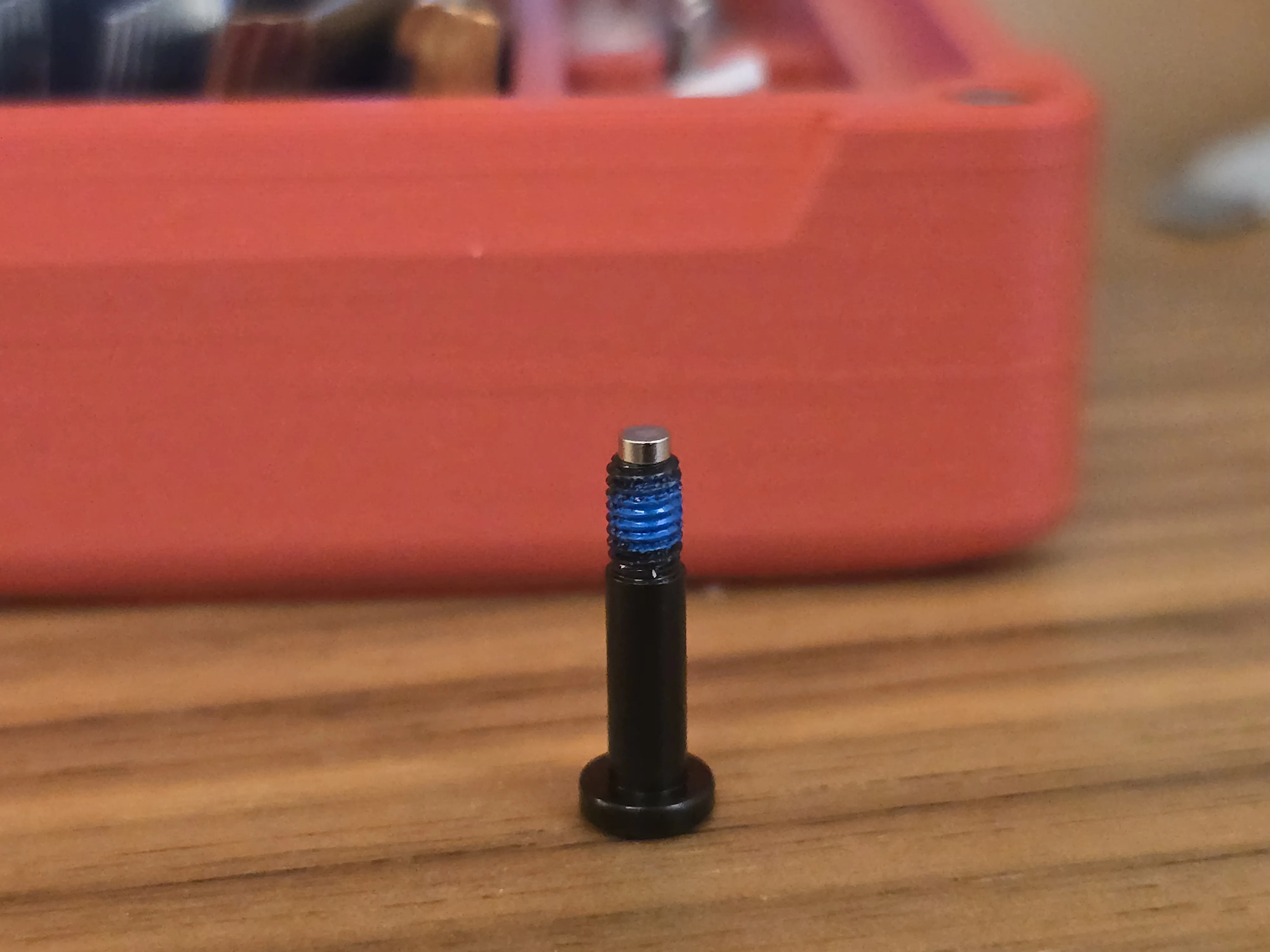

• To install the 2x1 mm magnet for the screws and blade cutter, use 1 of the hotend screw to align the magnet (See picture below)
• align the screw to the hole
• hammer the screw. This should press fit the 2x1mm magnet.
