ESP32-S3-cam
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
6.8 h
2 plates
Open in Bambu Studio
Boost
0
1
0
0
2
0
Released
Description

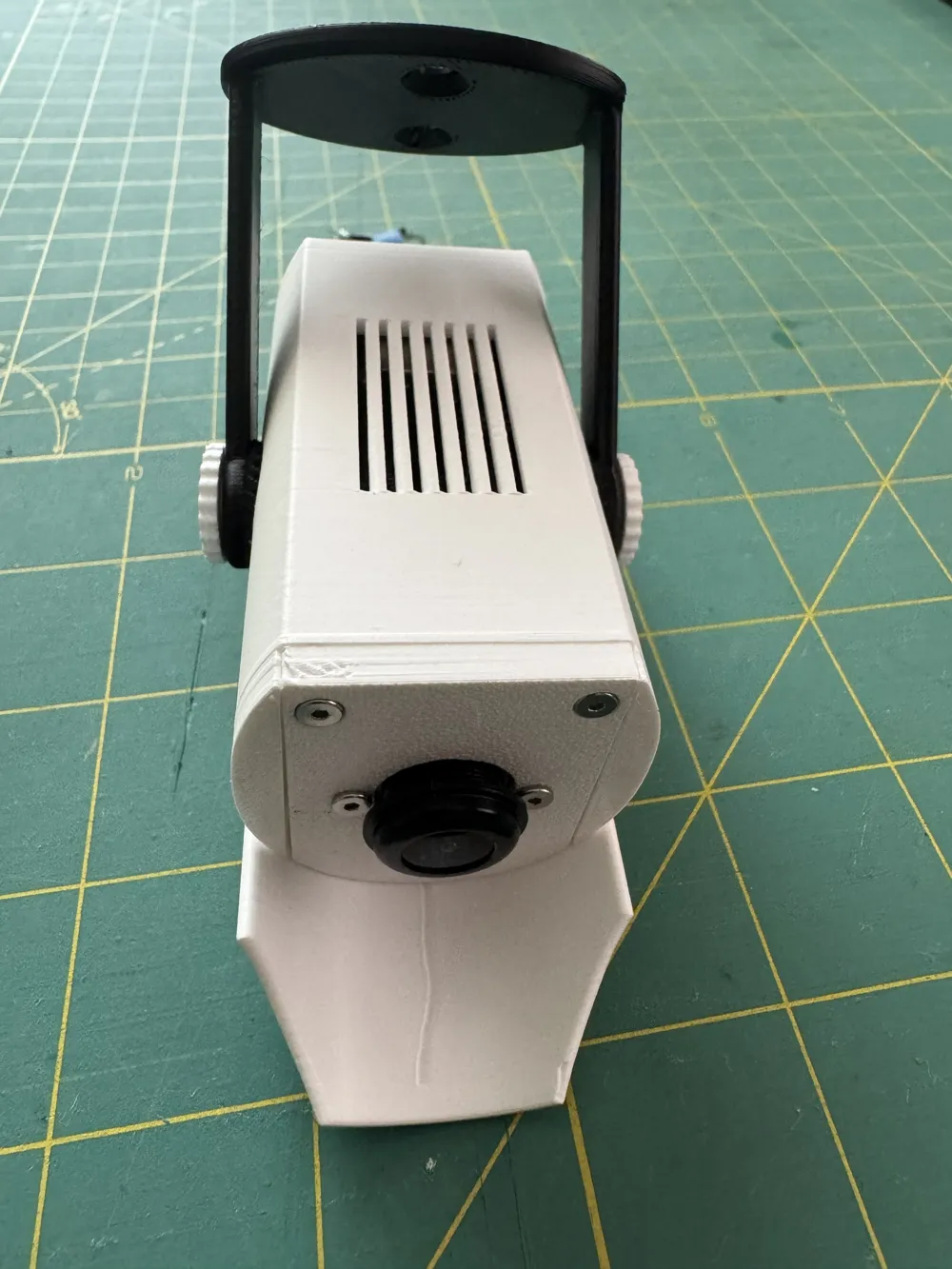

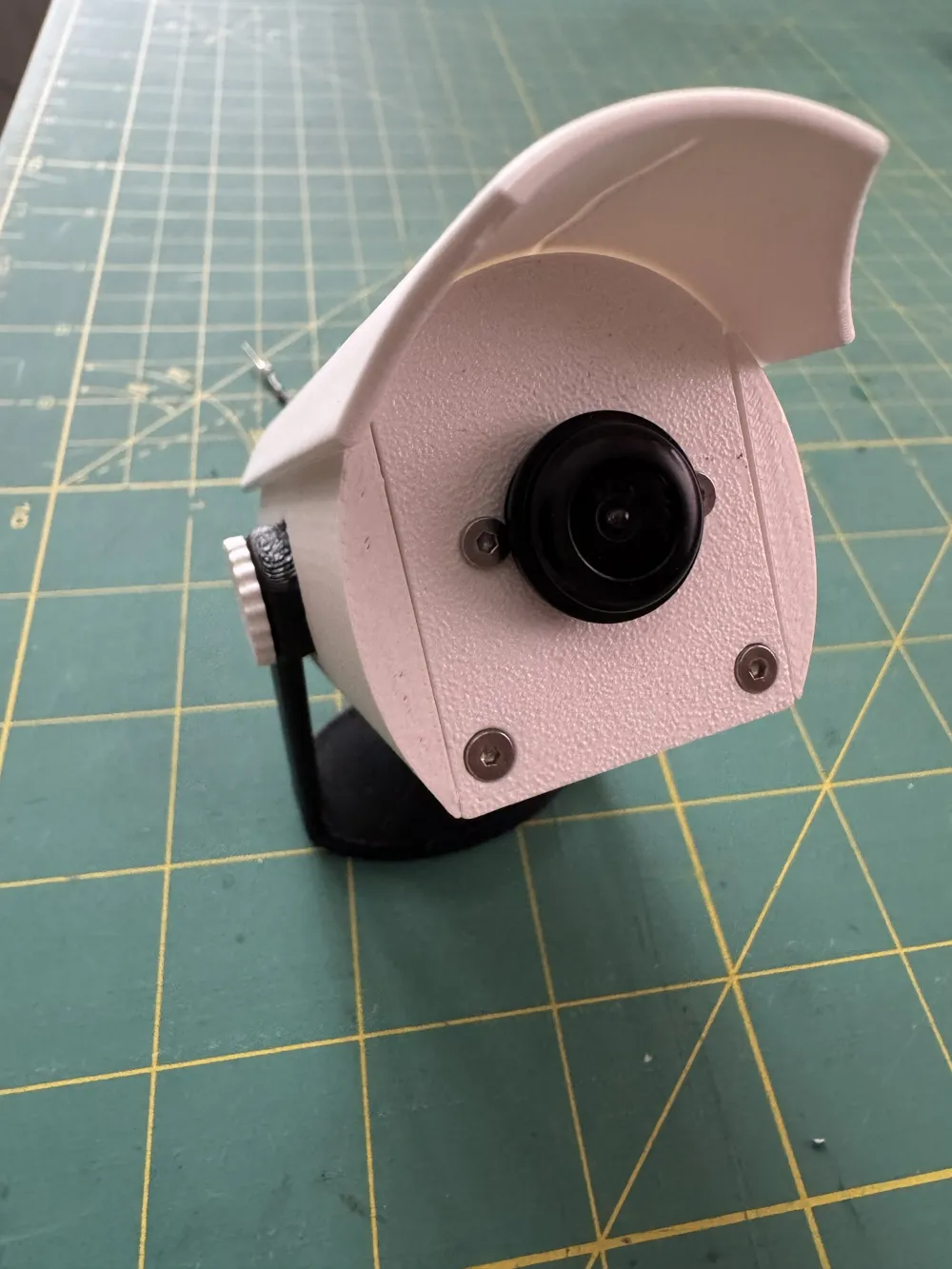

ESP32-S3 camera module, compact design approximately 80 mm long.
A simple 3D print that requires no support material.
Two mounting options are available:

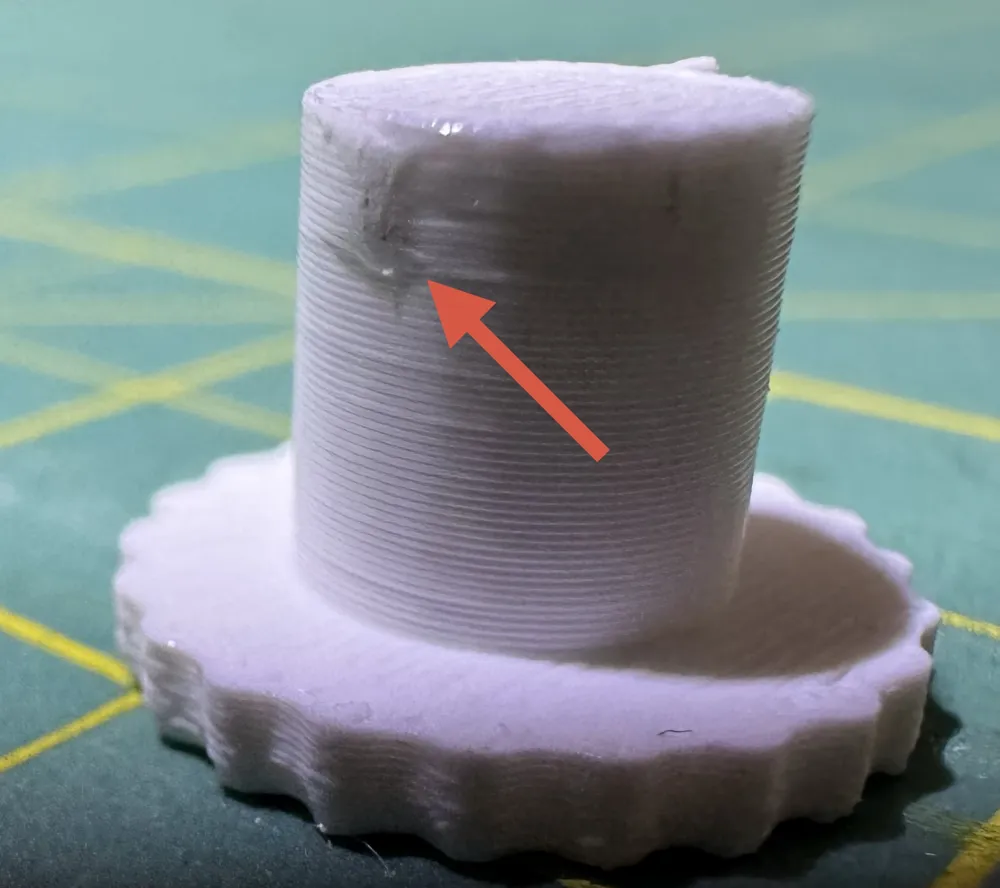

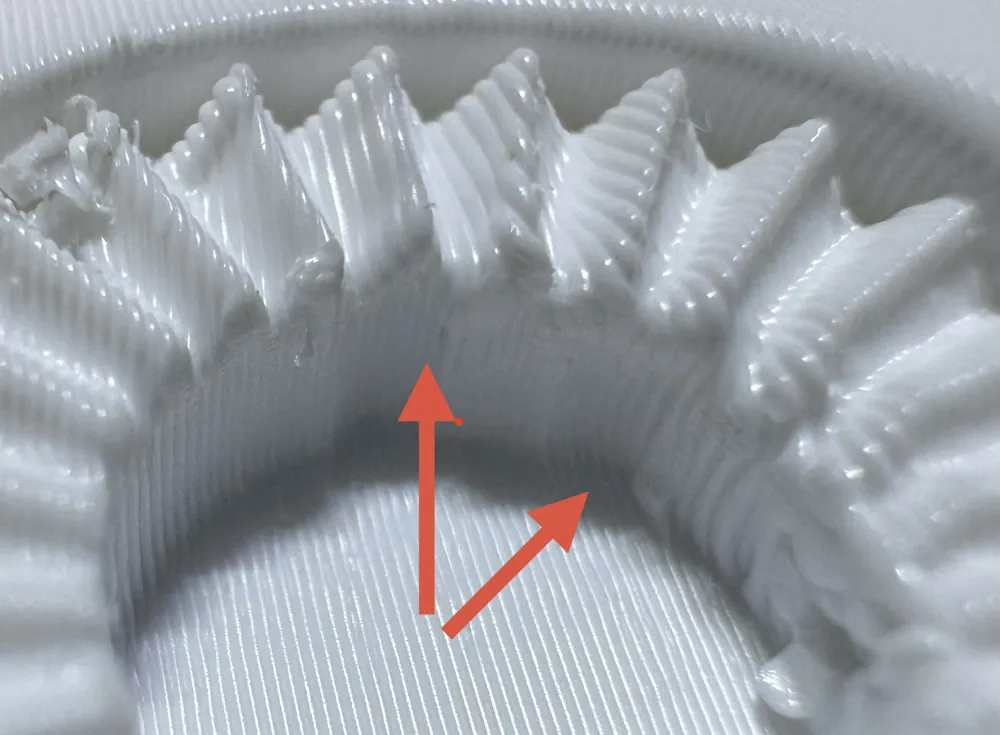

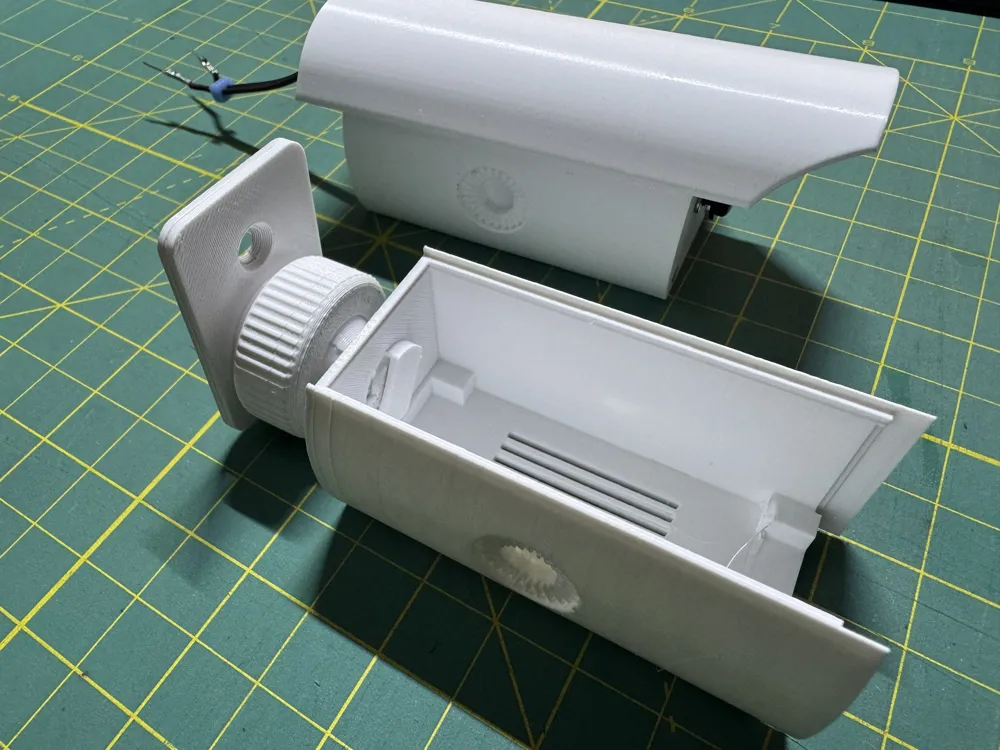

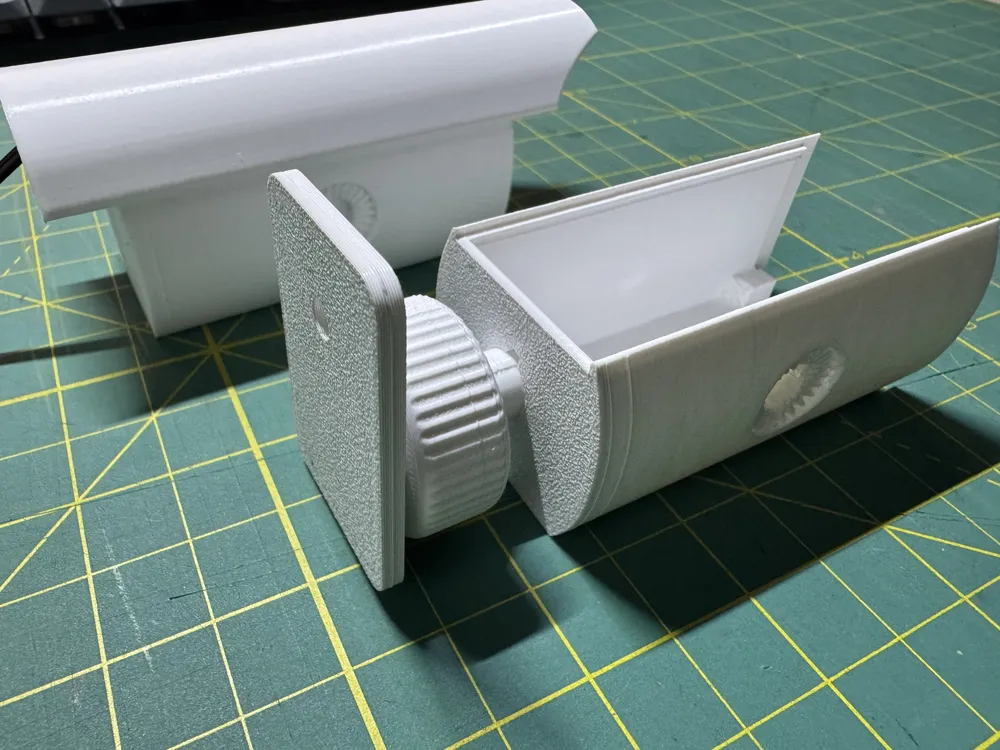

- Indexed swivel mount – a toothed adjustable joint with a locking pin. The pin is inserted in the vertical position, then rotated approximately 40° clockwise to lock it securely in place.

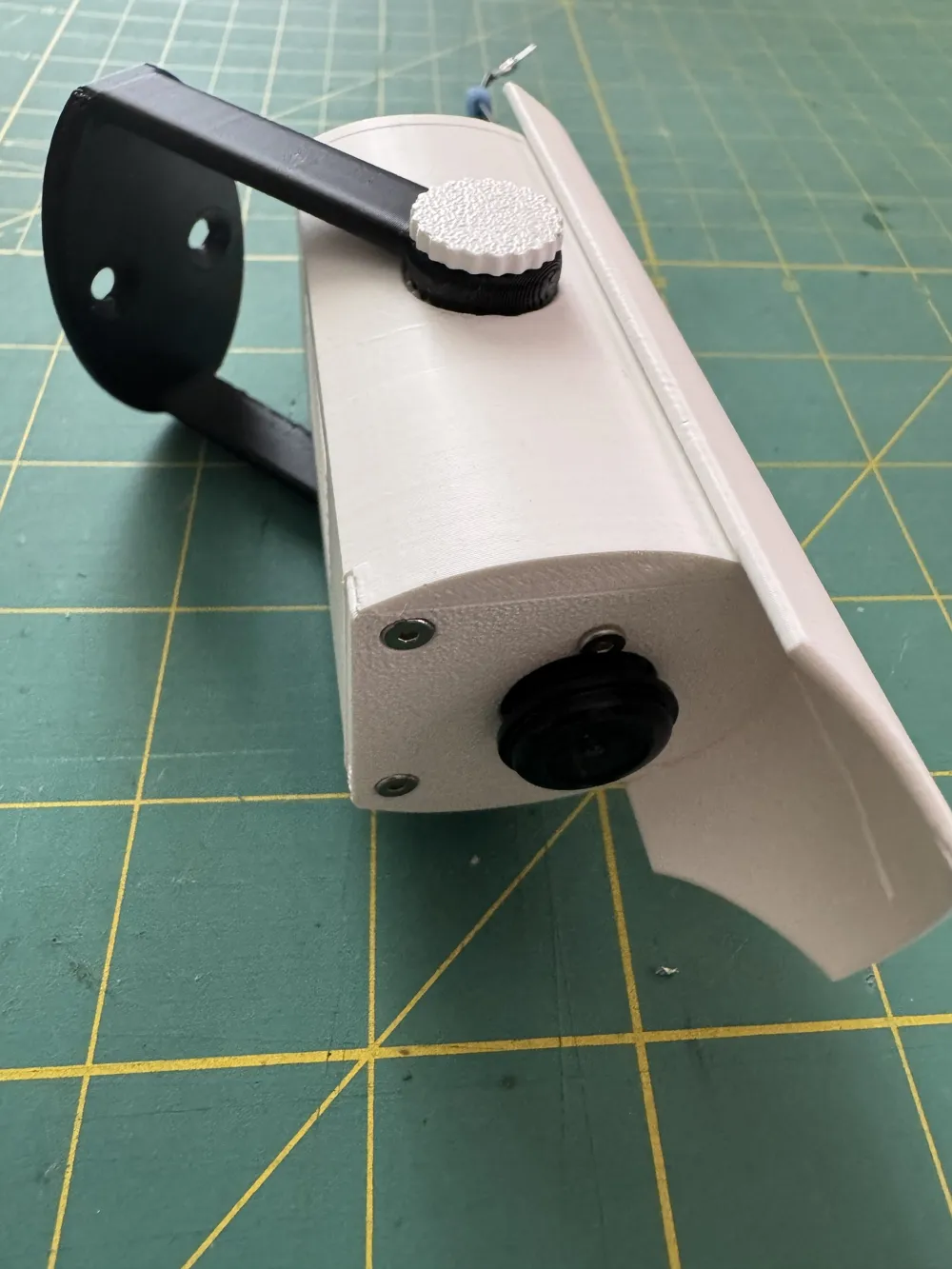

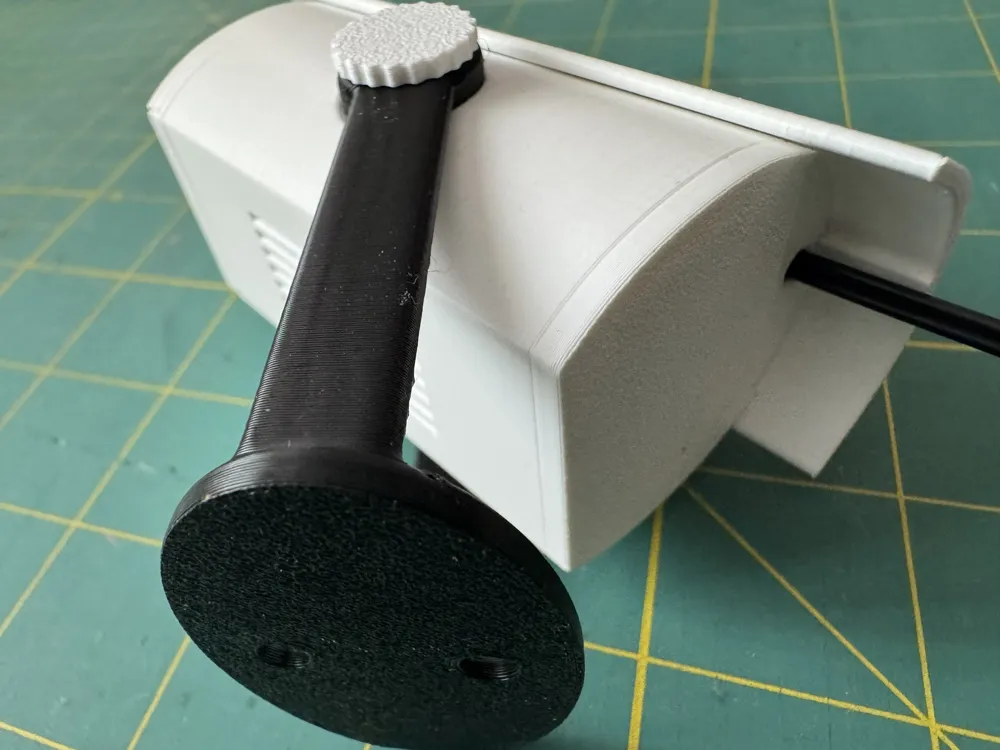

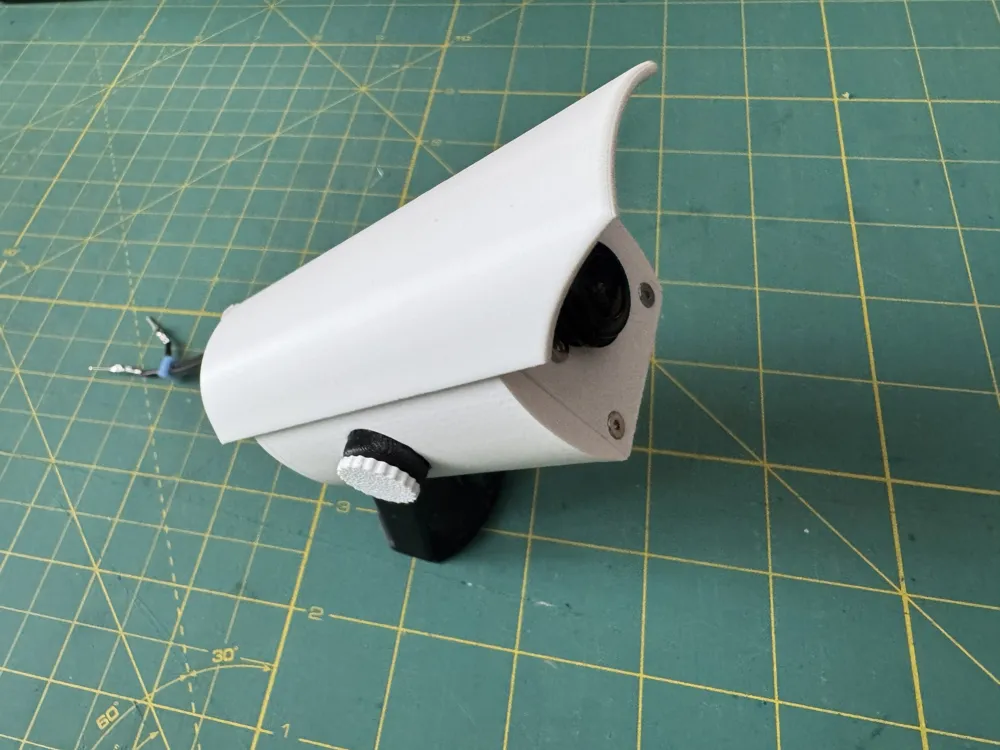

- Ball-joint mount – an adjustable ball-and-socket joint tightened with a clamping mechanism.

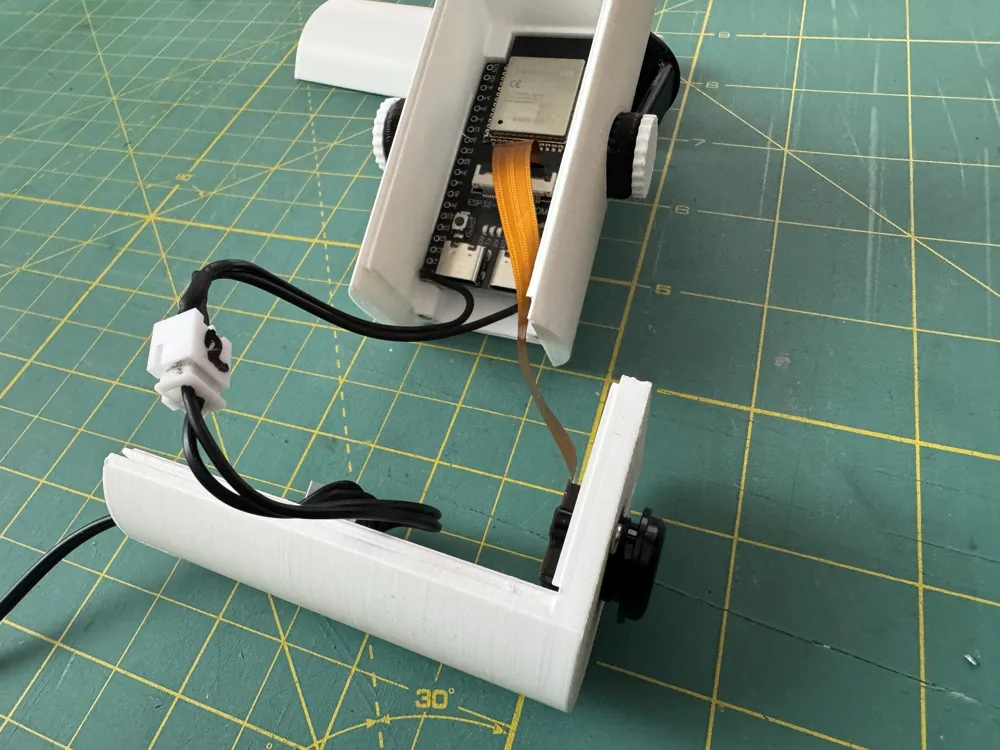

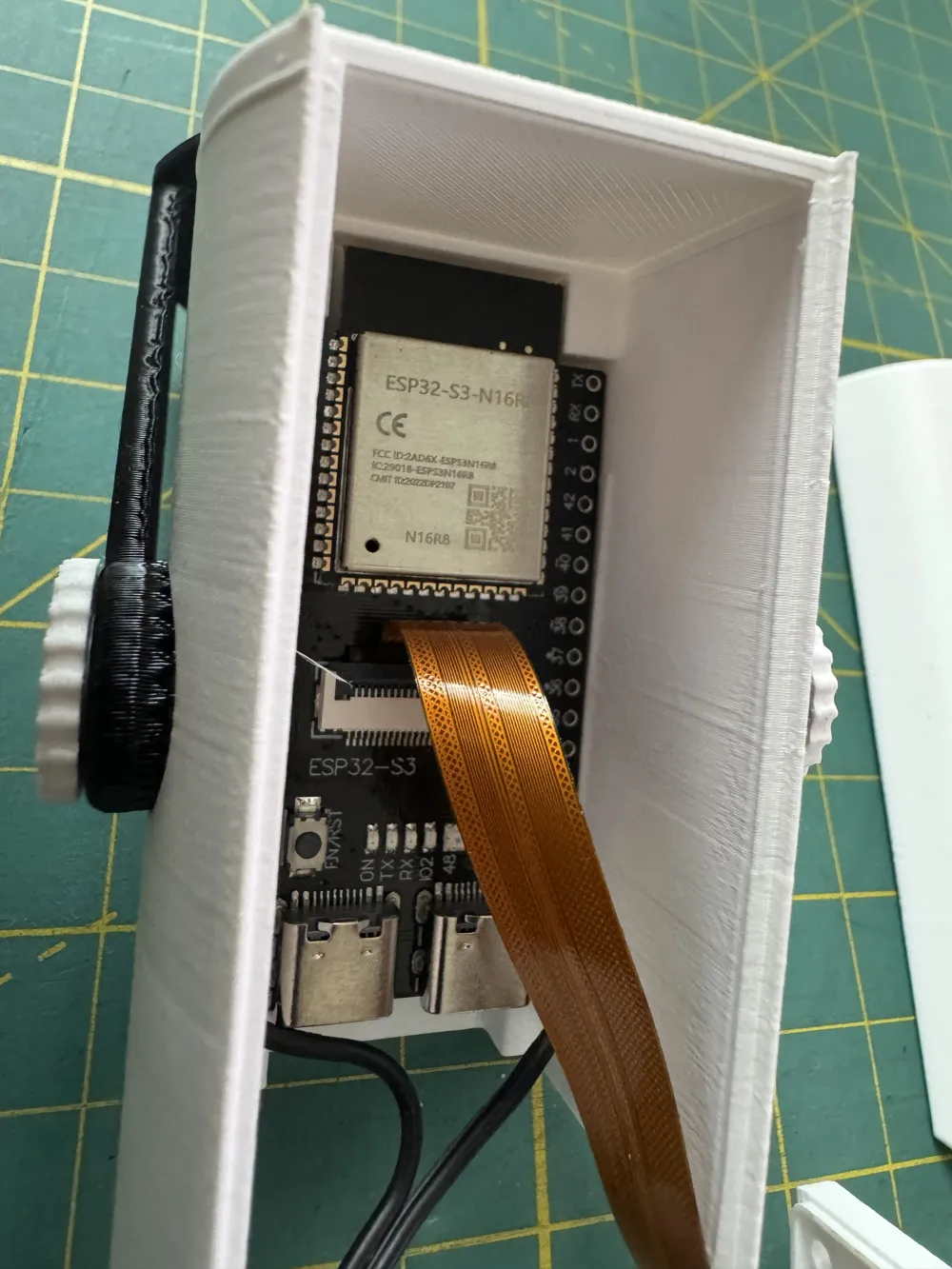

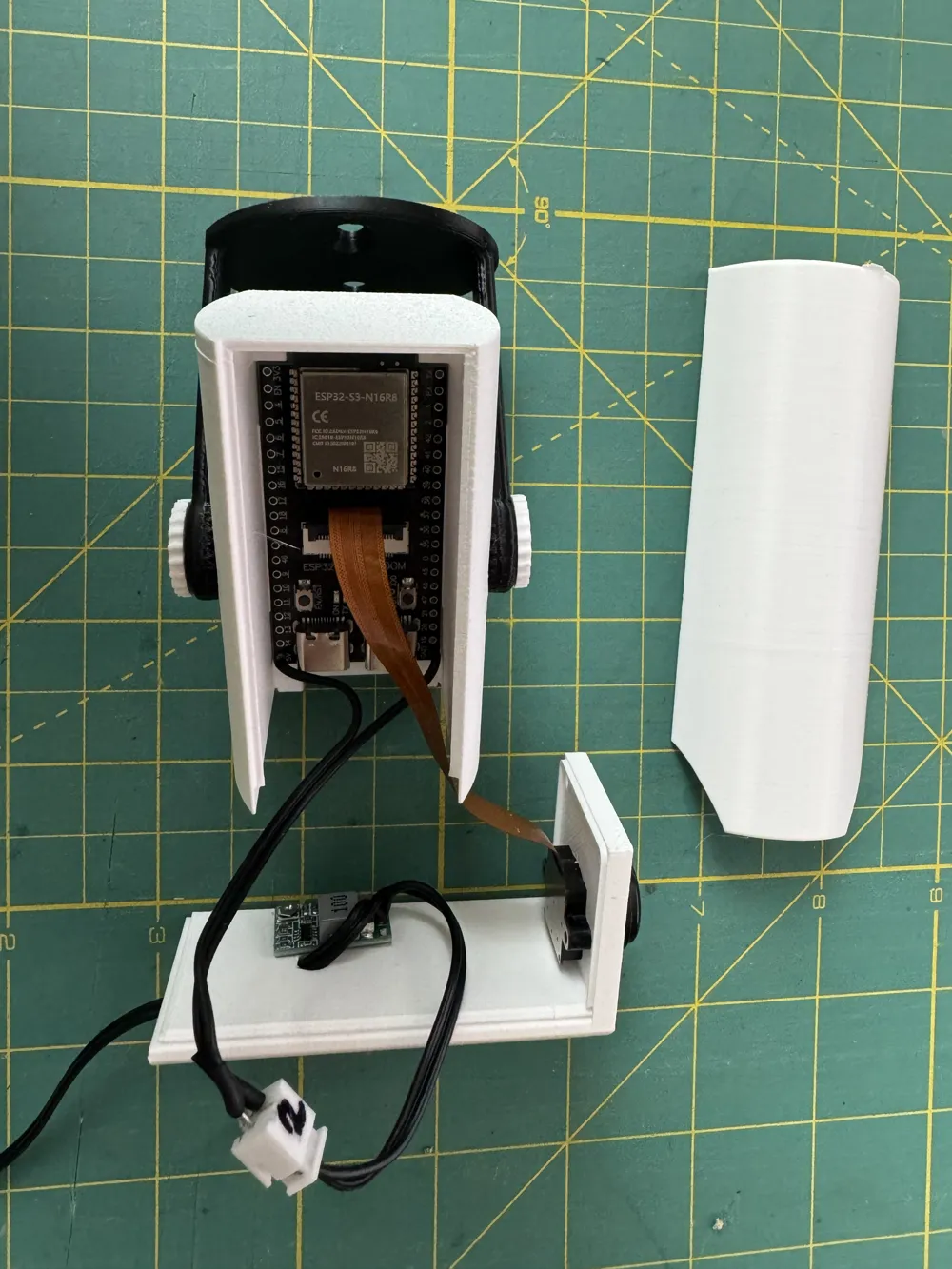

The design is intended for use with an ESP32-S3-WROOM camera board and an OV5640 camera module.
The upper housing includes a cable gland/opening for the power cable.
