ESP32-CAM Case Kit

Features:

micro-USB and USB-C
Snap-Fit
With or without USB-Mount (use usb-mount-dummy)
Boot and Reset button
Led hole

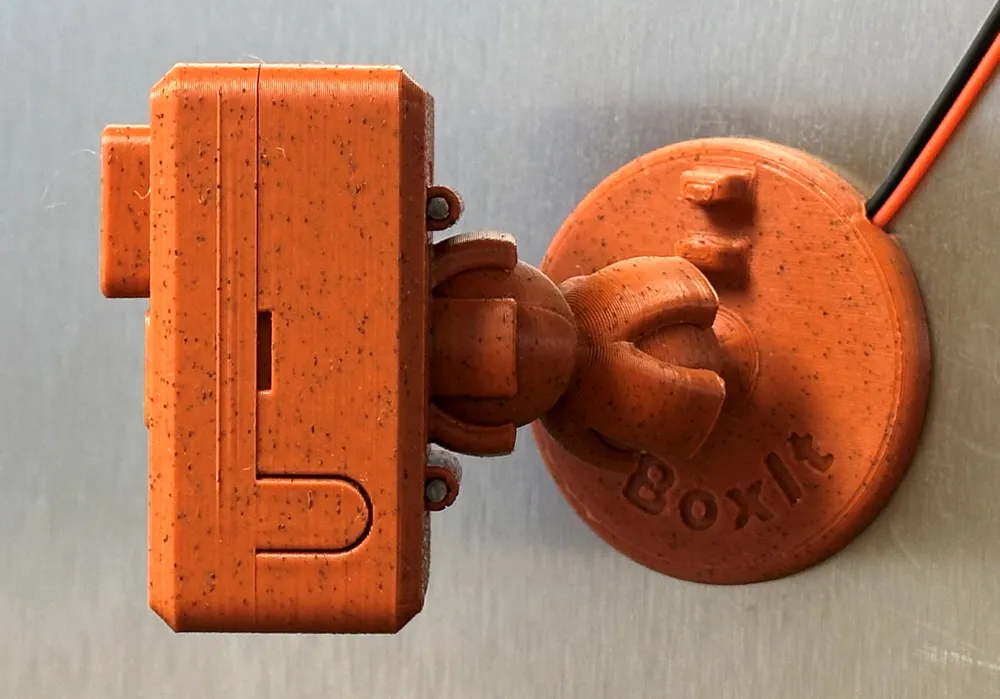

Ball Mount Stand (Optional magnetic 8x2mm)
Ball Mount wall mount (screw or magnetic 8x2mm)
Fix the ball joint to the case with a peace of firlament
Tested with several different ESP-CAM's
(If you have issues fitting your ESP-CAM into the case, just contact me and we find a solution)
If directly power connected, you can put the cable through the ball mount!
If connected via USB-Cable, you can clip the cable to the mount

Printing:

No support needed
0.16mm Optimal

Changes:

2025-03-27 Some improvements to the Join Socket
2025-03-27 Added Cam Mount with bigger lens hole (10.4mm)
2025-03-27 Added Side Bar Mount for 14mm diameter
2025-04-02 Added USB Cap
2025-04-02 Added Dash Cam Mount
