LED Matrix Enclosure 16x32/16x16 - ESP32 + WLED
Print Profile(2)
Bill of Materials
- XIAO ESP32S3 x 1: https://amzn.to/3RkjjHZ
- BTF-LIGHTING 2 Pack WS2812B ECO RGB Individual Addressable 16X16 256 Pixel LED Matrix x 1: https://amzn.to/4wm1fMr
Description
Boost Me (for free)
Enjoying this design? If it earned a spot on your wall or desk, a Boost helps more than you'd think. It costs you nothing and keeps free, well-tested designs like this one coming. 🚀
Membership
Want to sell prints of this? All my designs are free for personal use, but if you want to print and sell them, my Commercial License Membership has you covered. Tiers for every size of operation, from selling at local markets to running a full online store with white-label rights. Check the membership tab on my profile for details.

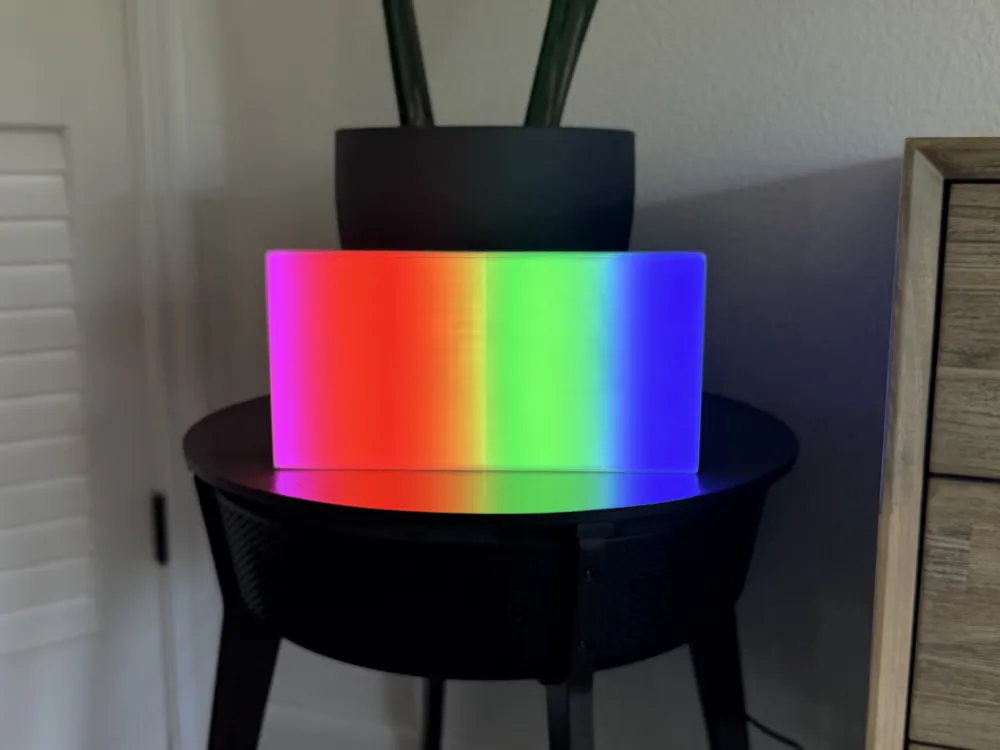

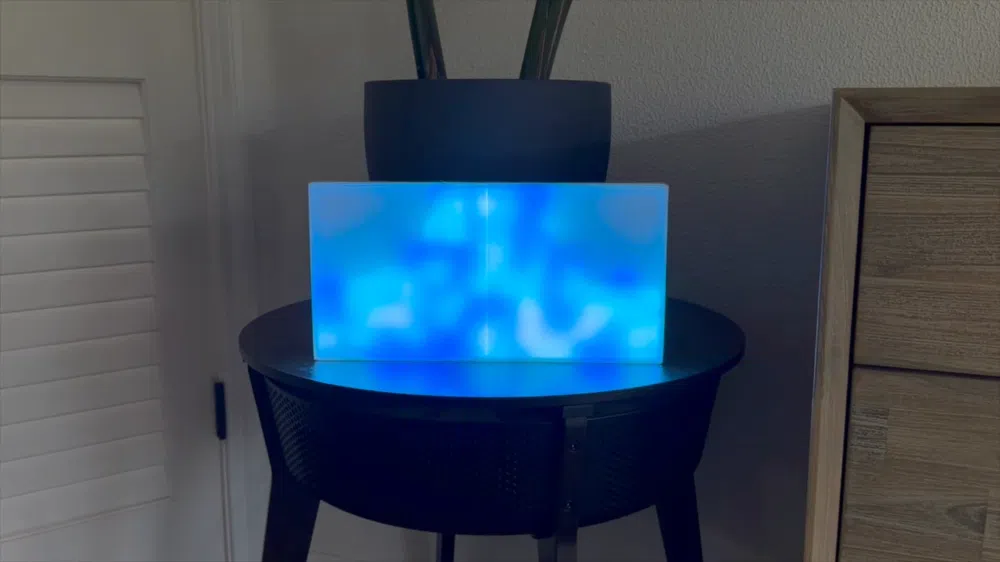

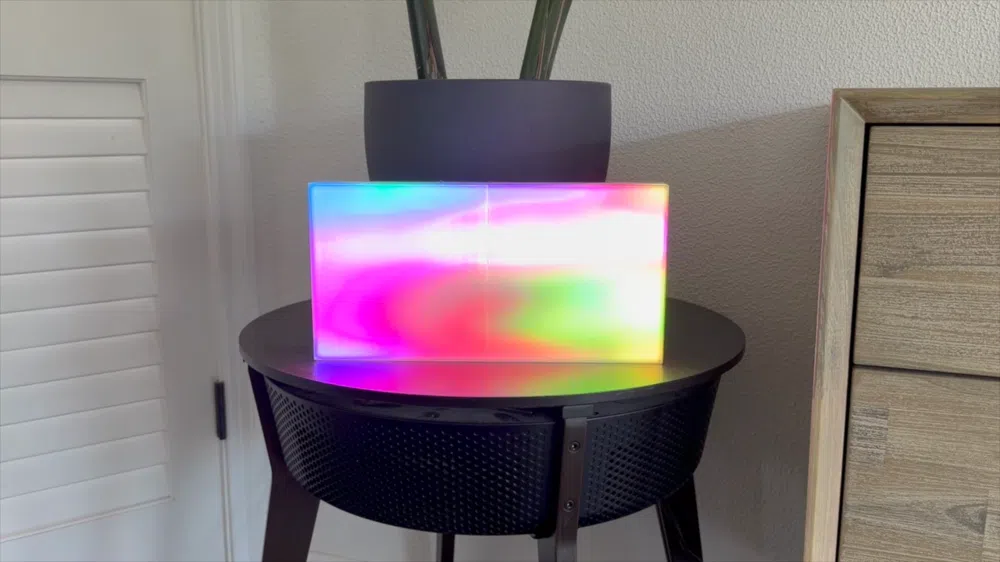

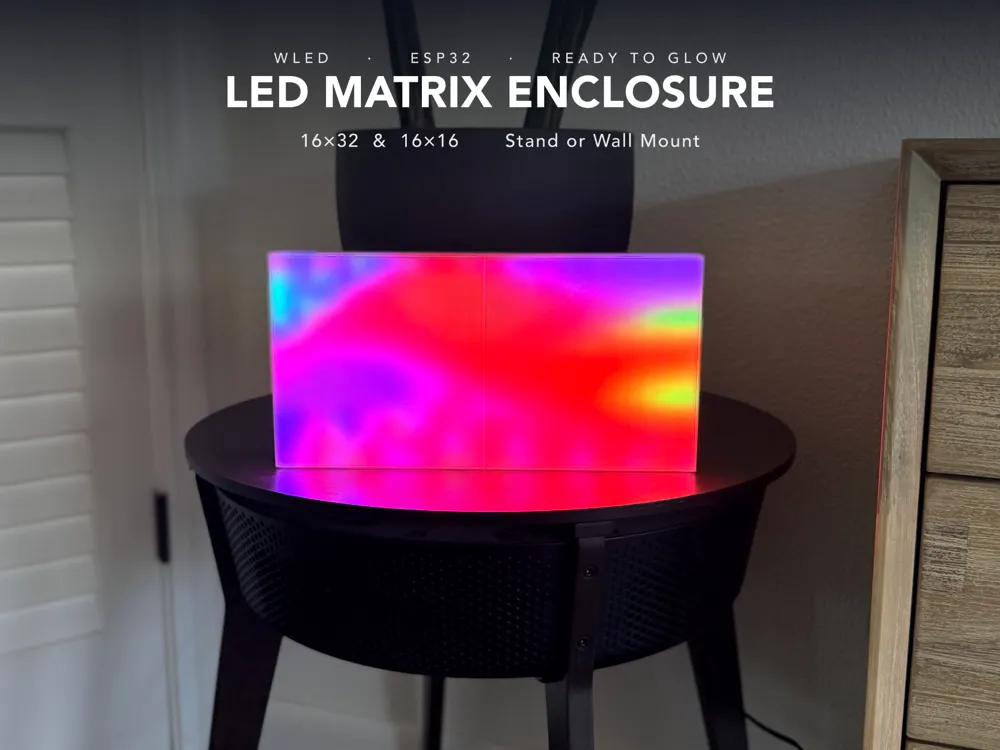

Give your LED matrix a home it deserves
This is a clean, ventilated enclosure for 16x32 and 16x16 WS2812B LED matrix panels with the ESP32 controller living right inside. No external control box, no dangling electronics, no zip-tie shame. One enclosure, one power wire, done.
Flash your ESP32 with WLED, drop everything in, and you've got a self-contained pixel display that looks like a finished product instead of a breadboard experiment.
Built for real hardware, not just renders

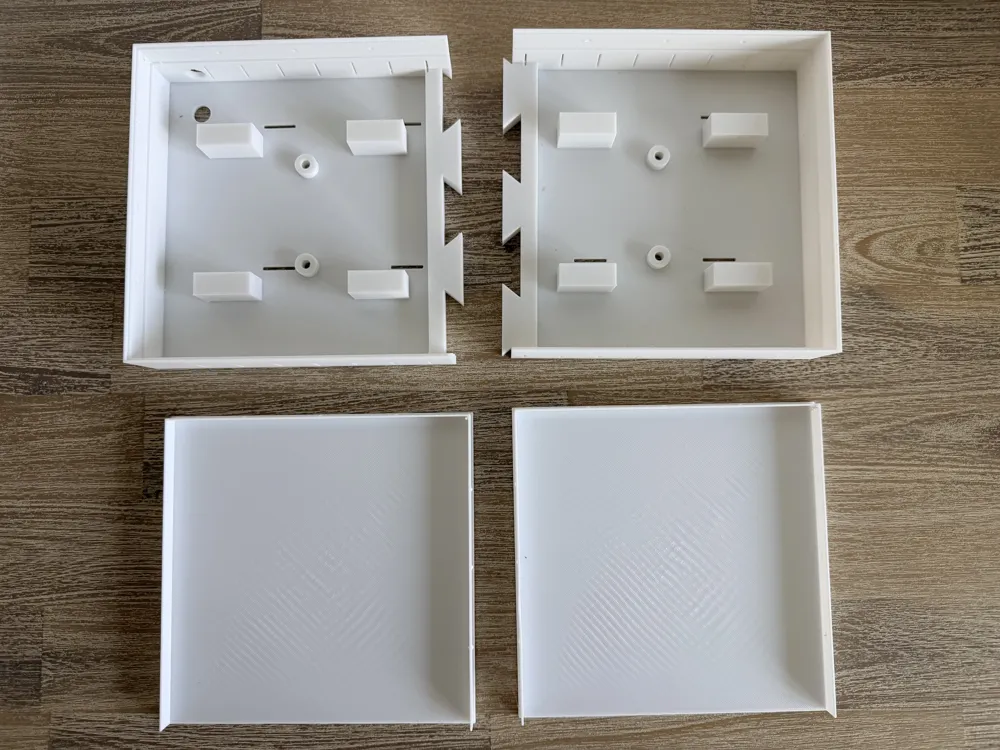

The matrix sits on internal pillars, leaving a full chamber underneath for the ESP32, wiring, and connectors. Nothing gets squeezed, nothing presses against the back of the panel.
Airflow everywhere. LED panels get warm at higher brightness, so the enclosure has ventilation holes all the way around plus open space under the panel for air to actually move. Your LEDs and your ESP32 stay cool during long runs.
Cable routing your way. There are two power wire exits: one on the back side and one on the bottom wall. Standing on a desk or shelf? Use the back exit and the wire disappears behind the enclosure. Wall mounted? Pick whichever suits your setup, straight out the back or down through the bottom.
Stand it or hang it

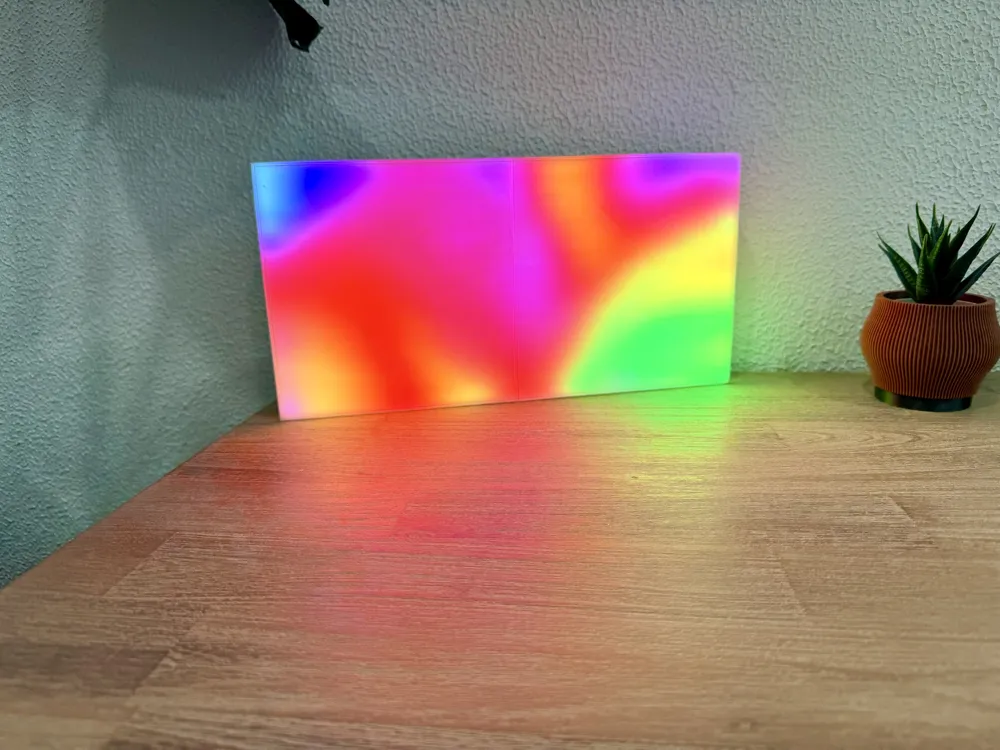

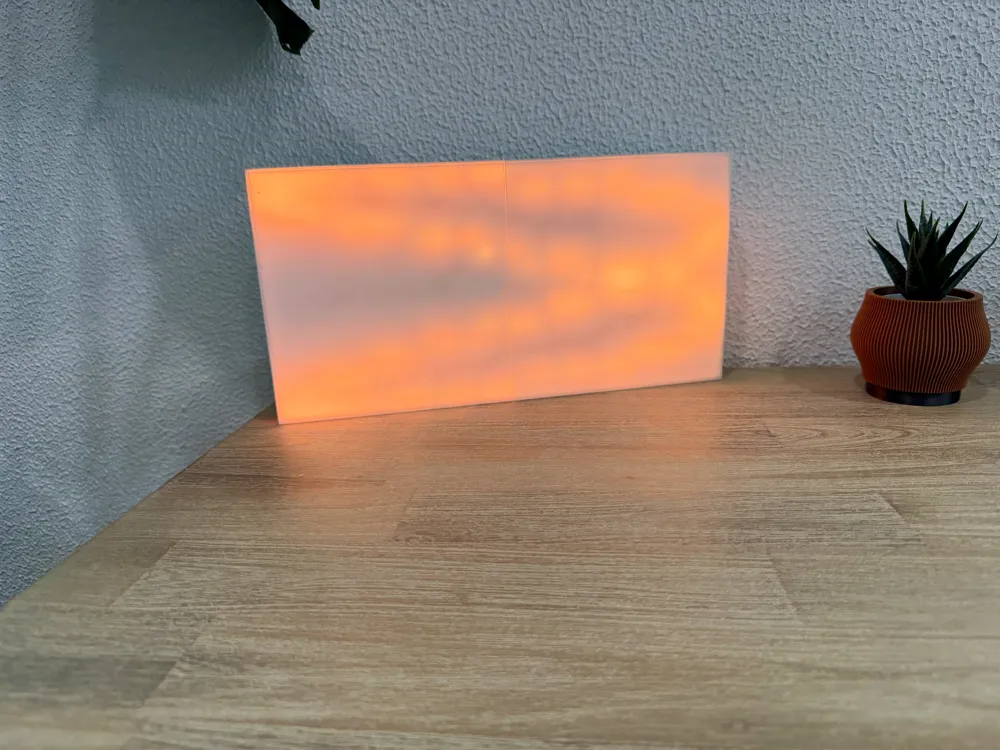

- Free-standing on a desk, shelf, or nightstand
- Wall mountable with built-in mounting holes on the back
What fits inside
- 16x32 or 16x16 WS2812B LED matrix panel
- ESP32 dev board
- Power and data wiring, connectors, all internal
Why you'll like it
- Fully enclosed electronics, only one wire leaves the case
- Pillar-supported panel with airflow chamber underneath
- Vent holes on all sides for heat management
- Two cable exit options (back and bottom)
- Wall mount holes built in
- Pairs perfectly with WLED audio-reactive and 2D matrix effects
Get the matrix panel I used

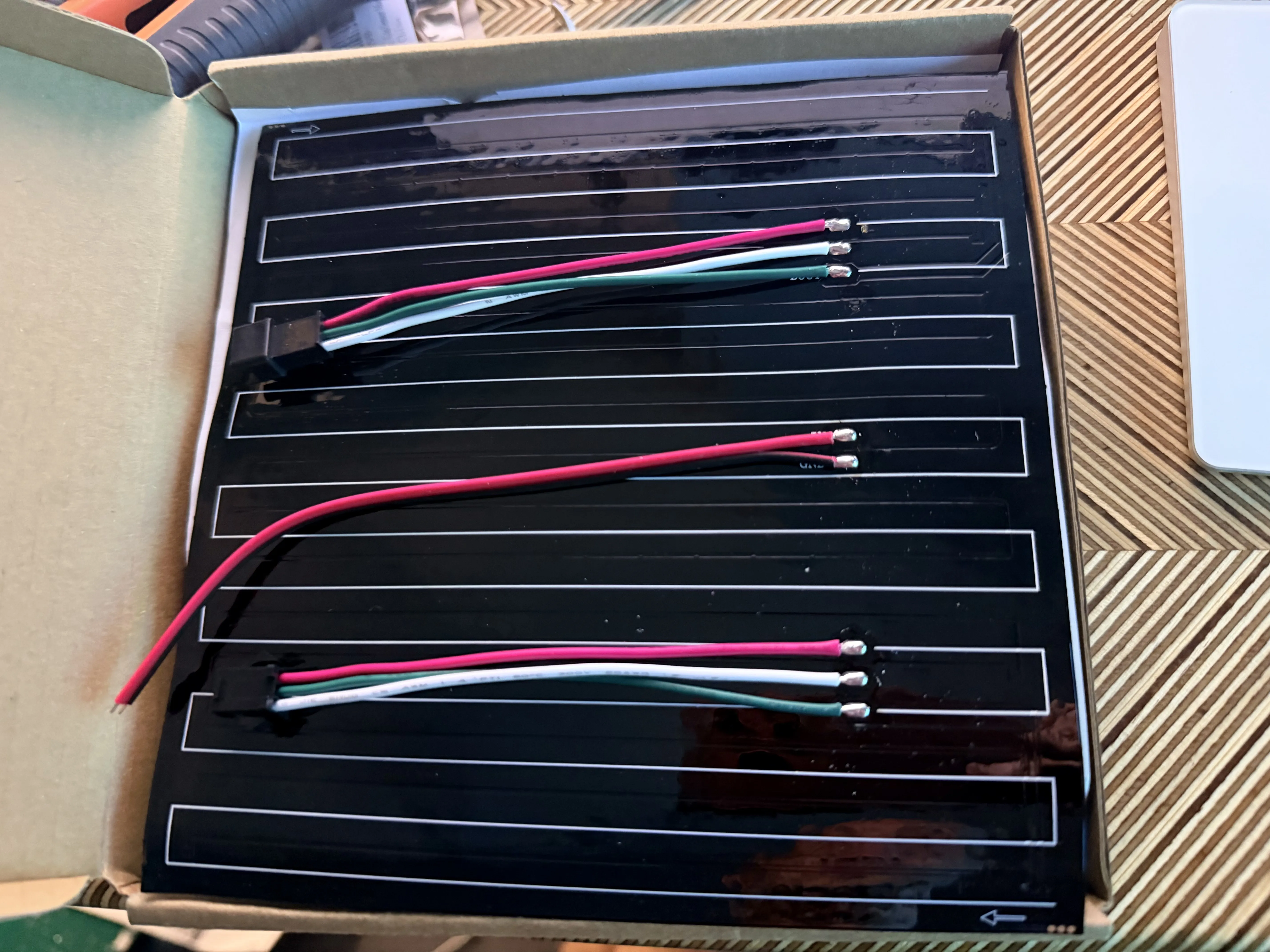

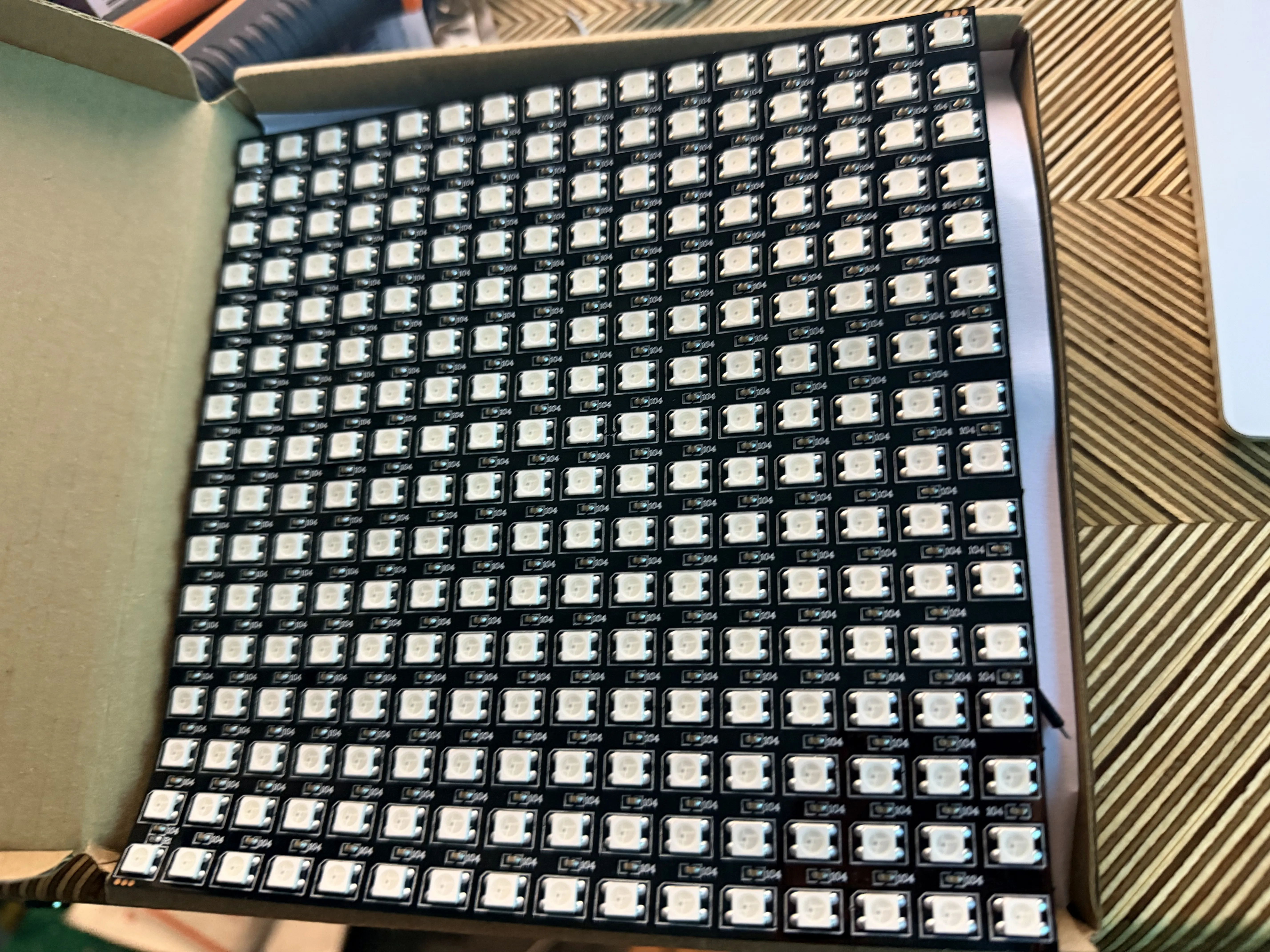

The exact WS2812B matrix panel I used for this build is linked in the parts list above (BTF-LIGHTING 2 Pack WS2812B ECO).
As an Amazon Associate I earn from qualifying purchases, at no extra cost to you. Amazon links on this page, including in the parts list, are affiliate links.
To control the matrix

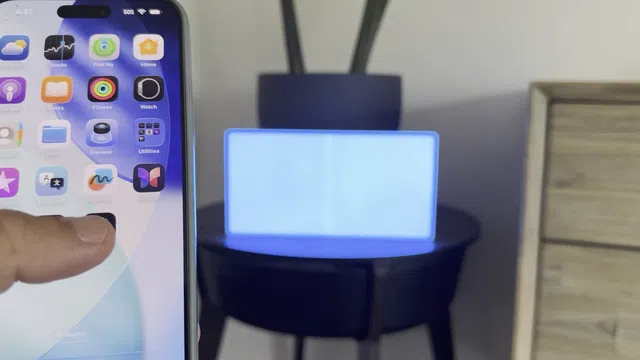

I use the WLED Max app ( iOS / Android ), great 2D matrix support, live effect previews, and audio-reactive effects.
Print notes
- No supports needed
- PETG or ASA recommended (make sure you have the right power supply and check matrix temp on full brightness and LEDs set to white)
- Print in the sliced orientation
